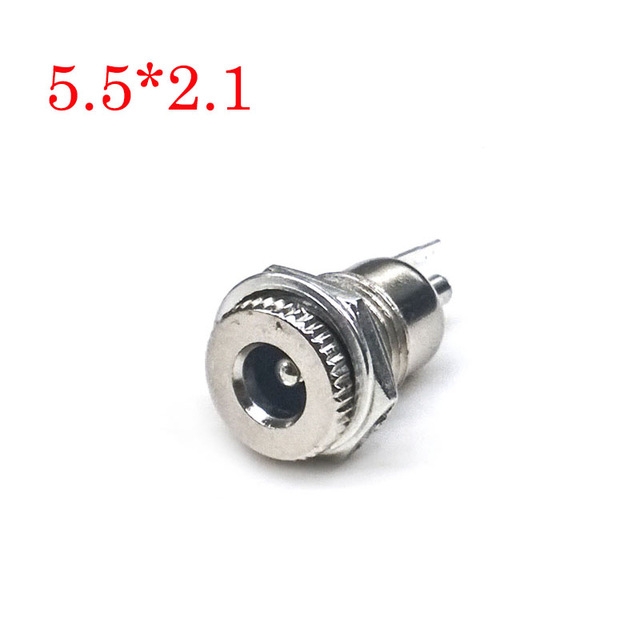

10 PCS DC099 5.5x2.1 Power Jack Socket Female Panel Mount Connector(5.5x2.1)

Product Description

1. Model:DC099 2.Metal Material:Metal 3.Operating temperature range:-30-70 Degrees Celsius 4.Rated load: DC 30V 5A 5.Contact resistance :≤0.03Ω 6. Insulation resistance:≥100MΩ 7.Withstand voltage:AC 500V (50Hz) / min 8.Insertion and extraction force:3-20N

Specifications

SKU

TBD063129101A

Category

Home & Garden › LED Accessories › Connector & Plug

Weight

0.016 kg

Delivery

Standard delivery
