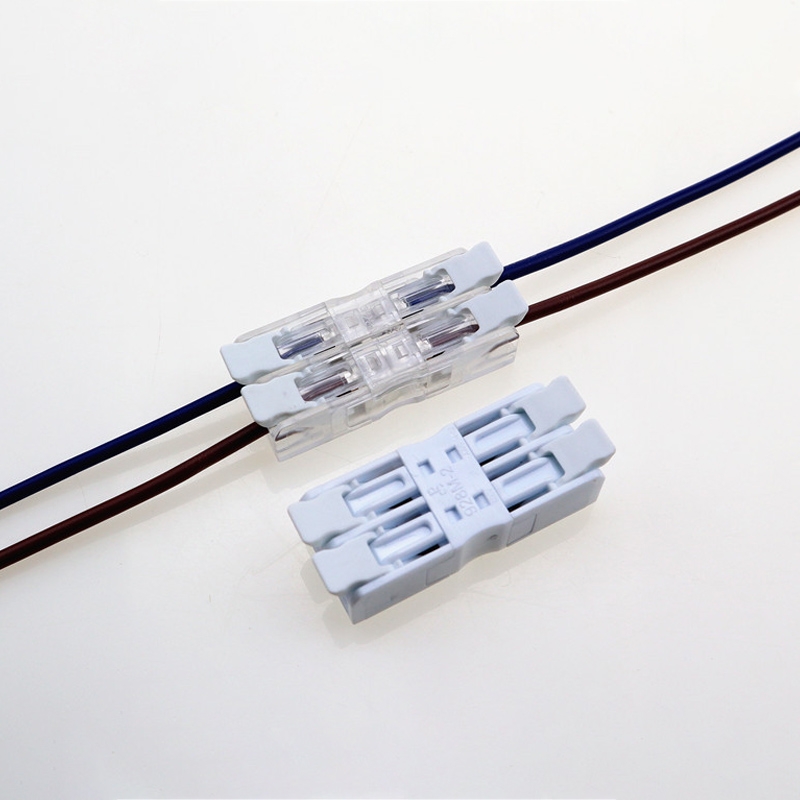

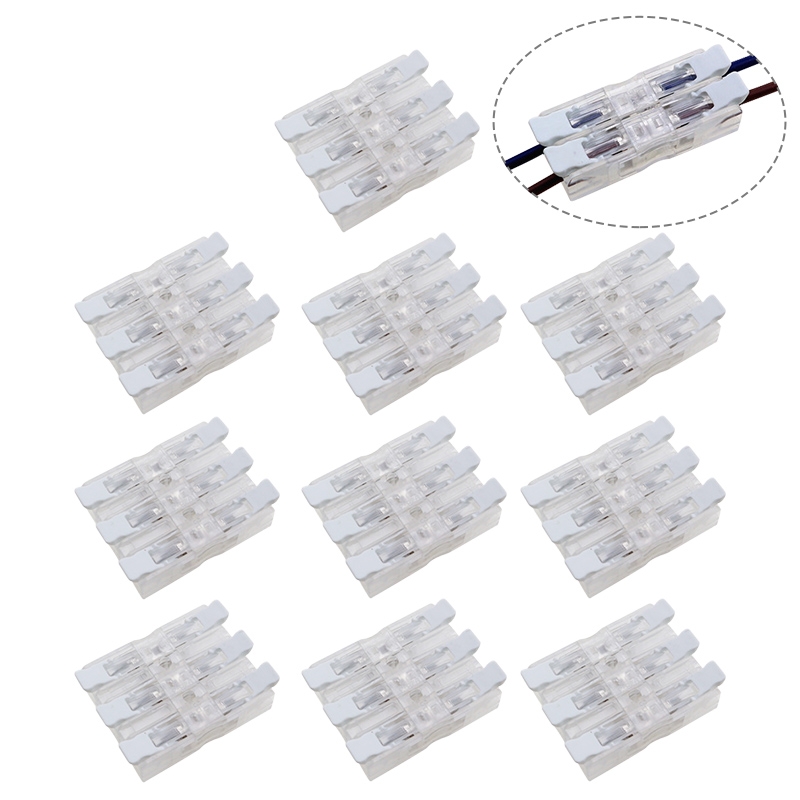

10 PCS Fast Terminal Block 2P Dual Pressing Terminal Connector Spring-Type Un-Lock Screw Connector, Specification: 928-3 Transparent Wide

Product Description

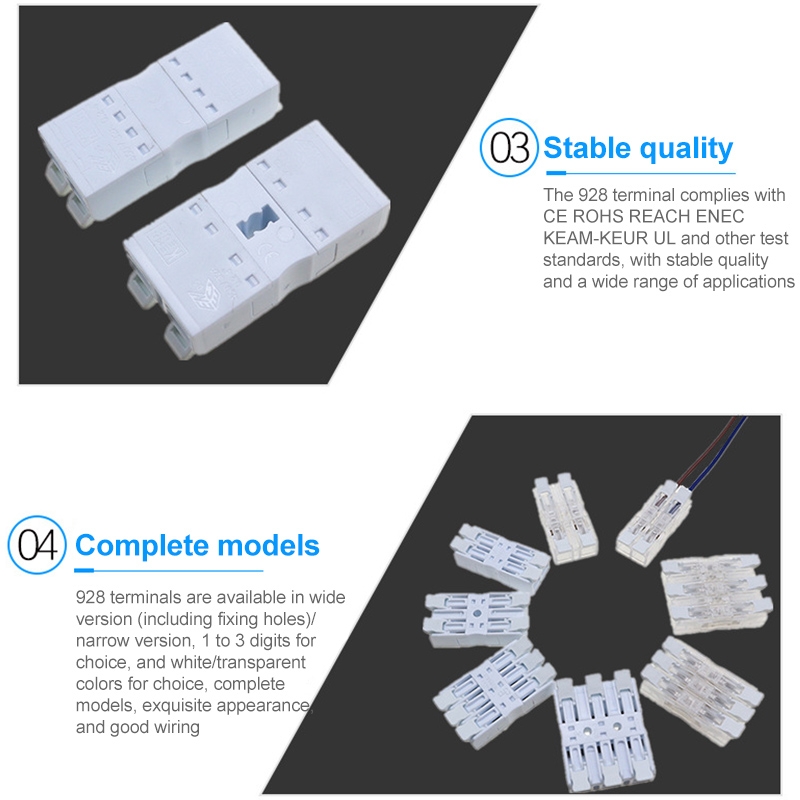

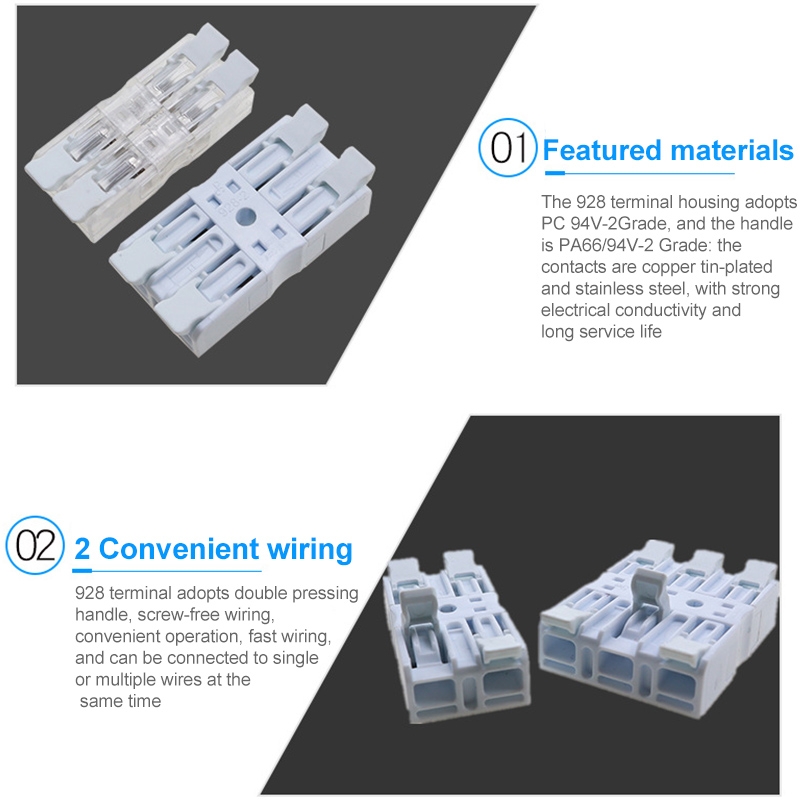

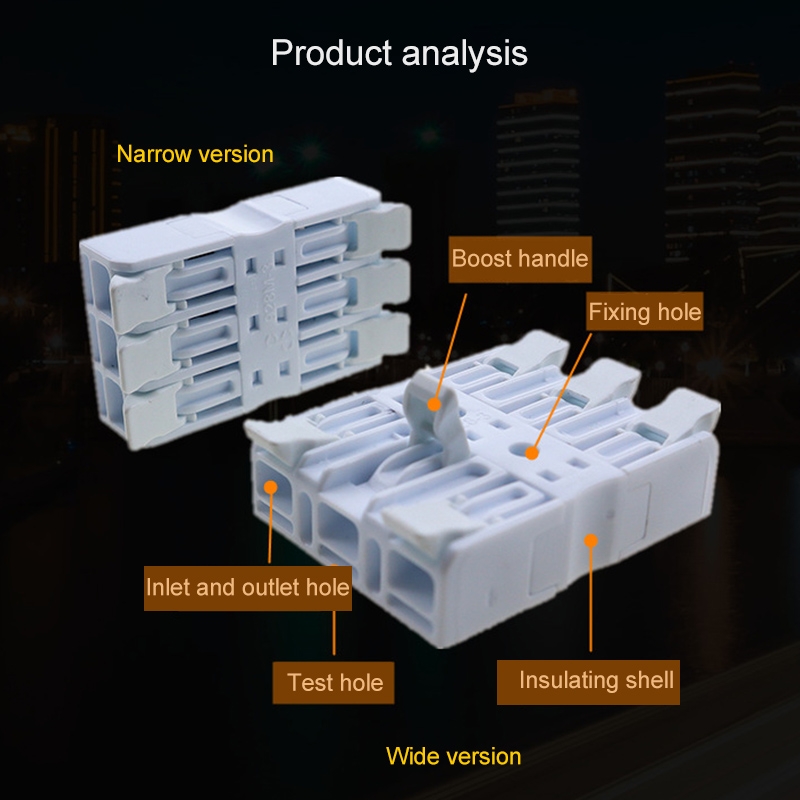

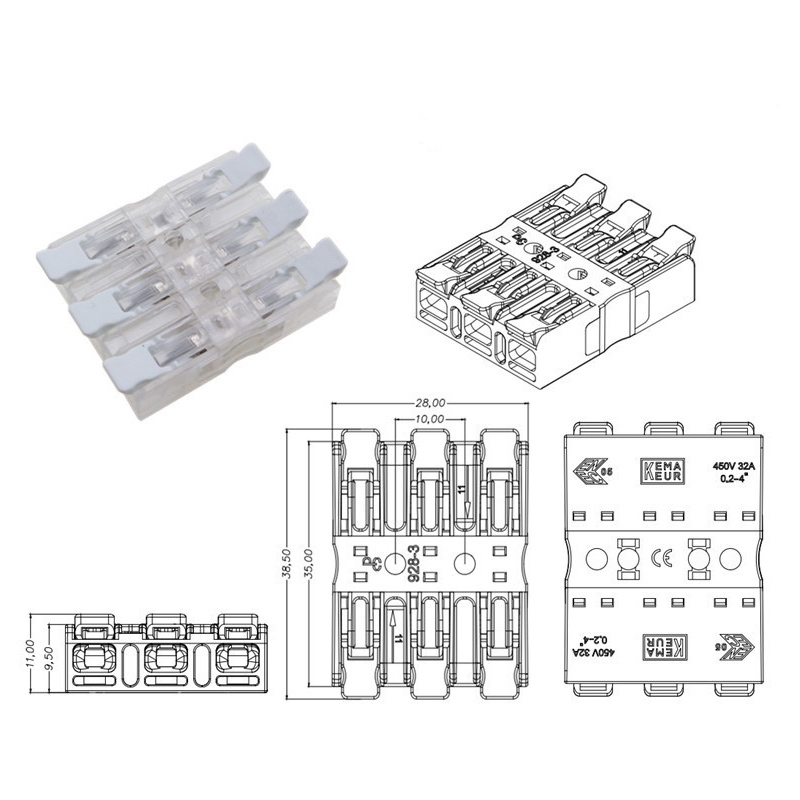

1. The shell adopts PC 94V-2 Grade, the handle is PA66/94V-2 Grade, and the contacts are copper tin-plated and stainless steel, with strong conductivity and durability. 2. Convenient wiring, double pressing handles, screw-free wiring, convenient operation, fast wiring, and single or multiple wires can be connected at the same time 3. Stable quality, wide application range, complete models, wide version (including fixing holes)/narrow version optional, beautiful appearance 4. Application scenarios: Mainly used in the connection parts of electrical wires, such as electromechanical, electrical control, power supply, lighting appliances, machinery, etc. 5. Material: PA66/PC 6. Current: 32A 7. Voltage: 450V (IEC), 600V (UL) 8. Wire diameter: 0.2-4.0 square millimeter, AWG12-24 9. Dimensions: 928-2 wide version is about 38.5x18x11 mm/piece, 928-3 wide version is about 38.5x28x11 mm/piece, 928-M2 narrow version is about 38.5x14.8x11 mm/piece, 928-M3 narrow version is about 38.5x21 .6x11mm/piece

Specifications

SKU

TBD0572285104

Category

Consumer Electronics › DIY Parts & Components › Connectors & Terminals

Weight

0.204 kg

Delivery

Standard delivery
