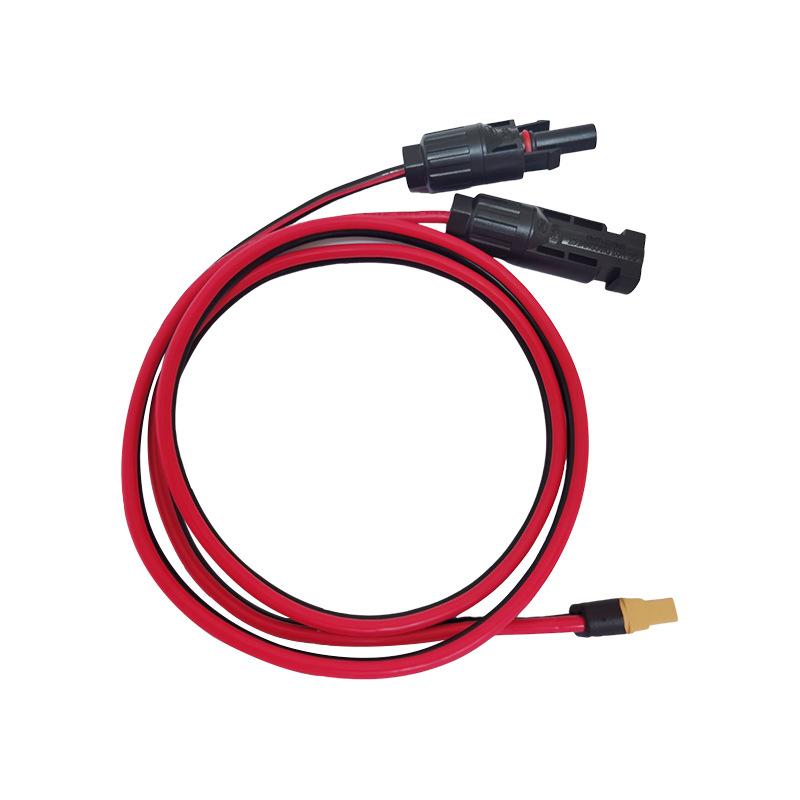

12AWG XT60 Female to MC4 Solar Connector Cable Solar Panel Charging Cord 3m

Product Description

1. This 12AWG solar charging cable is designed to connect solar panels and portable power stations. It features an XT60 female connector on one end and MC4 male/female solar connectors on the other, ensuring secure energy transfer for renewable energy systems. 2. Premium Cable Specifications: Constructed with 2468 12AWG tinned copper conductors, this cable offers low resistance and high current capacity. The OD of 4.0x8.0mm ensures durability while maintaining flexibility. 3. Multiple Length Options: Available in 0.6m, 1m, 1.5m, and 3m lengths to accommodate various installation setups and spatial requirements. 4. Safety & Durability: PVC insulation provides reliable protection against abrasion and environmental factors, with a rated operating temperature of up to 80 degrees Celsius for stable outdoor or indoor use. 5. Universal Compatibility: Compatible with most solar panels, portable power stations, and vehicle-mounted battery systems utilizing XT60 or MC4 connectors, ideal for off-grid charging solutions. Parameters: 1. Wire model: 2468 12AWG 2. Insulation material: PVC 3. Conductor material: tinned copper 4. Wire outer diameter: OD: 4.0x8.0mm 5. Rated temperature: 80 degrees Celsius

Specifications

SKU

TBD0606099004

Category

Consumer Electronics › Solar Power › Others

Weight

0.314 kg
