2.1 Channel Bluetooth Digital Power Amplifier Motherboard Module 12V Passive Subwoofer

Product Description

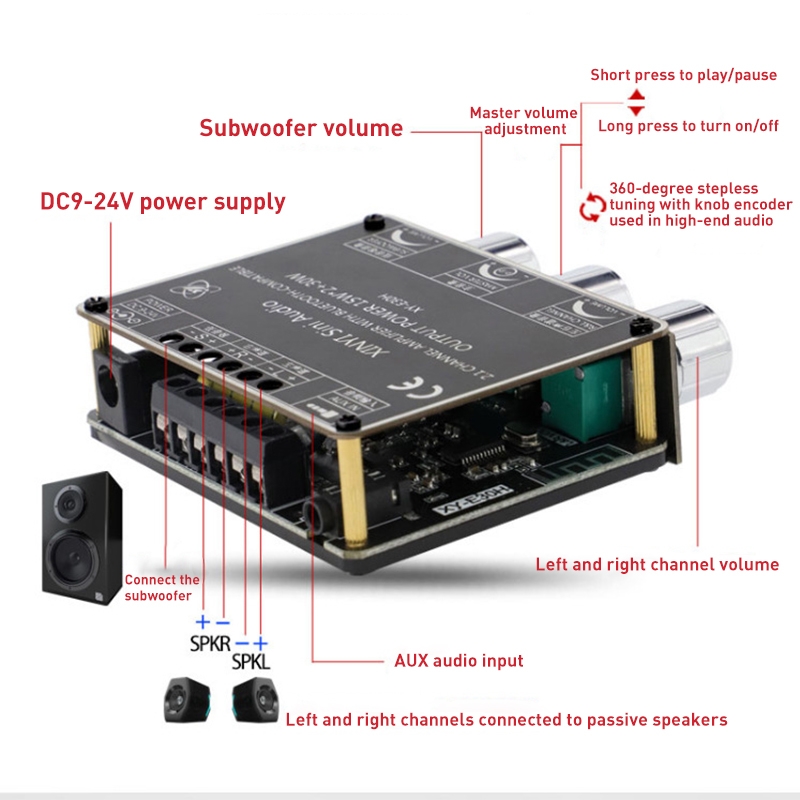

1. Product model: XY-E30H 2. Name: 2.1 channel for Bluetooth audio power amplifier board module 3. Power supply: DC9-24V/3A above 4. Bluetooth version: 5.1 5. Audio channel: 2.1 channel 6. Audio input: For Bluetooth + AUX 7. Audio output: left and right channels + subwoofer 8. Volume adjustment: high-end encoder knob adjustment feel smooth 9. Frequency range: 20HZ--30KHZ 10. Signal to noise ratio: 92dB 11. Output power: 15W x 2 (left and right channels) + 30W (subwoofer) 12. Satellite box (left and right channel) adapted speakers: 5W--30W/4 ohms--16 ohms 13. Subwoofer (subwoofer) adapted speakers: 5W--50W/4 ohms--8 ohms 14. Protection mechanism: electrostatic protection, overcurrent protection, short circuit protection, overheating protection 15. Unique function: Support Sinilink-APP, modify Bluetooth name setting, Bluetooth password close/open prompt sound 16. Dimensions: 70 x 73 x 20mm 17. Weight: 98g

Specifications

SKU

DIY0554

Category

Consumer Electronics › DIY Parts & Components › Breadboard / Amplifier Board

Weight

0.124 kg

Delivery

Standard delivery
