2.4G Wireless Transmitter Receiver Camera Transmitter Wireless Device for Truck and Bus(Black)

Product Description

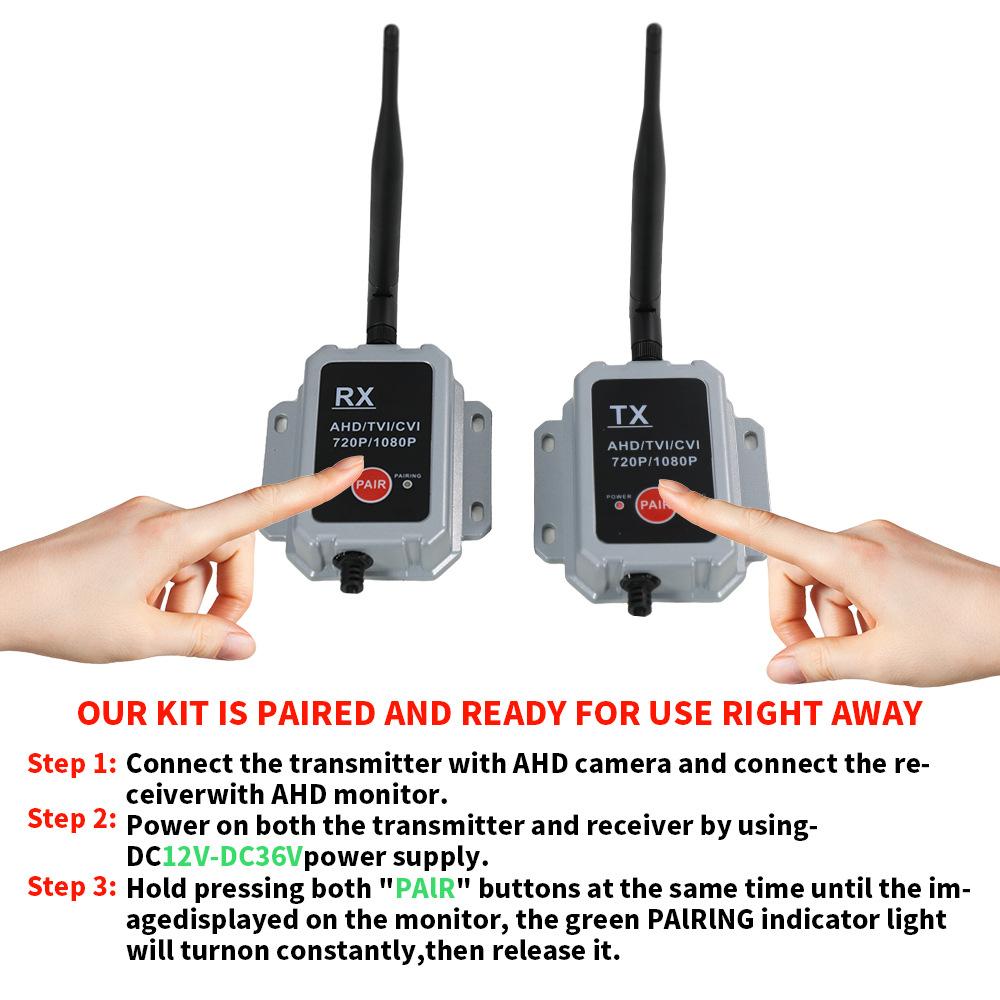

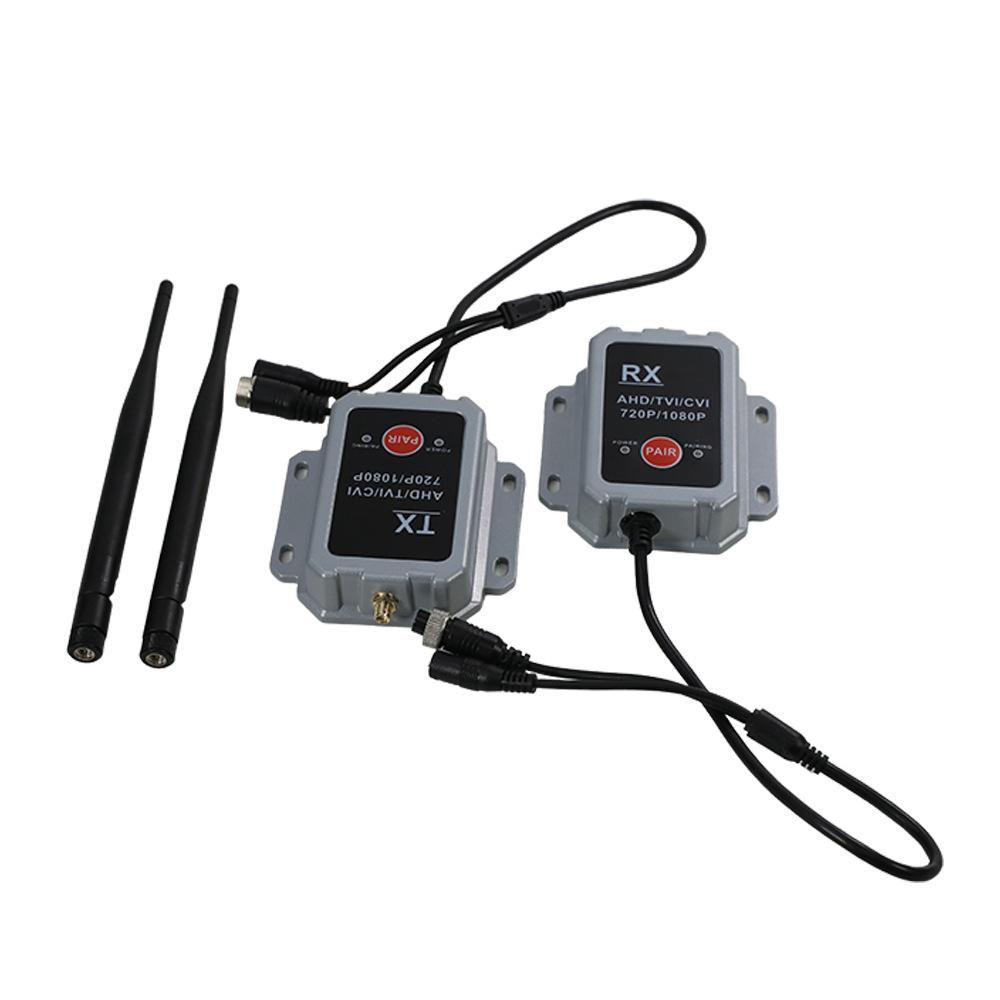

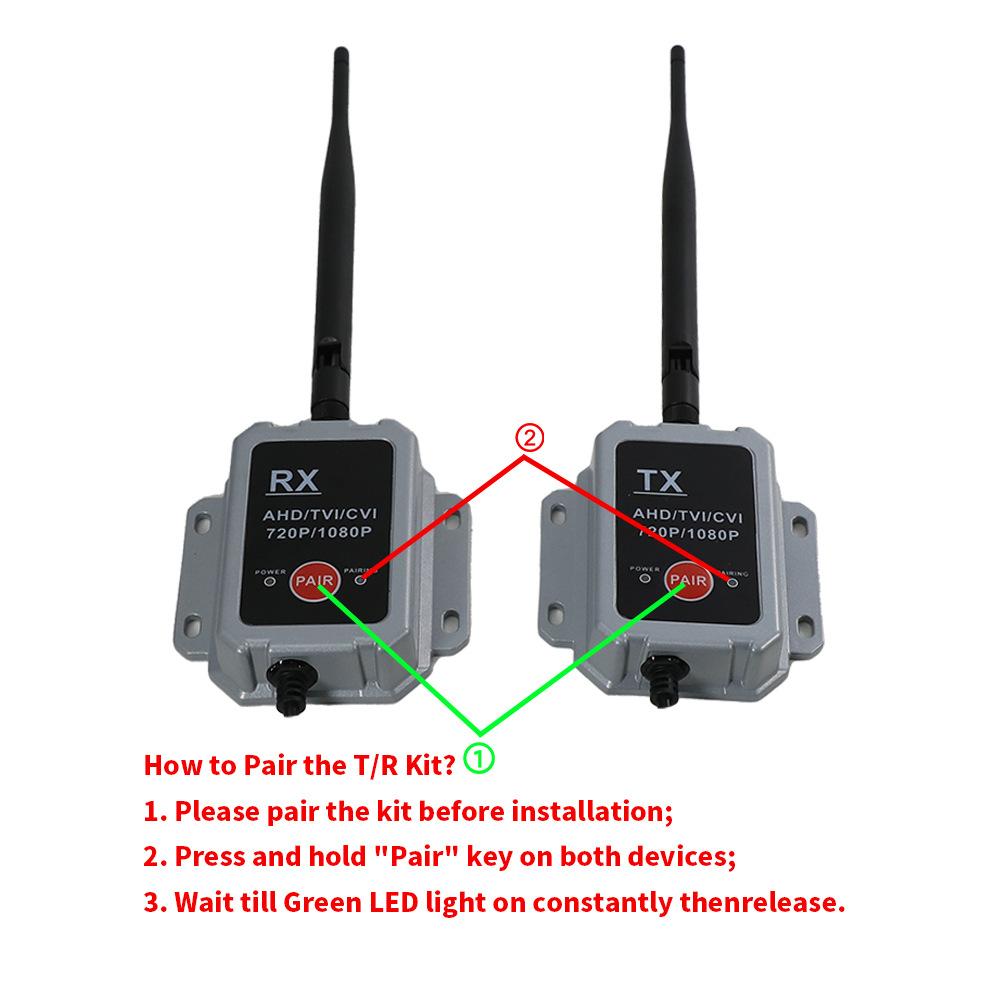

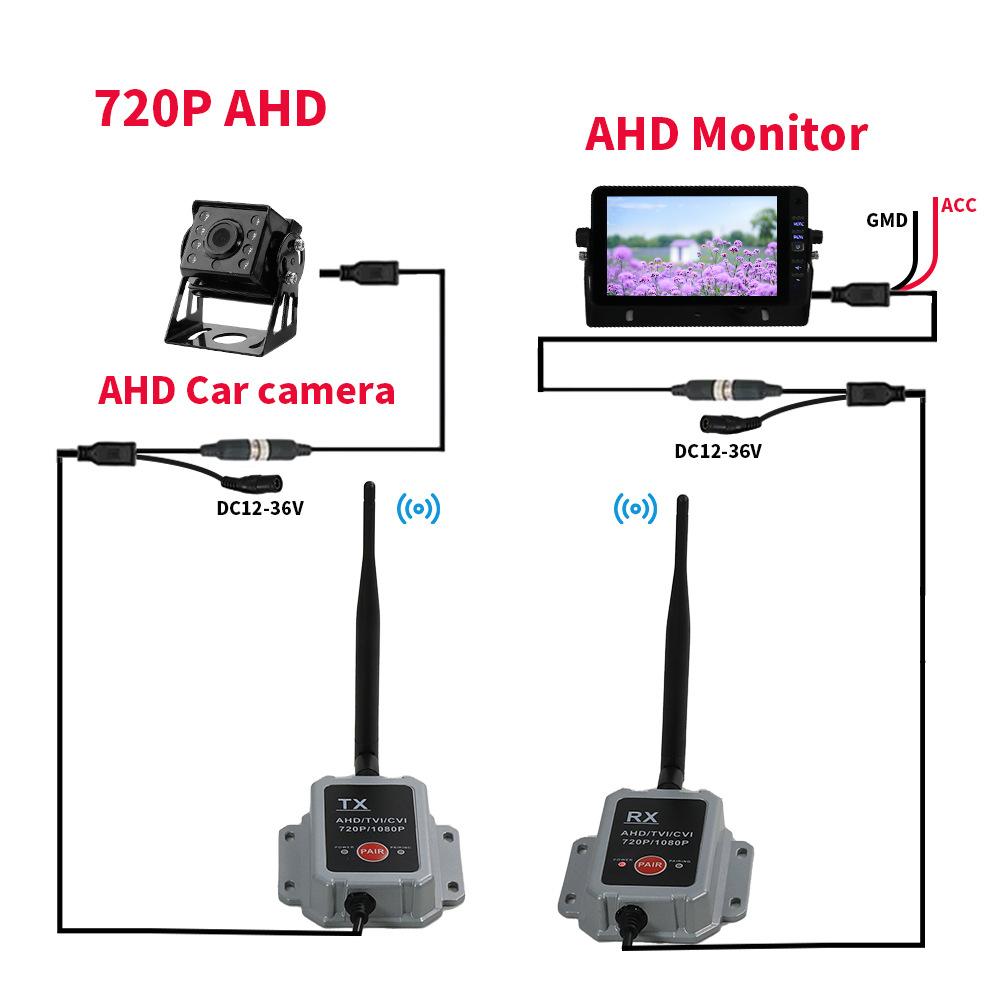

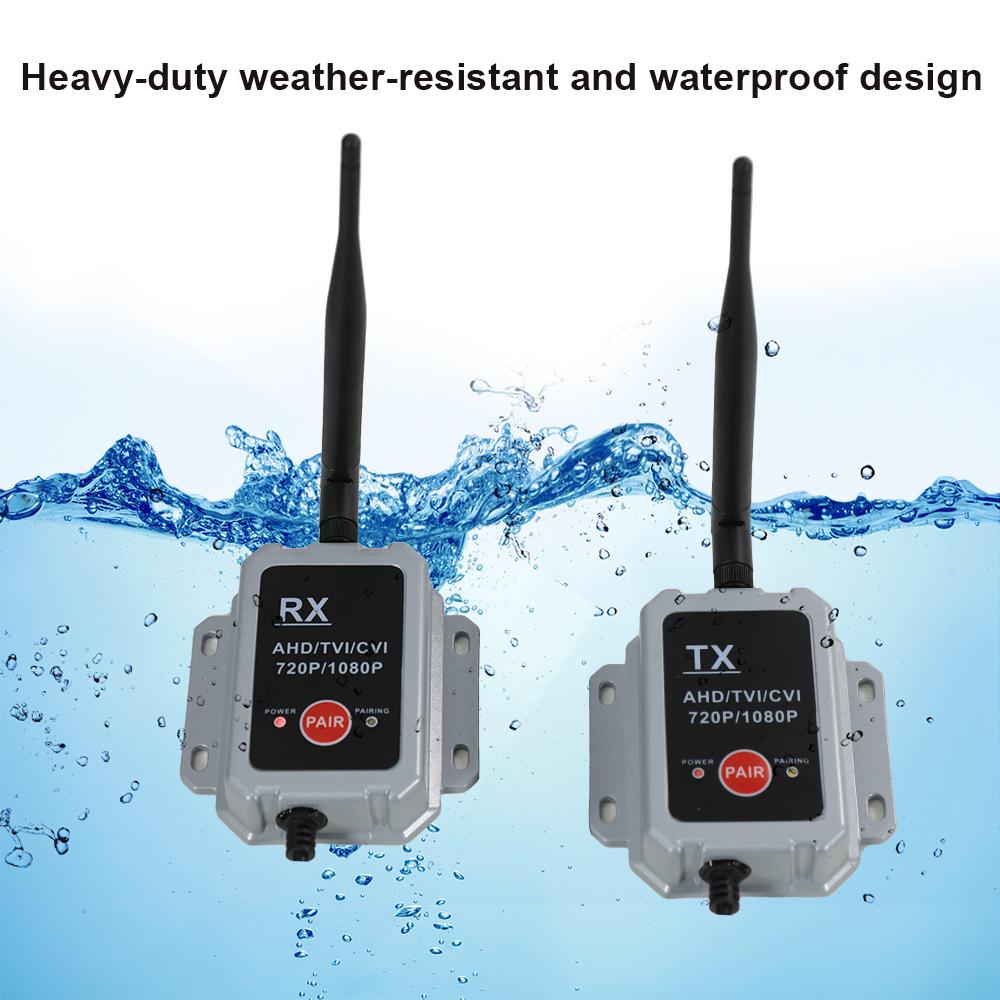

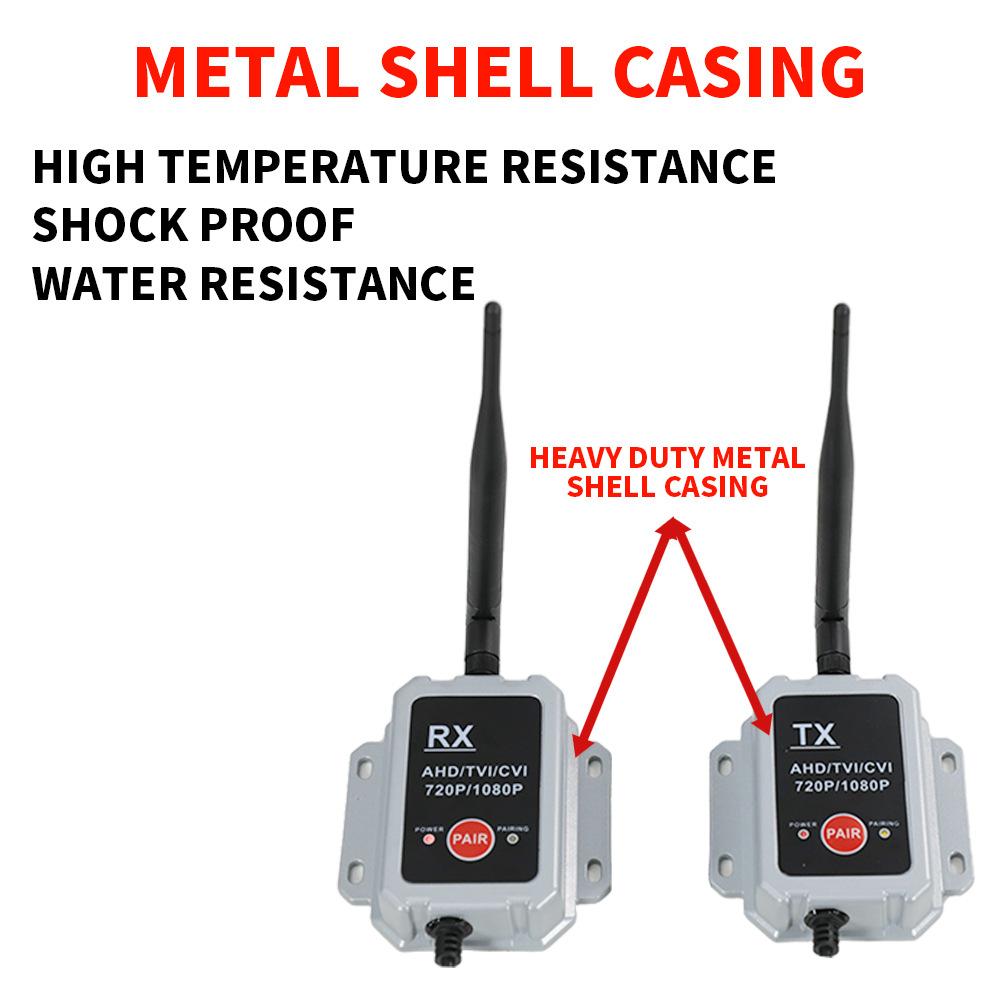

Functions AHD wireless transmitter receiver, suitable for wired truck camera transmitter up to 1080P panoramic wireless set, wireless working distance 200-300 meters. Mainly used for long-distance trucks, camping trailers, trucks with trailers. Support AHD/TVI/CVI signal input and output (transmitter supports 720P, 1080P, CVBS signals, receiver video output is AHD 720P PAL). 12V-36V working voltage, suitable for different vehicles. Features 1. Wireless transmitter and receiver for wired cameras 2. Can transmit 1080p AHD/HDCVI/HDTVI CVBS signals 3. Wide signal coverage, wireless distance up to 200-300m 4. Will make adding cameras to trailers simple and installation time shorter 5. Perfect for trailers, RVs and any two-piece equipment 6. Heavy-duty weather-resistant and waterproof design, no fear of bad weather such as rain and snow 7. The receiver output of the monitor is 720p PAL format Parameters 1. Power input: 12V-36V 2. RF band: 12Mbps 3. Frequency: 2400-2483.5 MHZ 4. Modulation: QPSK/16QAM 5. Working distance: 200-300m 6. Receiving sensitivity: -86dBm QPSK 7. Jump rate: 1200/S 8. Resolution: 1080P 25F/S 9. Compression code: H.264 10. Maximum delay: 100ms 11. TV mode: PAL/NTSC TX Video AHD/TVI/CVI 1080P RX Video AHD/TVI/CVI 720P (1080P is not recommended because the image is unstable and there will be freezes) 12. Operating temperature: -20 to +80 degrees Celsius 13. Operating humidity: 85% relative humidity

Specifications

SKU

EDA008333801A

Category

In Car › Parking Sensor › Rearview Monitors

Weight

0.604 kg

Delivery

Standard delivery
