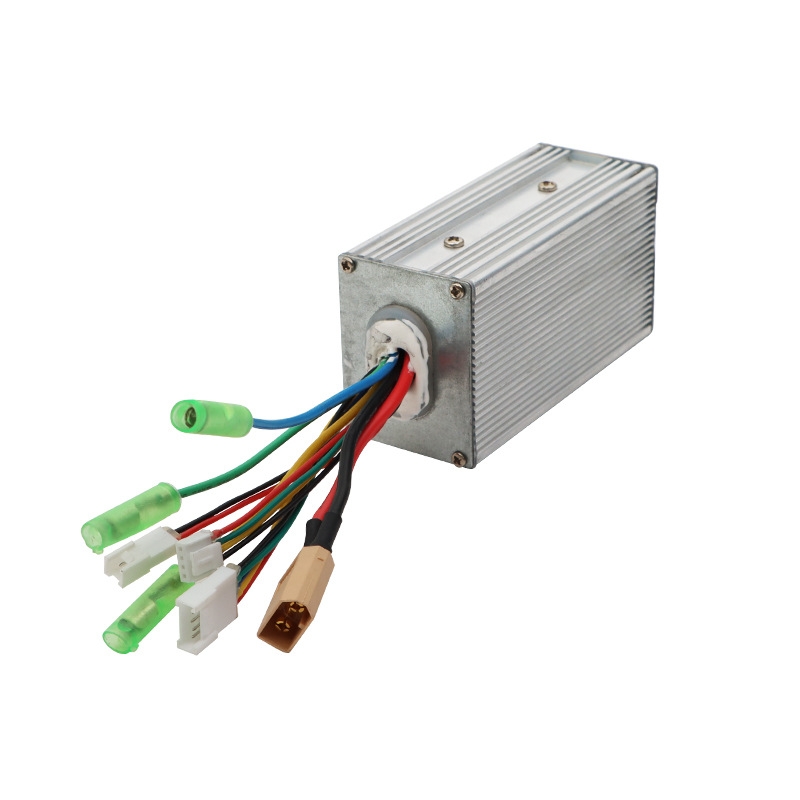

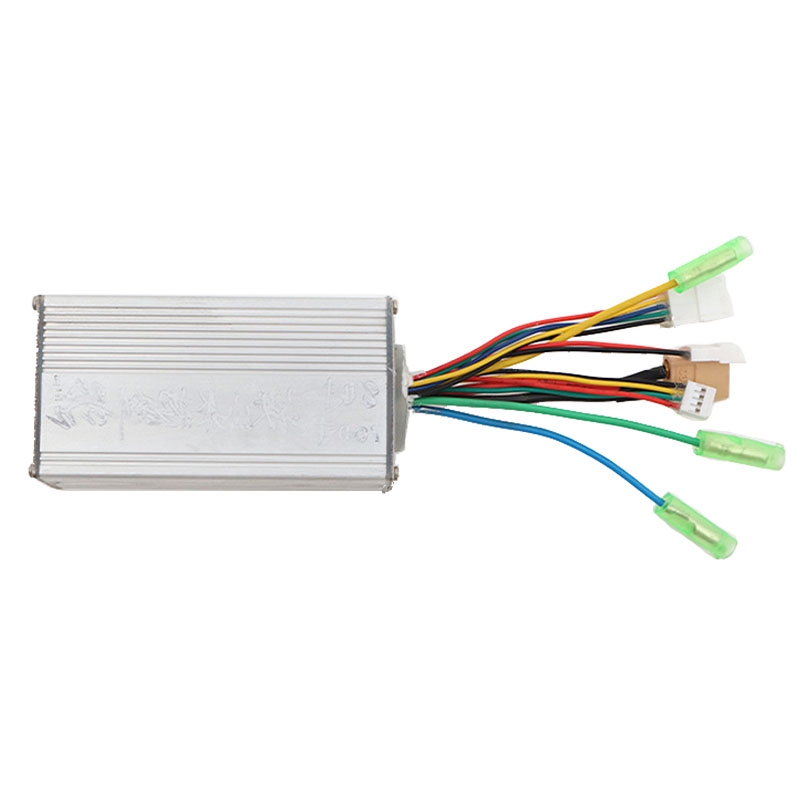

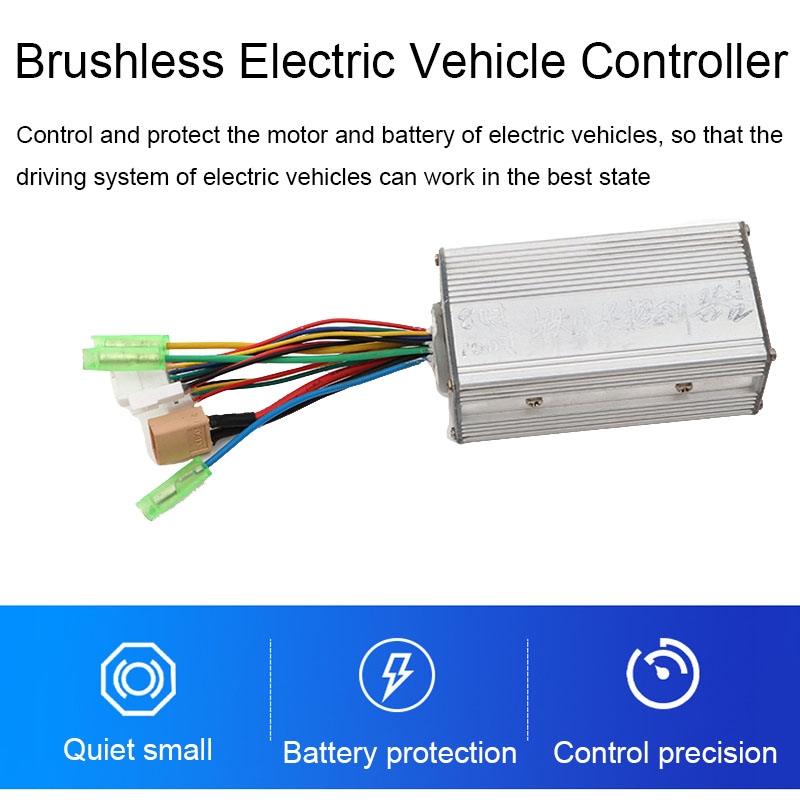

24V/36V/48V Sine Wave Brushless DC Electric Vehicle Controller 350W Controller Circuit Board

Product Description

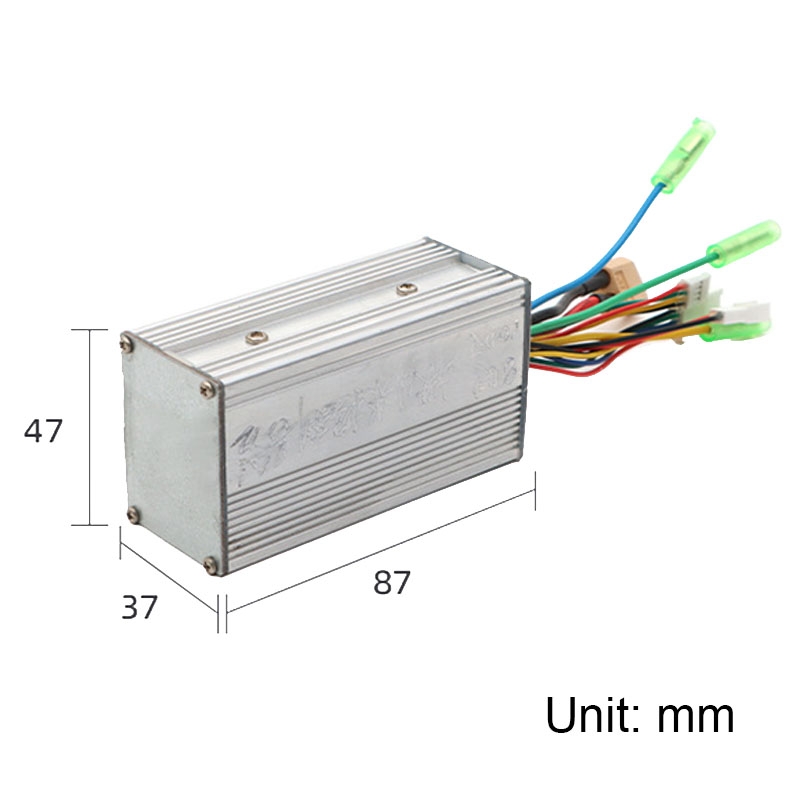

1. Working voltage: 24-48V 2. Rated power: 350W 3. Battery voltage: 24-36-48V 4. Peripheral power supply voltage: 12V 5. Instrument supply voltage: 12V 6. Continuous current: 20A 7. Safety protection: overheat protection, undervoltage protection, overcurrent protection, stall protection 8. Temperature protection: reduce power at 85 degrees Celsius, stop output at 110 degrees Celsius 9. Waterproof grade: IP54 10. The motor has strong applicability and matches most motors 11. Product size: 4.7 x 8.7 x 3.7 cm 12. Weight: 120 grams

Specifications

SKU

TBD06036421

Category

Outdoor & Sports › Scooters › Accessories & Parts

Weight

0.154 kg

Delivery

Standard delivery
