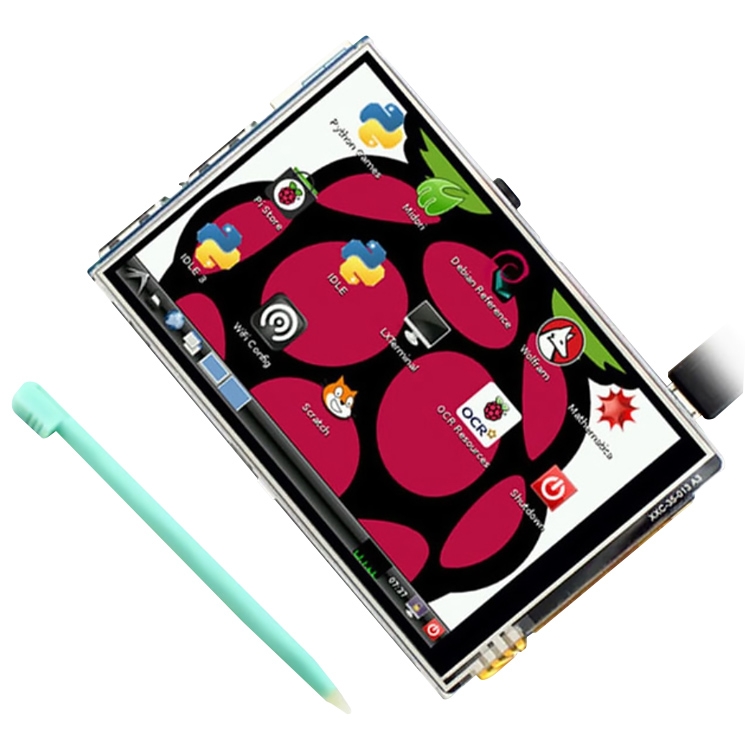

3.5 inch LCD TFT Touchscreen Display Touch Shield with Stylus Pen for Raspberry Pi

Product Description

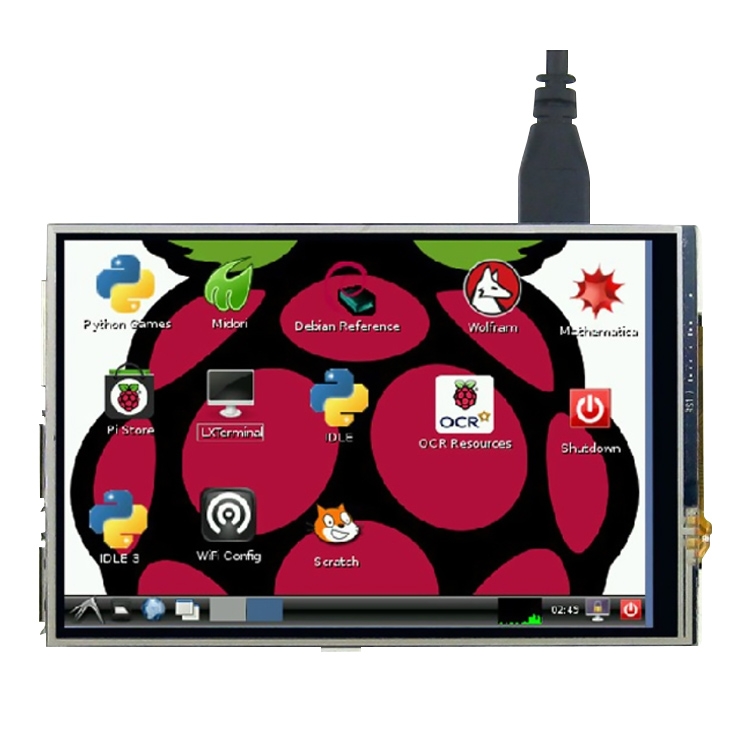

About the Product This 3.5 inch touch screen module is designed especially for Raspberry Pi, using the latest Linux Core system (vision 3.18.9), the latest Raspberry Pi official UI desktop file system and the fastest SPI transmission data, an ideal alternative solution for HDMI monitor and convenient Men-Machine interface for Raspberry Pi, combined with the portable power, DIY anywhere anytime. Features 1. LCD Interface: SPI. 2. Touch Screen Controller: XPT2046. 3. Backlight: LED. 4. LCD Type: TFT. 5. Resolution: 320*480 DOTS. 6. Core System: vision 3.18.9. 7. SPI Speed: 32MHz. 8. Color Levels Index: 65536. 9. Power Consumption/Backlight Current: TBD. 10. Supports Raspbian system, enables your system to: - Play videos (supports multi formats, MP4 and so on). - Take photos by touching (up to 17 camera modes). - Support software keyboard (system interaction without keyboard/mouse). - Support driver is installed automatically.

Specifications

SKU

DIY0201

Category

Consumer Electronics › Arduino & SCM Supplies › Raspberry Pi Accessories

Weight

0.09 kg

Delivery

Standard delivery
