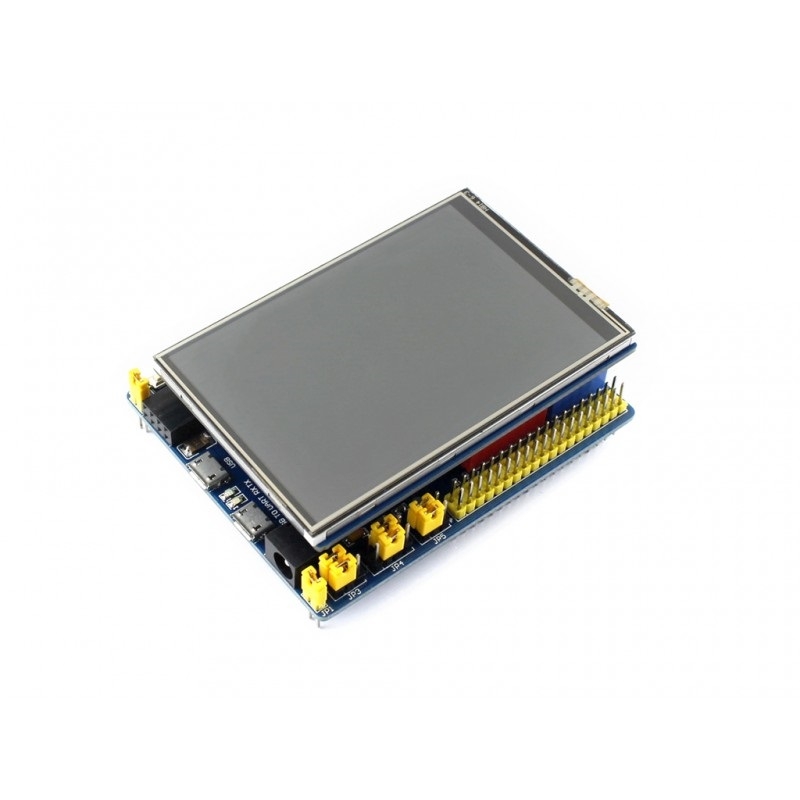

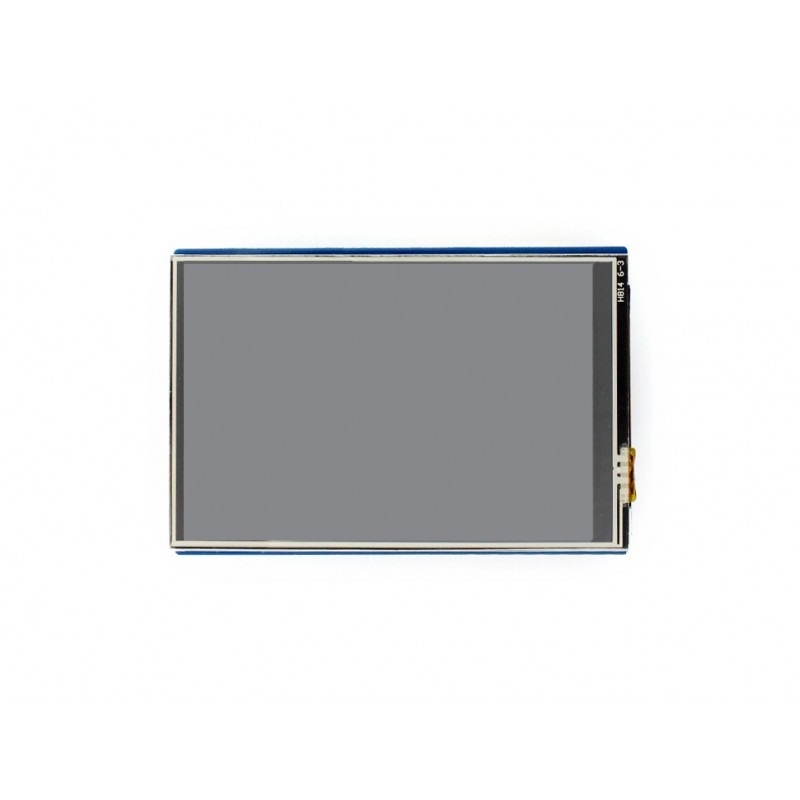

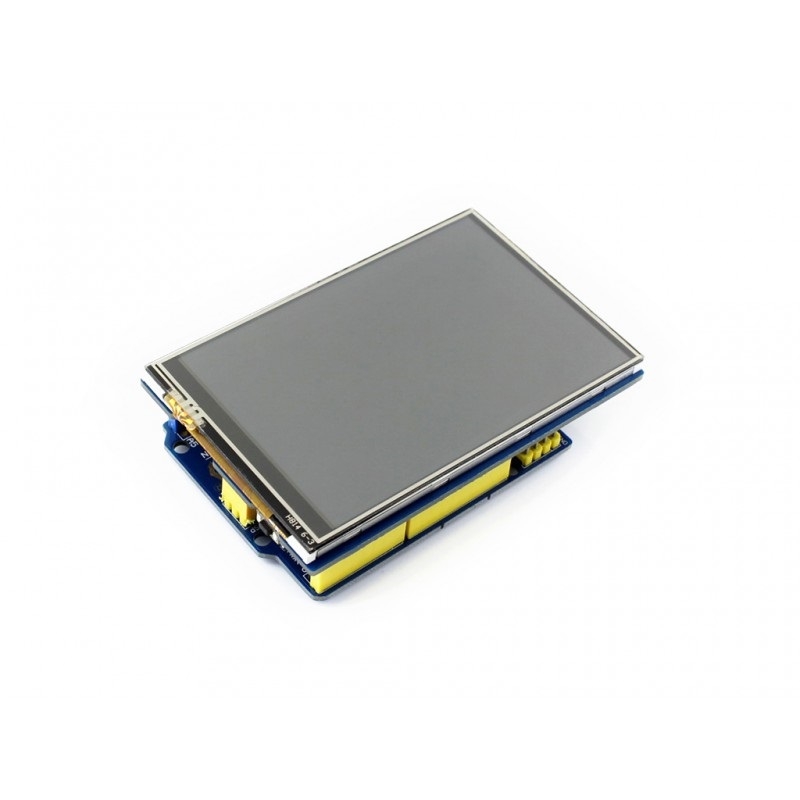

3.5 inch Touch LCD Shield for Arduino

Product Description

Features 1. Resistive touch screen TFT LCD, 3.5inch, 480x320 resolution 2. Standard Arduino interface, compatible with development boards like : Arduino UNO, 3. Leonardo, UNO PLUS, NUCLEO, XNUCLEO 3. Onboard stand-alone touch controller, better touching than solutions that use AD pins directly for touch control 4. PWM backlight control, allows to adjust the backlight to a comfortable level 5. Micro SD slot, provides an easy way to store photos for displaying 6. Controlled via SPI, only a few Arduino pins are used 7. Comes with STM32 and Arduino examples, convenient for porting Key Parameters 1. LCD Type: TFT 2. LCD Interface: SPI 3. LCD Controller: ILI9486 4. Touch Screen Type: Resistive 5. Touch Screen Controller: XPT2046 6. Colors: RGB, 65K colors 7. Resolution: 480x320 (Pixel) 8. Aspect Ratio: 8:5 9. I/O Voltage: 3.3V/5V Wiki : www.waveshare.com/wiki/3.5inch_TFT_Touch_Shield

Specifications

SKU

ZY15061990

Category

Consumer Electronics › Electronics Module › Arduino Nucleo Accessories

Weight

0.082 kg

Delivery

Standard delivery
