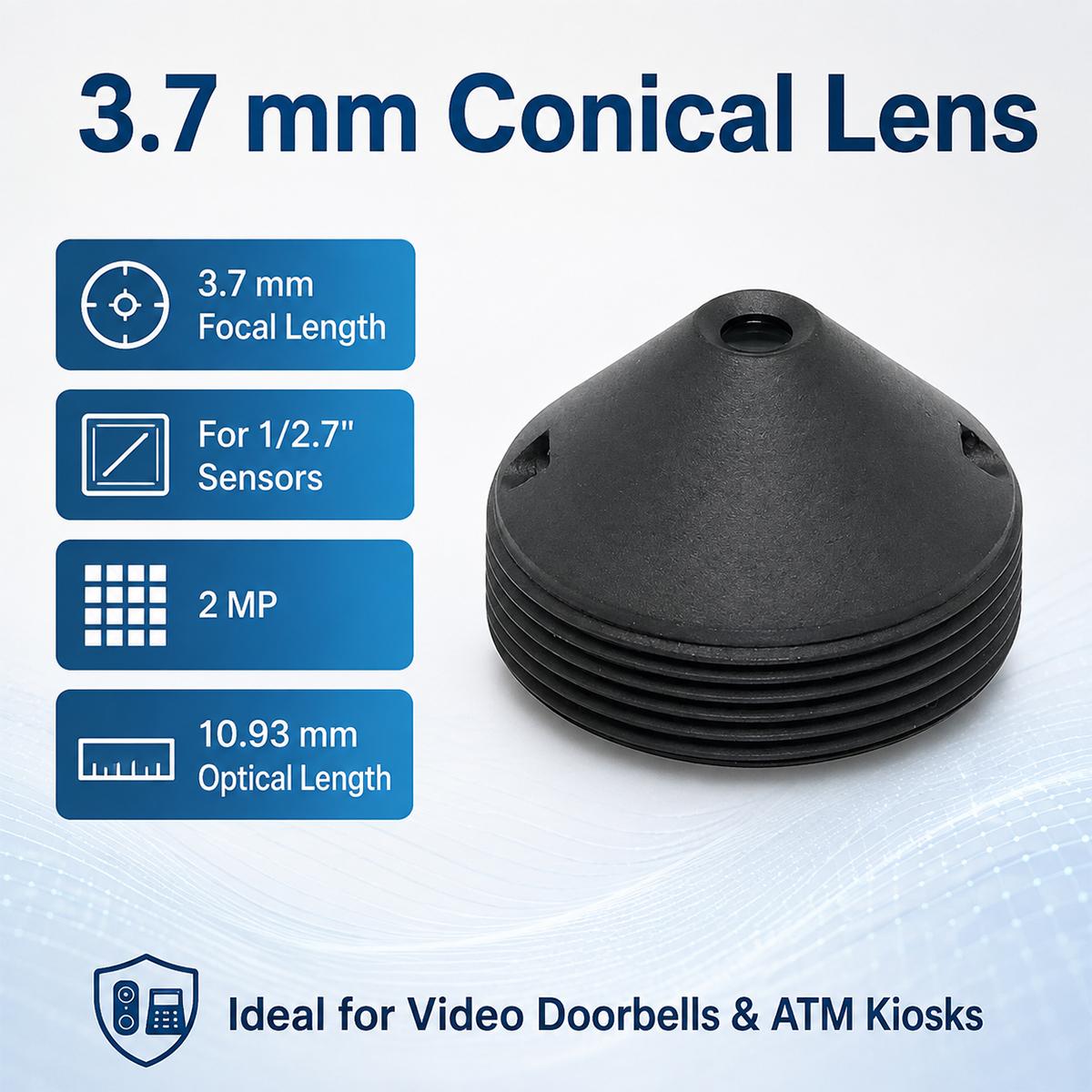

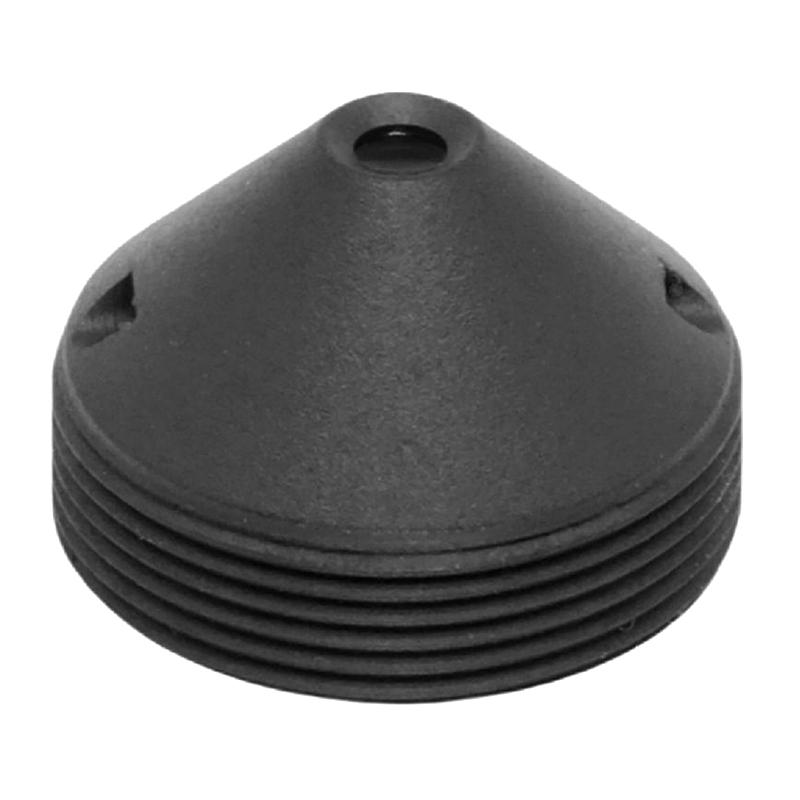

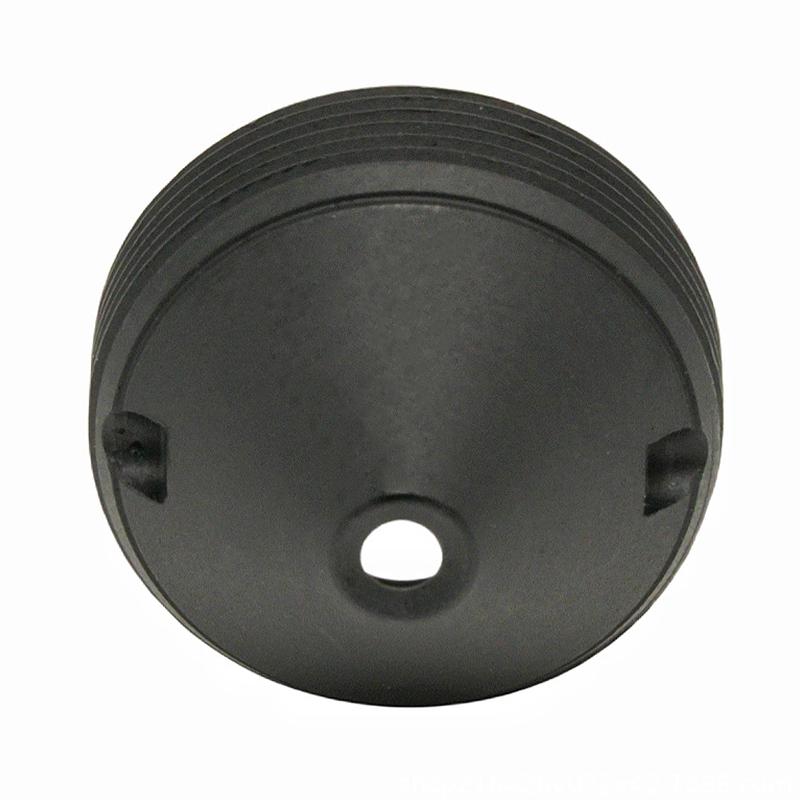

3.7mm Cone Lens 1/2.7 Inch M12 Security Monitor Video Doorbell Lens(Black)

Product Description

Features: 1. Wide Angle View: Provides a wide field of view for monitoring and imaging applications, helping capture a broader scene with a compact lens design. 2. Multiple Sensor Compatibility: Designed for 1/2.7 inch sensors and provides different viewing angles when used with GC1024 and OV5640 sensors. 3. Compact Cone Design: The 3.7mm cone lens is designed for space-constrained equipment such as security cameras, video doorbells, and ATM systems. 4. M12 Interface: Features an M12 thread for convenient installation with compatible surveillance and imaging modules. 5. Clear Monitoring Imaging: The optical design provides stable imaging performance for security monitoring, video doorbells, bank teller machines, and other visual monitoring equipment. Specification: 1. Compatible Sensor: 1/2.7 inch sensor 2. Maximum Image Circle: 7.1mm 3. Effective Focal Length: 4.67mm 4. Back Focal Length: 4.96mm 5. Mechanical Back Focal Length: 3.36mm 6. Aperture: F3 7. Field of View: Diagonal 100 degrees / Horizontal 83 degrees / Vertical 41 degrees 8. Field of View for GC1024: Diagonal 81 degrees / Horizontal 61 degrees / Vertical 47 degrees 9. Field of View for OV5640: Diagonal 59.2 degrees / Horizontal 46 degrees / Vertical 33.6 degrees 10. TV Distortion: -11.67% 11. Chief Ray Angle: Less than 16.5 degrees 12. Lens Type: 3.7mm Cone Lens 13. Thread Interface: M12

Specifications

SKU

EDA010165001A

Category

Mobile Parts › Digital Camera Parts › Others

Weight

0.014 kg

Delivery

Standard delivery
