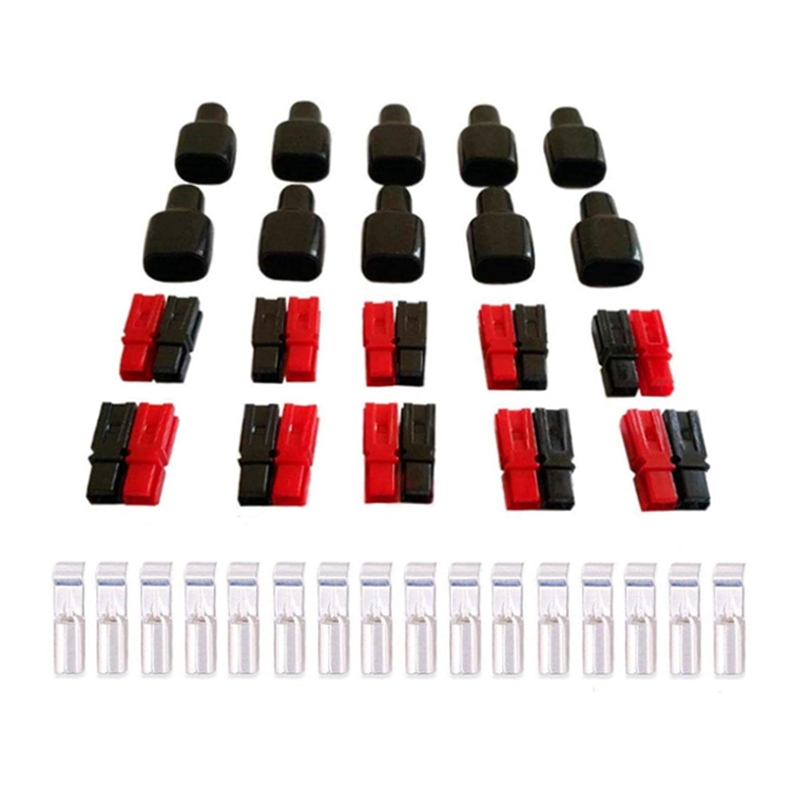

30A Battery Quick Connector Modular Quick Disconnect(10pairs /Pack)

Product Description

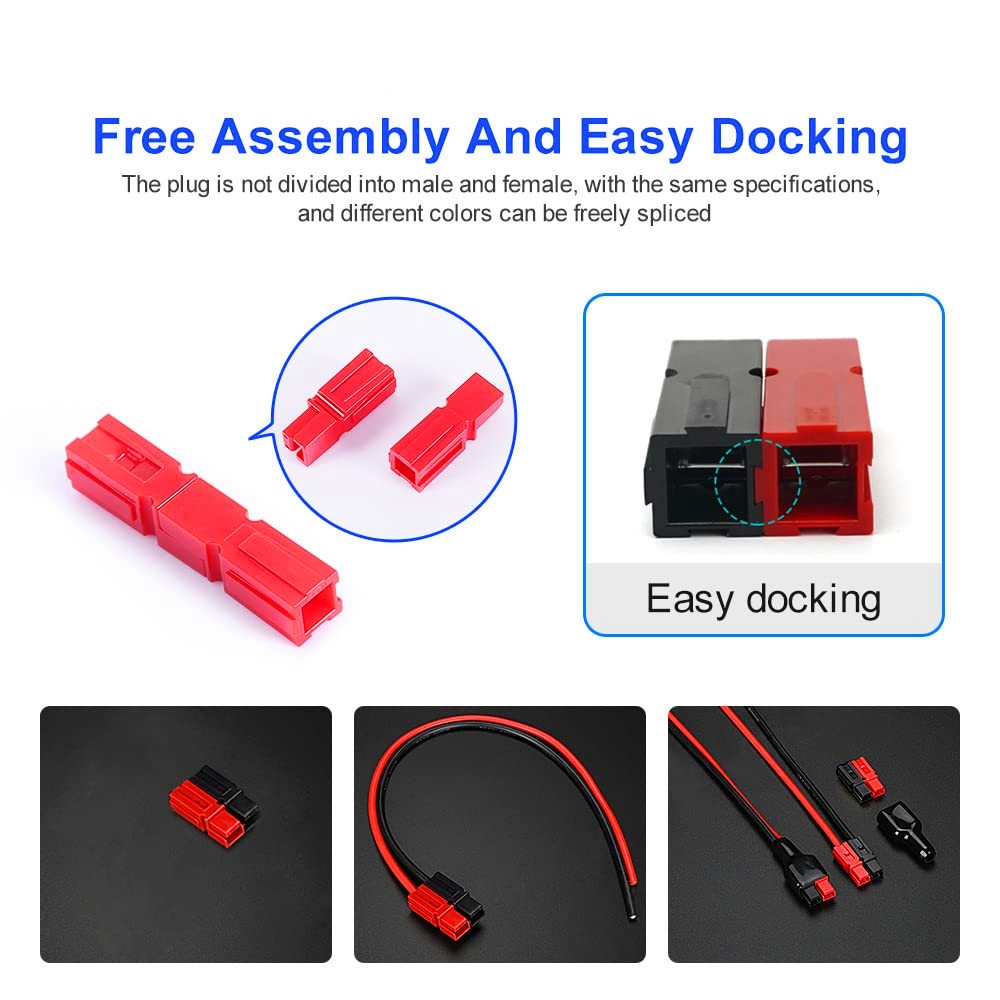

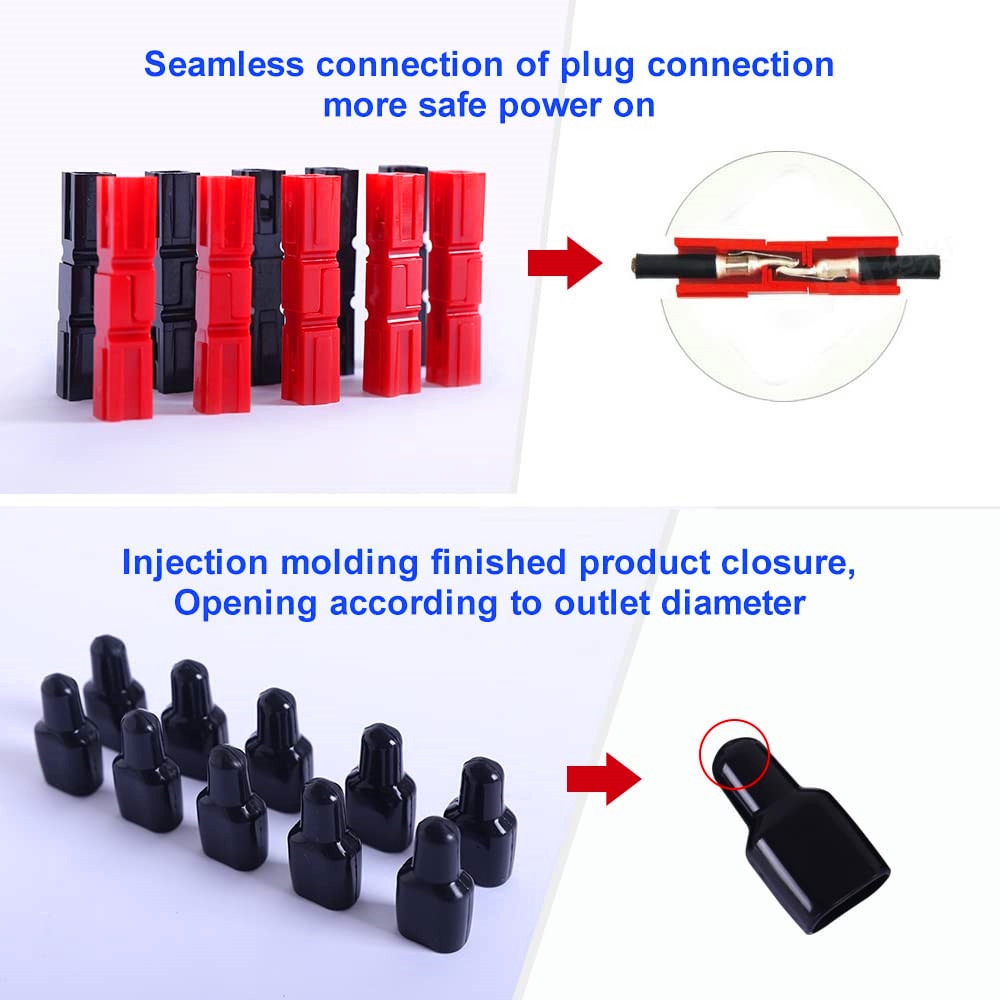

1. Material: silver copper 2. Rated current: 30 A 3. Rated voltage: 600 V 4. AWG: 14, 12, 10awg 5. Wire insulation diameter: 0.175 inches (4.45 mm) 6. Contact resistance (micro-ohms): 500 7. Withstand insulation Test voltage (AC/DC Voltage): 2200V 8. Contact retention force: 25lbf 9. No-load (contact/disconnect cycles): 10000 10. Flat wiping contact system, high current contact resistance 11. Wiping action cleans contact surface when connecting/disconnecting 12. Colored modular housings provide visual identification of compatible connectors 13. Molded dovetail ends secure individual connectors in "keyed" assemblies, preventing misconnection of similar configurations 14. Genderless design makes assembly quick and easy, and reduces the number of parts stored

Specifications

SKU

TBD0605289701A

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.058 kg

Delivery

Standard delivery
