36 in 1 Stainless Steel Hole Tube Clips U-tube Clamp Connecting Ring Hose Clamp

Product Description

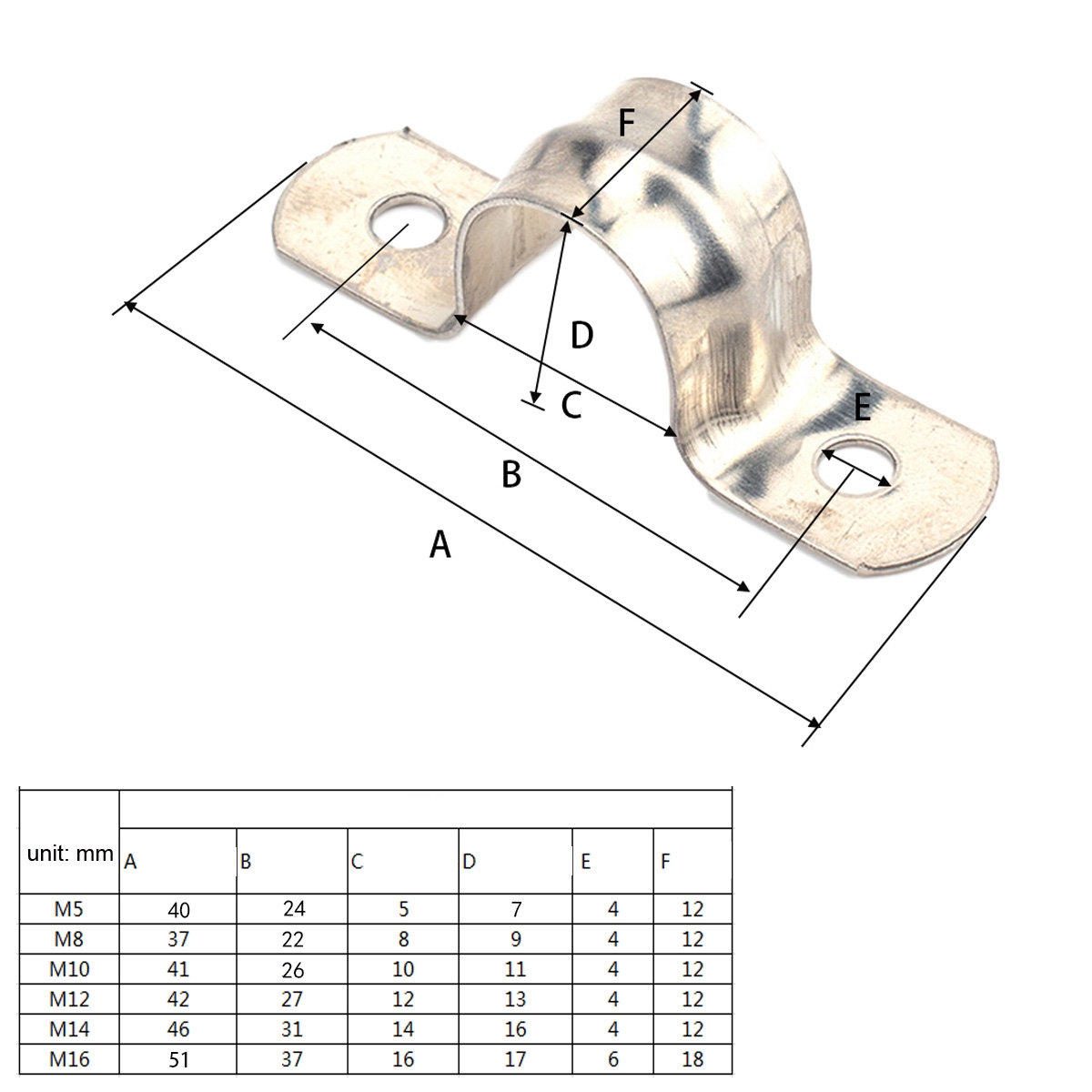

1. Material: 304 stainless steel 2. Surface treatment: polishing 3. Product specifications: M5: Screw hole center distance: 24mm, inner diameter: 5mm, screw aperture: 4mm, width: 12mm, material thickness 0.6mm M8: Screw hole center distance: 22mm, inner diameter: 8mm, screw diameter: 4mm, width: 12mm, material thickness 0.6mm M10: Screw hole center distance: 26mm, inner diameter: 10mm, screw diameter: 4mm, width: 12mm, material thickness 0.6mm M12: Screw hole center distance: 27mm, inner diameter: 12mm, screw diameter: 4mm, width: 12mm, material thickness 0.6mm M14: Screw hole center distance: 31mm, inner diameter: 14mm, screw diameter: 4mm, width: 12mm, material thickness 0.6mm M16: Screw hole center distance: 37mm, inner diameter: 16mm, screw diameter: 6mm, width: 18mm, material thickness 0.6mm Remarks: M5 means that the inner diameter is 5mm, and the size of the riding card is the size of the tubes outer diameter. 4. Scope of application: widely used in automobiles, transportation and fixing, mechanical equipment, fire-fighting facilities, stainless steel pipes, rubber hoses, plastic steel pipes, gas pipes, indoor toilets, outdoor roof drainage pipes, etc. 5. Features: The product is made of high-quality 304 stainless steel, and the surface is polished, which is not easy to rust and has a long service life. 6. Product composition: M5 x 8 PCS M8 x 6 PCS M10 x 6 PCS M12 x 6 PCS M14 x 6 PCS M16 x 4 PCS

Specifications

SKU

EDA008363

Category

In Car › Replacement Parts › Booster Cable & Clip

Weight

0.171 kg

Delivery

Standard delivery
