36V / 48V LCD Display Electric Bicycle Dashboard

Product Description

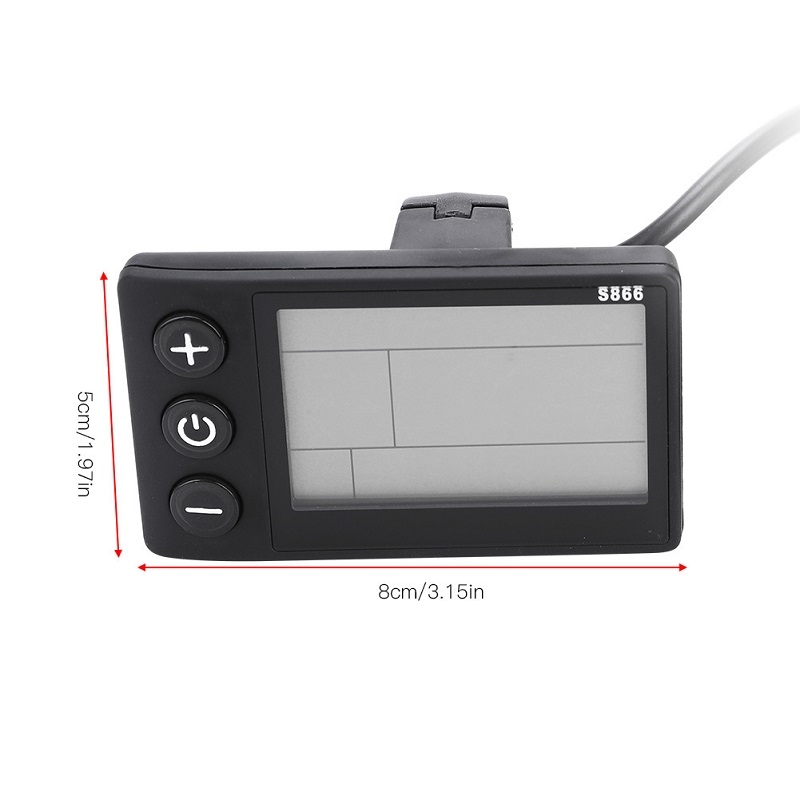

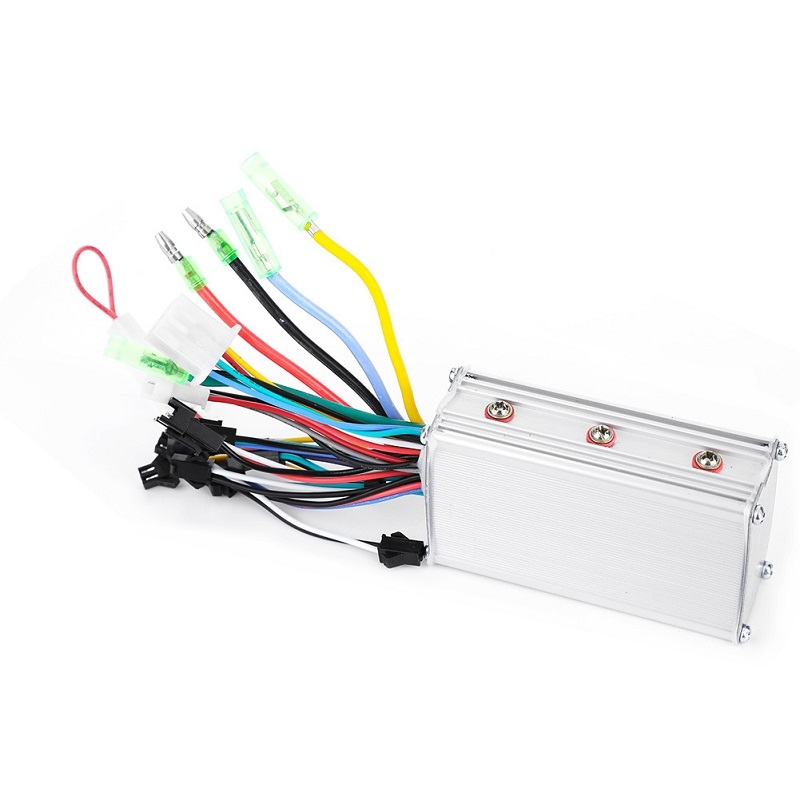

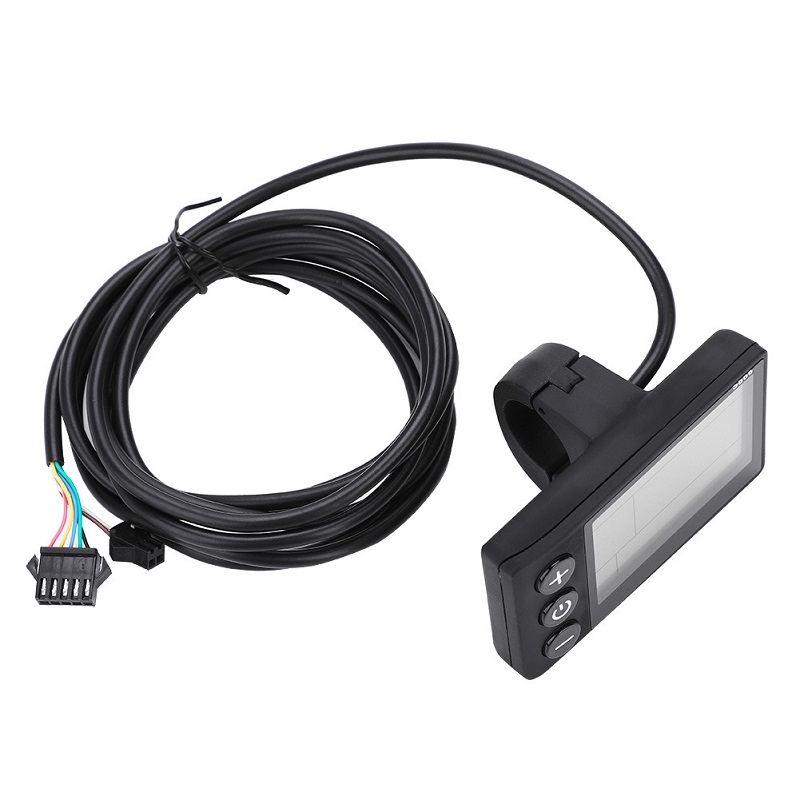

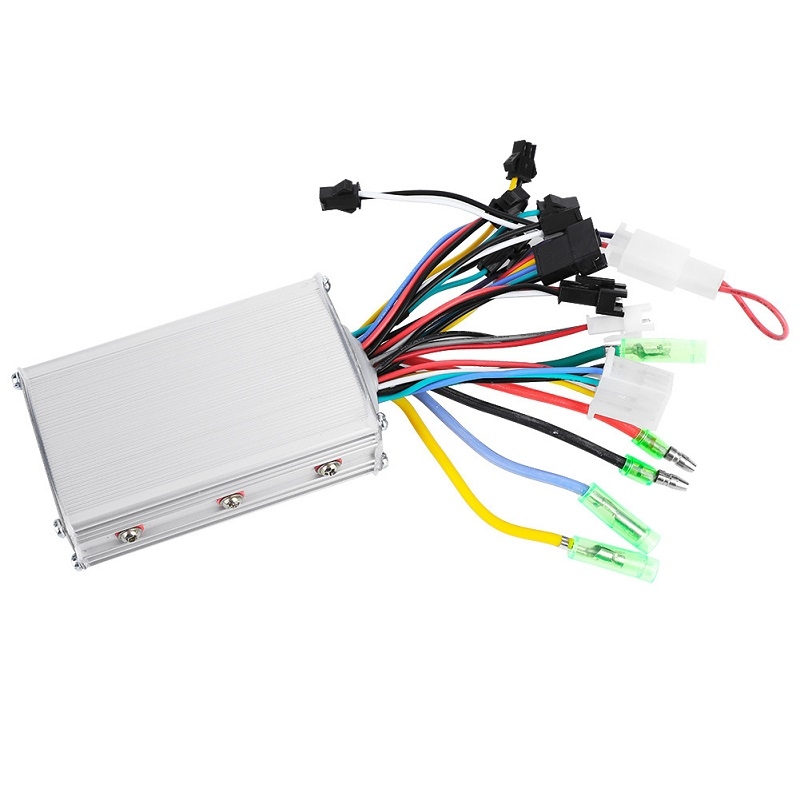

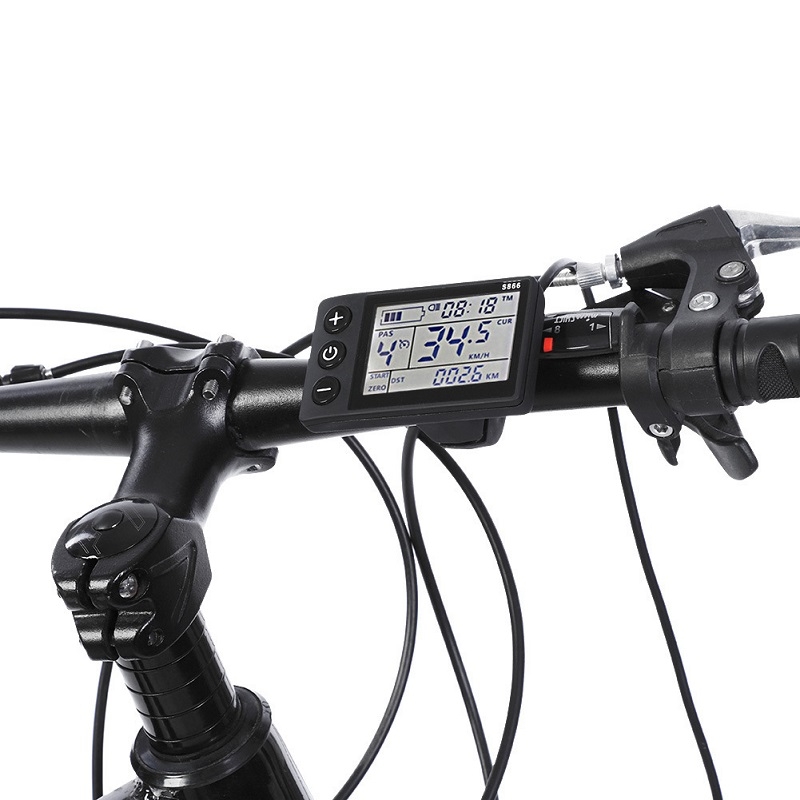

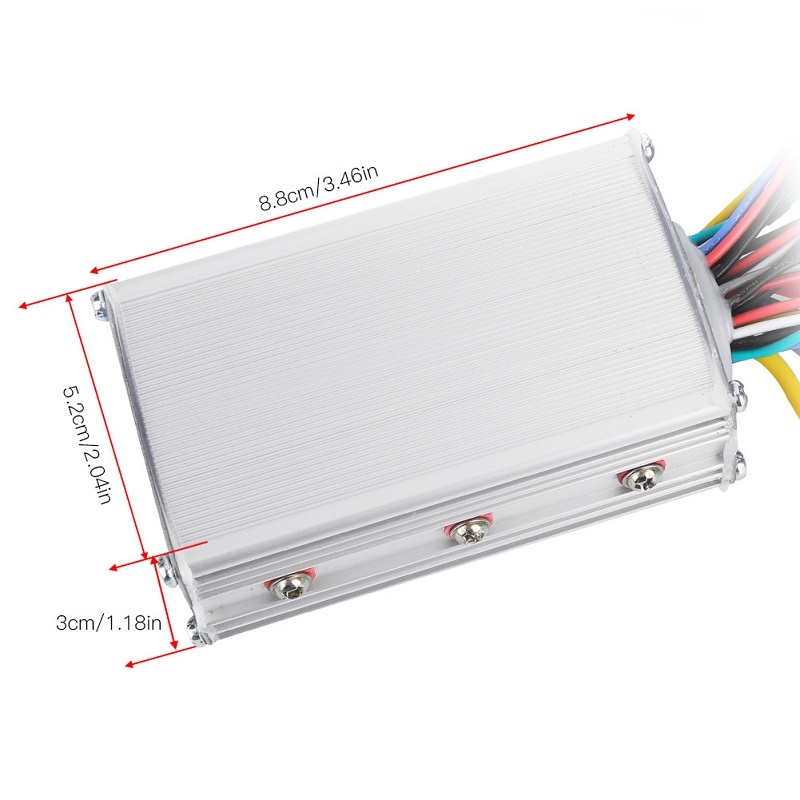

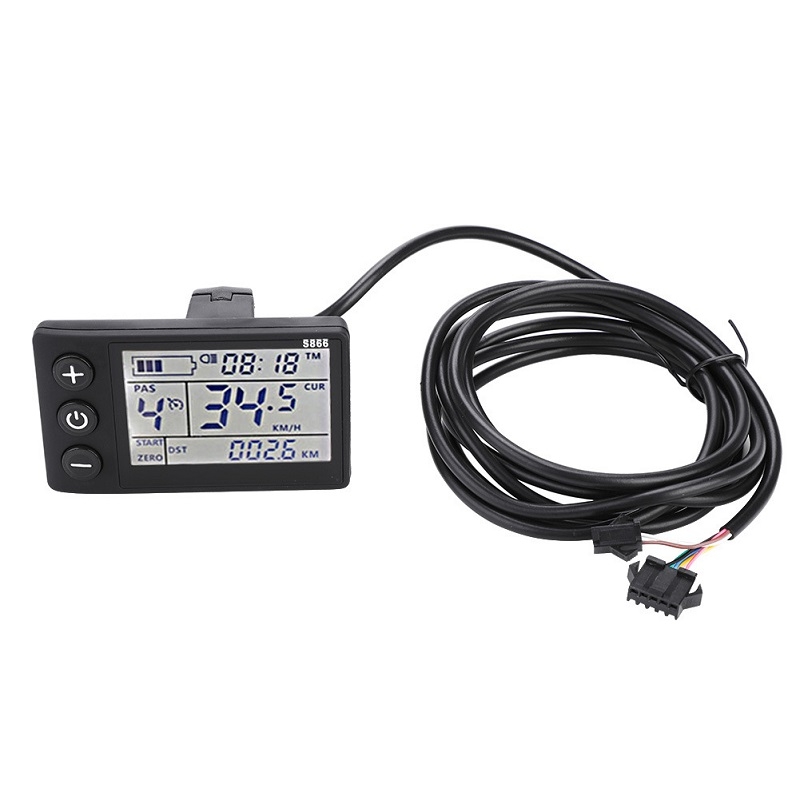

1. Material: plastic + liquid crystal + metal 2. The display uses high-quality materials, light weight, rainproof, strong and durable. 3. The LCD display can clearly display the status and data, the backlight allows you to see the screen clearly in a dim environment, the buttons are quick and easy to use 4. The controller is brushless, works silently, and is sensitive to the state of the electric bicycle 5. Easy to install and use, with a bracket for LCD display, suitable for 22.5mm handlebars 6. Suitable for electric bicycles, cars, scooters 7. Power: 250W / 350W 8. Low voltage protection: 24V-36V=19V / 30V; 36V-48V=30V-41V 9. Waterproof: rainproof 10. Controller size: about 8.8 x 5.2 x 3 cm / 3.46 x 2.04 x 1.18 inches 11. Display size: about 8 x 5 cm/3.15 x 1.97 inches 12. Weight: about 332 grams Note: each cable is marked with a color for different purposes 1. Red: positive power supply 2. Black: negative pole of power supply 3. Yellow: power output 4. Brown: lamp positive 5. White: lamp negative 6. Blue: indicator light signal 7. Green: Signal receiving Packing list: LCD monitor x 1 Controller x 1

Specifications

SKU

TBD0572093901

Category

Outdoor & Sports › Bicycle Accessories › Speedometers

Weight

0.354 kg

Delivery

Standard delivery
