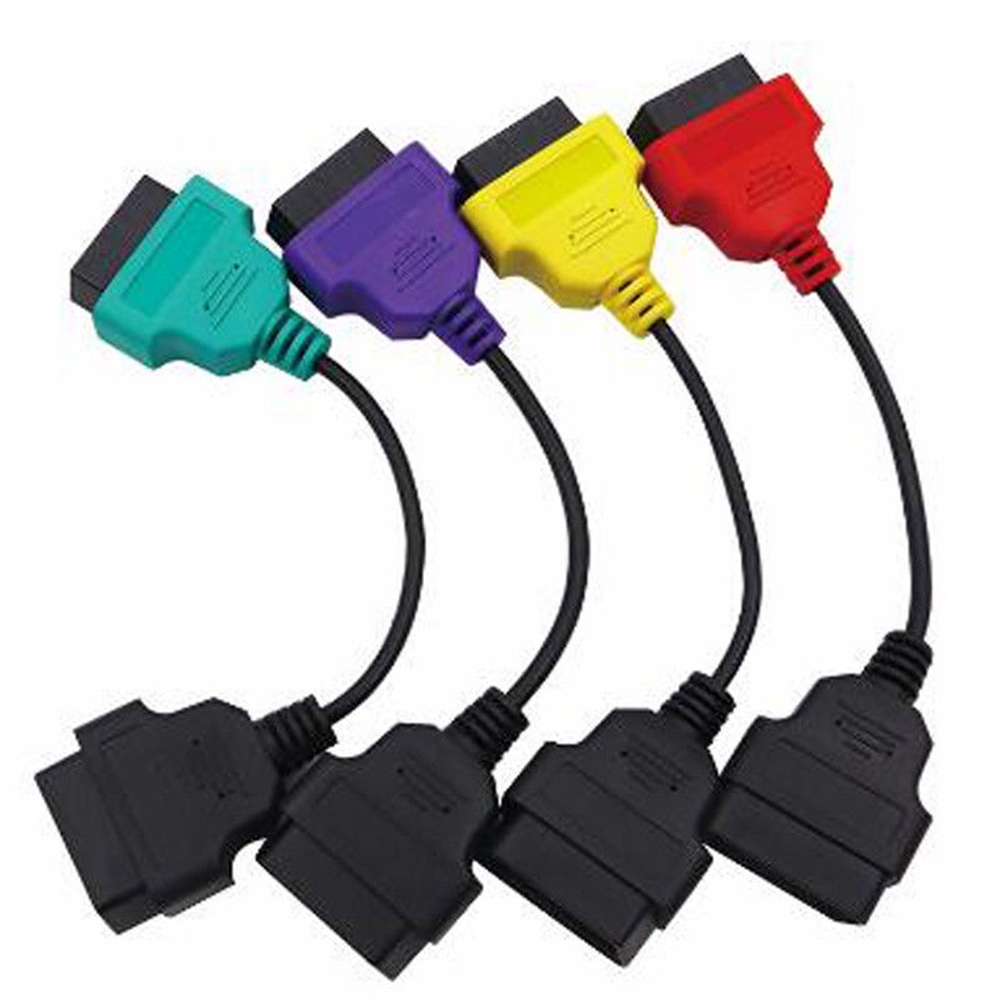

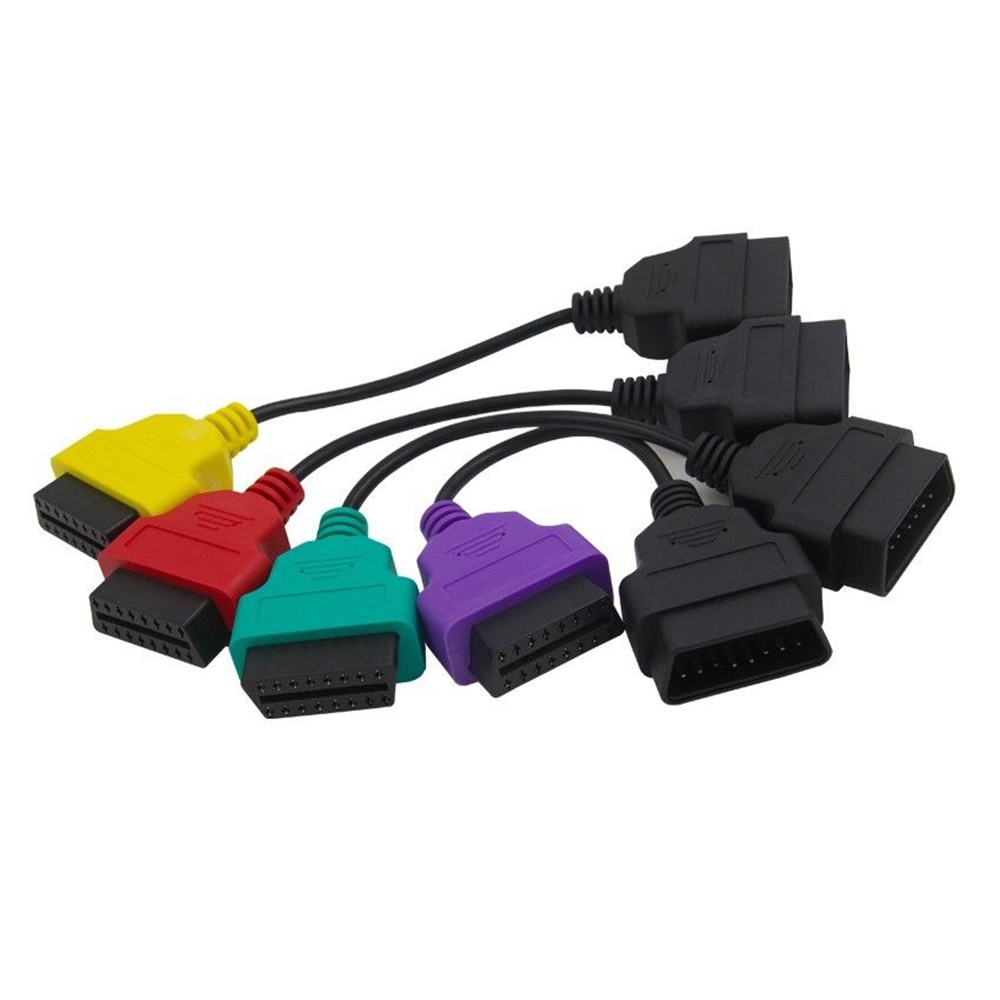

4-color ECU Scan Adapter Cable Bundle Cable Ecu Connect Cable Diagnostic Cable for Fiat

Product Description

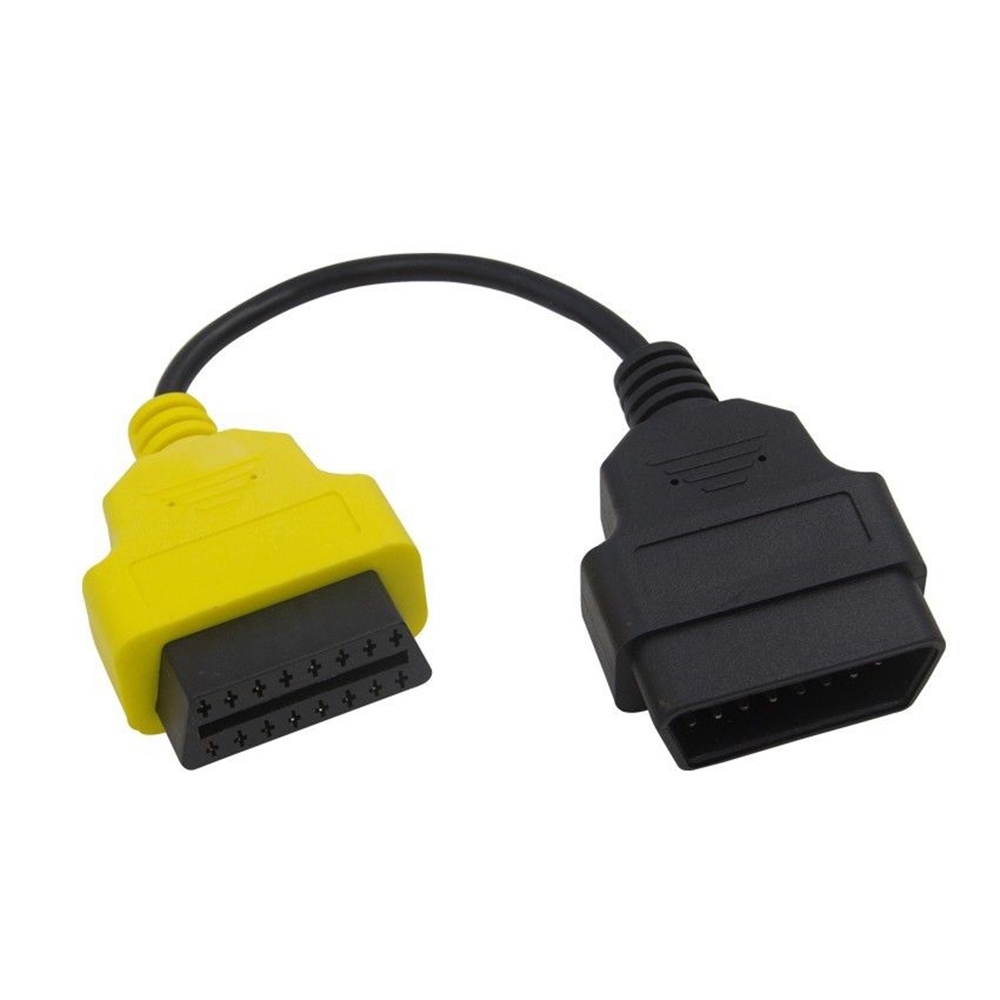

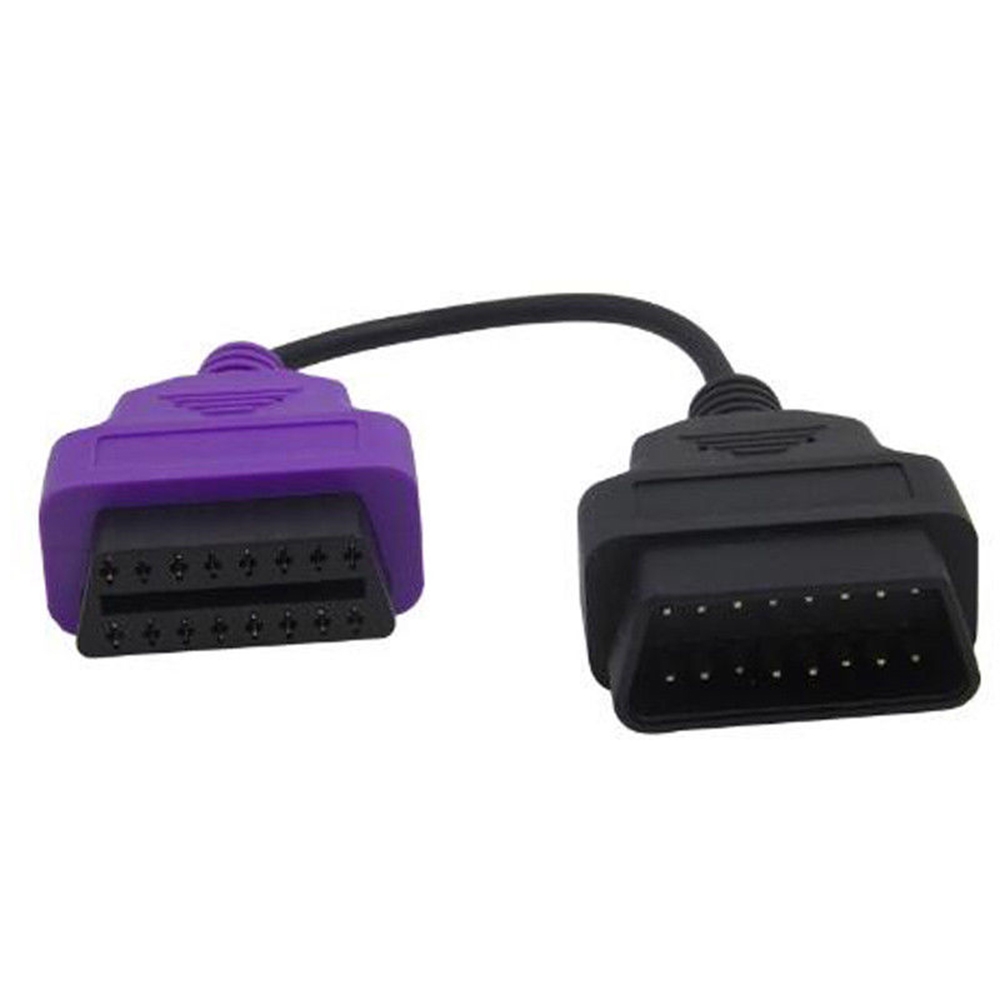

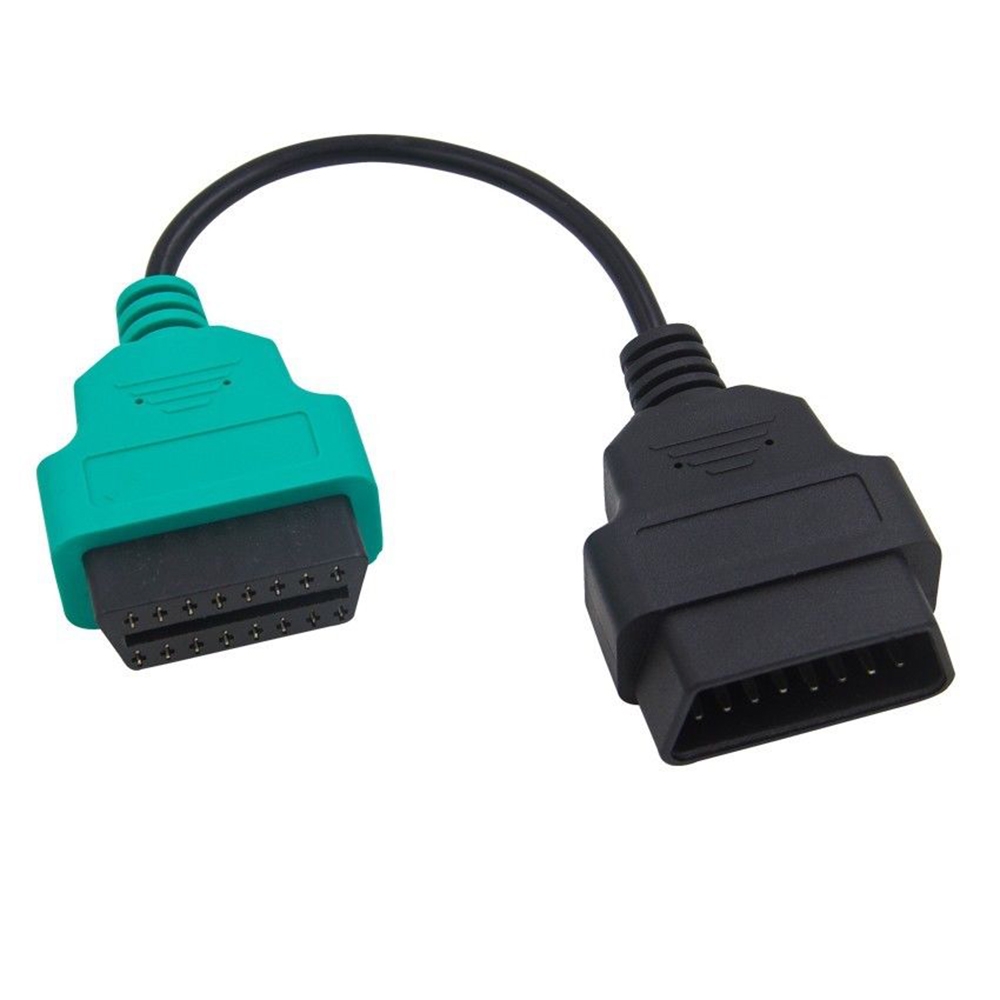

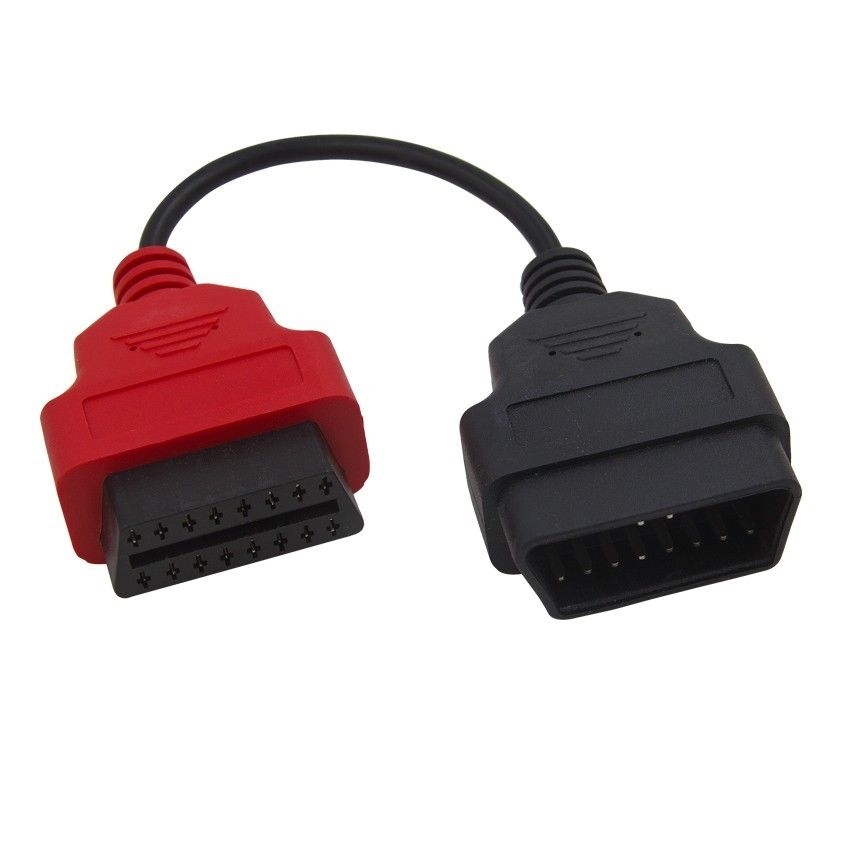

1. Green ABS / Power Sreeing adapter lead (Adapter 1 on MultiECUScan website) Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification. Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car. 2. Red Airbag adapter lead (Adapter 2 on MultiECUScan website) Designed to allow access to the Airbag system on supported vehicles. This adapter has a red connector on one end for easy identification. Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car. 3. Yellow CAN adapter lead (Adapter 3 on MultiECUScan website) Designed to allow access to the low-speed CAN system on supported vehicles. This adapter has a yellow connector on one end for easy identification. Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9 Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car. 4. Purple Electric hood adapter lead (Adapter 4 on MultiECUScan website) Designed to allow access to the electric hood system on supported vehicles. This adapter has a purple connector on the end for easy identification. Using this adapter, Pin 7 on the diagnostic tool is connected to pins 7,8,11 & 13 one the car. 5. Cable length: 22cm

Specifications

SKU

CRP0326

Category

In Car › Diagnostic Scan Tools › Cables & Connectors

Weight

0.382 kg

Delivery

Standard delivery
