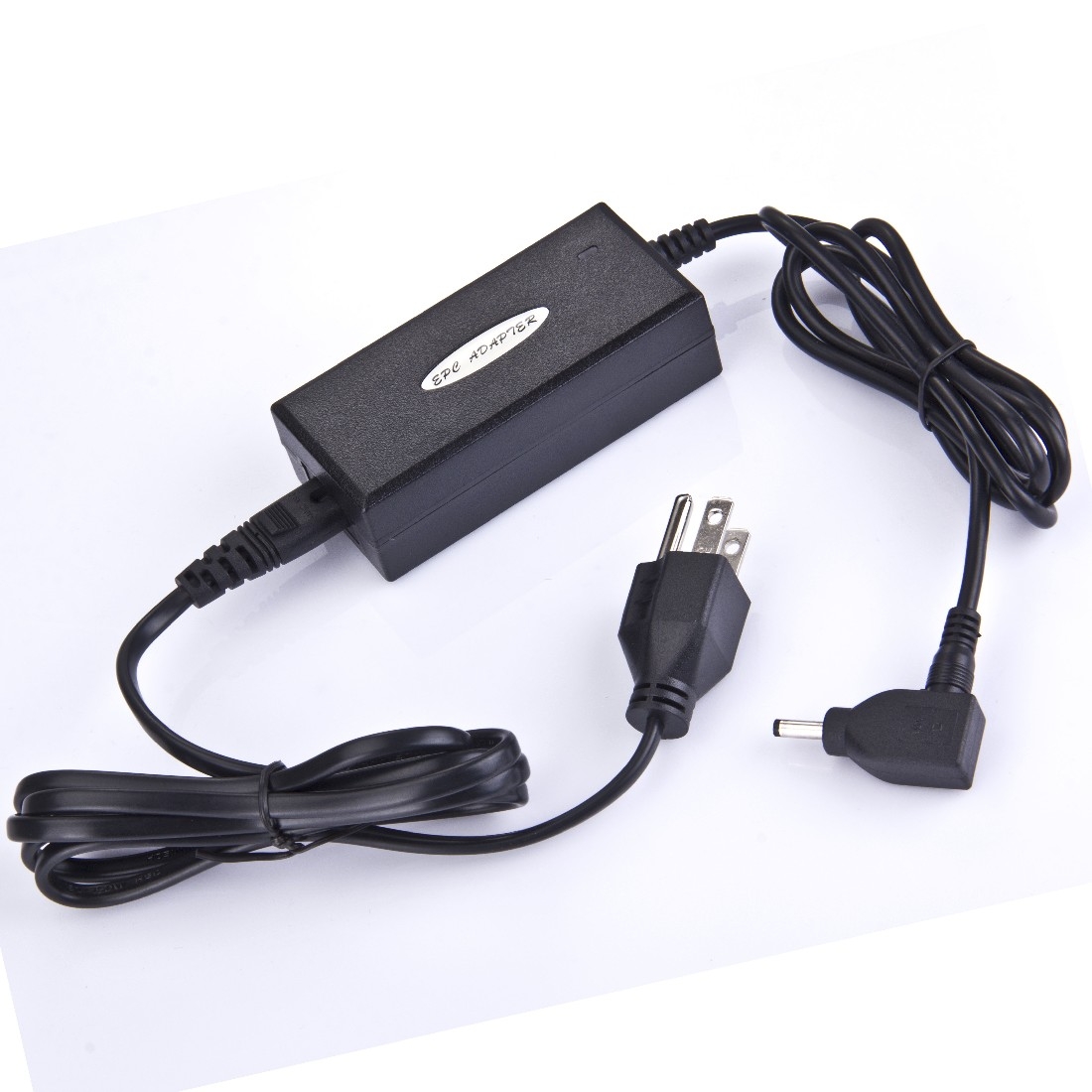

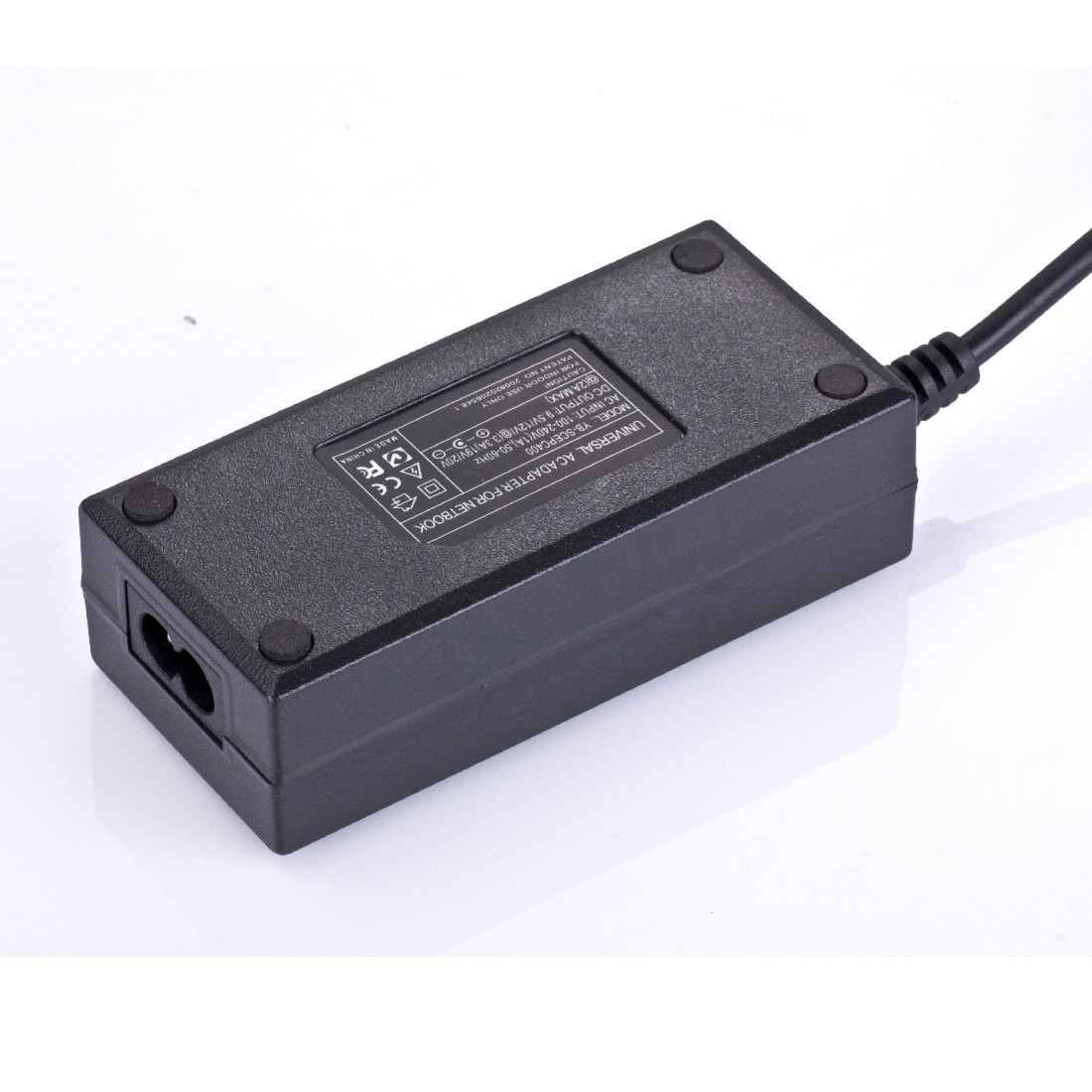

40W Universal Notebook AC Adapter (EPC Power Adapter)(Black)

Product Description

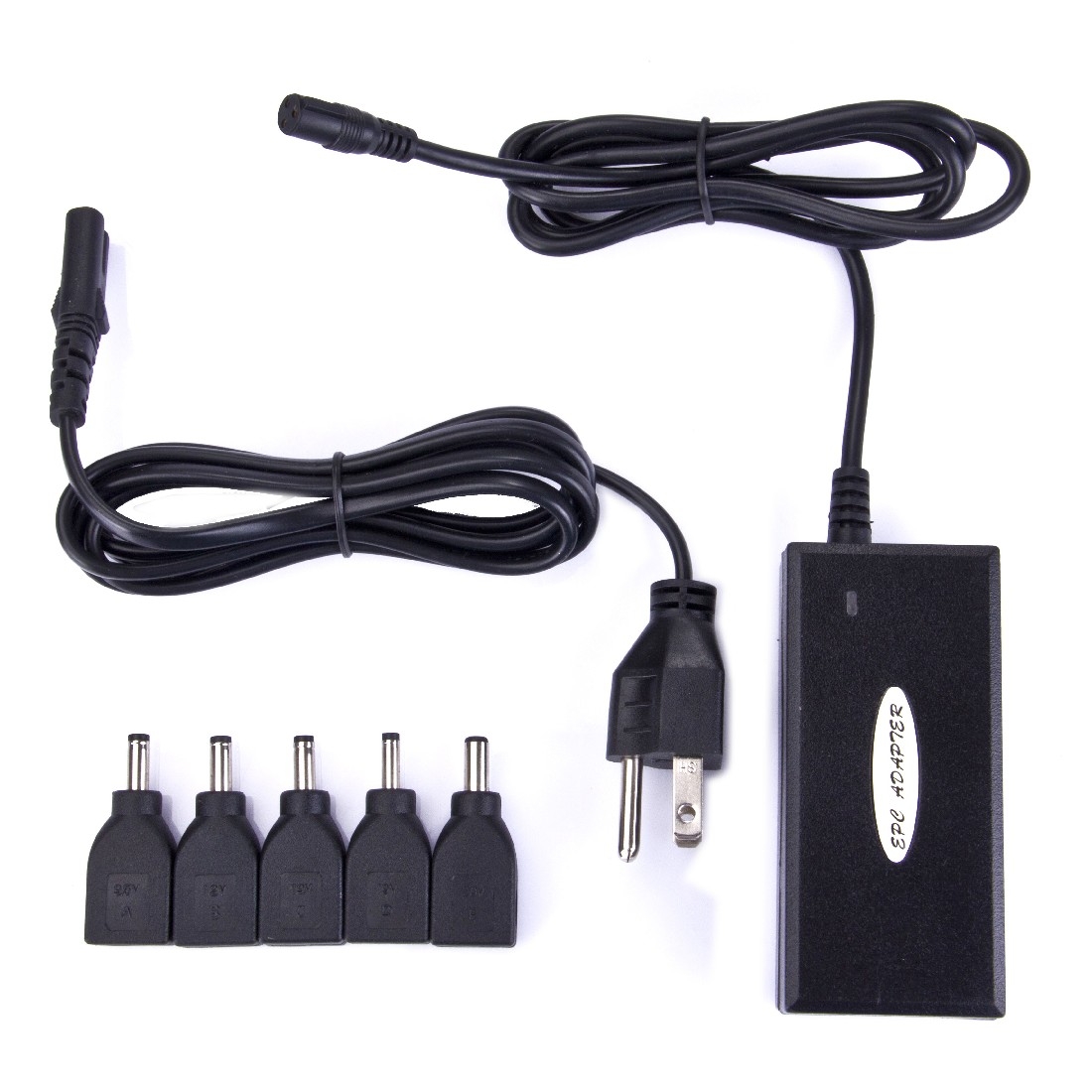

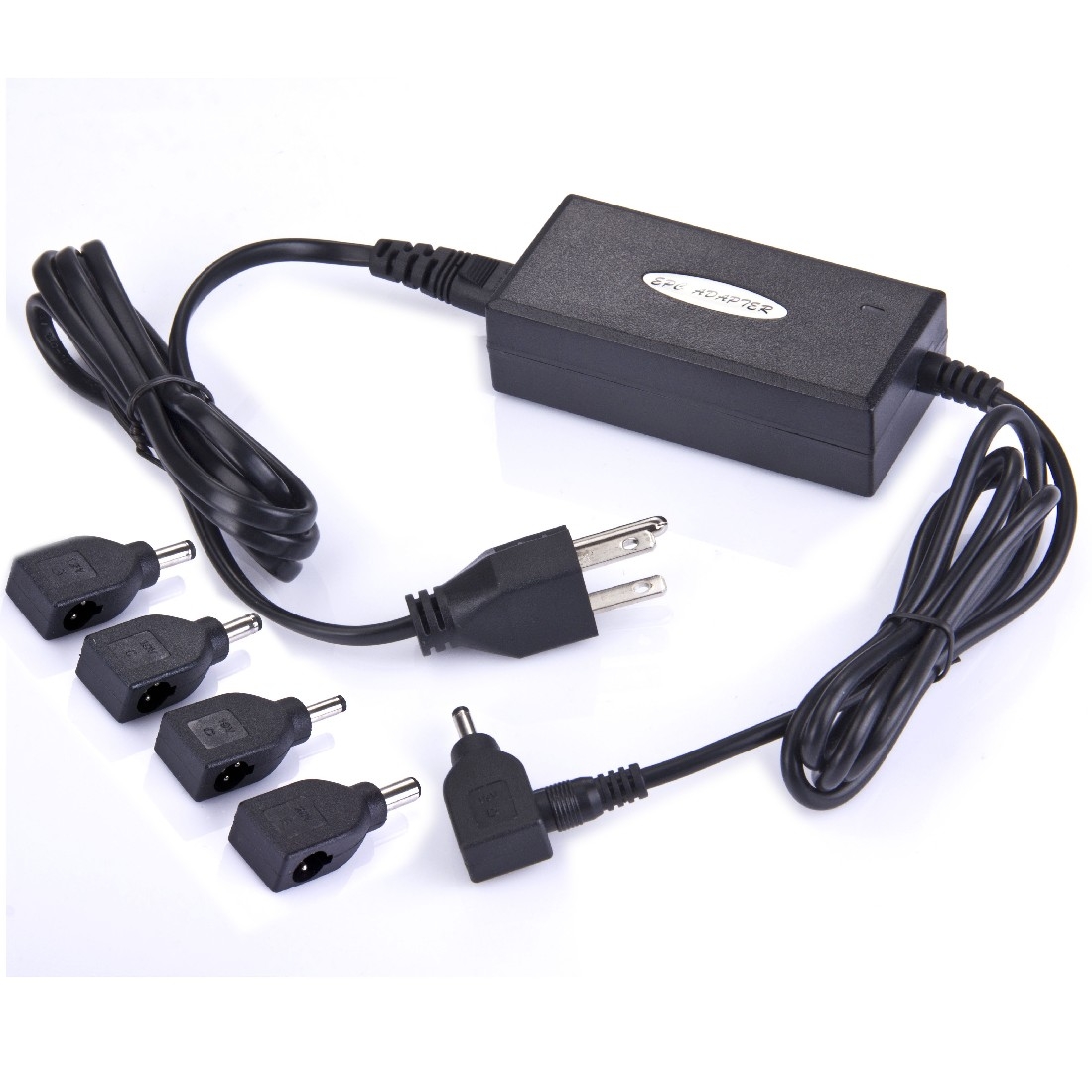

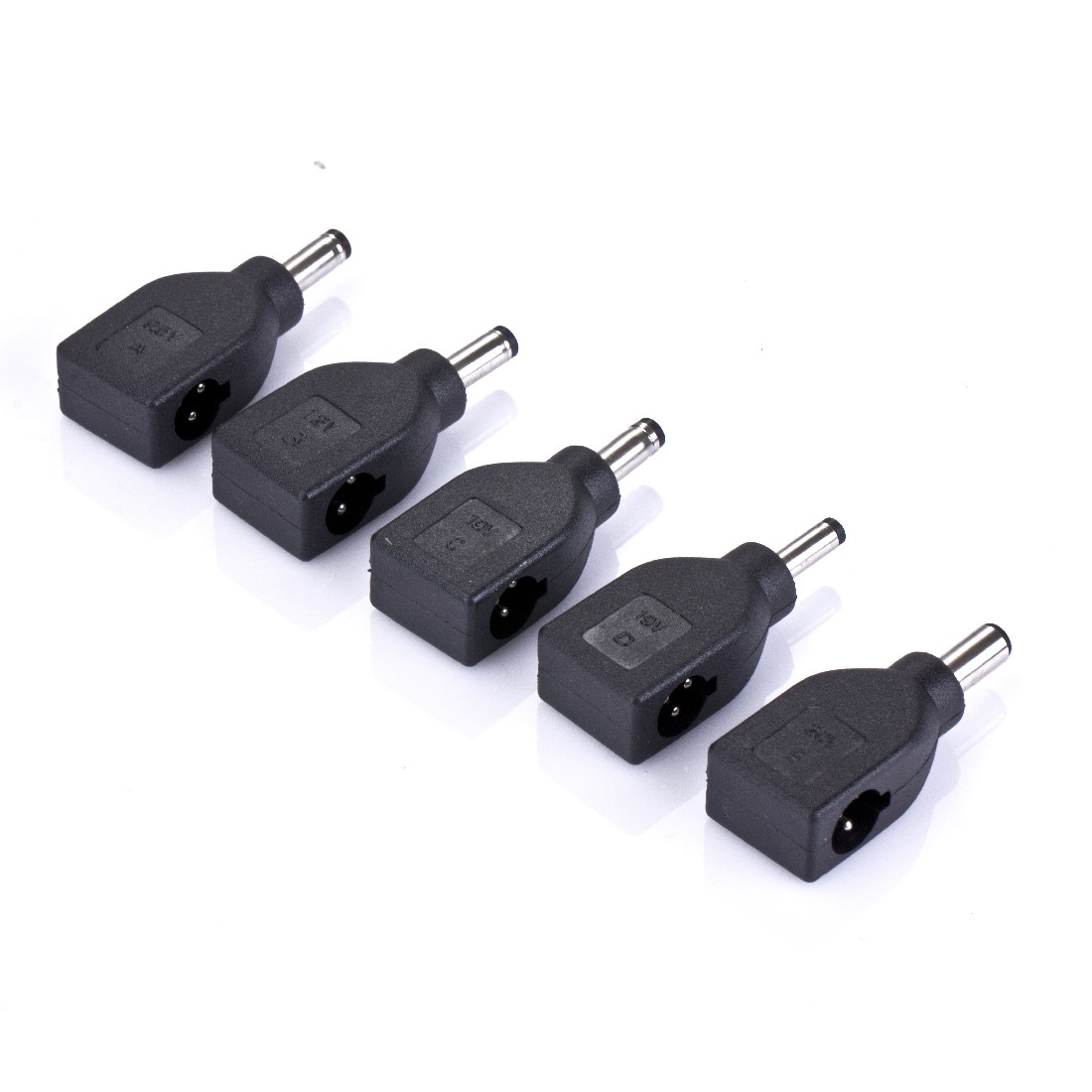

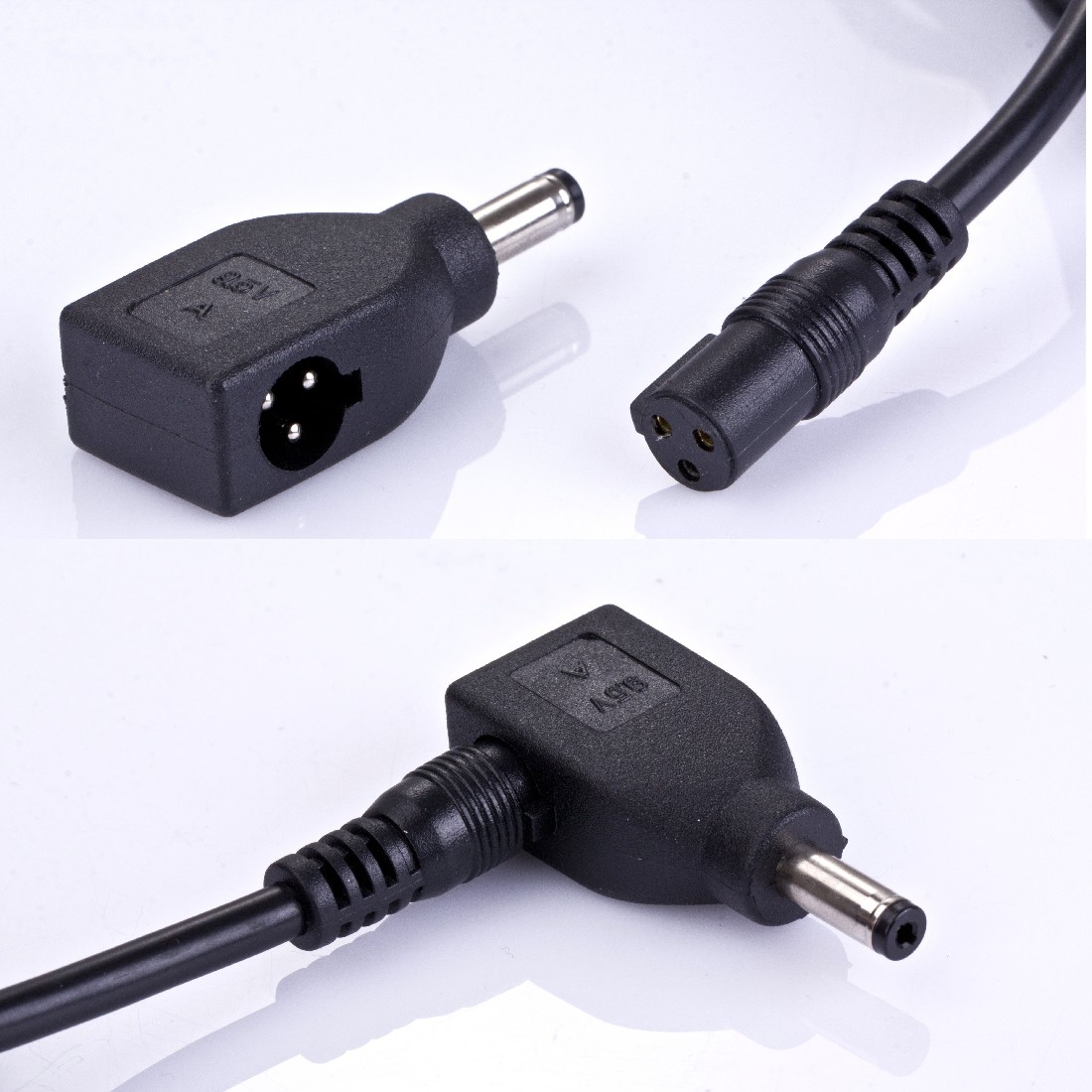

1) General Description: This model is an universal switching-mode power supply for Notebook and, operation at input AC 100V to 240V 47-63Hz, Output DC 4 voltages: 9.5V/12V@3.3Amp max, 19V/20V@2Amp max, output power 40 Watt max, with protections: Overload protection, Short Circuit Protection, power supply by mains supply. With 5PCS tip connecter to suit to almost Notebook, Select output voltage to suit to Notebook and make sure the polarity of tips connect correct before use. 2) Rated Input Voltage(47-63Hz): AC120V OR AC230V, Vibration Input Voltage(47-63Hz): AC100V-240V 3) Input Rated Current: 1.0AMP, Input Power: 50VA 4) Output power(max): 40W, efficiency: >80%(TYP) 5) Output voltage: 9.5V/12V/19V/20V/(0/+0.8V NO LOAD) DC9.5V-20V 6) Output voltage: DC 9.5V-12V @ 3.3Amp; - Rating load: 9.5V/ 12V/ 19V/ 20V(+/-5% @ typical +/-0.8V); - Output current: 9.5V/12V@3.3Amp MAX 19V/20V@2Amp MAX 19V-20V@2AMP 7) Overload protection: Yes 8) Short Circuit Protection: Yes 9) Line Regulation: +/-5% 10) Load Regulation: +/-5% 11) Case Size: 98*44.5*29(L*W*H)mm 12) Normal Operating Temperature and Humidity: 5.1 Operating Temperature :0 Degree C to 40 Degree C 5.2 Humidity: 20% to 80% 13) Storage Temperature and Humidity: 6.1 - Storage Temperature:-10 Degree C to 70 Degree C, 6.2 - Humidity: 10% to 90% 14) Main suitable for EPC

Specifications

SKU

S-LA-1008

Category

Computer & Networking › Laptop Power Adapter › Universal Power Adapter

Weight

0.385 kg

Delivery

Standard delivery
