6-color OBD ECU Scan Adapter Cable Bundle for Fiat

Product Description

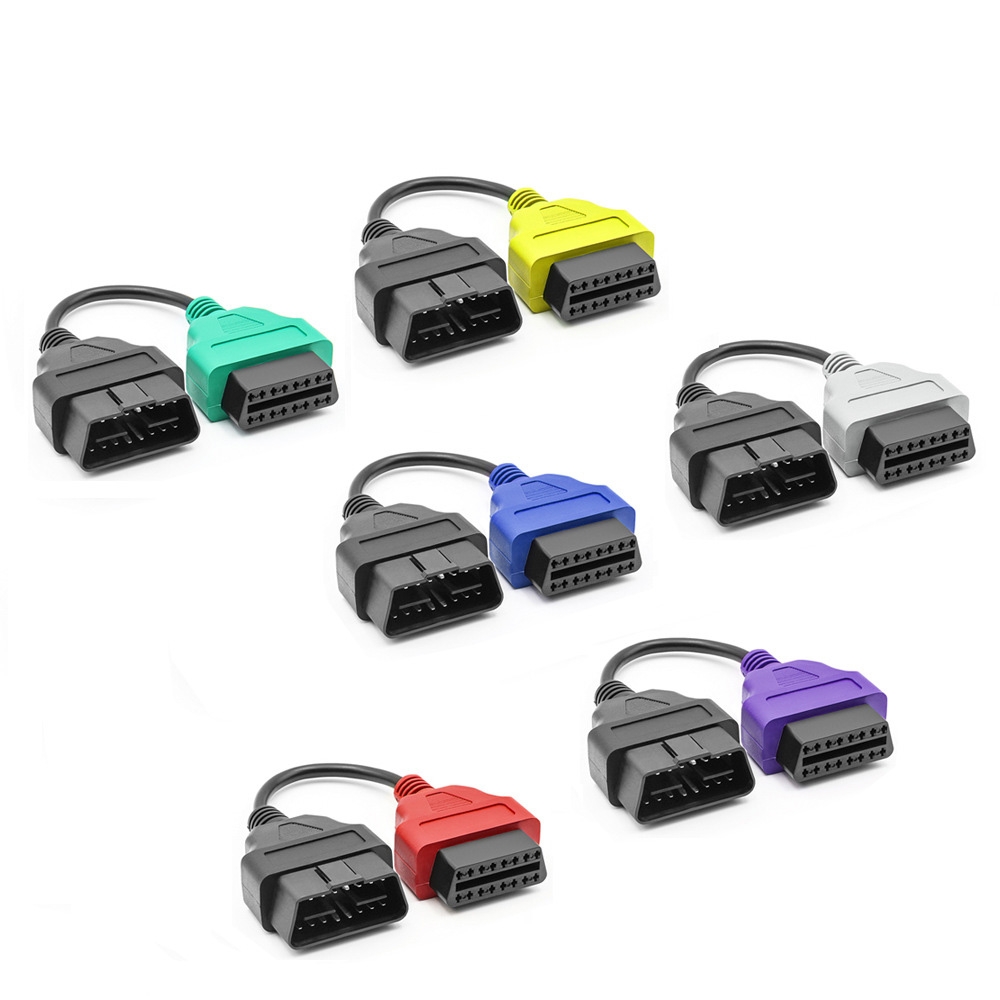

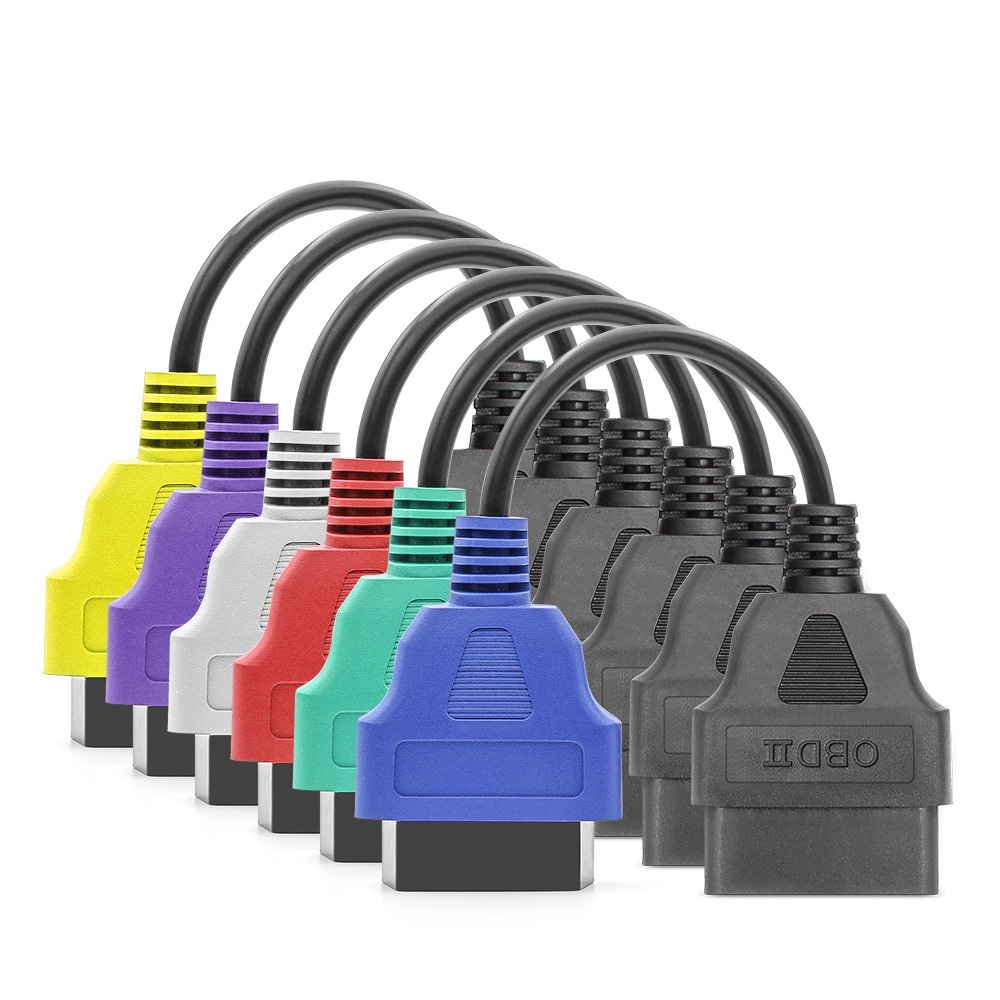

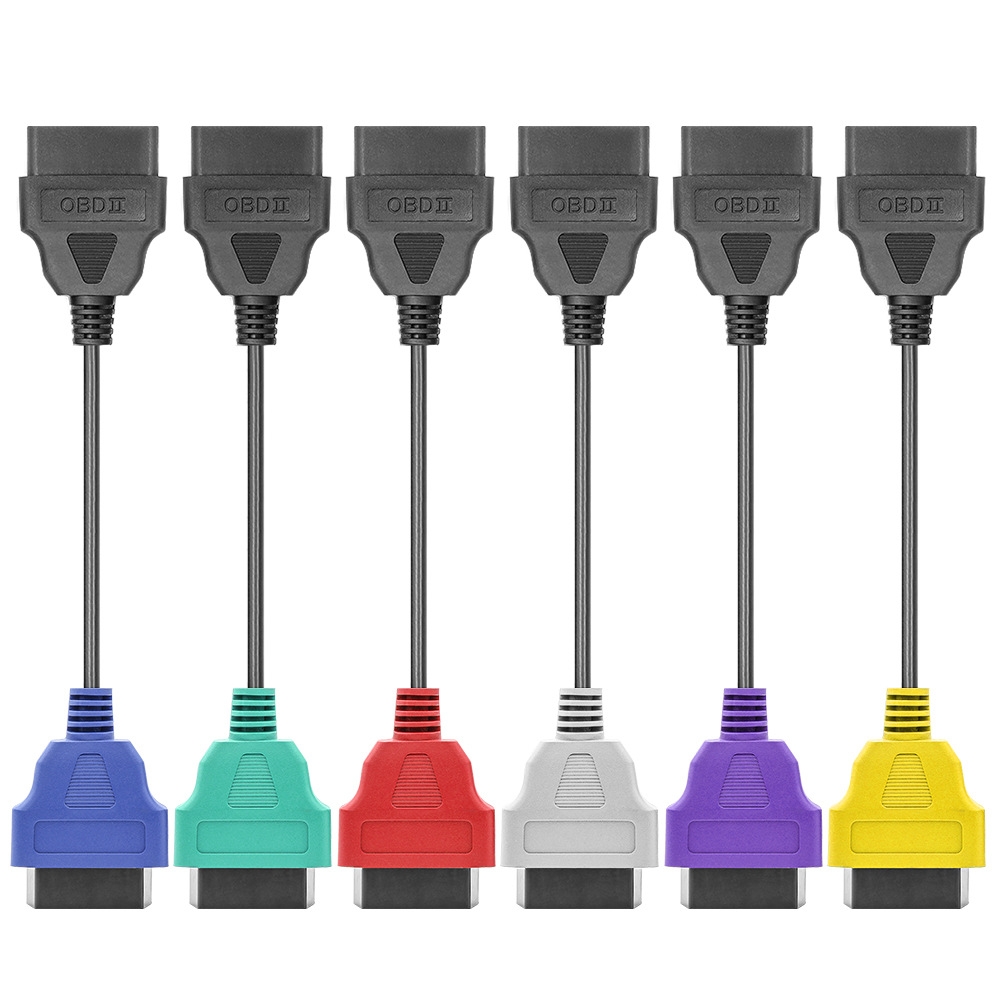

1. Cable length: 22cm 2. Note: There are only used as a connecte cable and does not contain any software or diagnostic cables 3. There are 6 adaptor cables included which perform different functions. 4. Green ABS / Power Sreeing adapter lead (Adapter 1 on MultiECUScan website) Designed to allow access to the ABS and Power Steering systems on supported vehicles. This adapter has a green connector on one end for easy identification. Using this adapter, Pin 7 on the diagnostic tool is connected to Pins 1,7,9 & 12 on the car. 5. Red Airbag adapter lead ( Adapter 2 on MultiECUScan website) Designed to allow access to the Airbag system on supported vehicles. This adapter has a red connector on one end for easy identification. Using this adapter, Pin 7 on the diagnostic tool is connected to pin 3 only pn the car. 6. Yellow CAN adapter lead ( Adapter 3 on MultiECUScan website) Designed to allow access to the low-speed CAN system on supported vehicles. This adapter has a yellow connector on one end for easy identification. Using this adapter, Pin 6 & 14 on the diagnostic tool are connected to pins 1 & 9 Respectively on the car, Pin 7 on the diagnostic tool is connected to pin 12 on the car.   Doblo , Fiorino , Ducato , Palio , Siena , 124 Spider , 500X , 500L , 500 , Strada

Specifications

SKU

EDA0023625

Category

In Car › Diagnostic Scan Tools › Cables & Connectors

Weight

0.606 kg
