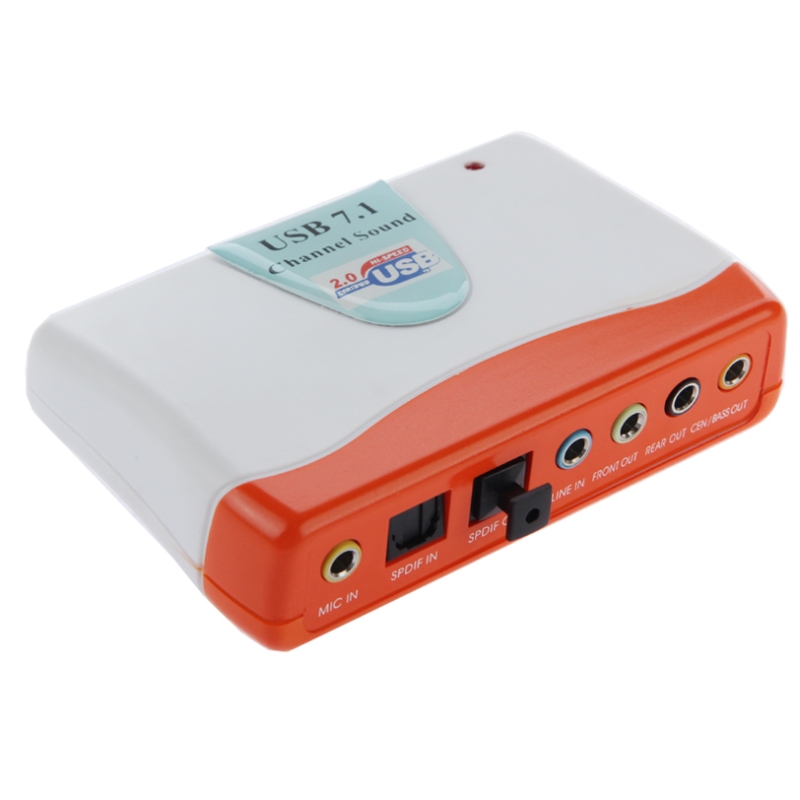

7.1 Channel USB Sound Adapter

Product Description

1) USB sound is an USB audio controller. It supports 32KBz, 44.1 KHz. ( which two need driver or application software support) and 48KHz sampling rate in digital recording, 48KHz sampling I analog recording and 48KHz I digital/analog audio playback 2) In digital playback mode, it receives audio stream PC via USB interface and transmits audio data according to the AES/EBU, IEC60985, S/PDIF consumer interface standards. Only R, L channel PCM audio in 7.1 channel can be conveyed in digital playback mode. In analog playback mode. 3) In digital recording mode, it receives S/PDIF digital audio input and sends back to PC through USB. Three sampling rates: includes 32KHz, 44.1KHz are automatically locked internally, in analog recording mode, fixed 48KHz sampling rate is supported by analog audio recording * Specifications 1) Supports AES/EBU, IEC60985, S/PDIF consumer formats for stereo PCM audio 2) Fixed 48KHz sampling rate for 7.1 channel playback 3) Supports digital recording function with 32KHz, 44KHz and 48KHz sampling rates 4) Supports analog recording function 5) Supports SCMS ( Serial copy management system) copy protection 6) Compatible with Win98SE, ME, 2000, XP. Mac OS 9.1 VISTA ( Mac version has 2 channel playback only) 7) Fully duplex playback/recording audio stream without sound card in PC 8) Compliant with USB specification v1.1 v2.0 9) Compliant with USB audio device class v1.0 v2.0 10) Supports USB full speed 12Mbit 480mbit serial data transmission 11) 3 input terminals 12) 3 output terminals 13) Supports input and output channels 14) Supports multi channels audio code interface for 7.1 channel playback 15) Supports conventional audio 2 channels source playback ( only L, R, channel active) 16) Plug and play under windows without external memory

Specifications

SKU

S-CA-6017

Category

Computer & Networking › Computer Components › USB Sound

Weight

0.27 kg

Delivery

Standard delivery
