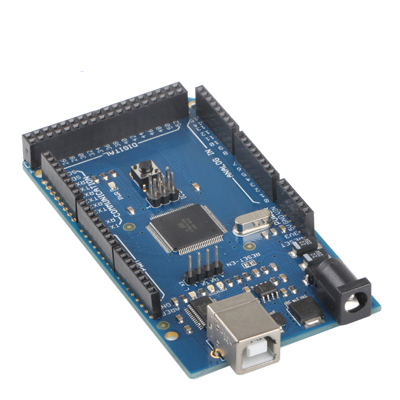

Arduino Duemilanove Mega AVR ATmega1280-16AU USB Board

Product Description

The Arduino Mega is a microcontroller board based on theATmega1280(datasheet). It has 54 digital input/output pins (of which 14 can be used as PWM outputs), 16 analog inputs, 4UARTs(hardware serial ports), a 16MHzcrystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started. The Mega is compatible with most shields designed for the Arduino Duemilanove or Diecimila. Features: 1) Microcontroller ATmega1280 2) Operating Voltage 5V 3) Input Voltage (recommended) 7-12V 4) Input Voltage (limits) 6-20V 5) Digital I/O Pins 54 (of which 14 provide PWM output) 6) Analog Input Pins 16 7) DC Current per I/O Pin 40 mA 8) DC Current for 3.3V Pin 50 mA 9) Flash Memory 128 KB of which 4 KB used by bootloader 10) SRAM: 8KB 11) EEPROM 4 KB 12) Clock Speed: 16MHz 13) Size: 108x53x10mm

Specifications

SKU

S-DIY-0160

Category

Consumer Electronics › DIY Parts & Components › Others

Weight

0.1 kg

Delivery

Standard delivery
