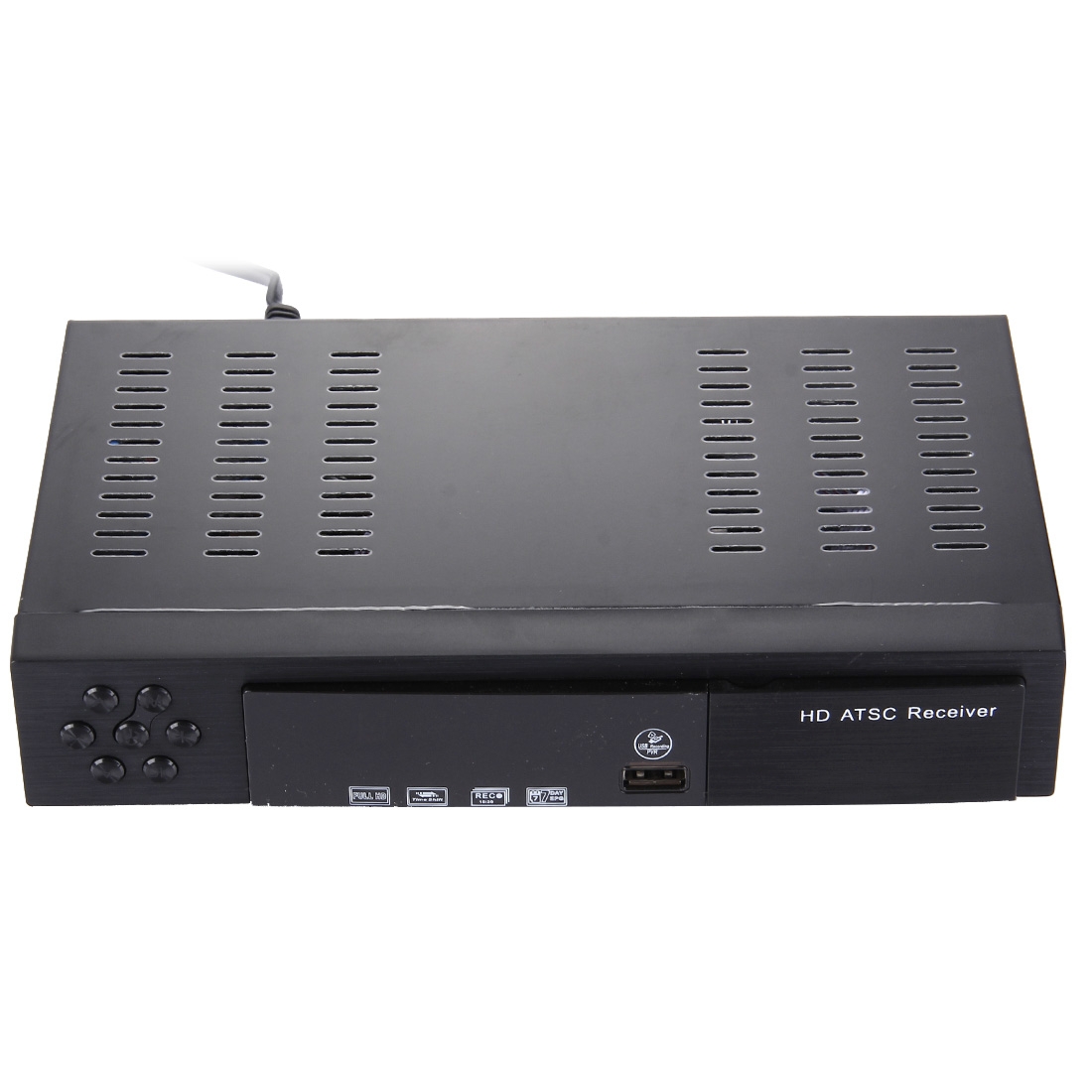

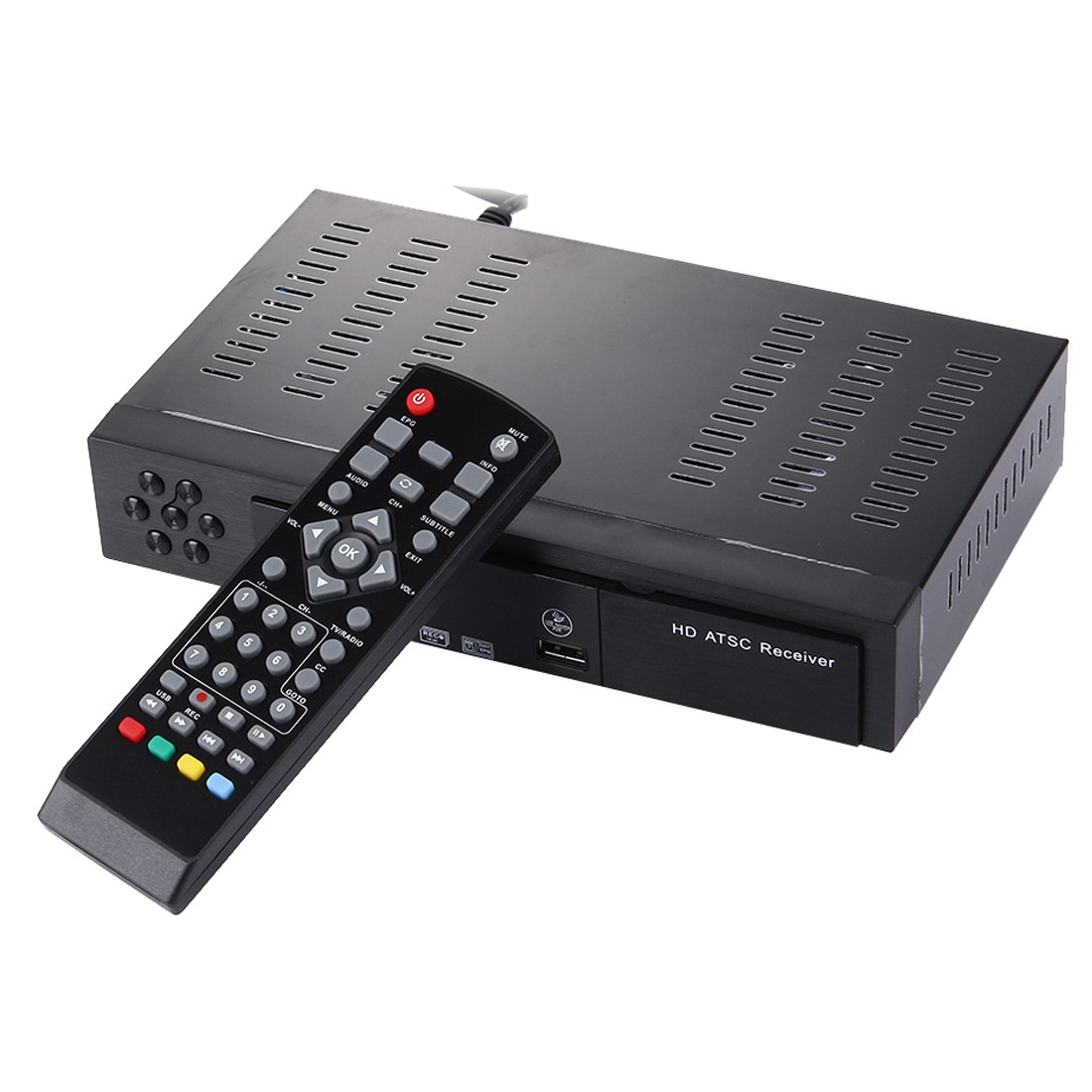

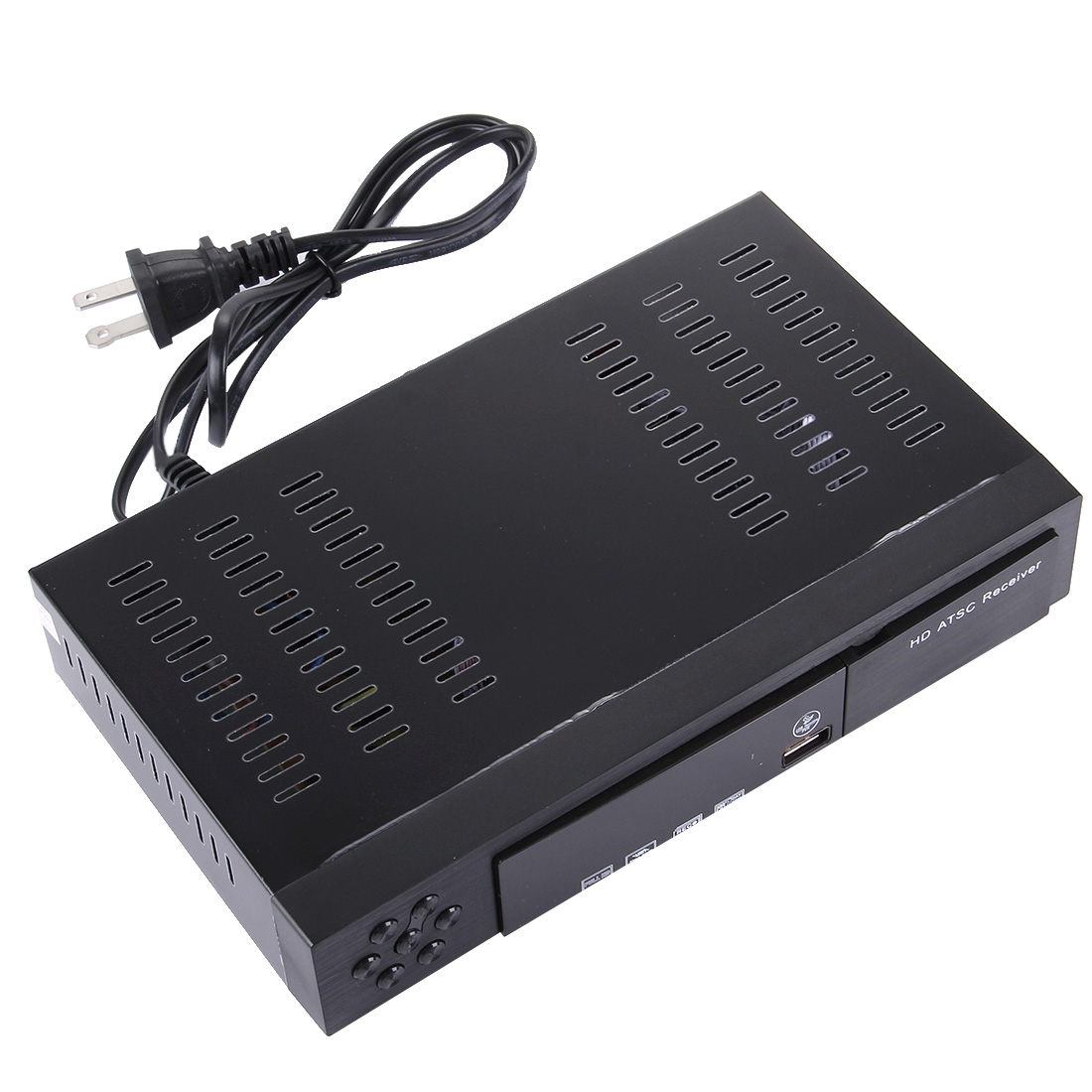

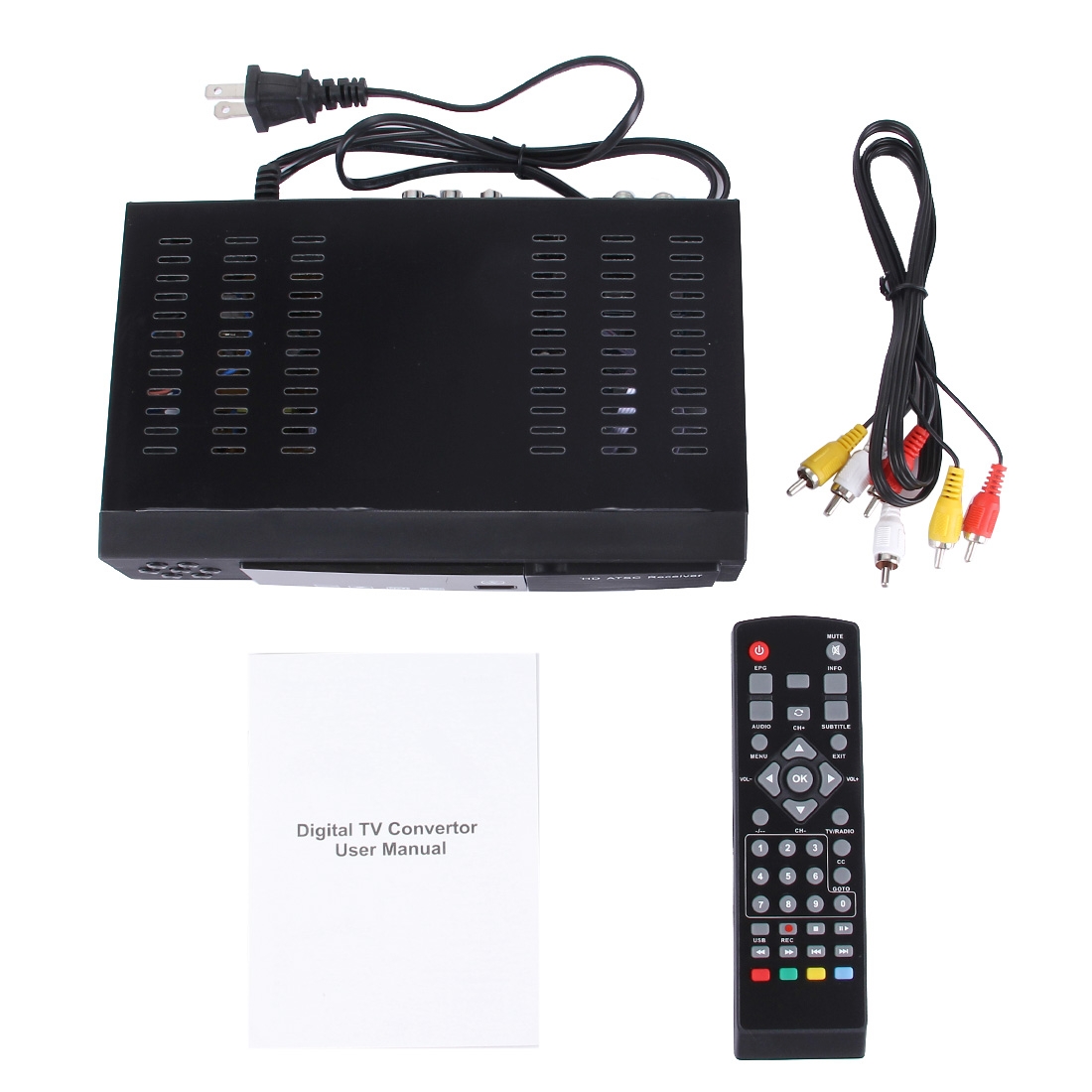

ATSC Digital Broadcast 1080P HD Receiver Smart TV BOX with Remote Controller for Mexico / USA / Canada(Black)

Product Description

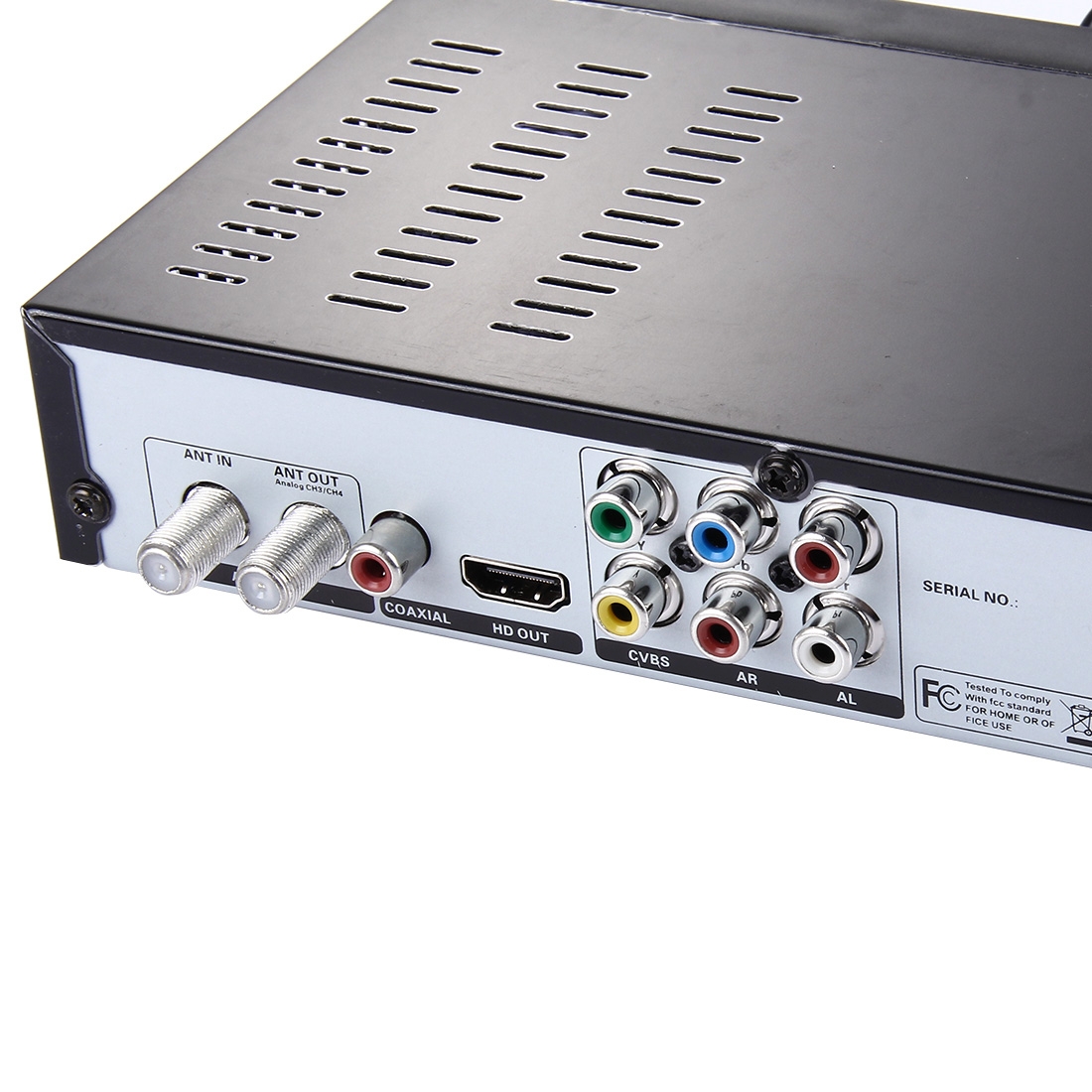

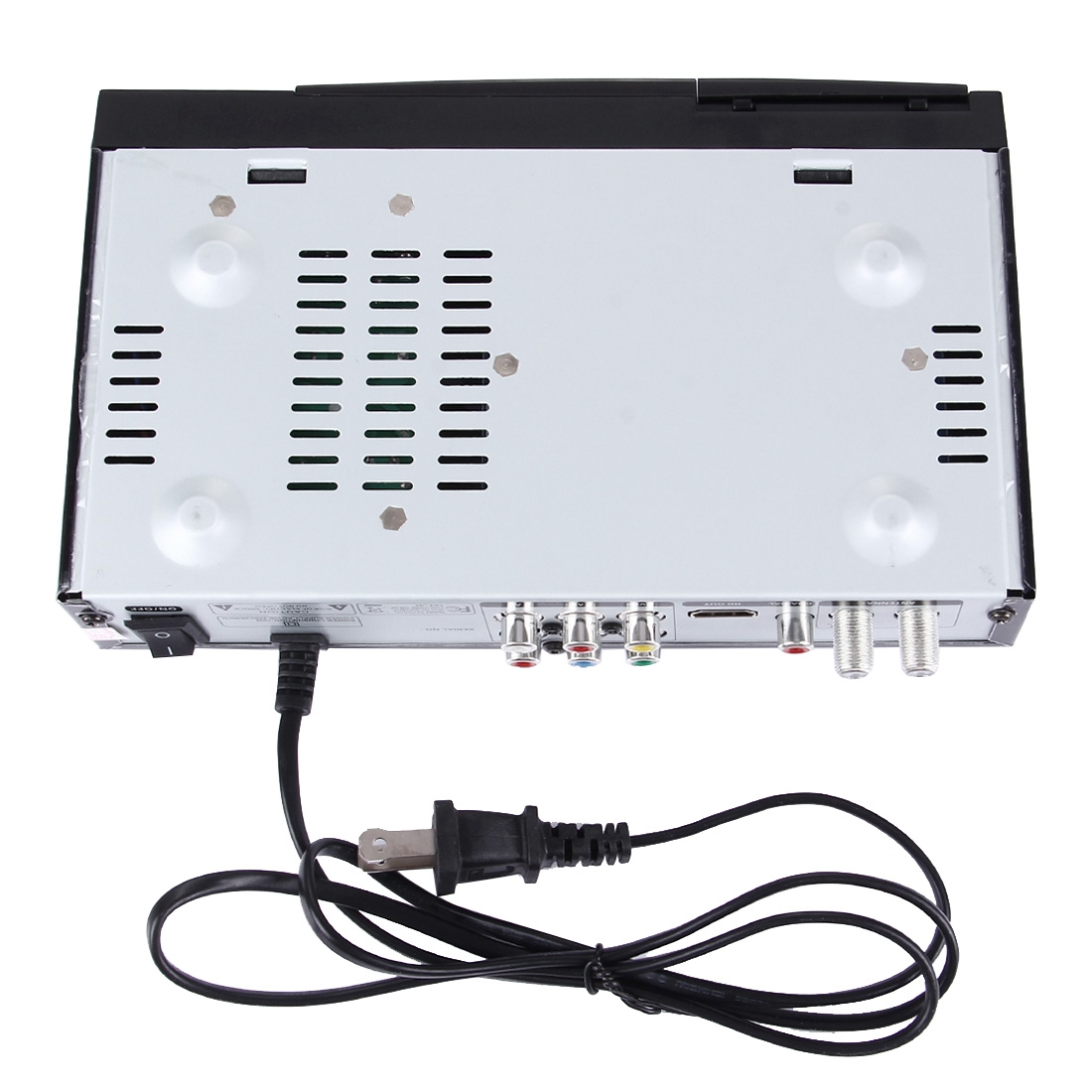

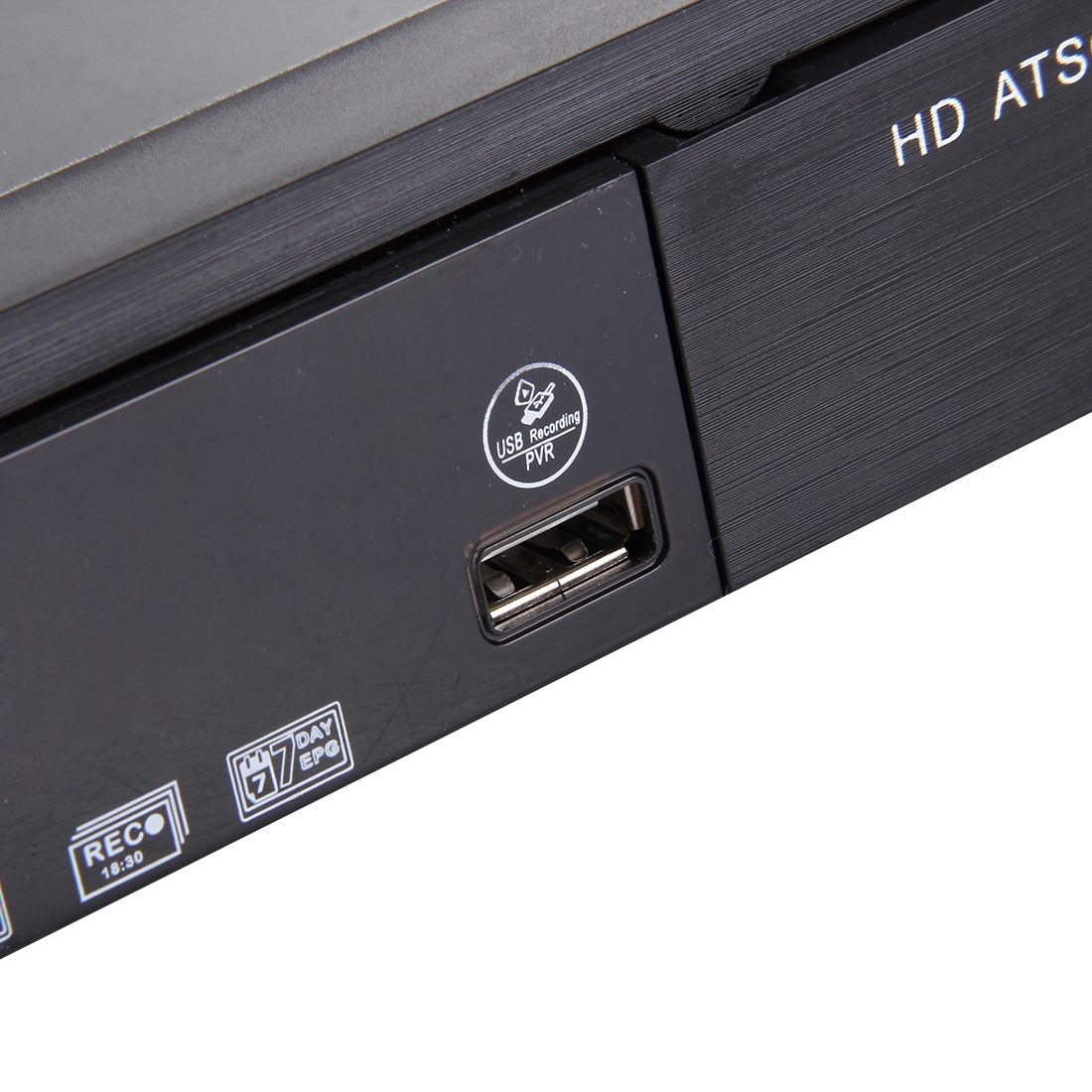

Hardware 1. CPU: MSTAR-MSD7802 (128 pin) MIPS 34Kf@600MHz 2. Memory: 32X 16Mbit DDR2 Frequency 1066 3. Flash: 32M bytes 4. Demodulator Type: MSB1237 Chip Set 5. TUNER: Rafael R836 6. USB 2.0: Embedded One Host, 7. Front Panel: - 4-digit LED display on front panel - red LED Standby,green LED Lock 8. Rear Panel: - Tuner RF input connector - Standard ISO/IEC 13818-1; ARIB STB-B10 - Tuner RF Loop through connector - loop through function - HDMI V1.3 - AV RCA x1 - Ypbpr RCAx1 - Coaxial x1 - Power AC100~240V 50Hz/60Hz 9. Demodulation - Standard ISO/IEC 13818-1; ARIB STB-B10 - Input max. bit stream rate: 36Mbps (serial) / 9Mbps (parallel) - ATSC NTIA and 8VSB Standard - QPSK, 64QAM, 256QAM - FEC: 1/2, 2/3, 3/4, 4/5,5/6, - Guard Interval: 1/4,1/8,1/16,1/32,1/128 - FFT Mode: 2K, 8K, 32K - RF input frequency: 54-803MHz - Bandwith: 6MHz - Input level: -83 - -5dBm 10. Remote controller power by 2 x AAA batteries (not included) Sortware Features 1. USA ATSC 8VSB / 64 / 256 QAM digital broadcast HD receiver. 2. Converts digital broadcast to your analog TV. 3. By remote control to choose the RF 3/4 ch output. 4. Sleep Timer. 5. Support teletext / subtitle / muti-languages. 6. Powerful and highly effective 7-day EPG function. 7. AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen. 8. USB 2.0 for PVR, TIMESHIFT, software upgrade and media files playback. 9. Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P. Decoder 1. Video Decoder - Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818 - MPEG-4 Simple/Main/Advanced Profile LEVEL3 (10Mbps) - MPEG-2 Main Profile# Main Level (15Mbps) - H.264 MP#L3 (10Mbps).H.264 HP L4.1(25Mbps) 2. Audio Decoder - MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding Powerful Multimedia Features 1.MediaCodec: avi, mpg, dat, vob, div, mov, mkv, jpeg, ts etc. 2. Audio Codec: WMA, MP3, AAC (wma, mp3, m4a) 3. Photo Codec: JPEG, BMP, PNG Multimedia License Optional DTS, Dolby Digital, Dolby Digital Plus, RM/RMVB, Divx License.

Specifications

SKU

TT1610B

Category

Consumer Electronics › TV Receivers › Set Top Box & Accessories

Weight

0.752 kg
