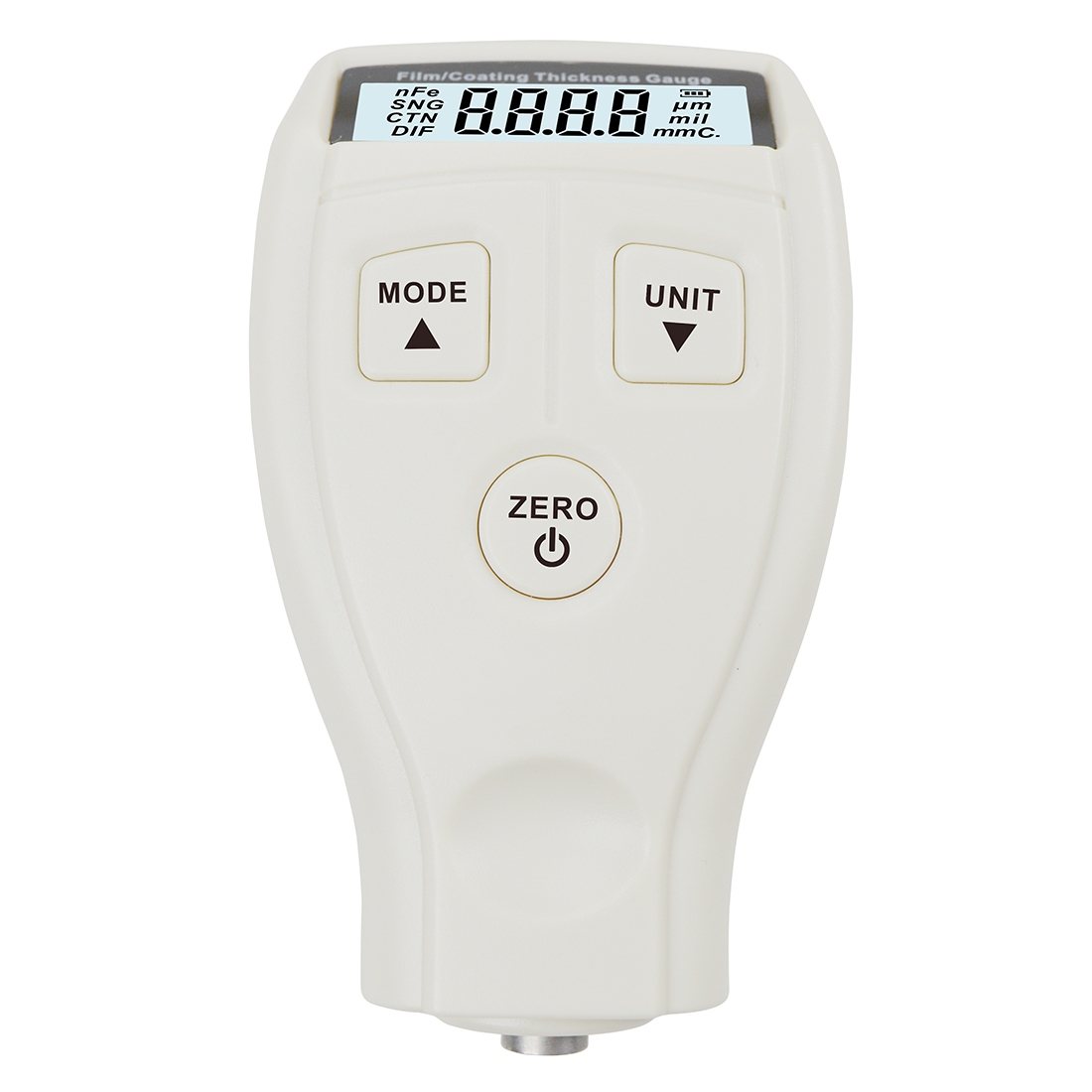

BENETECH GM210 Film/Coating Thickness Gauge

Product Description

Features 1. Measure thickness of surface coatings on metal substrates 2. Single/continuous/differential measurement available 3. Zero-point/2-point/basic calibration available 4. Metric and imperial units of measurement optional 5. Powered by 2 x 1.5V AAA batteries 6. LCD backlight 7. Auto power off Specifications 1. Measuring range:0 - 1800 micron / 0 - 70.9 mil 2. Resolution: 0.1 micron/1 micron/0.1 mil 3. Measurement error: +-(3%H + 1 micron) 4. Min diameter of substrate: 12mm 5. Min thickness of substrate: 0.5mm 6. Min curvature radius of convex substrate: 2mm 7. Min curvature radius of concave substrate: 11mm 8. Operating temperature: 0 - 40 celsius degree 9. Operating humidity: 10% - 95% relative humidity

Specifications

SKU

S-HC-2100

Category

Consumer Electronics › Test Equipment › Coating Thickness Gauge

Weight

0.787 kg

Delivery

Standard delivery
