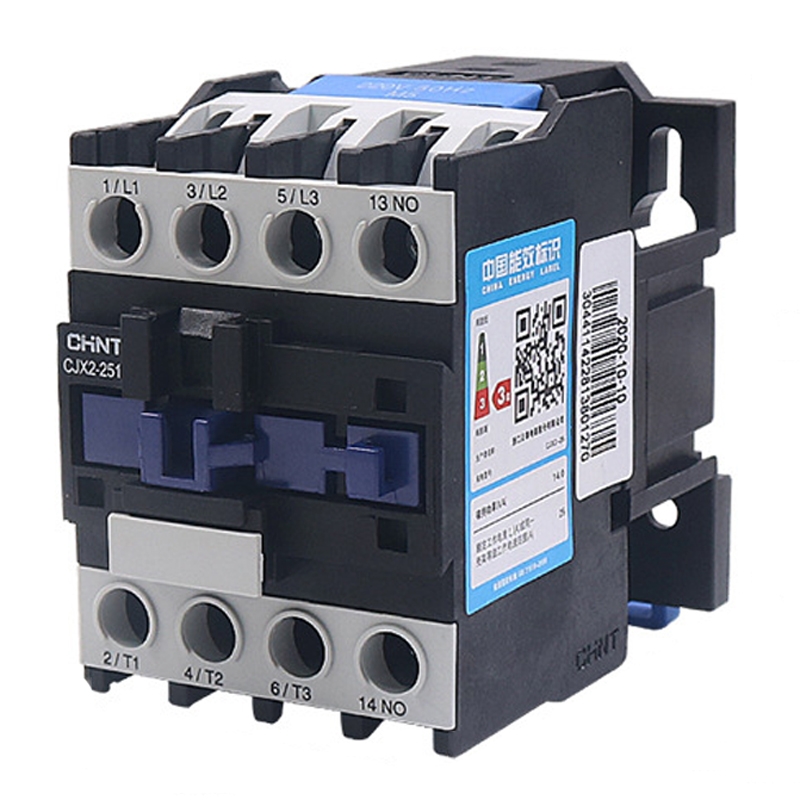

CHNT CJX2-2501 25A 220V Silver Alloy Contacts Multi-Purpose Single-Phase AC Contactor

Product Description

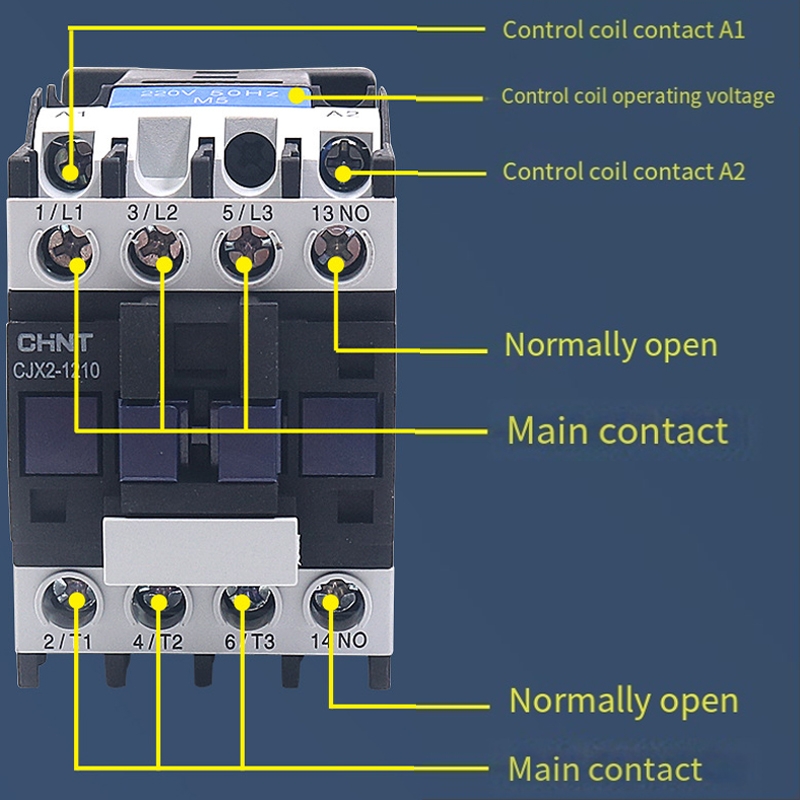

1. Coil voltage: AC 220V 2. Working current: 9A-95A 3. Insulation voltage: 690V 4. Wiring capacity: 4-10 square millimeters 5. Installation: rail/screw mounting Features: 1. Description: selection on demand, CJX2-xx10: normally open, energized suction; CJX2-xx01: normally closed, energized disconnection; CJX2-xx11: an open and a closed 2. 8 contacts, silver alloy material, strong conductivity, more stable contact when connecting with larger size 3. 32 pieces of iron core, suction more smooth and tight, real material, two silicon steel iron core 4. Copper core coil, when the coil is energized, the static iron core generates electromagnetic suction, which sucks the iron core together 5. A variety of uses, control equipment, load is too large with the use of temperature control, time control, water level control, etc. 6. Rated current is not equal to the agreed heating current, please take the rated current as the standard purchase, long-term work under the agreed heating current will cause damage to the equipment or reduce the life of the AC contactor, damage

Specifications

SKU

TBD0604314208

Category

Consumer Electronics › Plugs & Sockets › Relays

Weight

0.562 kg

Delivery

Standard delivery
