CNC 3018/2418/1610 Laser CNC Engraving Machine Control Board GRBL Control Board CNC System

Product Description

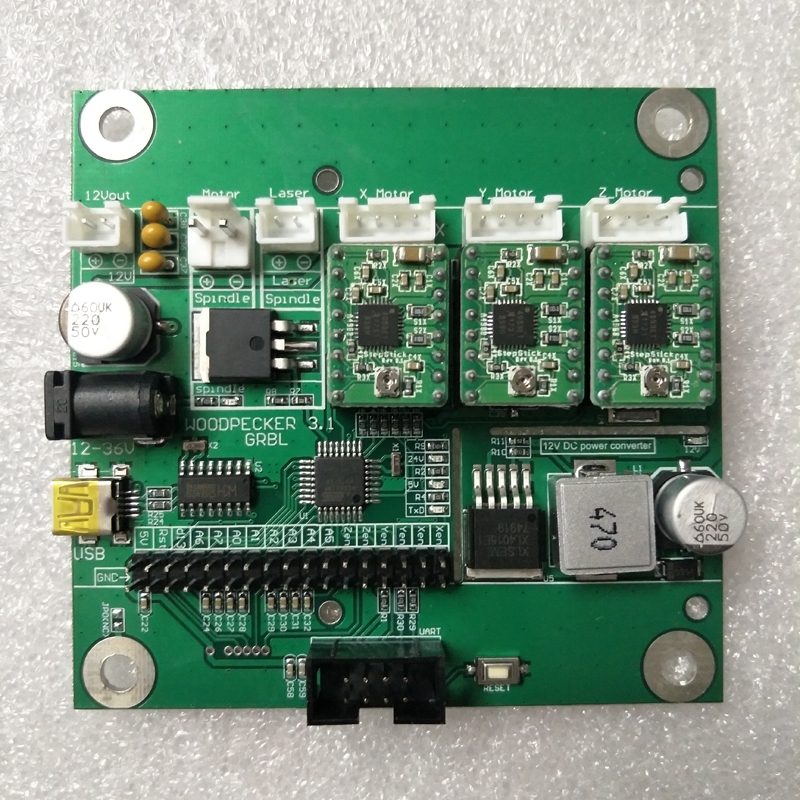

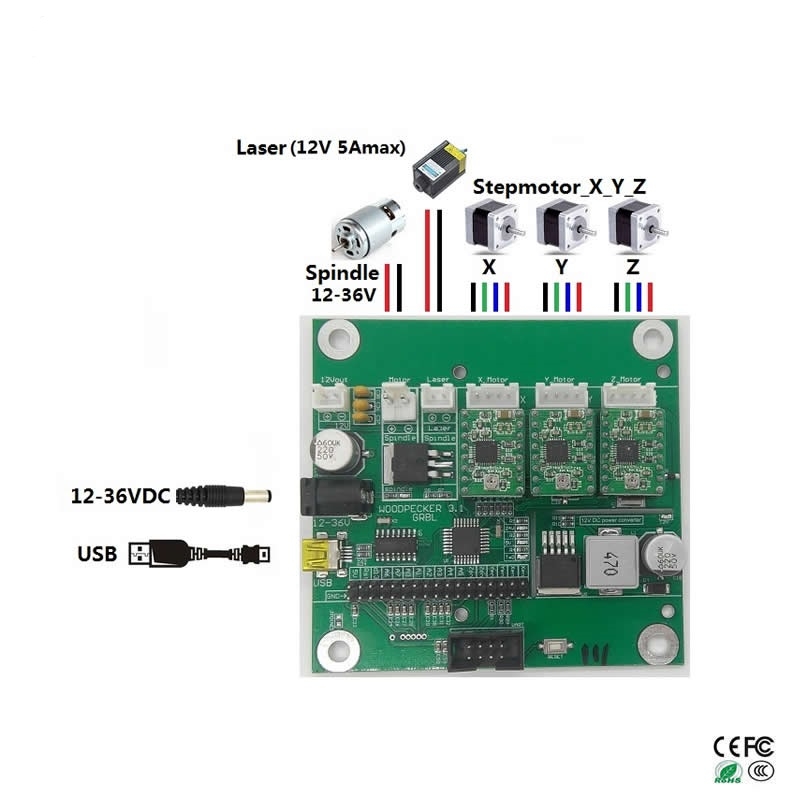

Connection:USB (USB-CH340)Software:GRBL controller, Universal Gcode SenderLaser engraving:SupportPower interface:5.5-2.5mm DC interface1. Package including: 1 set Control board (including USB cable) 2. GRBL CNC One-piece control board, three-axis drive + spindle drive, can directly drive the three-axis system + spindle power control, eliminating the need for electrical connection, suitable for ordinary engraving machine and laser engraving machine, DIY essential!!! 3. Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A ) 4. Support stepper motor:12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

Specifications

SKU

TBD0478191

Category

Consumer Electronics › DIY Parts & Components › Others

Weight

0.204 kg

Delivery

Standard delivery
