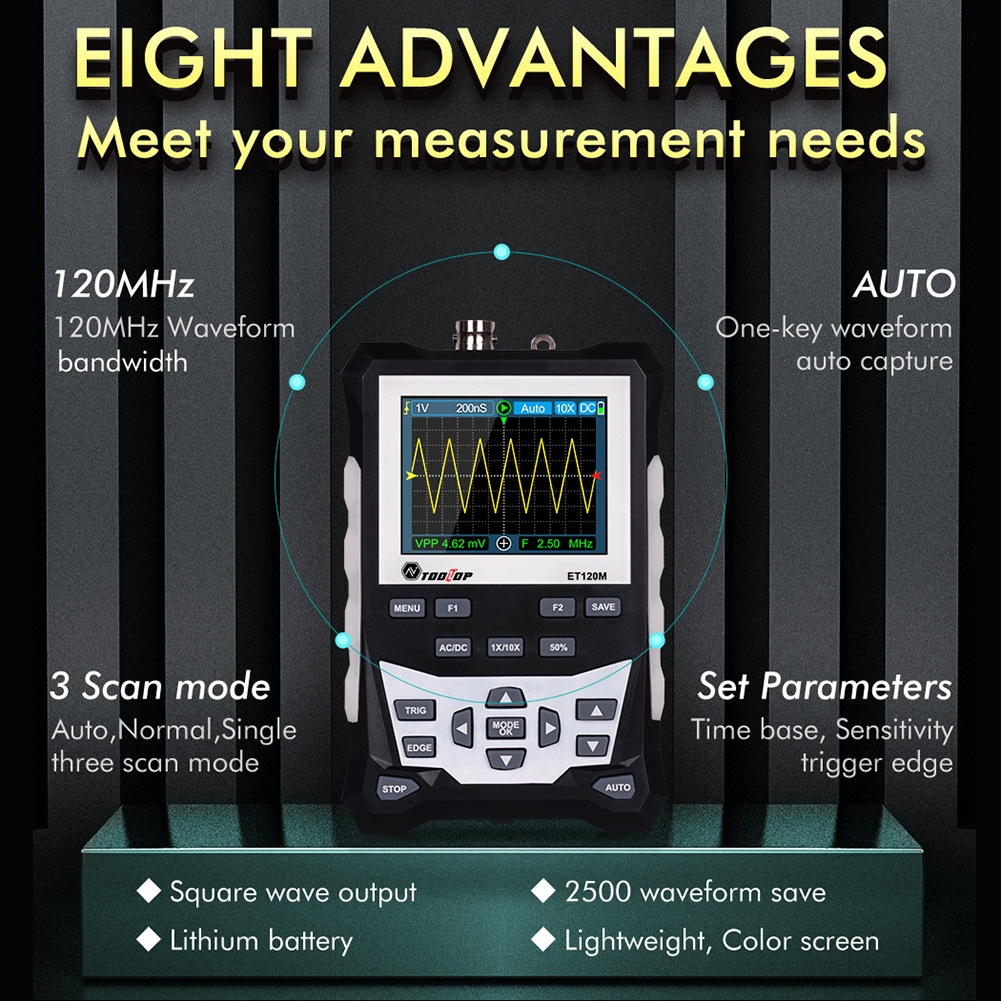

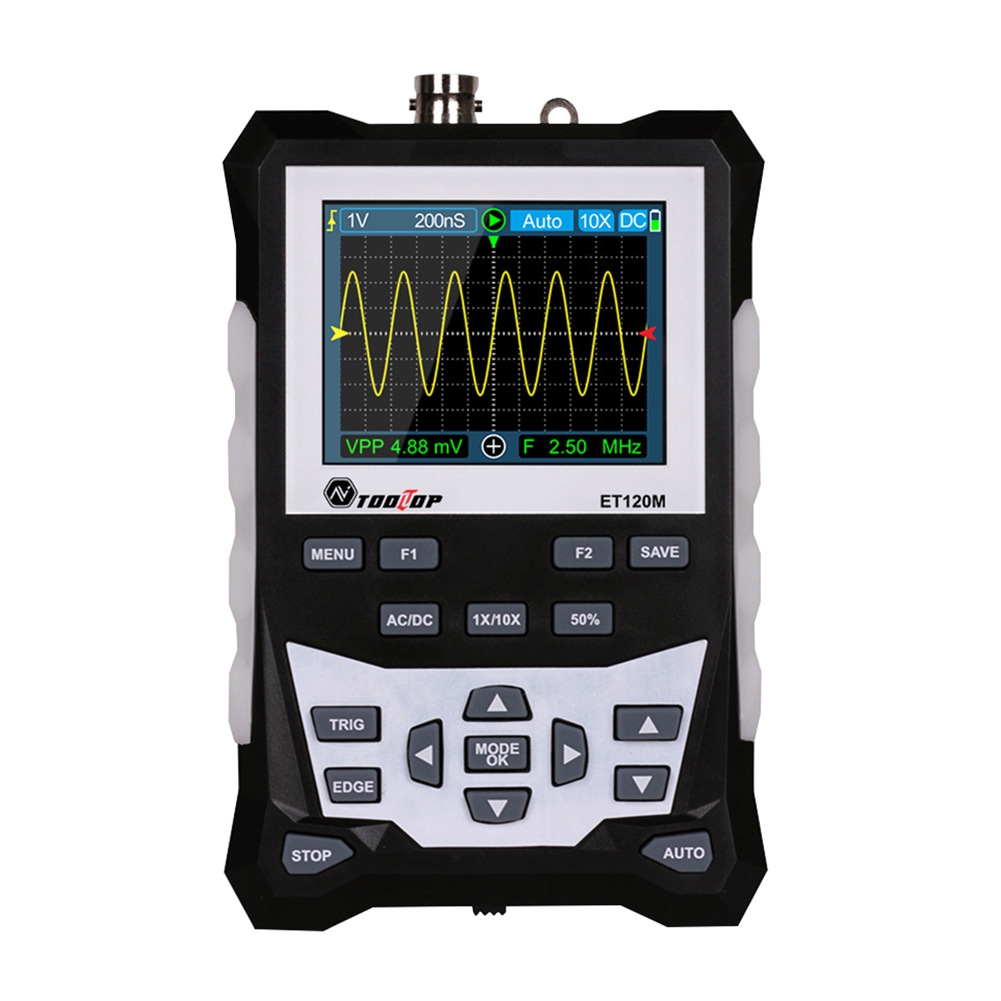

ET120M 120MHz Digital Color Simulation Oscilloscope

Product Description

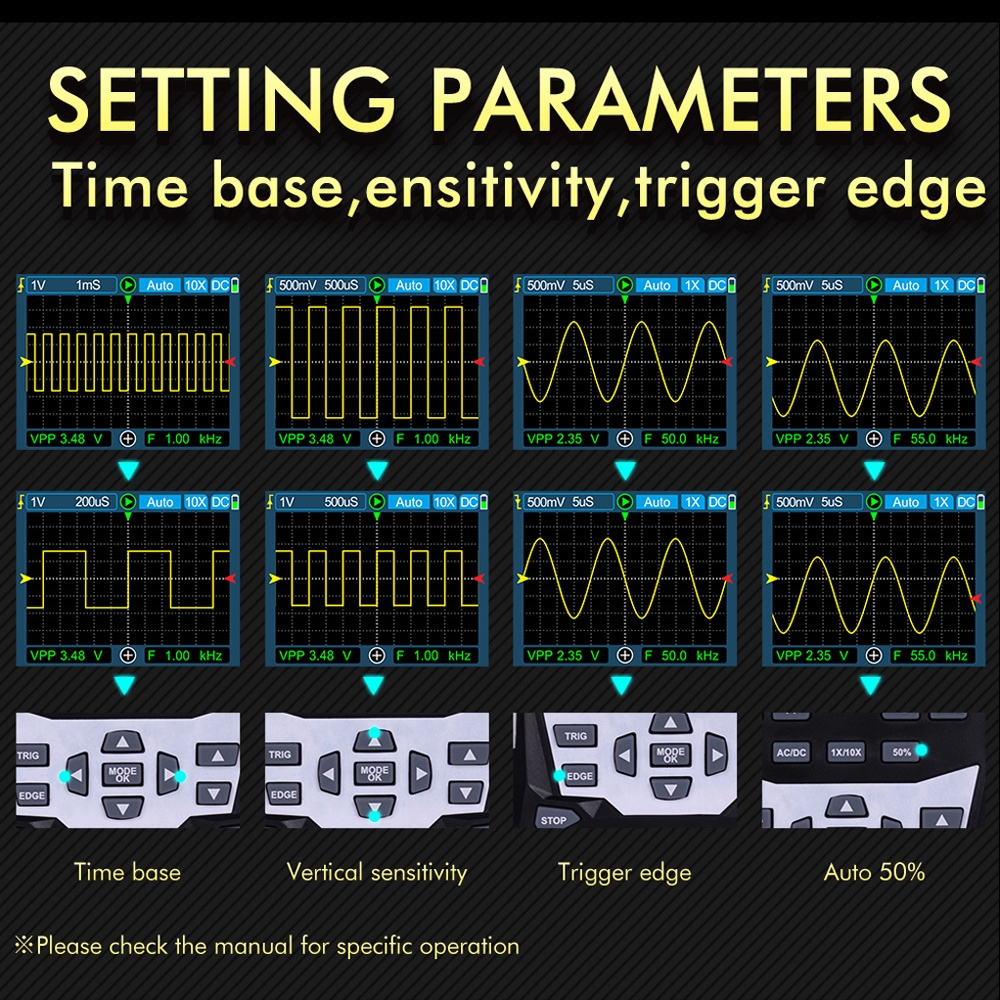

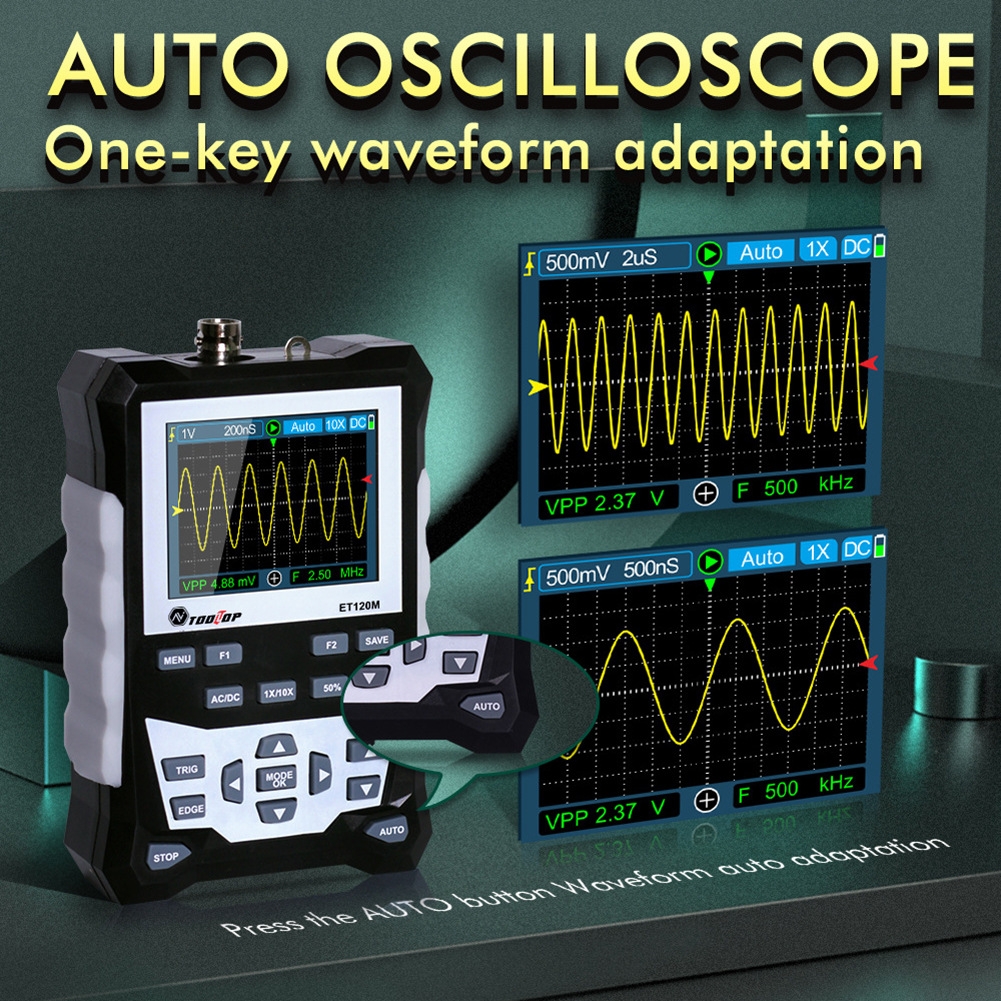

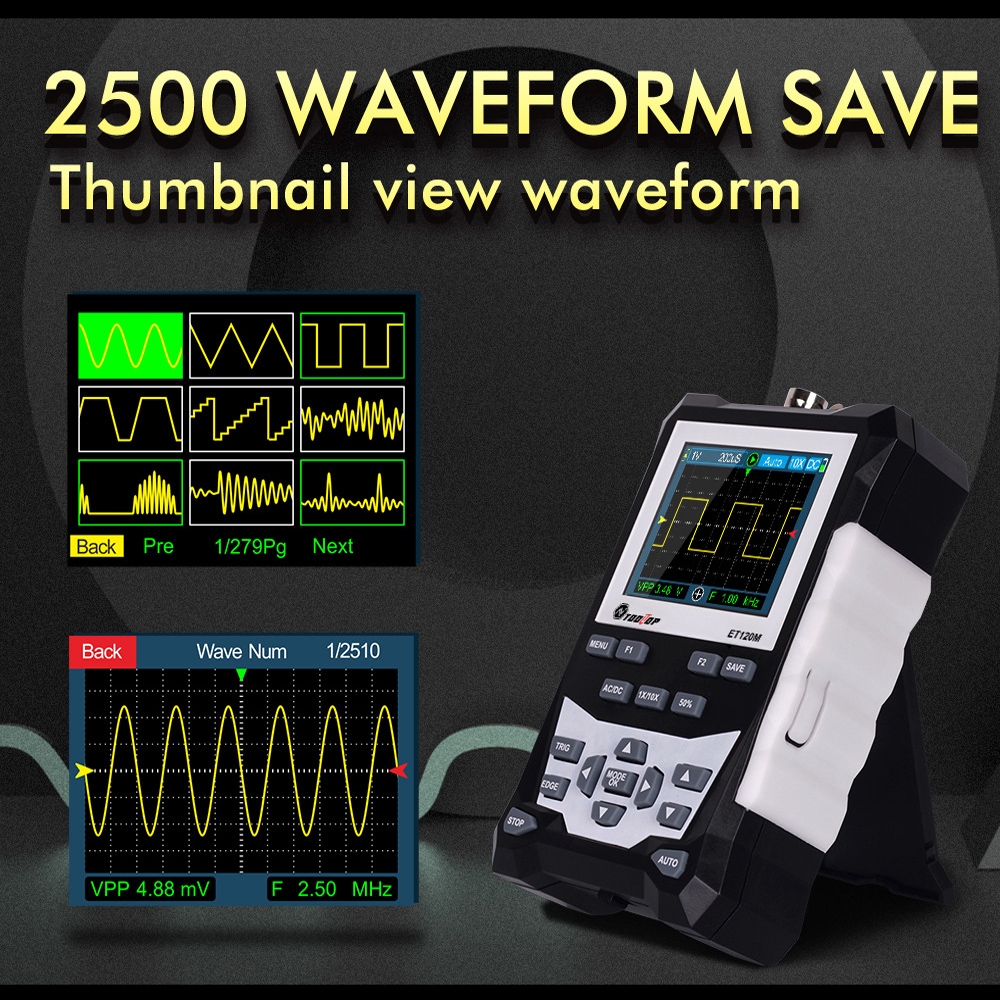

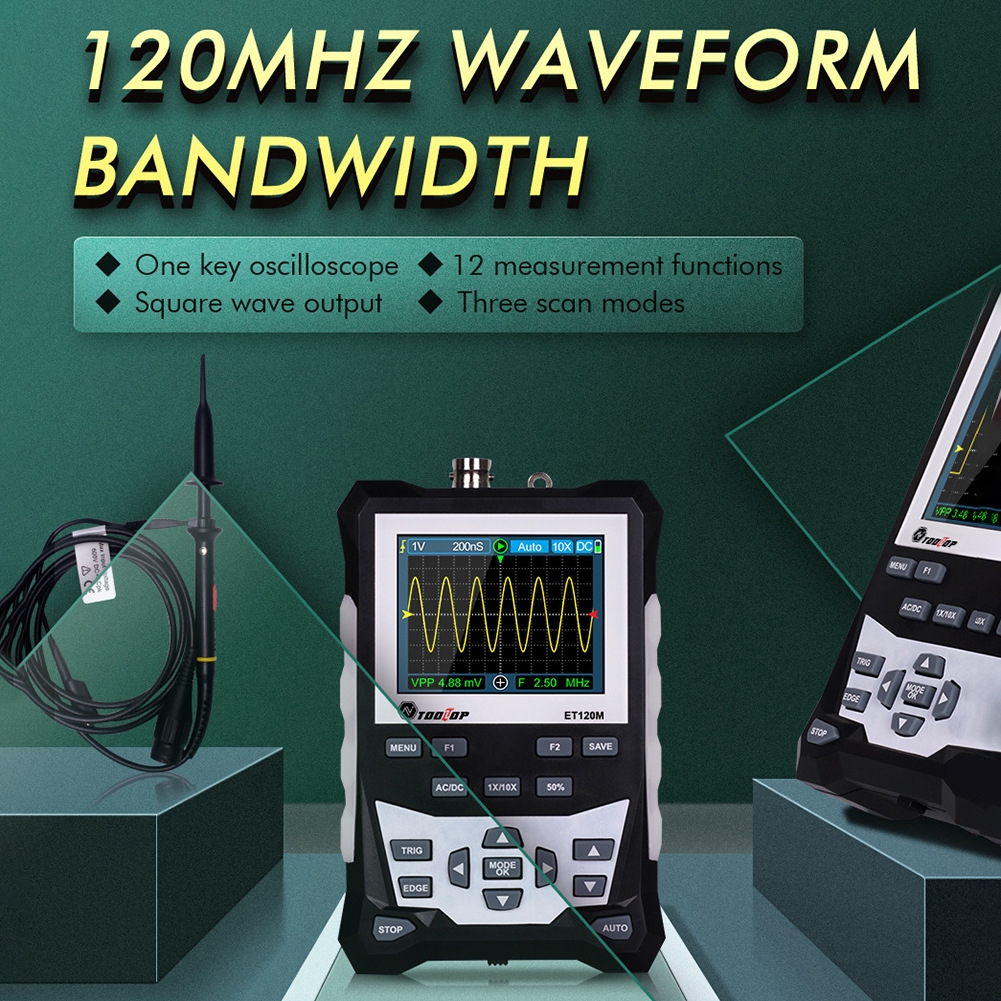

1. Material: ABS 2. Screen: 320 x 240 LCD screen 3. Display area: 50mm x 40mm 4. Backlight: White, 8-level brightness 5. Impedance: 1X-1Mohm/ 10X-10Mohm 6. Battery: Lithium battery 7. Automatic shutdown: no operation for 15 minutes 8. Save: 2500 DSO waveforms 9. Dimensions: 124 x 80 x 35 (mm) 10. Weight: about 180g 11. Use conditions: 0 to +40 degrees Celsius; less than 75%RH 12. Waveform bandwidth: 120MHz 13. Number of channels: 1 14. Voltage: 1X: 80 Vpp 10X: 800 Vpp 15. Coupling: DC/AC 16. Signal output: 1KH, 10KHz, 100KH+z, 1MHz 17. Voltage accuracy: 10% 18. Frequency accuracy: 1% 19. Storage depth: 12.8div 20. Input impedance: 1MΩ 21. Vertical sensitivity: 50mV~100v 22. Time base range: 6nS～50S 23. Trigger Mode: Auto/Normal/Single 24. Trigger slope: rise/fall 25. Charging: DC5V/1A/2A 26. Sampling rate: 500MSps (MAX) 27. Automatic measurement function: Vpp, Vrms, Vavg, Vp, Vmax, Vmin, F, T, T+, T-, Du+, Du- 28. Applicable occasions: home appliance inspection, automobile diagnosis, scientific research and education, product development, equipment debugging

Specifications

SKU

TBD06020443

Category

Consumer Electronics › Test Equipment › Other Tester Tool

Weight

0.396 kg

Delivery

Standard delivery
