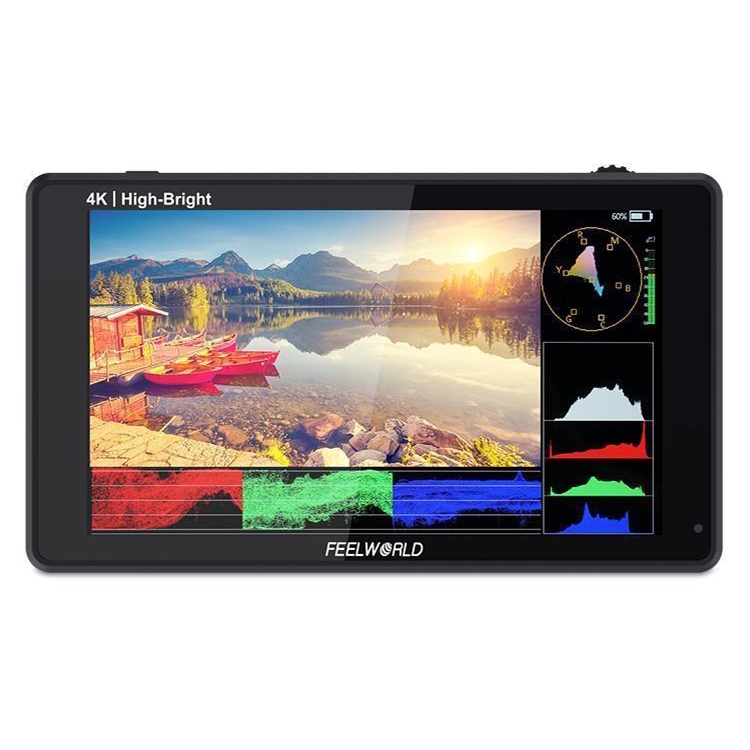

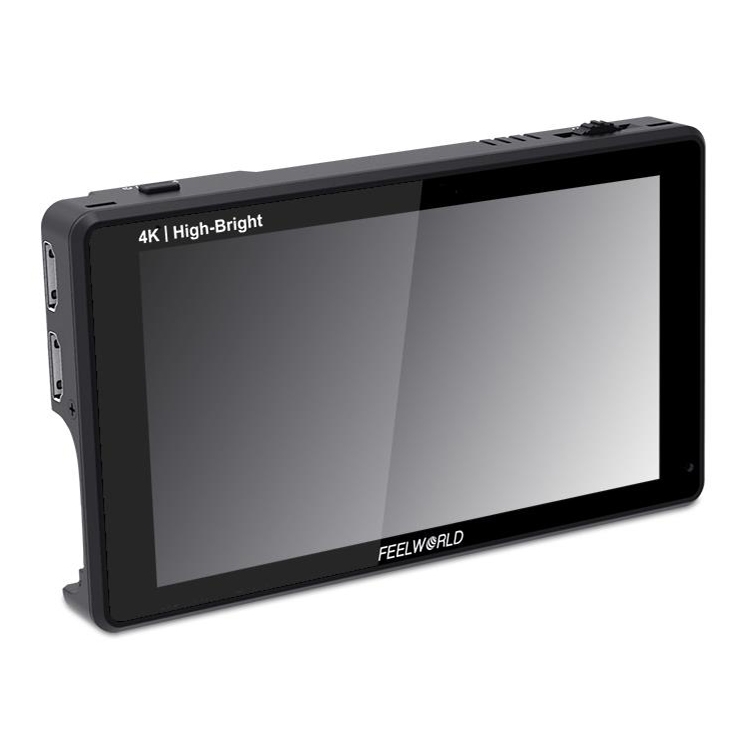

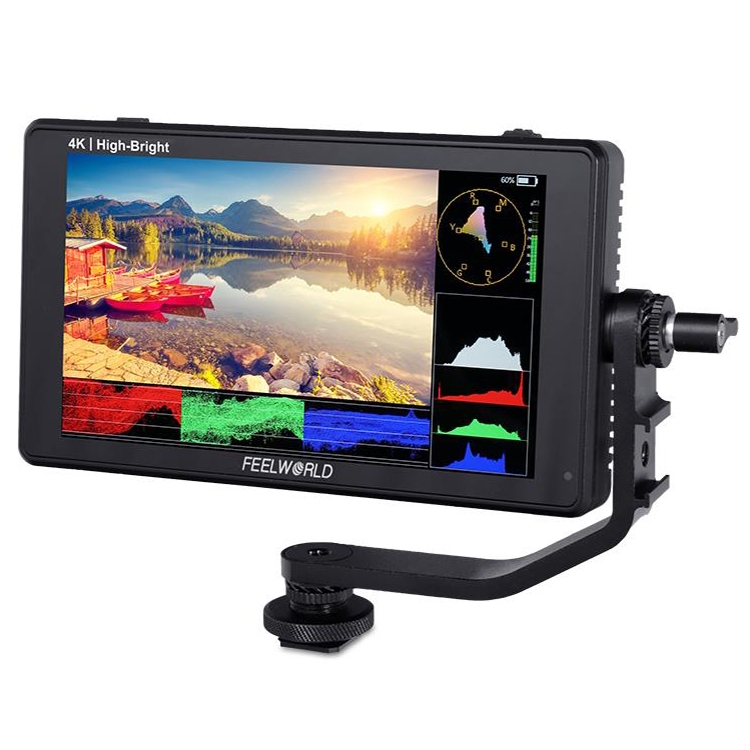

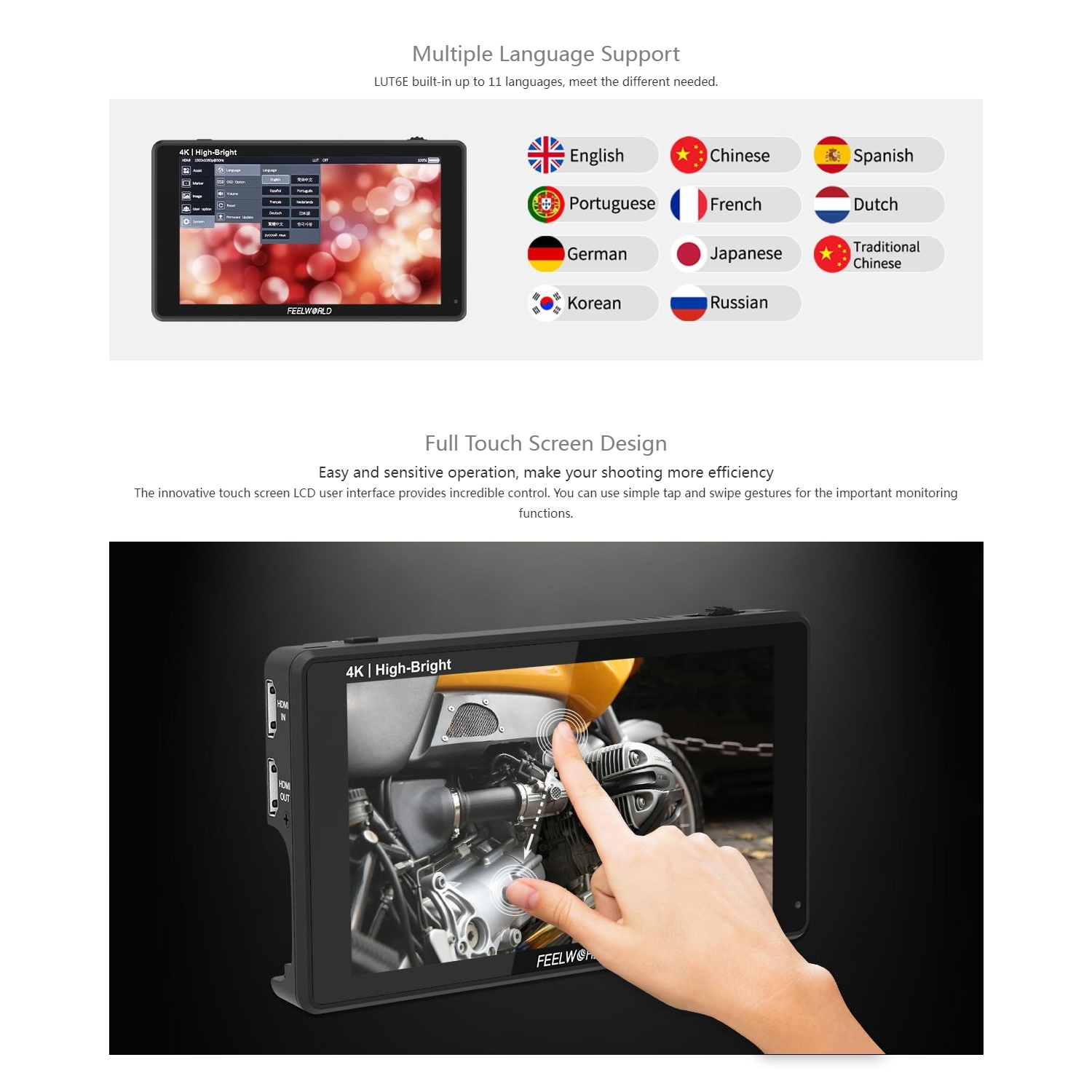

FEELWORLD LUT6E 6 inch 1600nits Touch Screen DSLR Camera Field Monitor Full HD1920x1080 IPS(Black)

Product Description

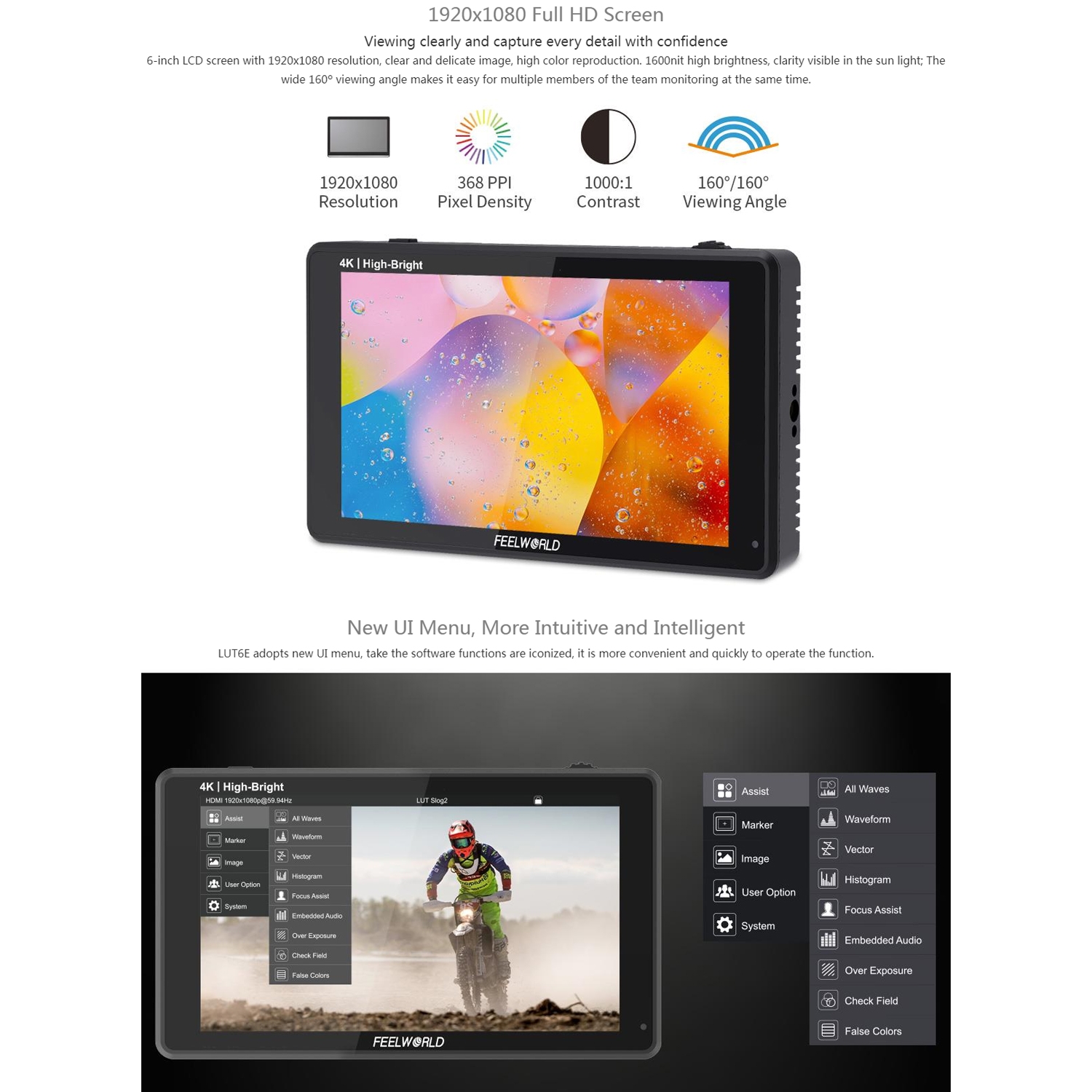

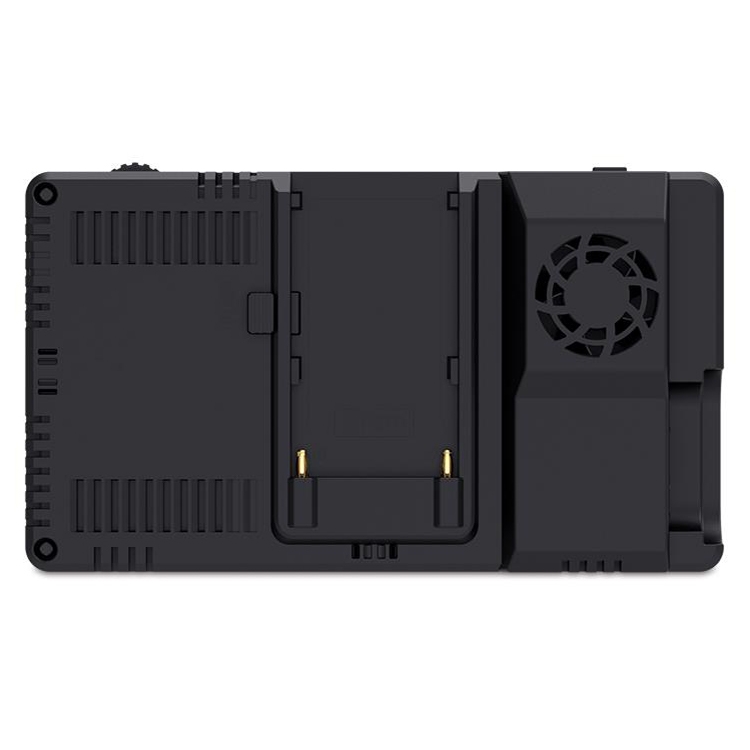

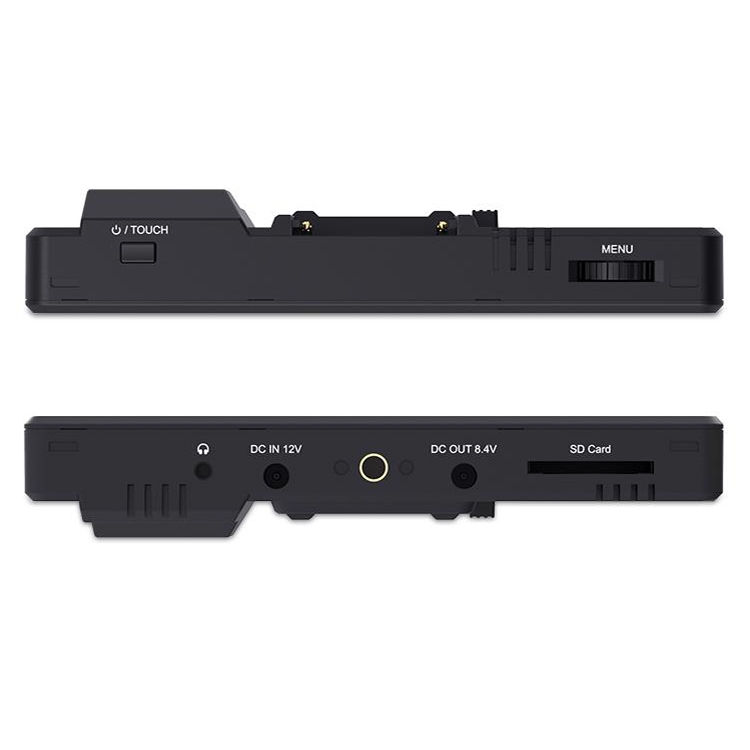

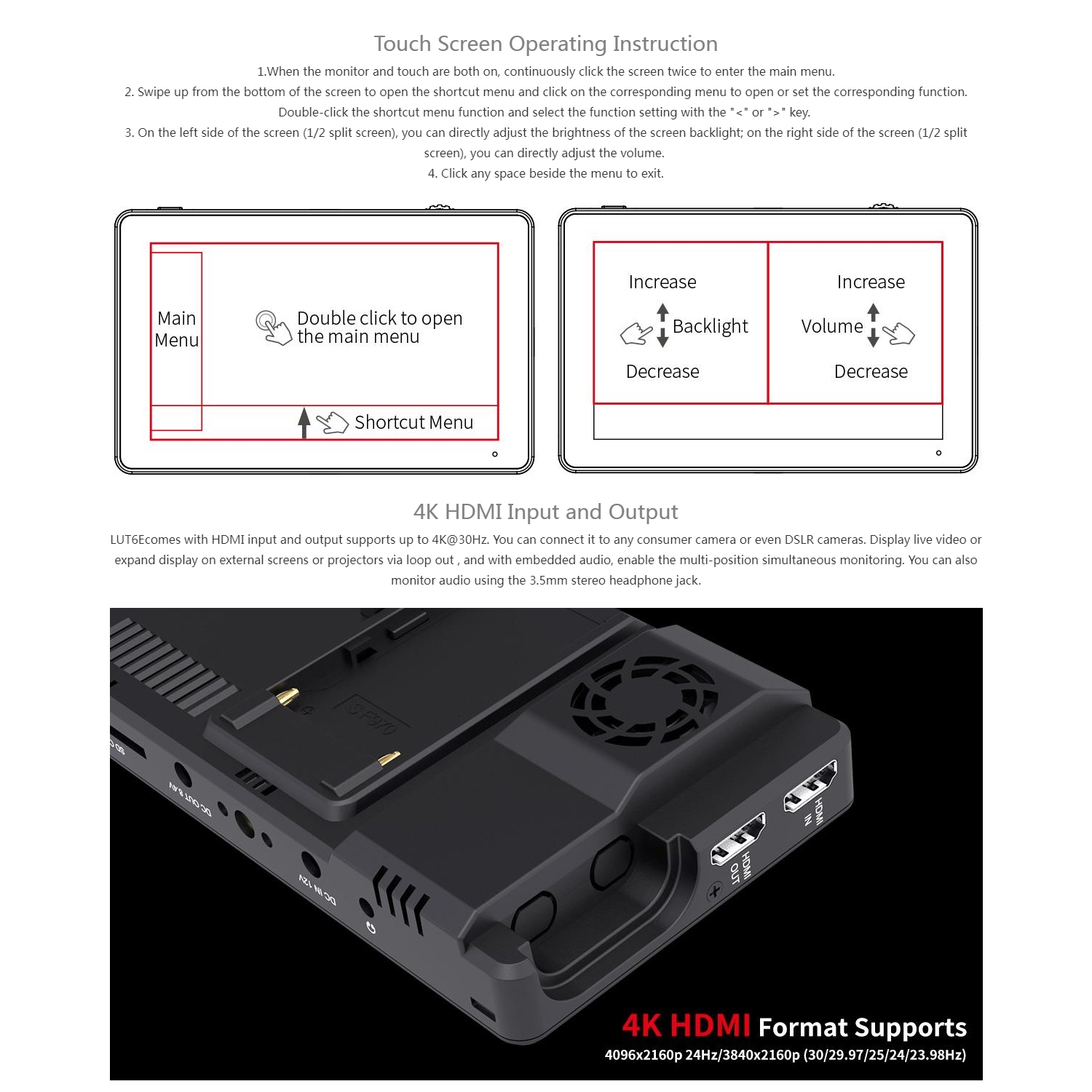

Display Spec. 1. Model: LUT6E 2. Screen Size: 6 inch IPS 3. Resolution: 1920x1080 pixels 4. Pixel Pitch: 0.069 (L) x 0.069 (W) (mm) 5. Aspect Ratio: 16:9 6. Brightness: 1600cd/m2 7. Contrast Ratio: 1000:1 8. Backlight: LED 9. Viewing Angle: 80 degree / 80 degree (L/R) 80 degree / 80 degree (U/D) Input - 1 X HDMI: HDMI Output - 1 X HDMI: HDMI - 1 X DC: Barrel (5.5mm outer, 2.1mm inner) barrel output for powering cameras via camera specific adaptor. Audio - Audio: 3.5mm Stereo Headphone HDMI Input/ Output Support Format 1. 480i/576i/480p/576p 2.1080i (60/59.94/50) 3. 720p (60/59.94/50/30/29.97/25/24/23.98) 4. 1080p (60/59.94/50/30/29.97/25/24/23.98) 5. 3840x2160p (30/29.97/25/24/23.98) 6. 4096x2160p (30/29.97/25/24/23.98) General 1. Input Voltage: DC7~24V 2. Power Consumption: Less than or equal to 10W 3. Working Temperature: -20 degree C~50 degree C 4. Storage Temperature: -30 degree C~60 degree C 5. Install Way: 1/4-20 Thread Socket (Right, Bottom) 6. Battery Plate: F970 Battery Plate 7. Unit Size: 162Lx93.2Hx29D(mm) 8. Unit Weight: 300g Note: When you turn off the monitor, you need to press the power button, and you can not pull out the power cable directly. Advanced Features 1. Support 3D LUT Log to Rec.709, user 3D LUT Upload 2. Support Touch Menu 3. Parade (RGB, YUV, Y) 4. All Waves 5. Vector 6. RGB Histogram 7. Brightness Histogram 8. Embedded Audio 9. Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) 10. False Colors 11. Zebra Exposure (10%~100% adjustable) 12. Check Field (Red, Green, Blue, Gray) 13. Scan Mode (Under Scan, Over Scan) 14. Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG) 15. Image Flip (H, V, H/V) 16. Image Freeze 17. Center Marker 18. Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) 19. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) 20. Marker Color (red, green, blue, white, black, gray) 21. Color Temperature Adjustment (5600K,6500K,9300K) 22. Nine Grid 23. Zoom Mode (2X,4X,9X,16X) 24. Aspect Ratio 25. Pixel to Pixel Package List: 1. Monitor x 1 2. Mini/ Micro HDMI to HDMI Cable x 1 3. Tilt Arm x 1 4. Manual x 1

Specifications

SKU

EDA005658201A

Category

Camera Accessories › Micro Film › On-camera Monitors

Weight

0.944 kg

Delivery

Standard delivery
