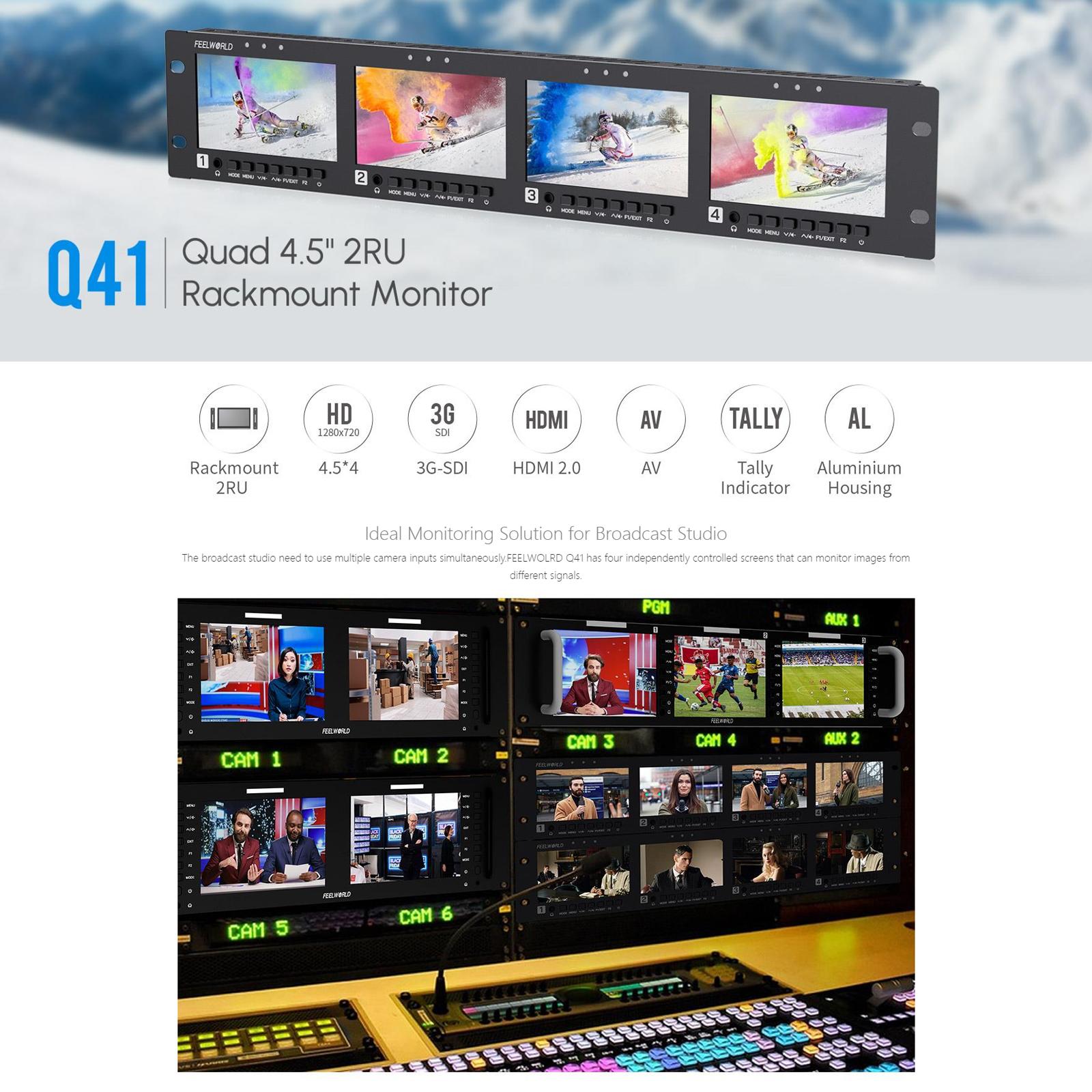

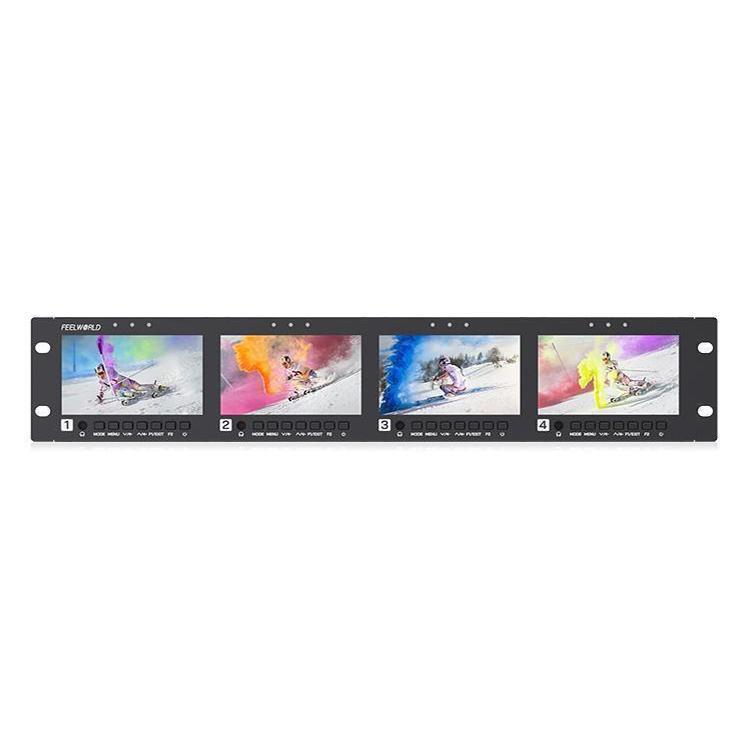

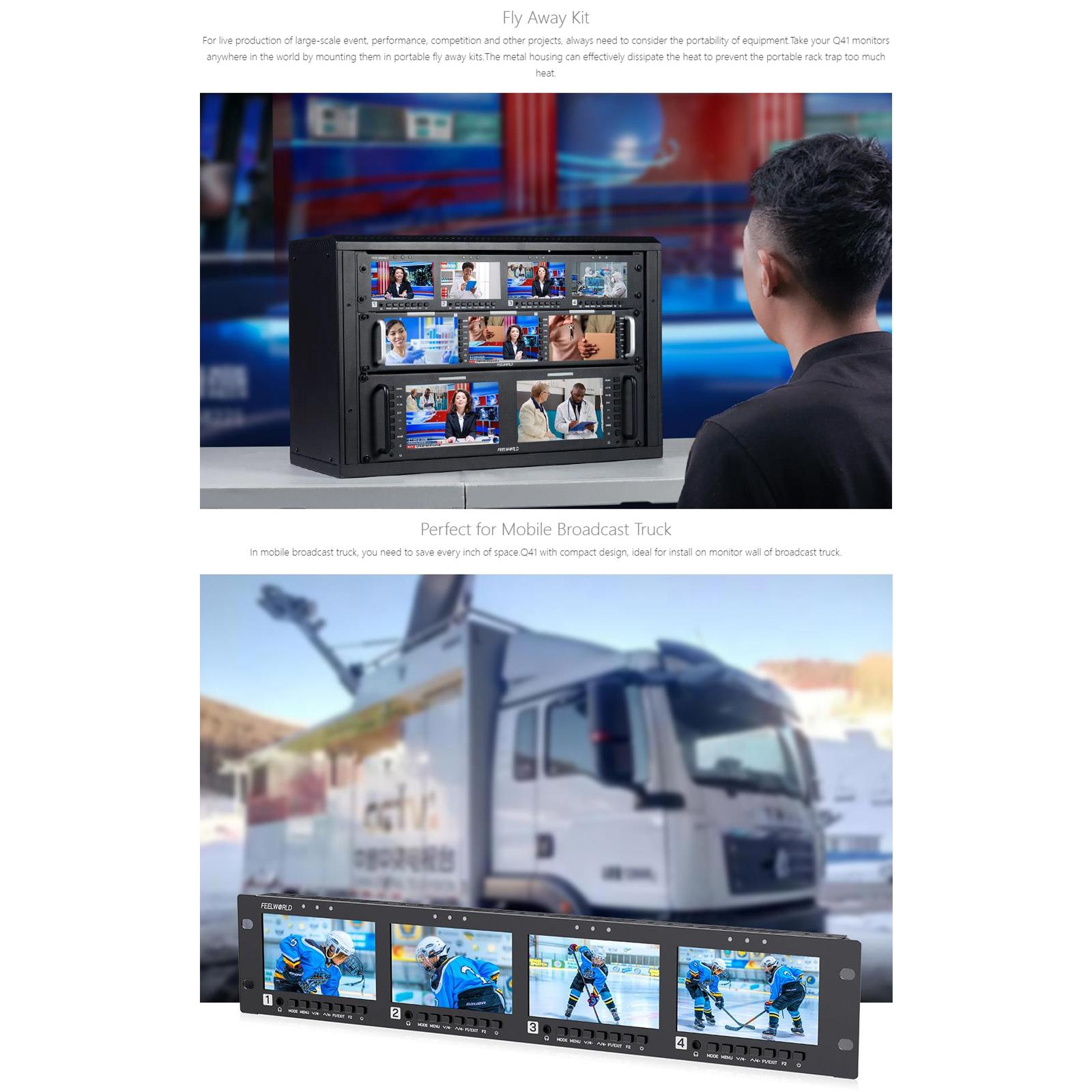

FEELWORLD Q41 Quad 4.5 inch 2RU Rackmount Monitor 3G-SDI 4K HDMI-compatible AV Input and Output, AU Plug(Black)

Product Description

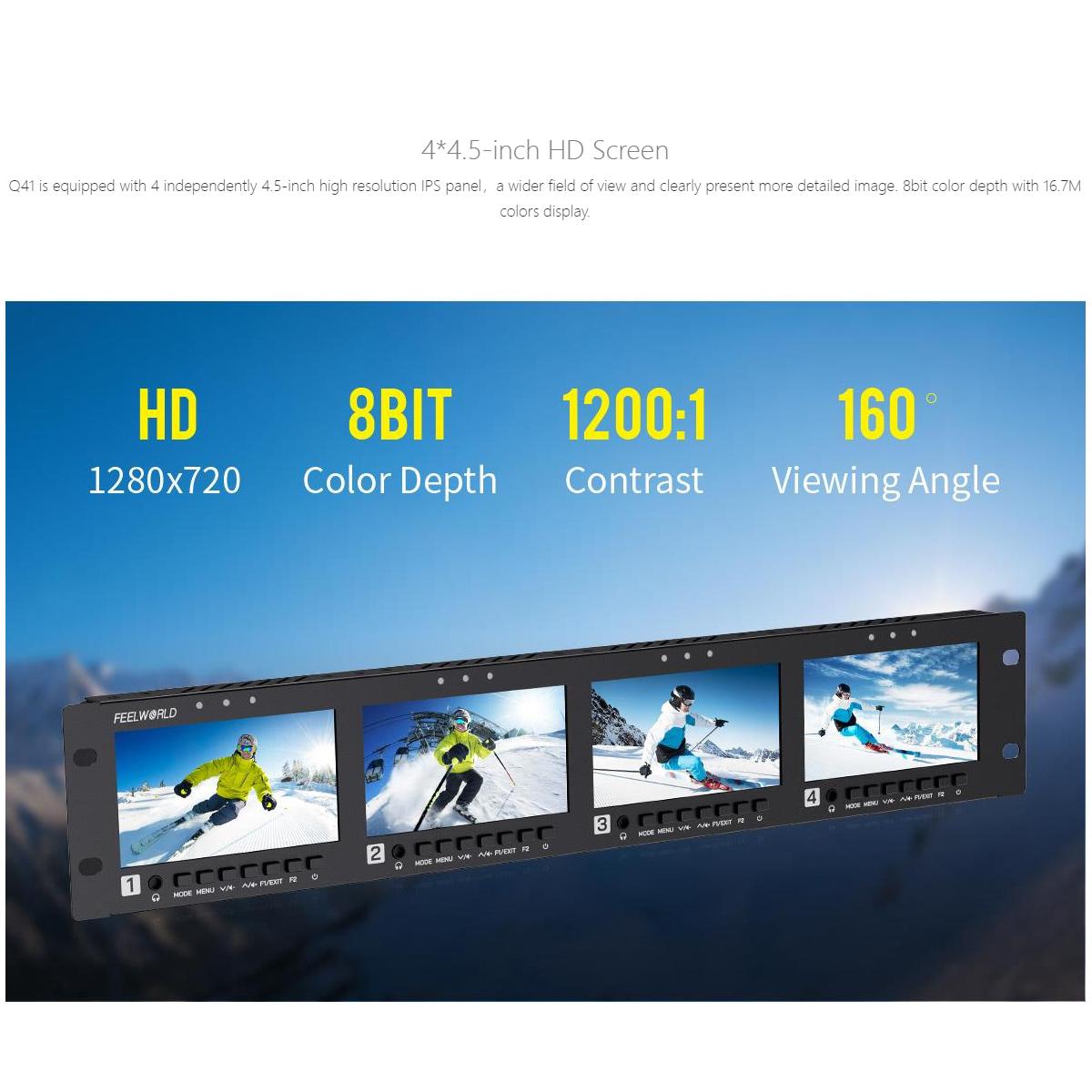

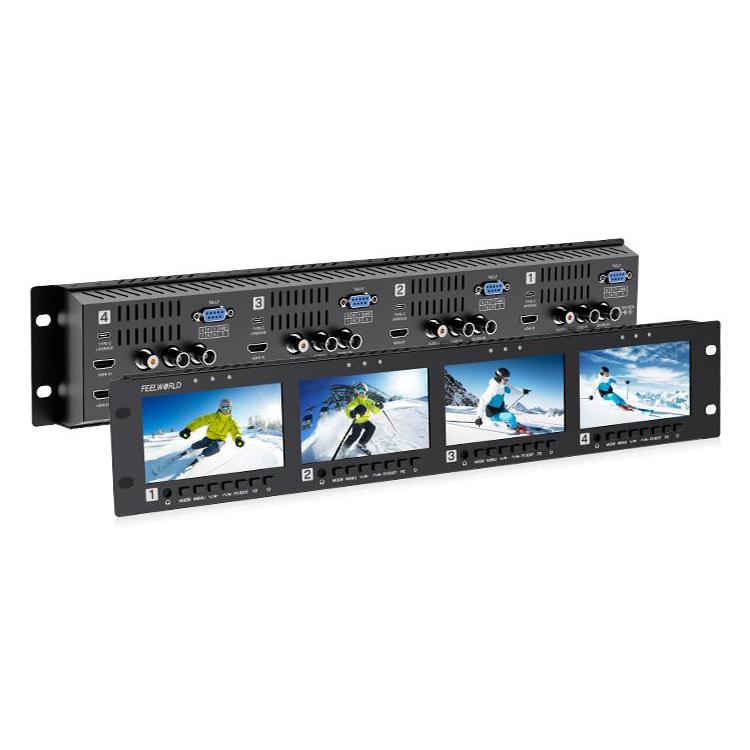

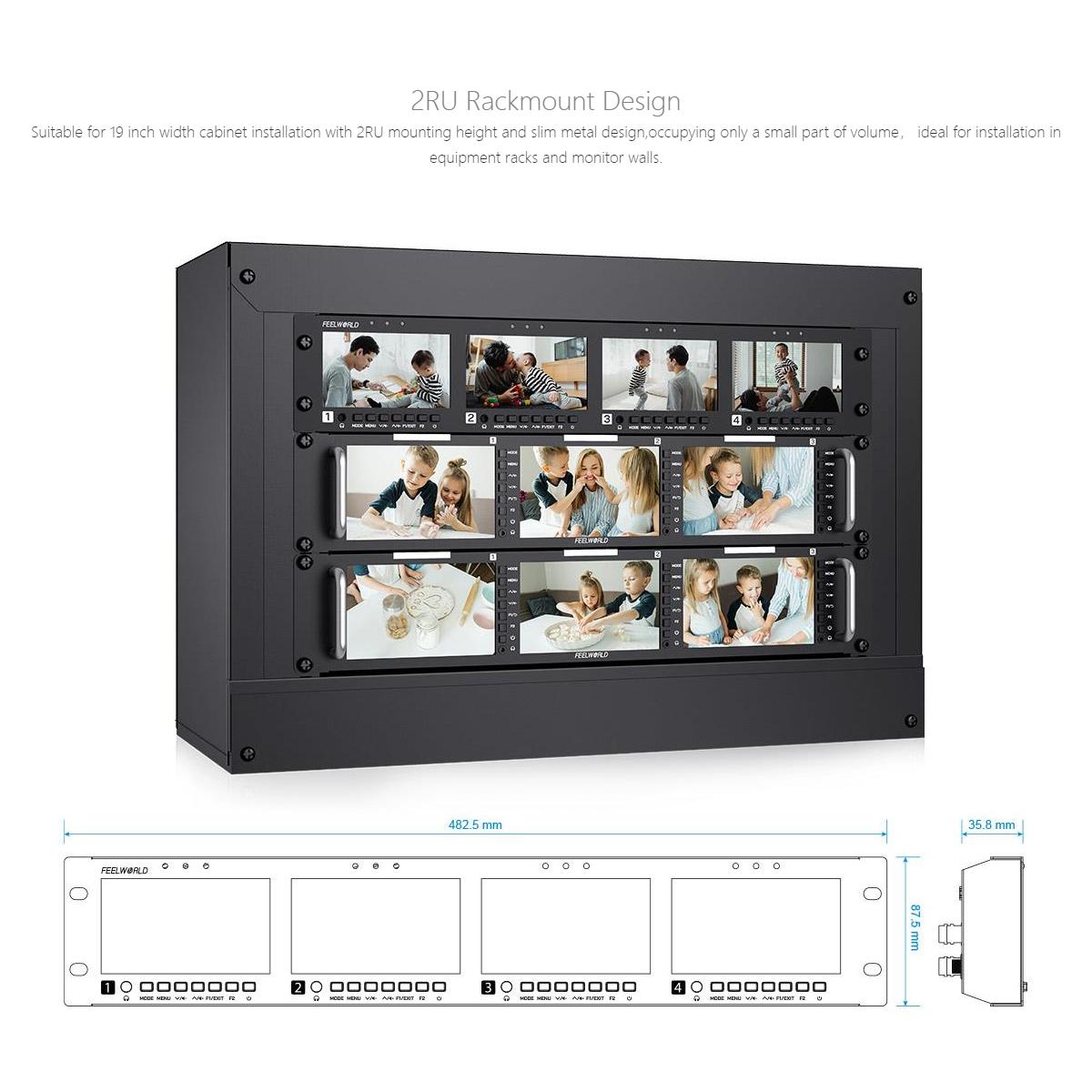

Display Spec. 1. Model: Q41 2. Screen Size: 4.5 inch x4 3. Resolution: 1280x720 pixels 4. Dot pitch: 0.0771（H)x0.0771(V) mm 5. Aspect Ratio: 16:9 6. Brightness: 350cd/m2 7. Contrast Ratio: 1200:1 8. Backlight: LED 9. Viewing Angle: 80 degree /80 degree (L/R) 80 degree /80 degree (U/D) Input (Each LCD) 1. 1 x BNC: 3G-SDI 2. 1 x HDMI-compatible: HDMI-compatible 2.0 3. 1 x BNC: Video 4. 2 x RCA: Audio(L/R) Output (Each LCD) 1. 1 x BNC : 3G-SDI 2. 1 x HDMI-compatible: HDMI-compatible 2.0 3. 1 x BNC: Video Audio (Each LCD) Audio Out: Stereo Headphone x 1 SDI Support Format 720p(60/59.94/50/30/29/25/24/23.98) 1080i(60/59.94/50) 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) HDMI-compatible Support Format 1. 480i/576i/480p/576p 2. 1080i (60/59.94/50) 3. 720p (60/59.94/50/30/29/25/24/23.98) 4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 5. 3840x2160p (60/50/30/29.97/25/24/23.98) 6. 4096x2160p (60/50/30/29.97/25/24/23.98) General 1. Input Voltage &Current: DC 12V/3A 2.Power Consumption: Less than or equal to 32W 3. Power Connector: DC 4. Working Temperature: -10 degree C~50 degree C 5. Storage Temperature: -20 degree C~60 degree C 6. Install Way: Rackmount 7. Unit Size: 482.5x87.5x35.8 mm 8. Unit Weight: 1832g Advanced Features 1. HD1280 IPS, view details with confidence 2. Quad 2RU rackmount design, compact thin and lightweight design, which make it suitable for installing where the space is limited and also could be installed in the standard 19-inch rack. 3. Intuitive button operation, easy to setup. 4. Three-color Tally indicator, enhance team cooperation 5. 3G-SDI, HDMI, Video, Audio(L/R) and 3G-SDI, HDMI, Video loop-through output 6. 3.5mm headphone jack output 7. Special Features: Wavefrom (RGB, YUV, Y) Vector scope Histogram (RGB1, RGB2, Y) Focus Assist(Red, Green, Blue), you can adjust the peaking level after turning on（1～10） Embedded Audio Over Exposure (you can adjust the exposure level after turning on 10~100） Check Field (Red, Green, Blue, Mono) False Colors Time Code (only under SDI signal with LTC, VITC modes) Nine Grid Safe Frames (80%, 85%, 90%, 93%, 96%, 2.35:1) Center Marker Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) Scan Mode (Under Scan, Over Scan) Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen) Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User 1.20x~2.00x) Image Flip (Horizontal, Vertical, Hor&Ver) Image Freeze Zoom Mode (2X, 4X, 9X, 16X, User 100%~200%) Pixel to Pixel 3D-LUT (built-in SLOG2, SLOG3, LOGC, VLOG; can be upload 32 custom LUT) Color Temp. (5600K, 6500K, 9300K, User) Packaging List: 1. Monitor x 1 2. 3A Power Adapter x 1 3. Tally Kit x 4 5. USB-A to USB-C Adapter x 1 5. Manual x 1

Specifications

SKU

EDA008619504A

Category

Camera Accessories › Micro Film › On-camera Monitors

Weight

3.504 kg

Delivery

Standard delivery
