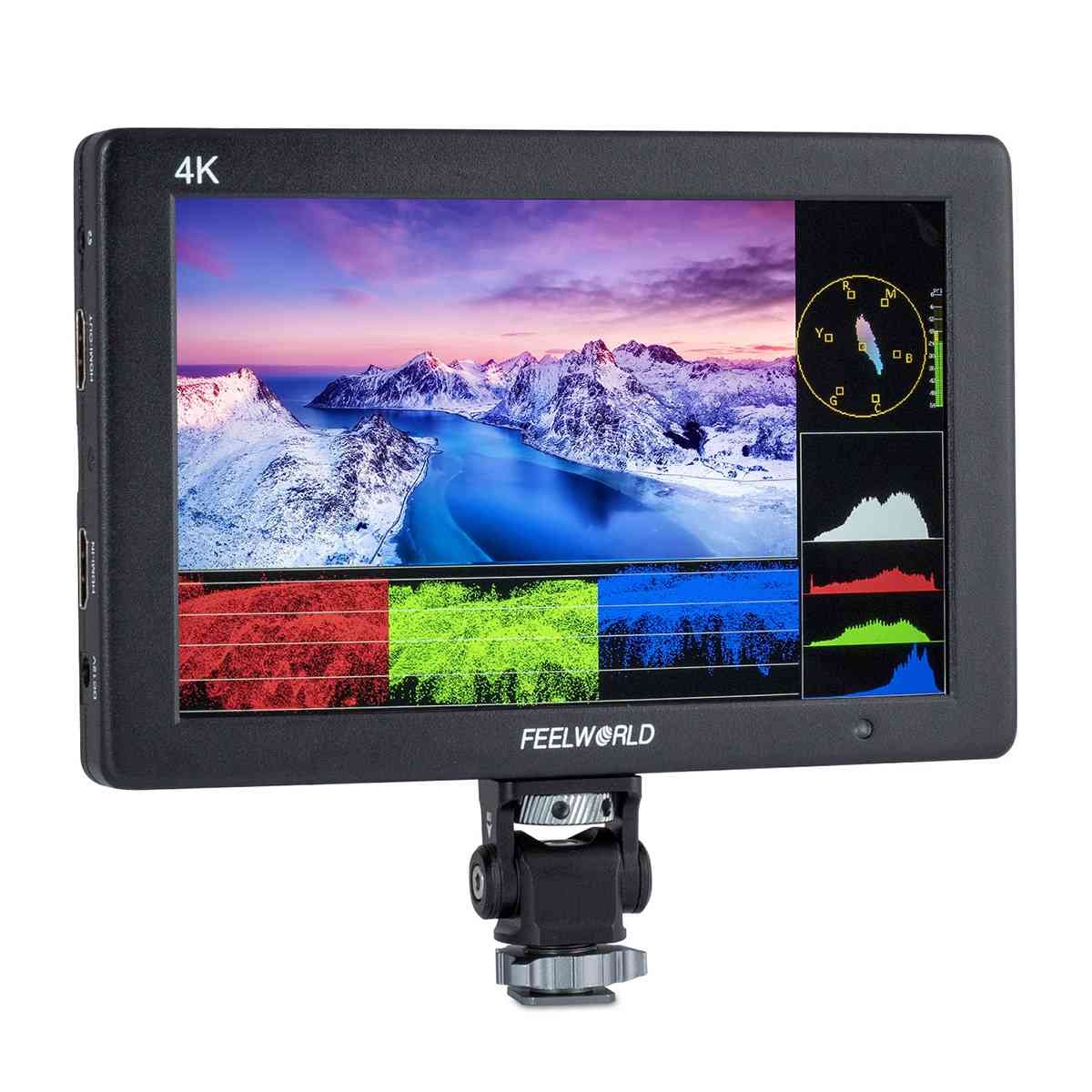

FEELWORLD T7 PLUS 7 inch 3D LUT DSLR Camera Field Monitor with Waveform 4K HDMI Aluminum Housing (Black)

Product Description

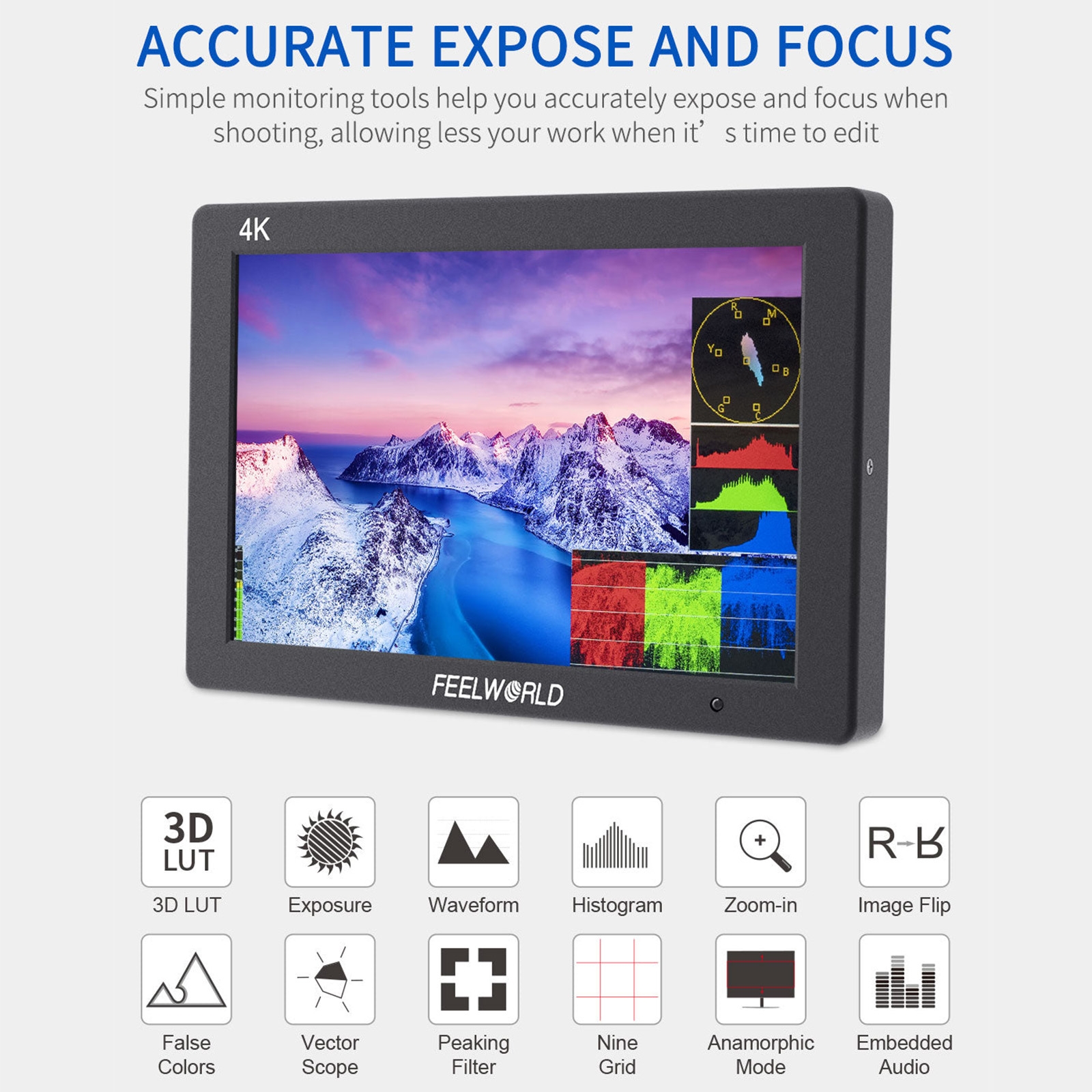

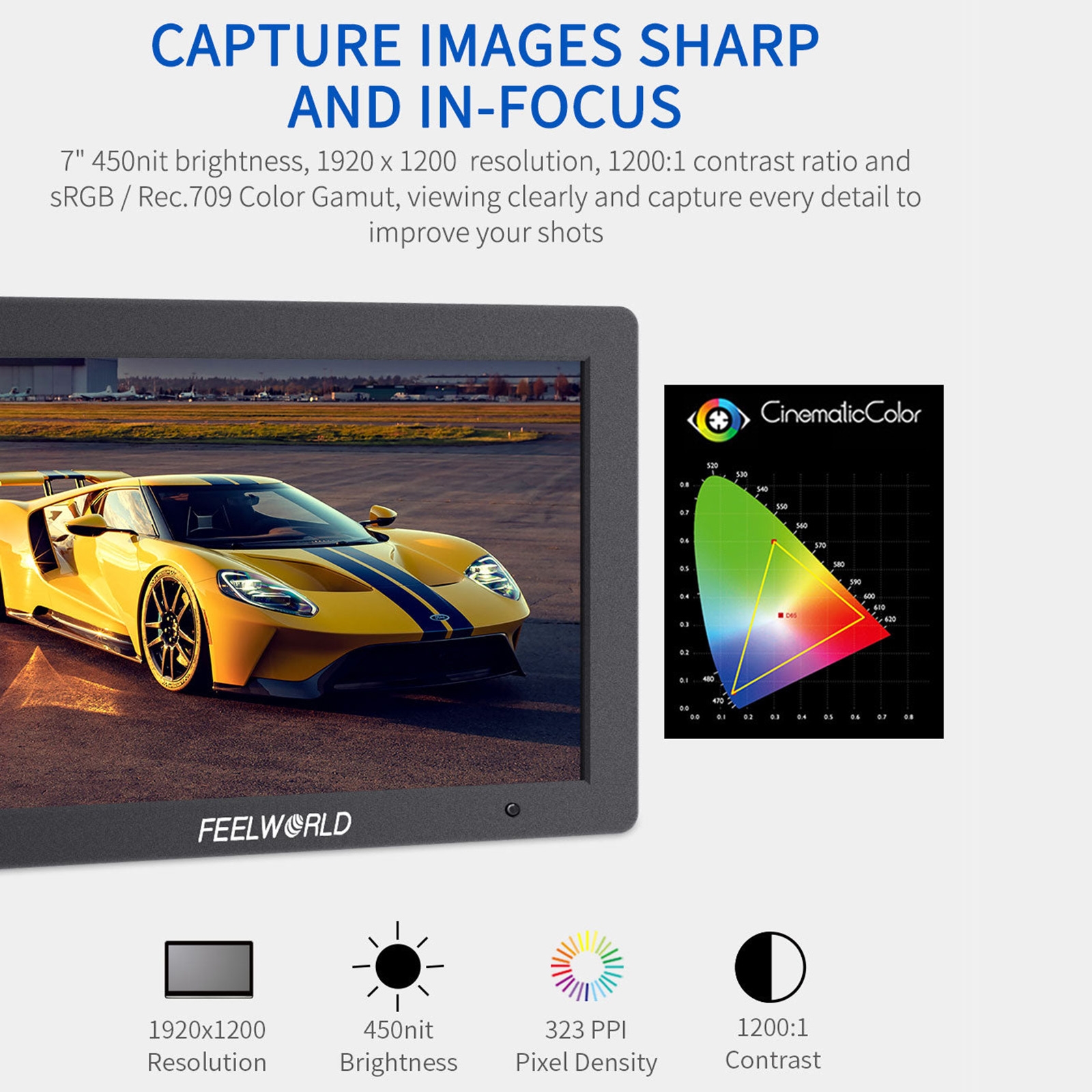

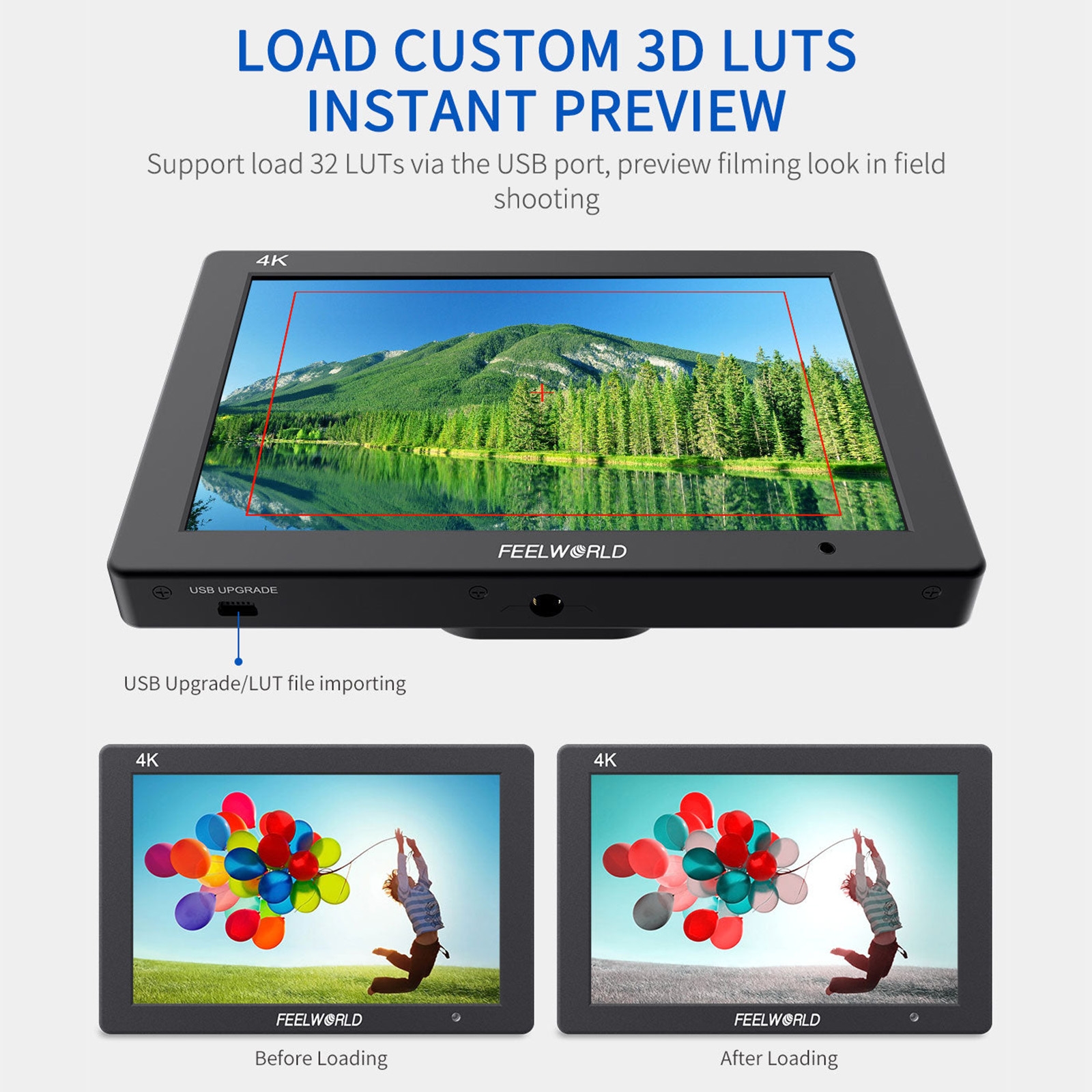

Features 1. High Resolution: Full HD 1920x1200 2. High Contrast: 1200:1 3. High Brightness: 450cd/m2 4. 160 degrees wide viewing angles IPS Panel 5. Ultra thin design 18mm thickness 6. Custom 3D LUT import (up to 32) 7. All waves 8. Waveform (RGB, Y, YUV) 9. Histogram (RGB1, Y, RGB2) 10. Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) 11. False Colors 12. Zebra Exposure 13. Nine Grid 14. Embedded Audio 15. Scan Mode (Under Scan, Over Scan) 16. Zoom (4x,9x,16x) 17. Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X) 18. Pixel to Pixel 19. Center Marker 20. Safe Area (80%, 85%, 90%, 93%, 96%, 2.35:1) 21. Ratio Marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1) 22. Marker Color (Red, Green, Blue, White, Black??? 23. Check Field (Red, Green, Blue, Mono) 24. Image Flip (H, V, H/V) 25. Image Freeze 26. Zoom All (0~500 adjustable) 27. U/D & L/R Zoom (0~500 adjustable) 28. Color Temperature Adjustment Specifications Display Spec.: 1. Model: T7 PLUS 2. Screen Size: 7 inch IPS 3. Resolution: 1920x1200 pixels 4. Pixel Pitch: 0.07875 (H) x 0.07875 (W) (mm) 5. Aspect Ratio: 16:10 6. Brightness: 450cd/m2 7. Contrast Ratio: 1200:1 8. Backlight: LED 9. Viewing Angle: 80 degees / 80 degees (L/R) 80 degees /80 degees (U/D) Input: 1 X HDMI: HDMI Output: 1 X HDMI: HDMI Media: 1. Audio: Stereo Headphone, Speaker 2. HDMI Input/ Output Support Format: 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF), 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz) General: 1. Input Voltage: DC7~24V 2. Power Consumption: Less than or equal to 8W 3. Install Way: 1/4 -20 Thread Socket (top, bottom) 4. Battery Plate: F970 (Standard) Package List 1. Monitor x 1 2. Mini HDMI Cable x 1 3. USB Adapter Cable x 1 4. Sunshade x 1 5. Mini Hot Shoe Mount+Hex Wrench x 1 6. F970 Battery Plate x 1 7. Operation Manual x 1

Specifications

SKU

DCA2504B

Category

Camera Accessories › Micro Film › On-camera Monitors

Weight

0.94 kg

Delivery

Standard delivery
