FlySky FS-A8S V2 2.4G 8CH Mini Receiver with PPM i-BUS SBUS Output(Black)

Product Description

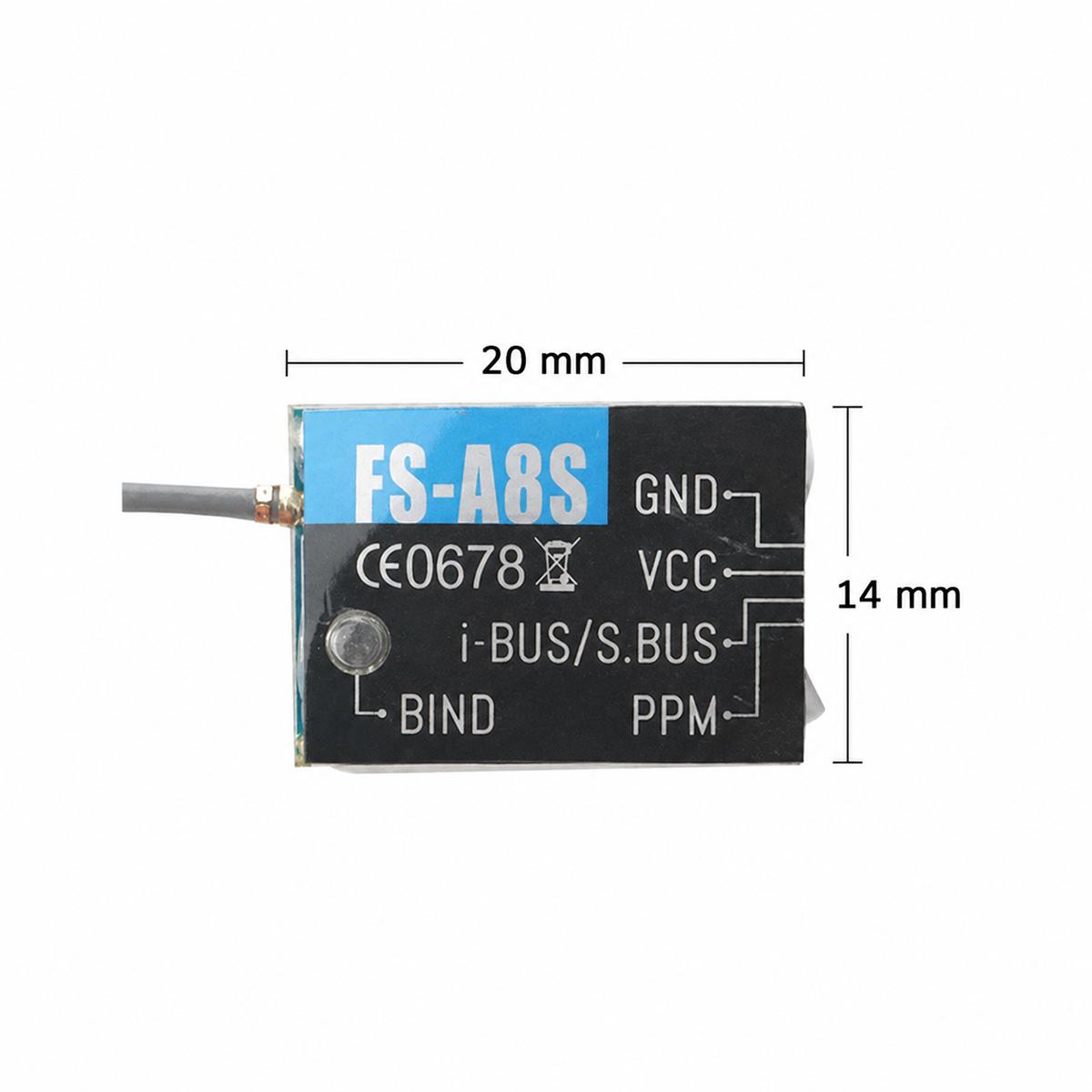

About this product: The FS-A8S is a compact 1-way receiver designed for multi-rotor aircraft. It uses the AFHDS 2A(Automatic Frequency Hopping Digital System) protocol, supports standard PPM output and has i-BUS support for up to 18 channels. Specifications: 1. Brand Name: Flysky 2. Item Name: FS-A8S Receiver 3. Channels: PPM 8CH, i-BUS 18CH 4. Model type: Multi-rotor 5. Frequency range: 2.408-2.475GHz 6. Band width: 500KHz 7. Band number: 135 8. RX Sensitivity: -92 dBm 9. 2.4GHz system: AFHDS 2A 10. Modulation type: GFSK 11. DSC port: PPM/i-BUS/S.BUS 12. Transfer method: FHSS 13. Data output: 1.5mm*3 Pin PPM/i-BUS/S.BUS 14. Antenna length: 26mm (Not including brass contacts) 15. Input power supply: 4.0-8.4V 16. Display method: LED 17. No ground interference ( Transmitting and receiving 1 m from the ground): Greatervthan 300m 18. Working current: 40mA 19. Each channel data: depend on the transmitter 20. Channel delay: Less 15mS 21. Size: 20x14x5.3mm 22. Weight: 1.2g 23. Compatible Transmitter: Compatible with FS-i4, FS-i6, FS-i6S, FS-i6X, FS-i10, FS-GT2E, FS-GT2G, FS-GT2F 24. Note: This item doesnot support failsafe.

Specifications

SKU

EDA010106701A

Category

Game Accessories › DIY Parts & Components › Transmitter and Receiver

Weight

0.064 kg

Delivery

Standard delivery
