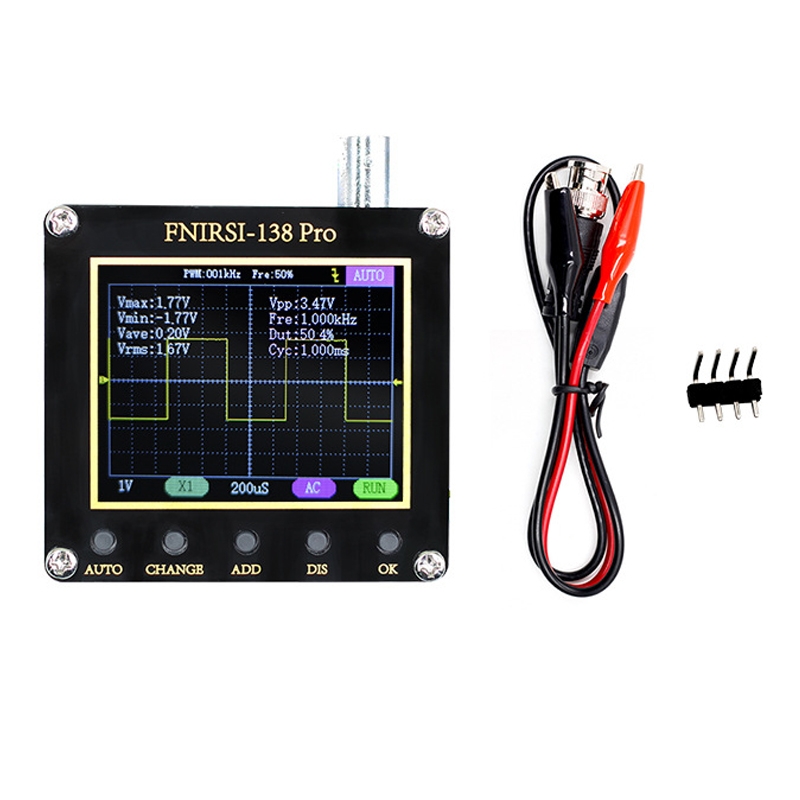

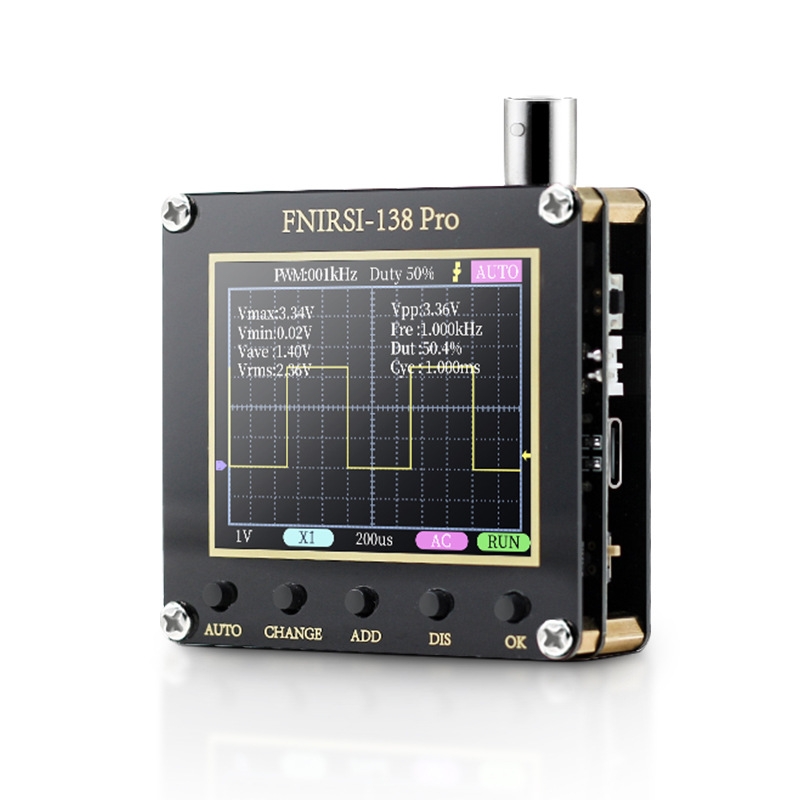

FNIRSI Handheld Small Teaching Maintenance Digital Oscilloscope, Specification: Standard Without Battery

Product Description

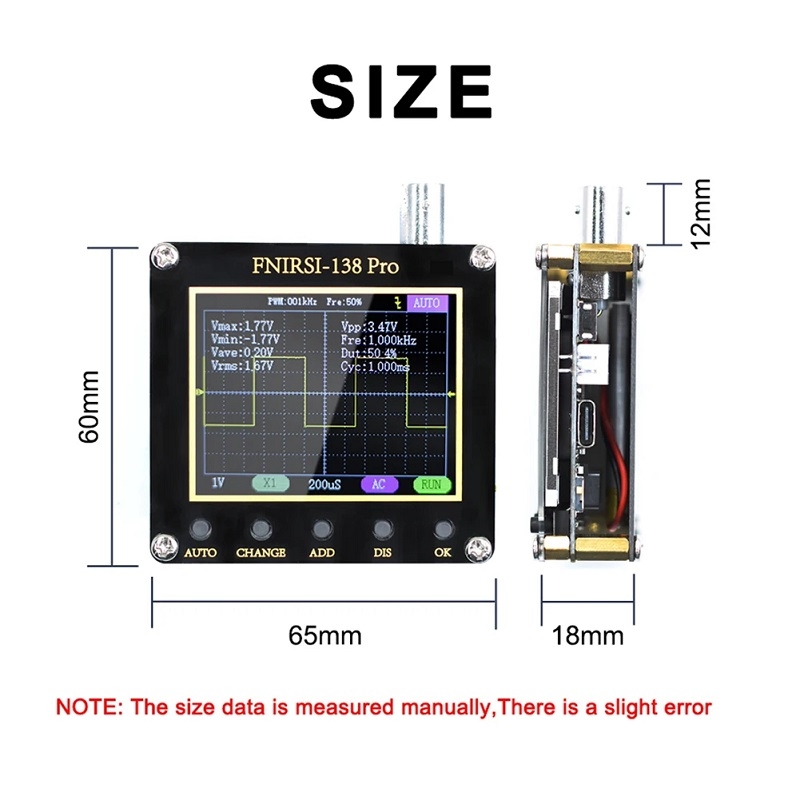

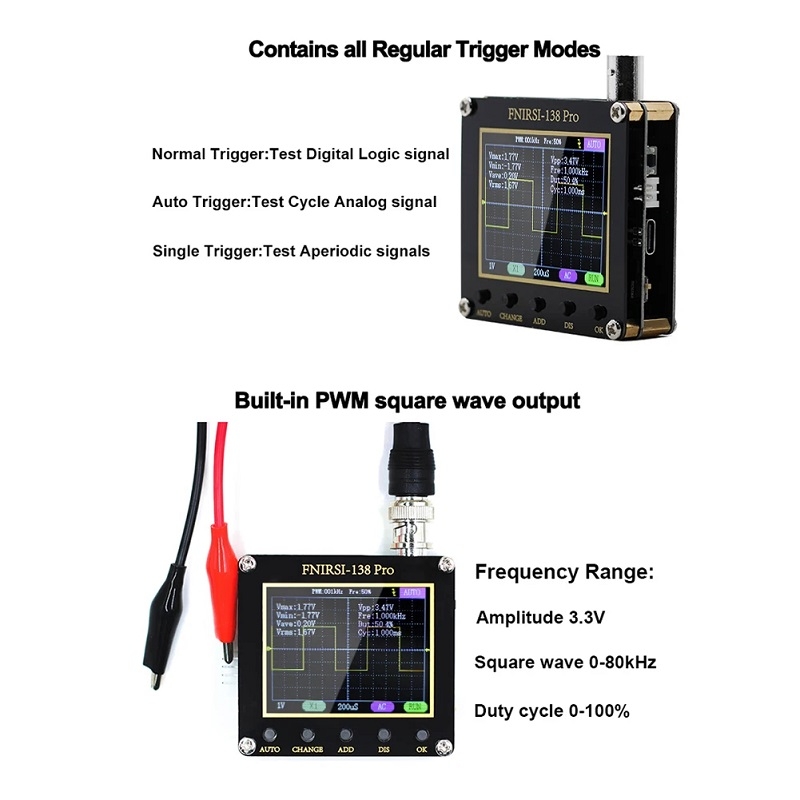

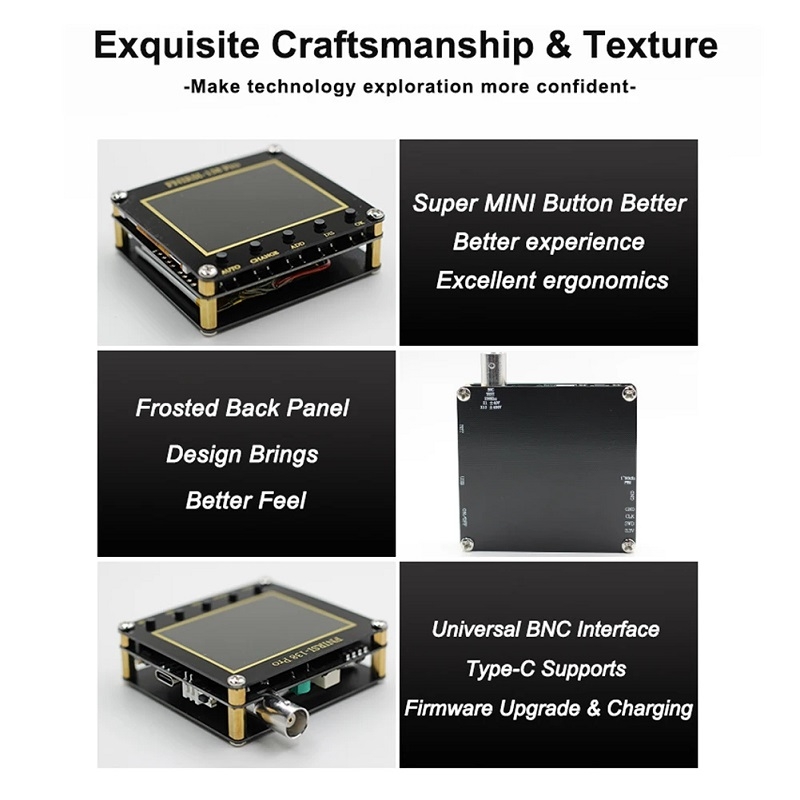

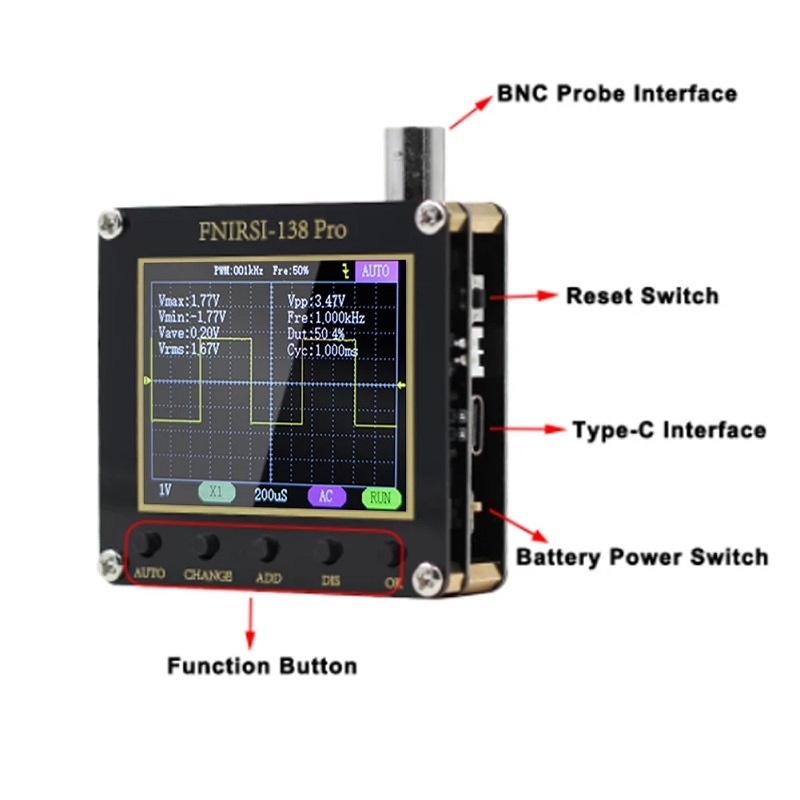

1. Power supply: USB direct power supply 2. Power supply voltage: 5-6V 3. Sampling rate: 2.5MS/s 4. Bandwidth: 200KHz 5. Voltage range: X1 40V (Vpp:80V); X10 400V (Vpp:800V) 6. Coupling method: AC/DC 7. PWM output: 3.3V frequency 0-80kHz 8. Display: 2.4 inches 320x240 9. Automatic trigger: test cycle simulation signal 10. Single trigger: test sudden non-periodic signals 11. Normal triggering: testing digital logic signals 12. Size: 65x60x18mm 13. Weight: 53g (excluding battery) 14. Small buttons, comfortable to press and ergonomically designed 15. Universal BNC interface, Type-C supports data transmission and charging 16. Note: The high configuration comes standard with an extra 10x P6100 probe

Specifications

SKU

TBD0604566001

Category

Consumer Electronics › Test Equipment › Other Tester Tool

Weight

0.089 kg

Delivery

Standard delivery
