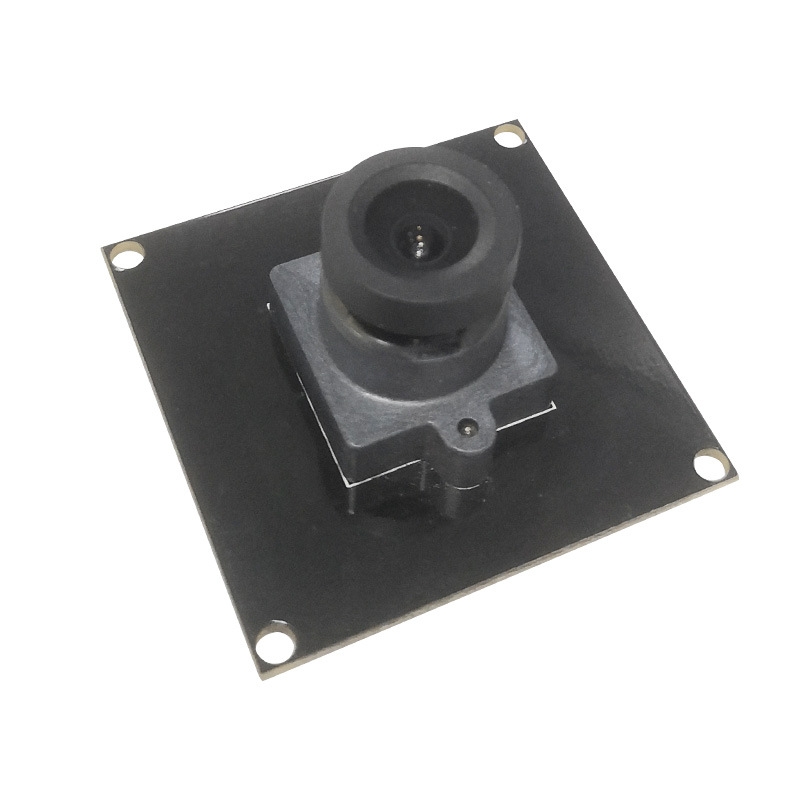

HDF2643-GZ HD 2 MP DVP Wide Angle LED Infrared Night Visual Thermal Imaging Camera Module

Product Description

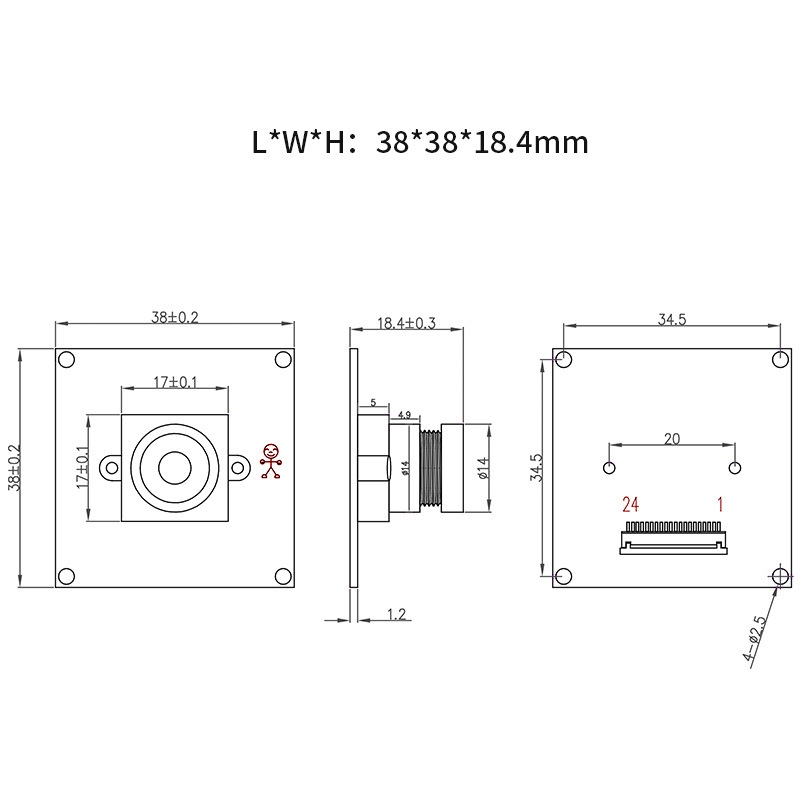

1. Suitable for intelligent identification system, smart home, visual doorbell, sports camera, drone products and other fields that require image acquisition 2. HD 2 million pixels, 15 frames per second at UXGA (1600x1200) resolution, high color reproduction 3. OV2643 high-definition sensor chip, stable performance, high sensitivity, low power consumption 4. Scope of application: tablet / notebook built-in camera, UAV aerial photography, visual doorbell, security monitoring, advertising machine, sports camera, QR code scanning, fingerprint recognition, self-service terminals, etc. 5. Pixel: 2.0 megapixel (1624×1212) 6. Light-sensitive chip: OV2643 (1/4 inch) CMOS 7. Output format: AW RGB, RGB565/555, YUV422, YCbCr422, GBR422 8. Frame rate: UXGA (1600x1200): 15 fps; SVGA (800x600): 30 fps; 720p (1280x720): 30 fps 9. Interface: DVP 10. Material: PCB 11. Size: about 3.8 x 1.84cm

Specifications

SKU

TBD06032369

Category

Consumer Electronics › DIY Parts & Components › Module

Weight

0.054 kg

Delivery

Standard delivery
