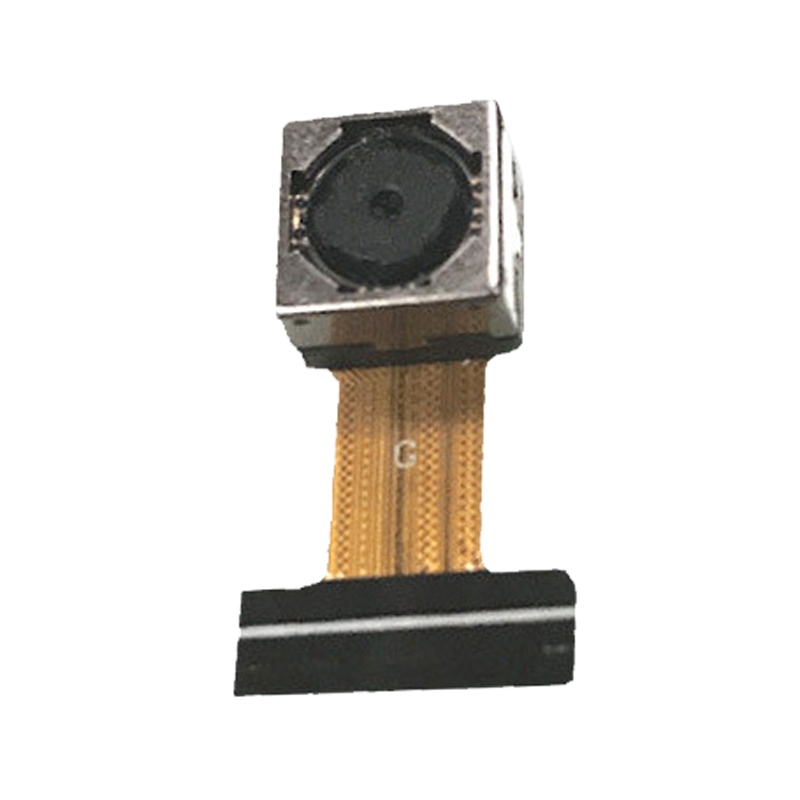

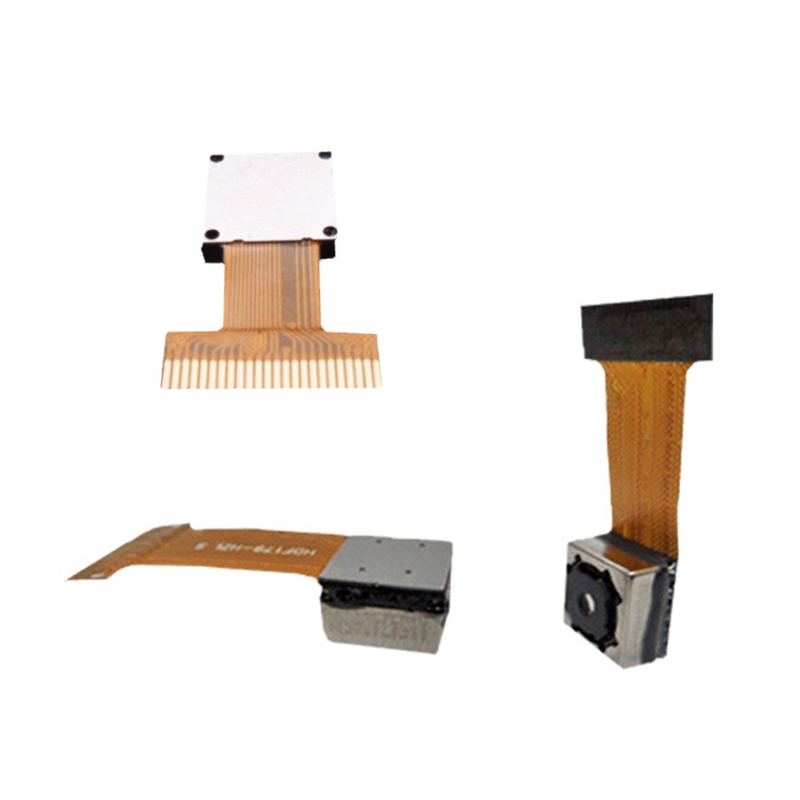

HDF5640-AF AF OV5640 Support 1080P 5MP Camera Module

Product Description

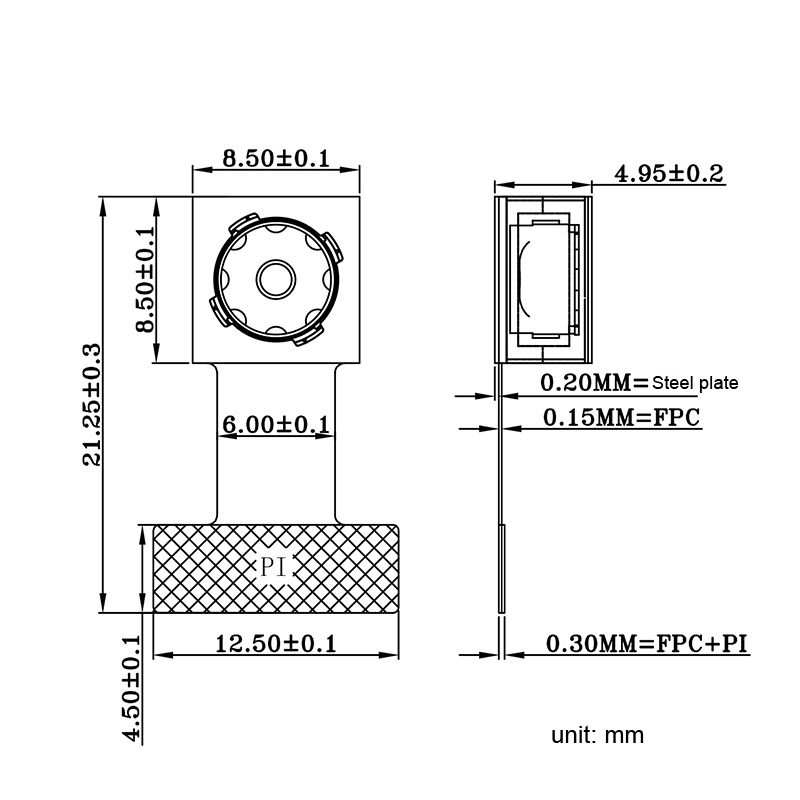

1. Autofocus, to achieve automatic fast and accurate focus, easy to shoot effect 2. Can be applied to smart home, cell phones, digital cameras, PC multimedia, identification devices, etc. 3. 500W pixel, support 1080P, accurately capture the details of highlights and shadows in the scene, vivid and clear picture 4. Body material: FPC 5. Pixels: 5 megapixels (2592x1944) 6. Light-sensitive chip: OV5640 (1/4 inch) CMOS 7. Output format: 8 /10 bit RGB RAW output 8. Frame rate: QSXGA (2592x1944): 15fps; 1280x960: 45 fps; 720p: 60 fps; VGA (640x480): 90 fps; QVGA (320x240): 120 fps 9. Interface: DVP/MIPI 10. Lens main ray angle: 24 degrees 11. Size: about 21 x 8.5 x 5mm

Specifications

SKU

TBD06032388

Category

Consumer Electronics › DIY Parts & Components › Module

Weight

0.024 kg

Delivery

Standard delivery
