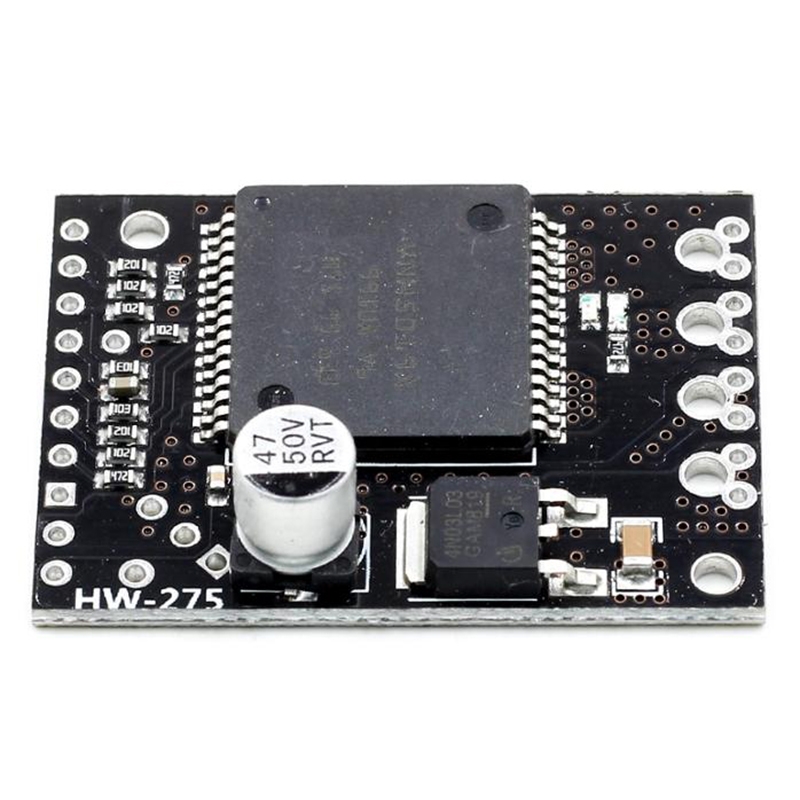

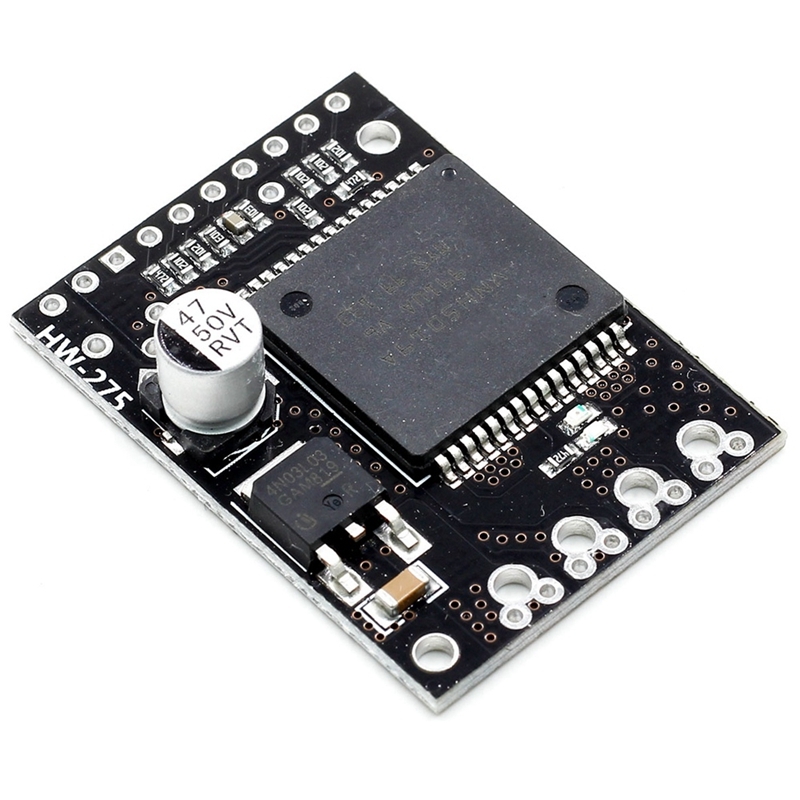

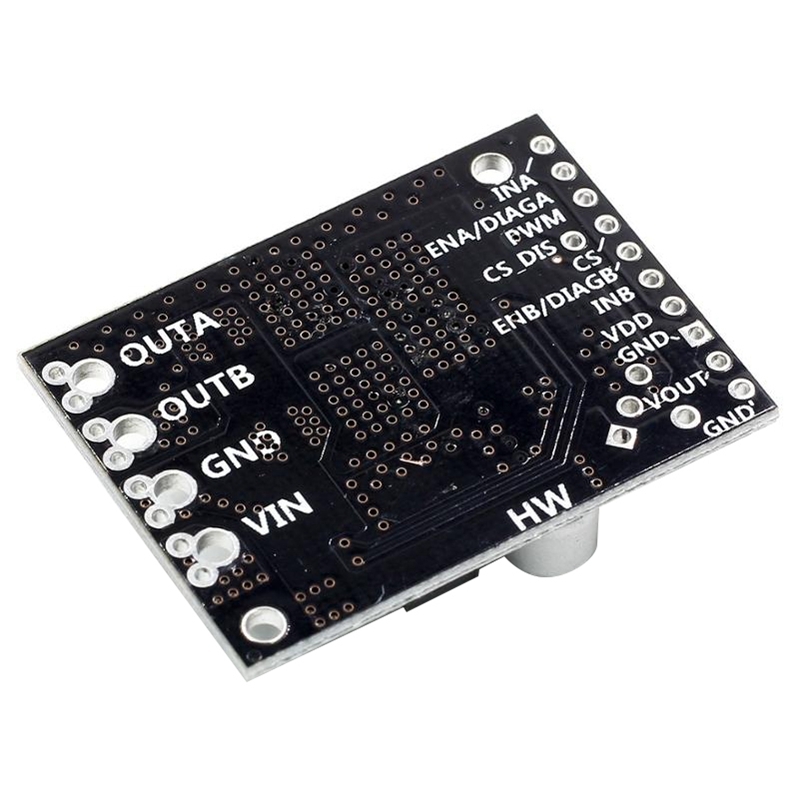

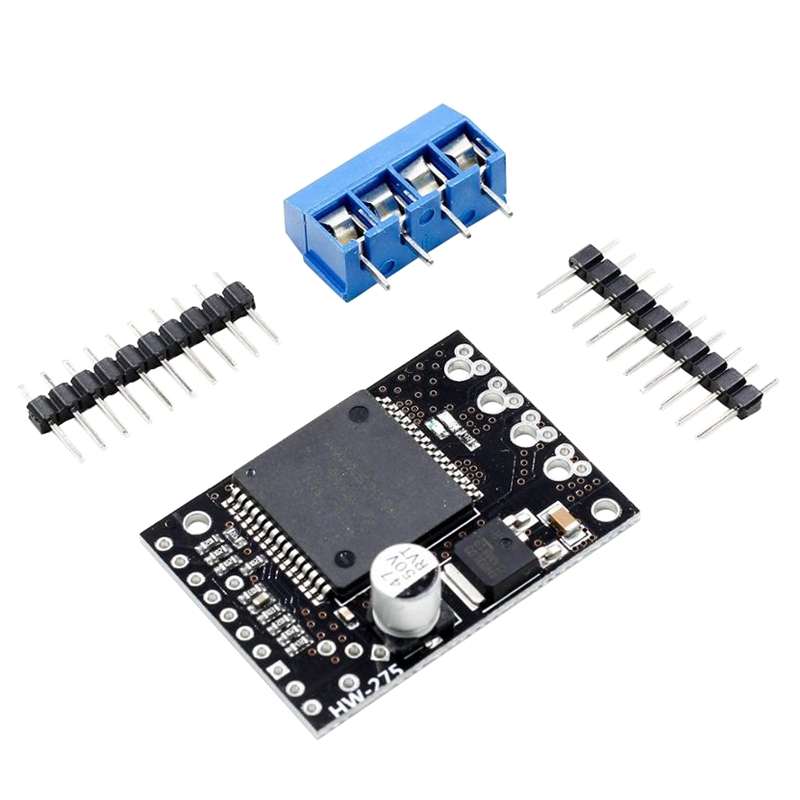

HW-275 Single DC Motor Drive Module 30A Large Current Self-Propelled Voltage Protection(VNH5019 Drive Module)

Product Description

1. Working voltage: 5.5-24v 2. Output current: 12A 3. PWM frequency: 20Khz 4. Can drive ultrasonic and silent motors 5. The current sensor outputs in proportion to the motor current (140mV/A, and only works when the H-bridge is driven) 6. Motor indicator LED light, when there is no motor connection, it can indicate the output status Protective function: 1. Reverse voltage protection 16V 2. Input voltage 41V, no damage 3. Over voltage protection 4. Thermal shutdown of upper and lower bridges

Specifications

SKU

TBD0572272801A

Category

Consumer Electronics › Electronics Module › Other Accessories

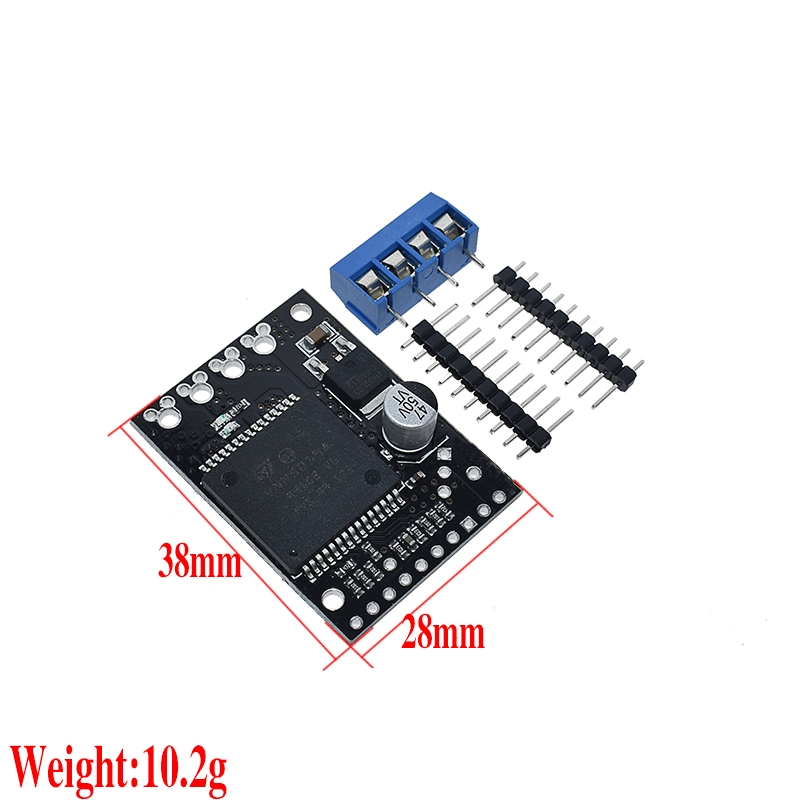

Weight

0.014 kg
