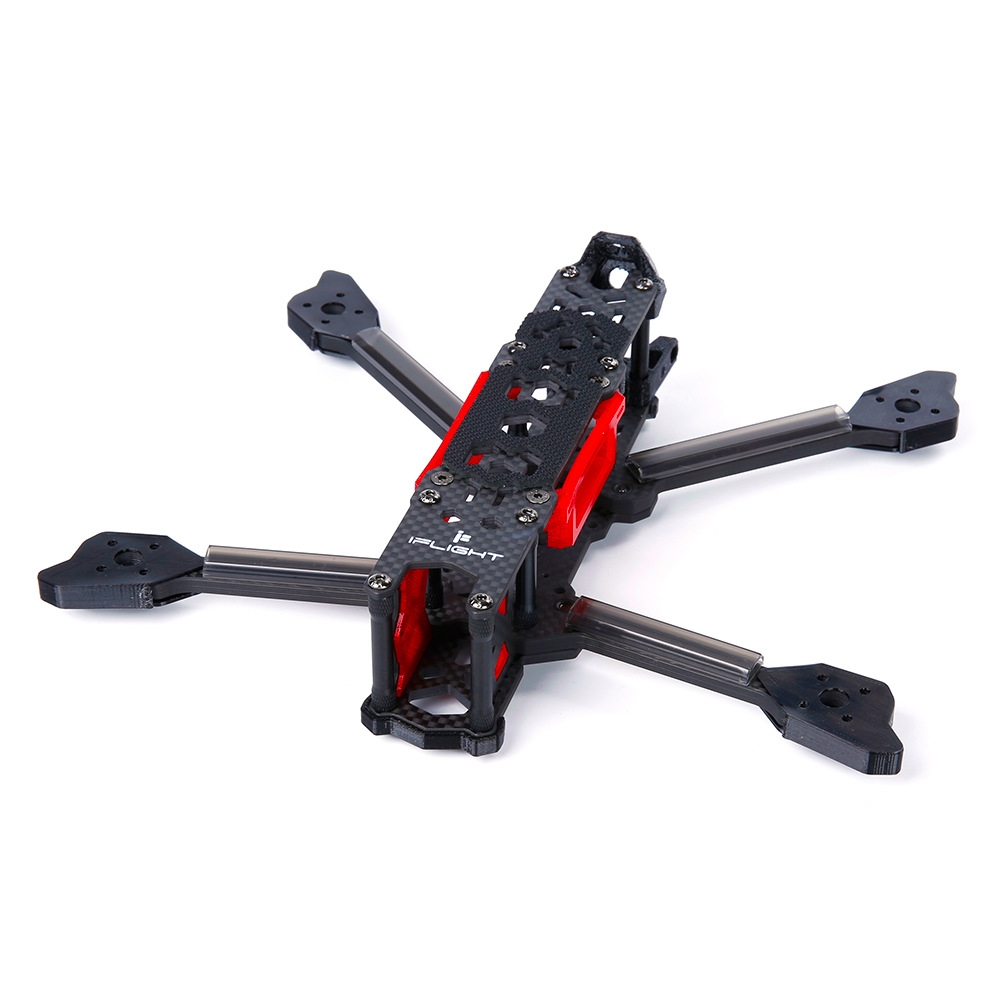

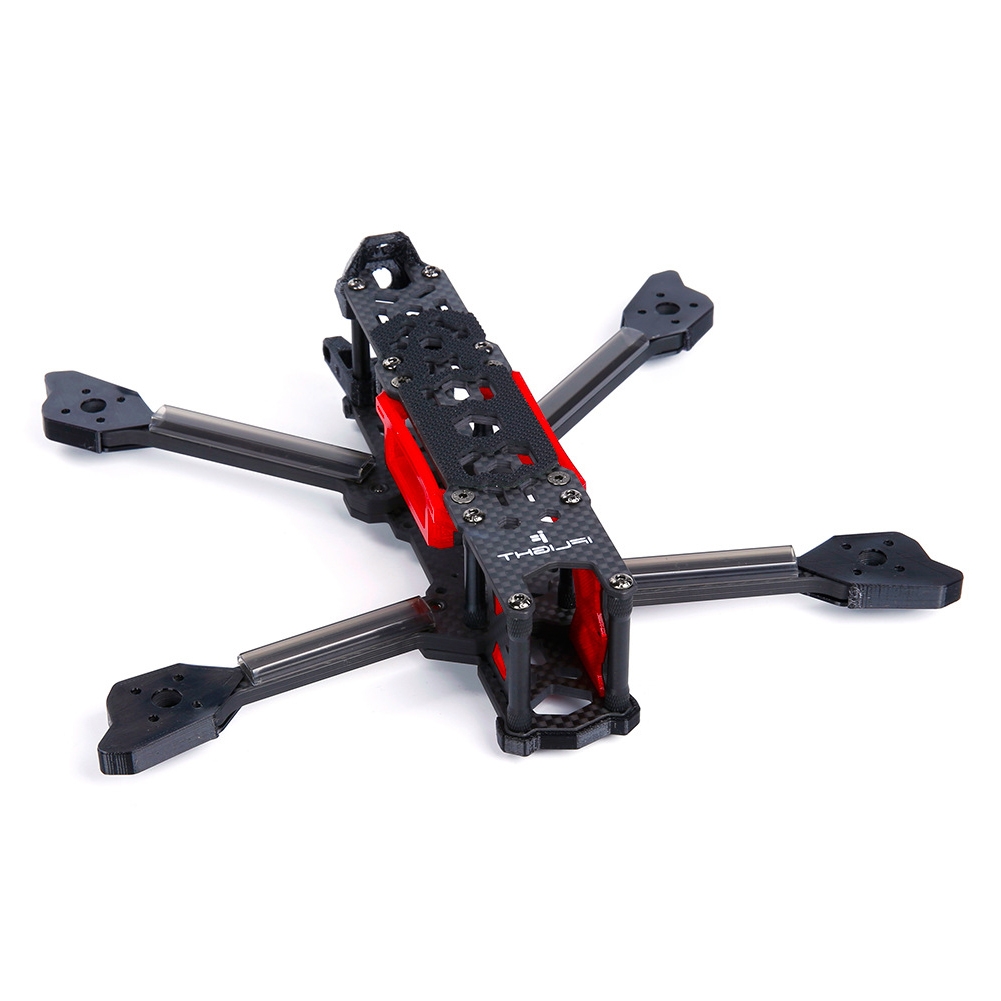

iFlight TITAN DC5 V1.4 222mm 5inch FPV HD Freestyle Frame Kit Compatible for DJI Air Unit

Product Description

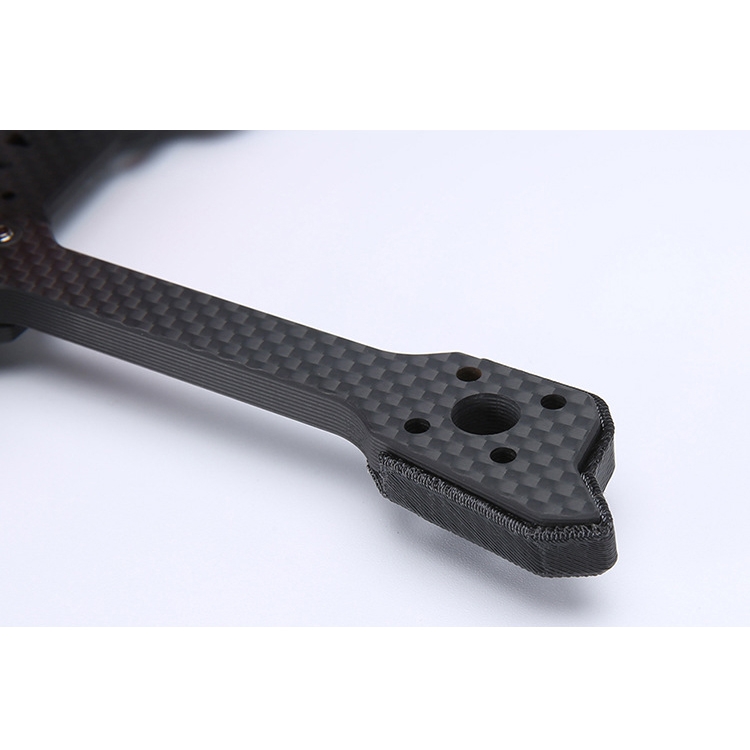

1.Increased strength and width at the screwed anchor points, increased carbon thickness from 5mm to 6mm 2. Hole position is compatible with V1.3/V1 board 3. Full 3K Carbon Fiber airframe with chamfered arm 4. Fits both 30.5x and 20x stacks 5. Left and right integrated arm 6. The camera will not see the propeller parameter: Diagonal wheelbase: 222mm Overall frame size: 185x133mm Empty weight: 132.3g Floor thickness: 3mm Top plate thickness: 2mm Arm thickness: 6mm upgrade June 4 Arm width: 10mm Electronic equipment installation height: 35mm (aluminum column height 35mm) Flight control hole distance: 30.5x30.5mm/20mmx20mm Motor circlip hole: 8mm Motor: 22/23 series Camera pitch: 20mm/22mm

Specifications

SKU

CHT0629

Category

Mobile Parts › DJI Spare Parts › DJI Air Series

Weight

0.163 kg

Delivery

Standard delivery
