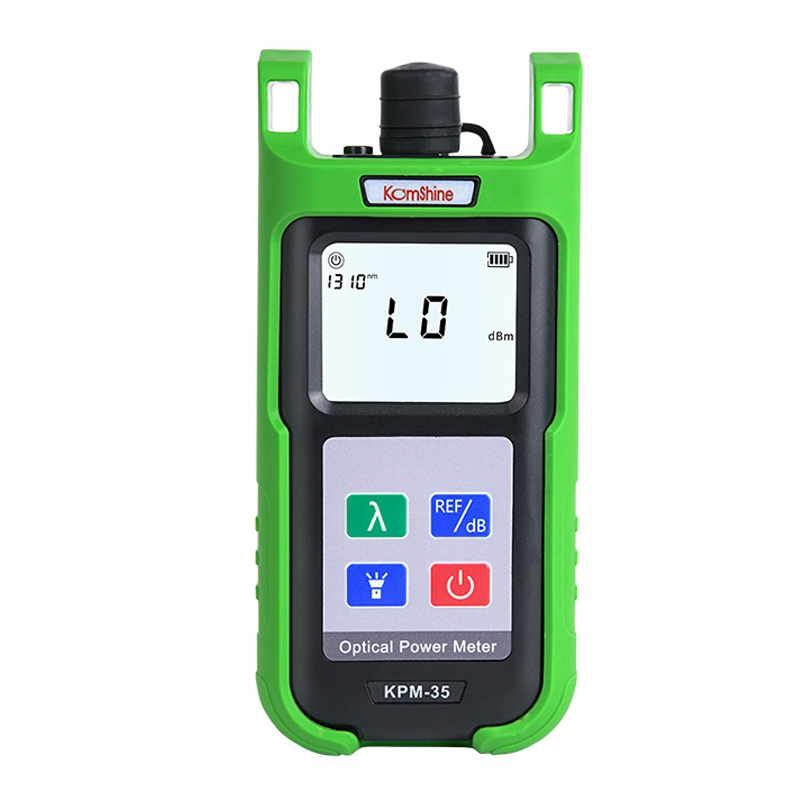

Komshine High-Precision Optical Power Meter Optical Cable Line Tester, Model: KPM-35-C/-50DBM to +26dBM

Product Description

1. Wavelength range: 800~1700nm 2. Probe type: InGaAs 3. Power measurement range: -70 ~ +6 dBm / -50 ~ +26dBm 4. Accuracy: 0.2dB 5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625nm 6. Power supply: 3 AA 1.5V batteries (not included) 7. Display resolution: 0.01dB 8. 2.5mm universal interface design 9. Test parameters can be adjusted manually and independently according to actual test requirements. 10. It has a backlight display function and is equipped with LED lights so that the device can work normally in the dark, thereby improving work efficiency. 11. Removable silicone cover to reduce injuries caused by collisions and falls 12. Ergonomic design, one-handed operation 13. Type A: -70dBm～+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.) 14. Type C: -50dBm～+26dBm (mainly used in radio and television, monitoring, etc.) 15. Size: 160x85x45mm 16. Net weight: 220 grams

Specifications

SKU

TBD0604222602

Category

Computer & Networking › Optical Series › Fiber Optic Test Pen

Weight

0.254 kg

Delivery

Standard delivery
