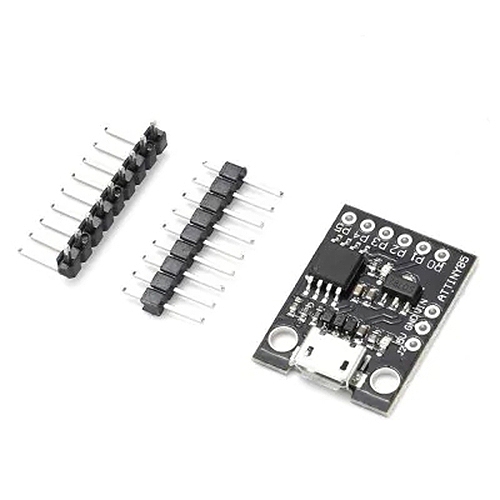

LandaTianrui LDTR - WG0124 Micro USB Interface Digispark Kickstarter Development Board

Product Description

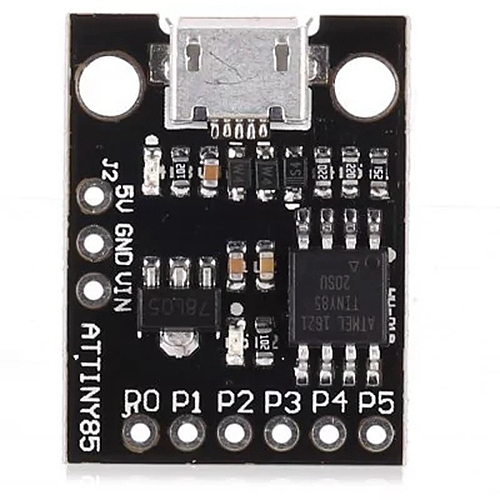

1. It's an Attiny85 based micro controller development board and it is similar to the Arduino line, only cheaper, smaller, and a bit less powerful. 2. With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE. 3. The Digispark is a great way to jump into electronics or perfect for when an Arduino is too big or too much. 4. Support for the Arduino IDE 1.0 + (OSX / Win / Linux). 5. Powered by micro USB or external source 5V or 7 - 15V (12V or less is recommended, automatic selection). 6. Onboard 100mA 5V regulator. 7. 6 I/O pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB). 8. I2C and SPI (via USI). 9. PWM on 3 pins (more possible with software PWM). 10. ADC on 4 pins. 11. With power LED and test / status LED.

Specifications

SKU

DIY1715

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.024 kg

Delivery

Standard delivery
