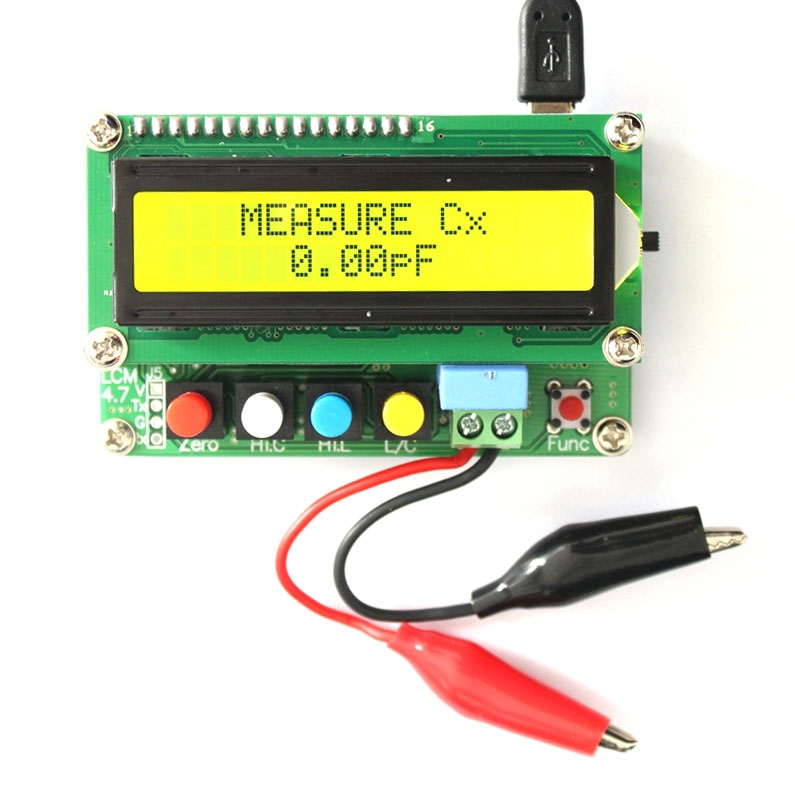

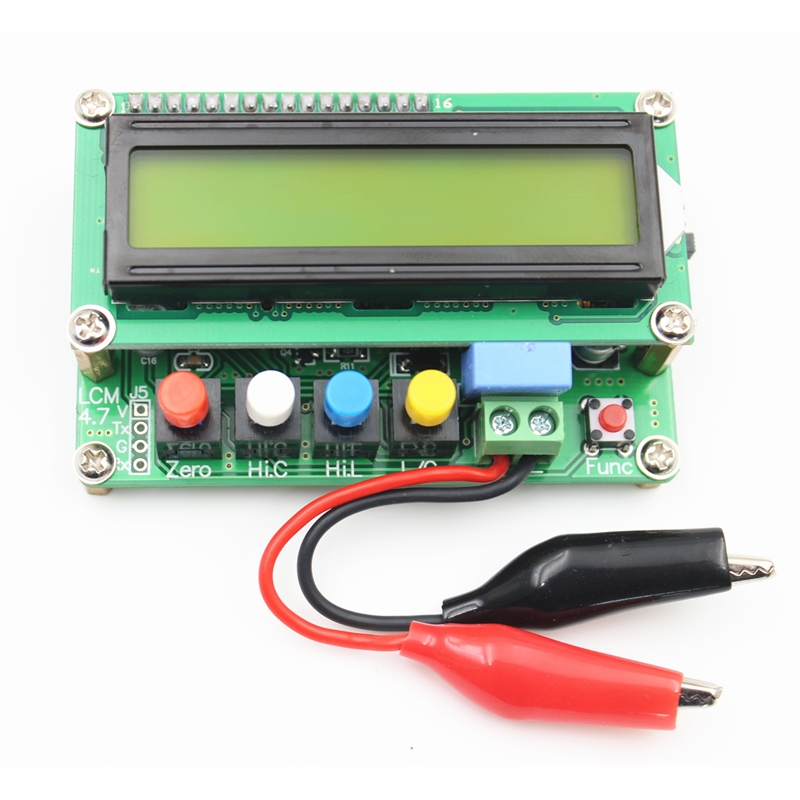

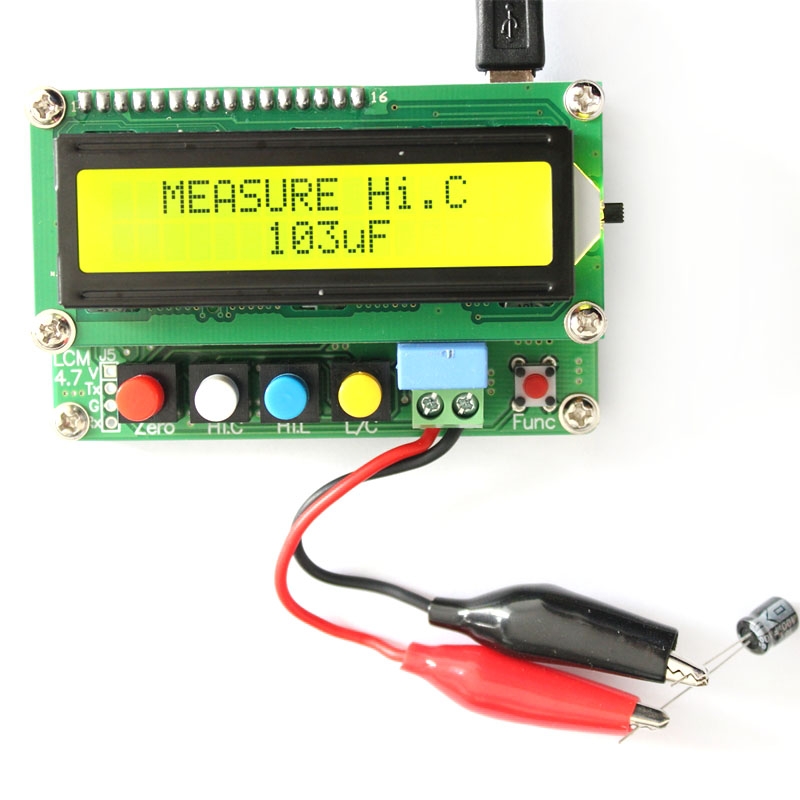

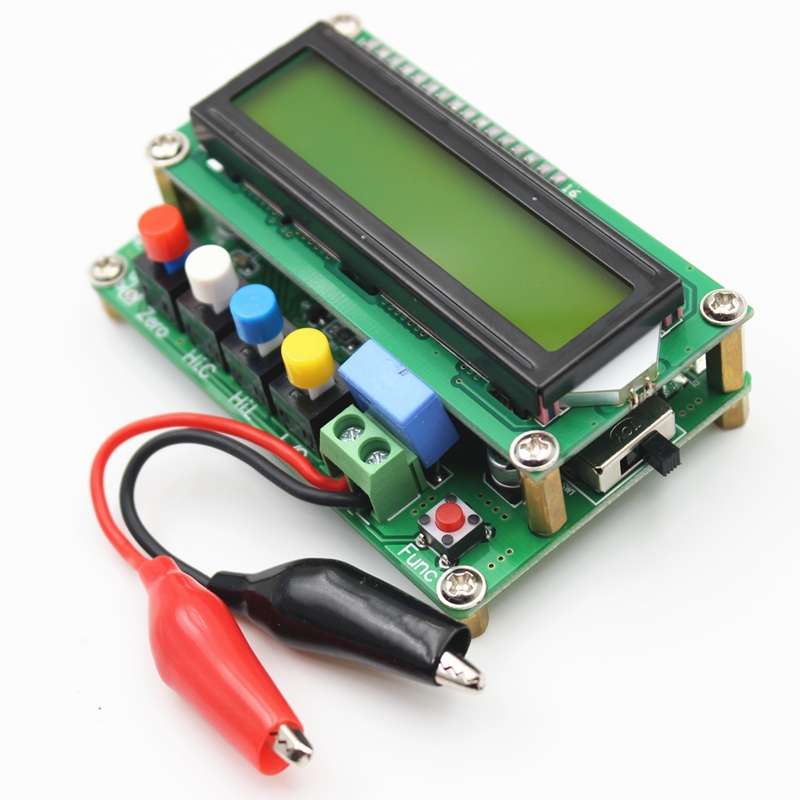

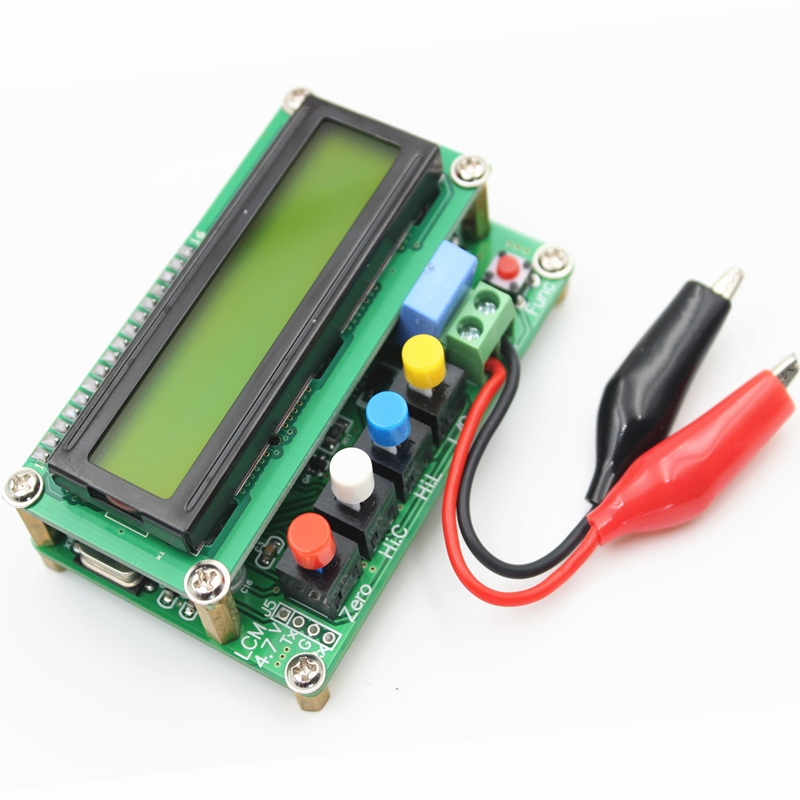

LC100-A High Precision Digital Inductance And Capacitance Meter

Product Description

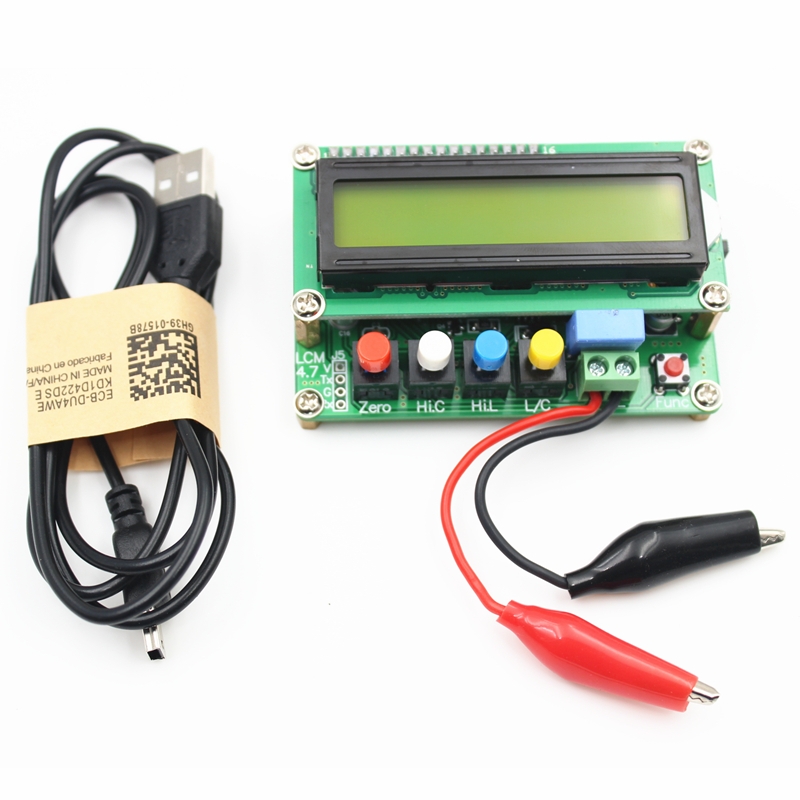

1. Measurement accuracy: 1% 2. Capacitance measuring range: 0.01pF-10uF 3. Minimum resolution: 0.01pF 4. Inductance Range: 0.001uH-100mH 5. Minimum resolution: 0.001uH 6. Large inductance measurement range: 0.001mH-100H 7. Minimum resolution: 0.001mH 8. Large capacitance measuring range: 1uF-100mF 9. Minimum resolution: 0.01uF 10. Test frequency: capacitors, inductors file about 500kHz, large inductance of about 500Hz 11. Can display current test frequency value 12. Effective display digits: 4 13. Display: 1602 LCD 14. Power supply: Mini USB interface to take power or 5V power supply 15.Package Content：1 x LC100-A inductor-capacitor Table；1 x Mini USB Cable

Specifications

SKU

TBD04247112

Category

Consumer Electronics › Arduino & SCM Supplies › Other Accessories

Weight

0.124 kg

Delivery

Standard delivery
