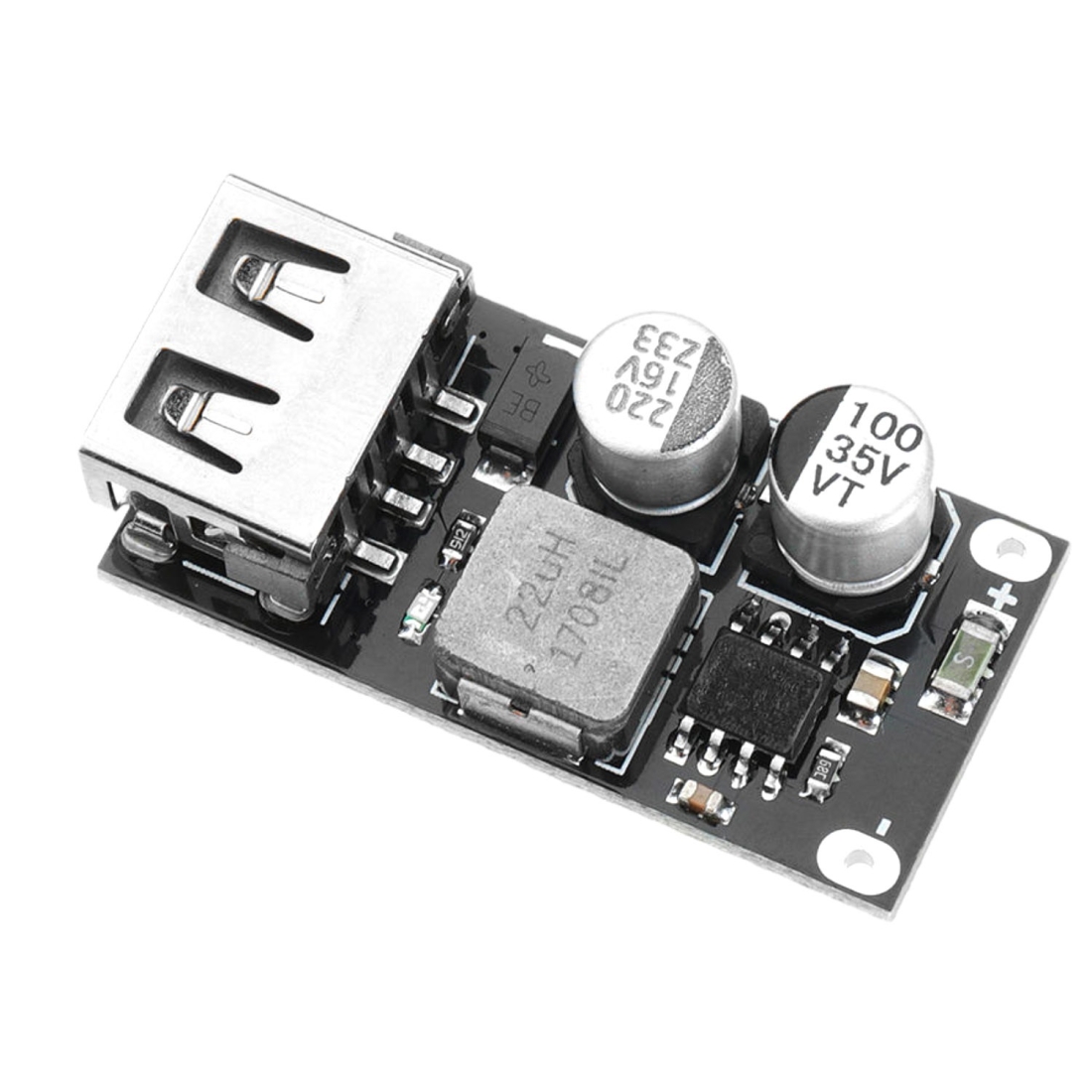

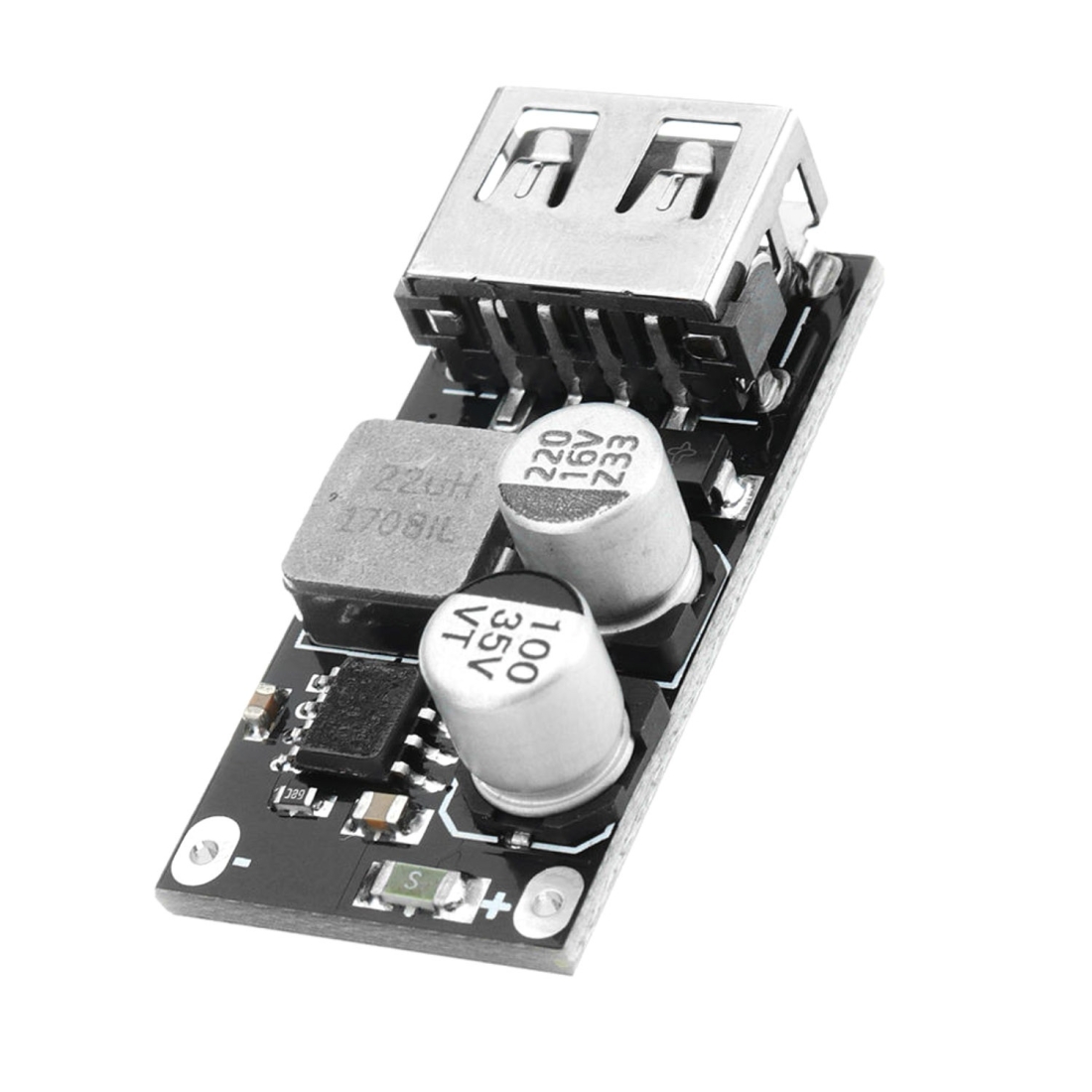

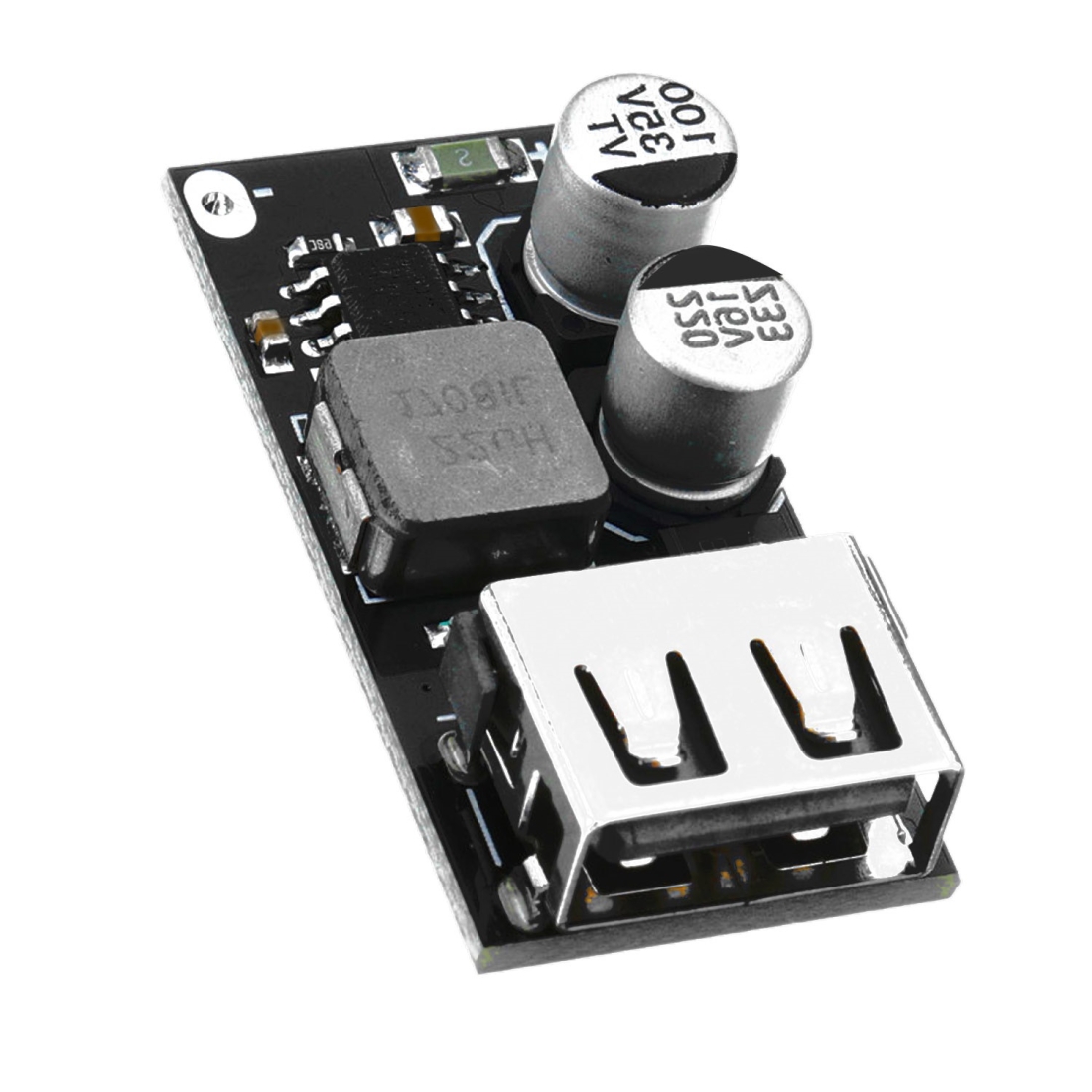

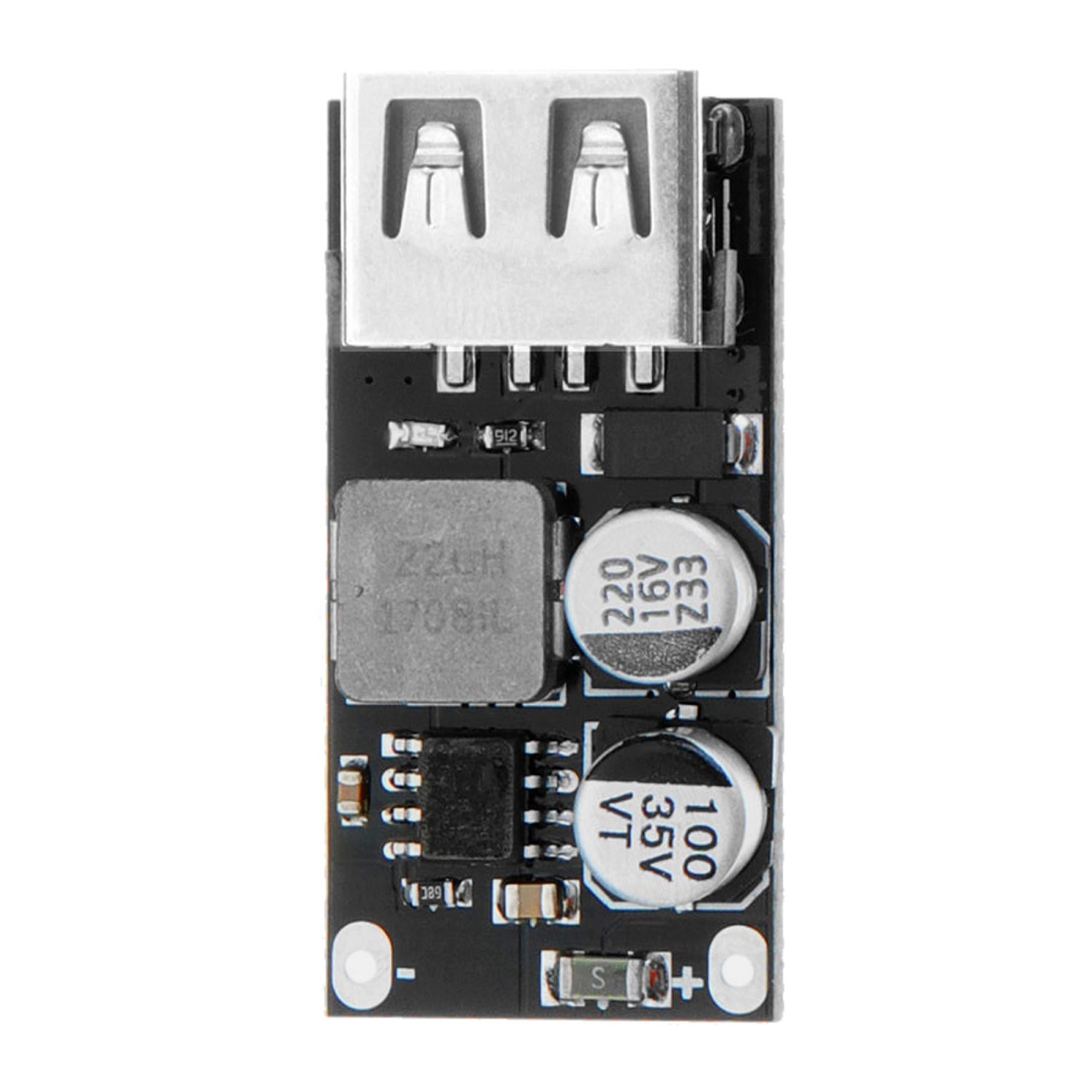

LDTR-WG0270 DC Buck Module 12V24V to QC3.0 Single USB Mobile Charging Board (Black)

Product Description

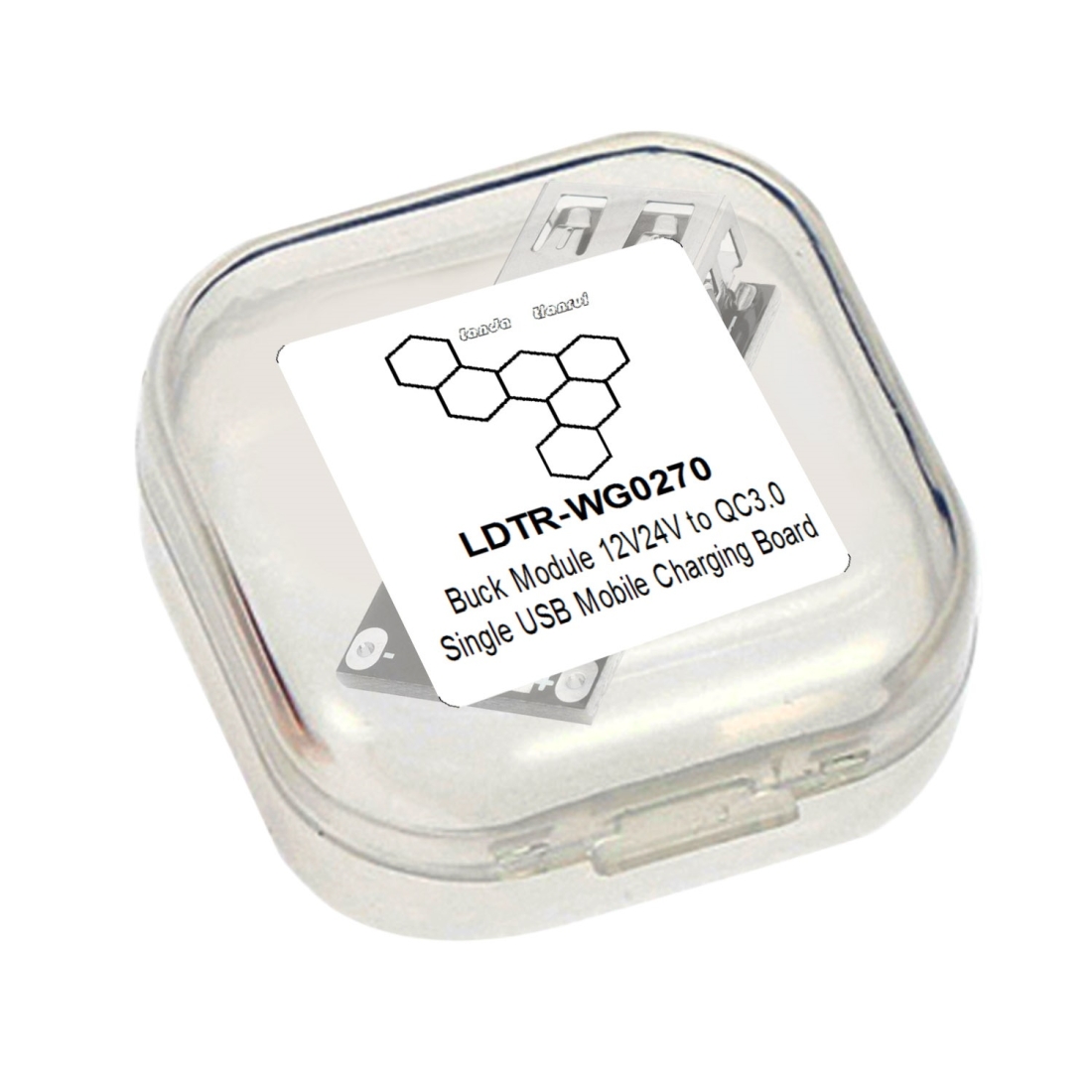

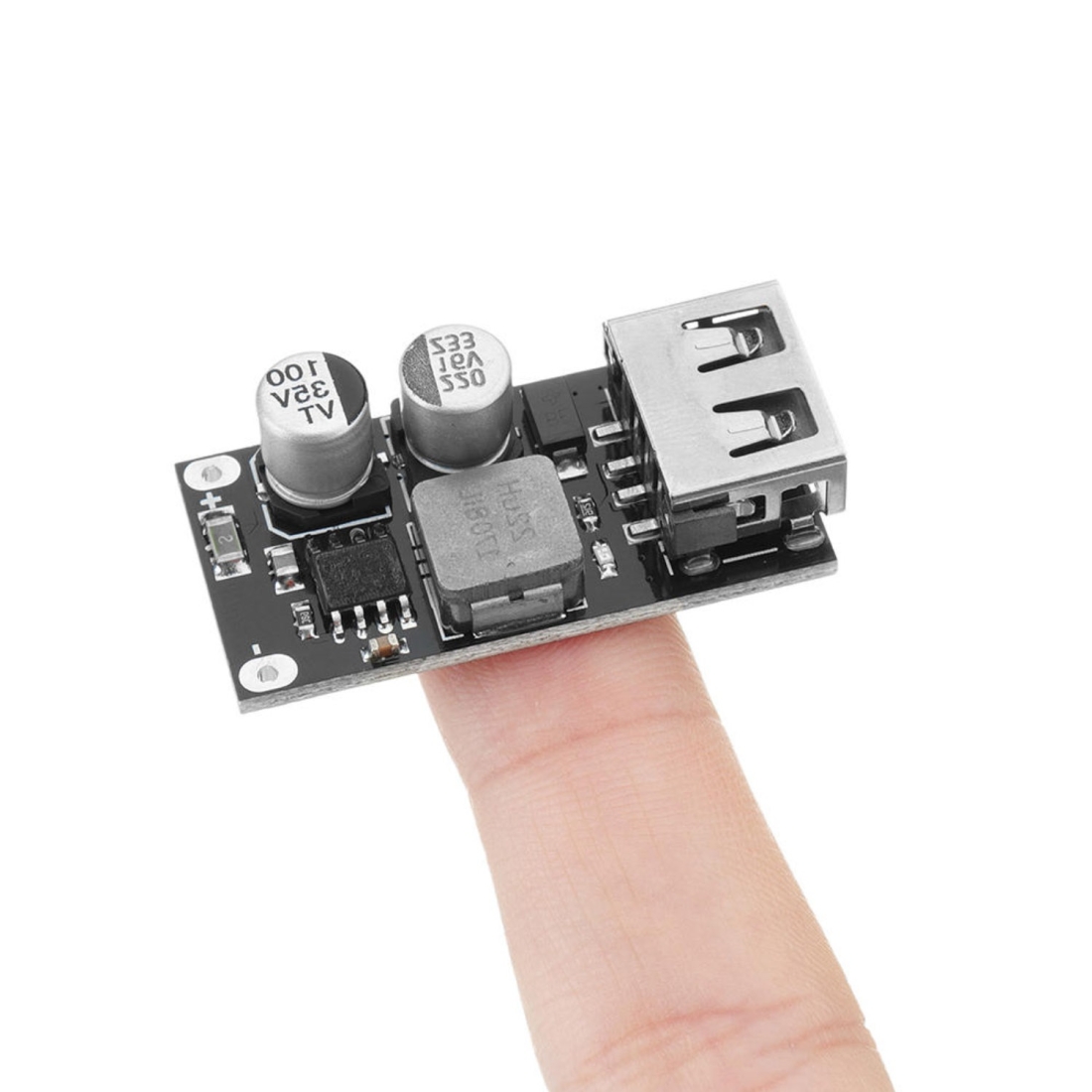

Features 1. Input voltage range: 6V-32V 2. Output voltage: default 5V, automatically adjust between 3-12V after triggering fast charge. 3. Output power: maximum 24W (5V@3.4A, 9V@2.5A, 12V@2A, etc.) 4. Wired function of output voltage 5. Conversion efficiency: 90%-97% 6. Support a variety of fast filling protocols 7. Overvoltage and undervoltage protection 8. Input over current protection 9. Output overcurrent and short circuit protection 10. Over temperature protection for the whole machine 11. Support: BC1.2, QC2.0, QC3.0, MTK PE+1.1, MTK PE+2.0, FCP, AFC, SFCP 12. Product Size: 34*17*9.5mm (Excluding 1mm of USB female seat protrusion) Applications 1. Solar panel to mobile phone charging 2. Car charging retrofit 3. Driving recorder power supply 4. Home power conversion Specification 1. Material: PCB 2. Dimensions: 3.4cm x 1.7cm x 1cm 3. Weight: 8g 4. Packing List - 1 x Single USB Mobile Charging Board - 1 x Plastic Box

Specifications

SKU

ZY14348476B

Category

Consumer Electronics › Arduino & SCM Supplies › Boards & Shields

Weight

0.02 kg
