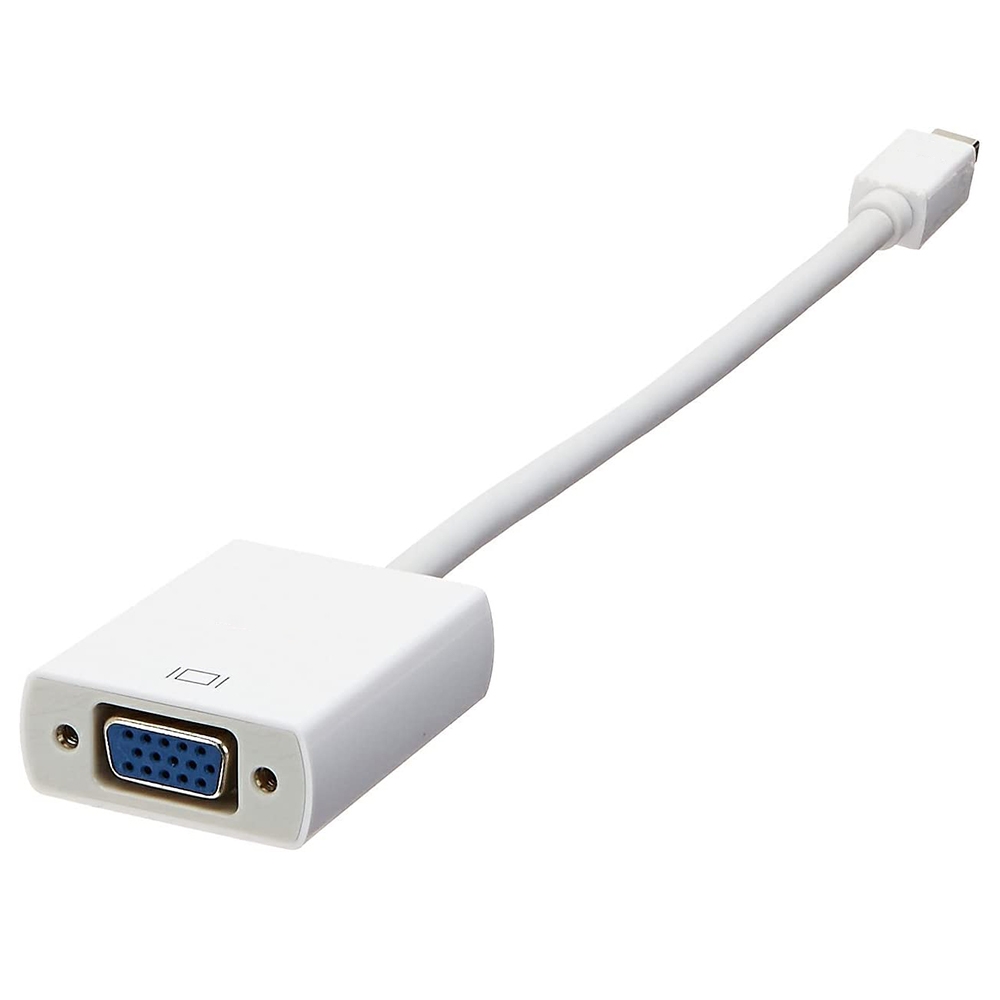

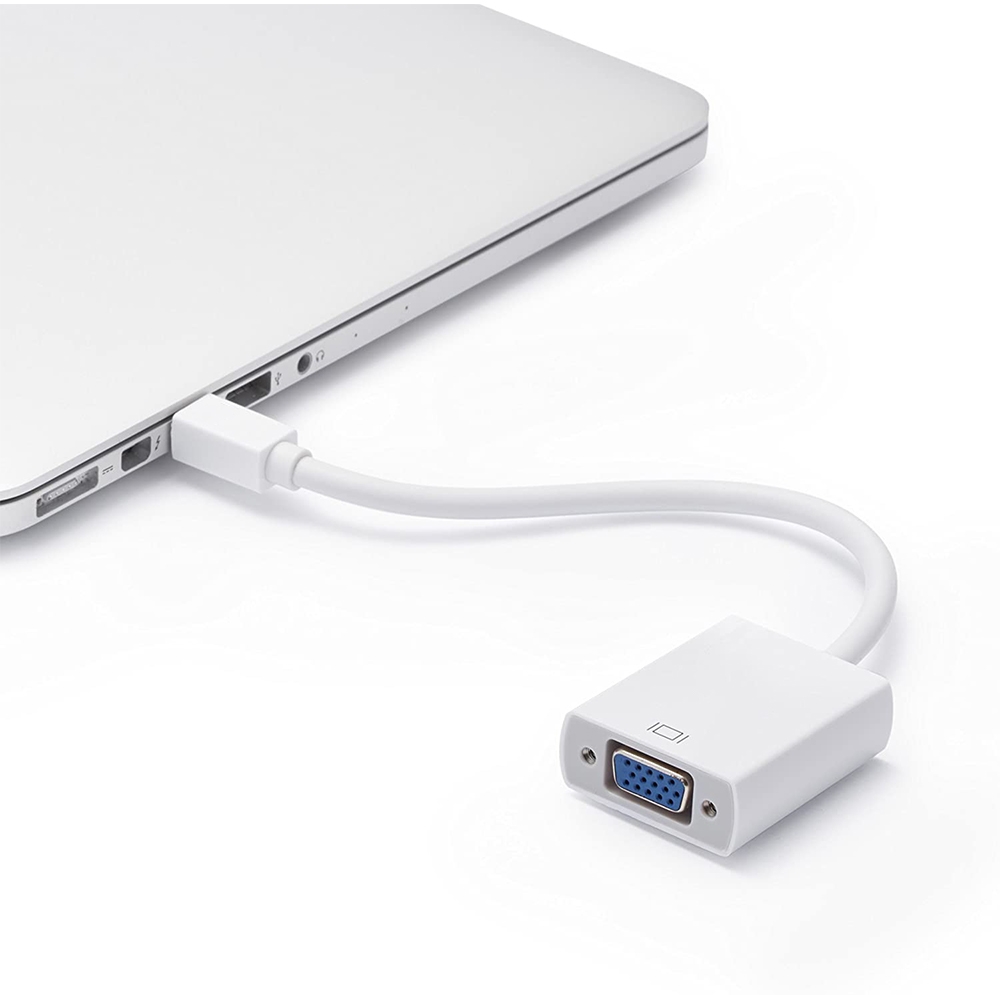

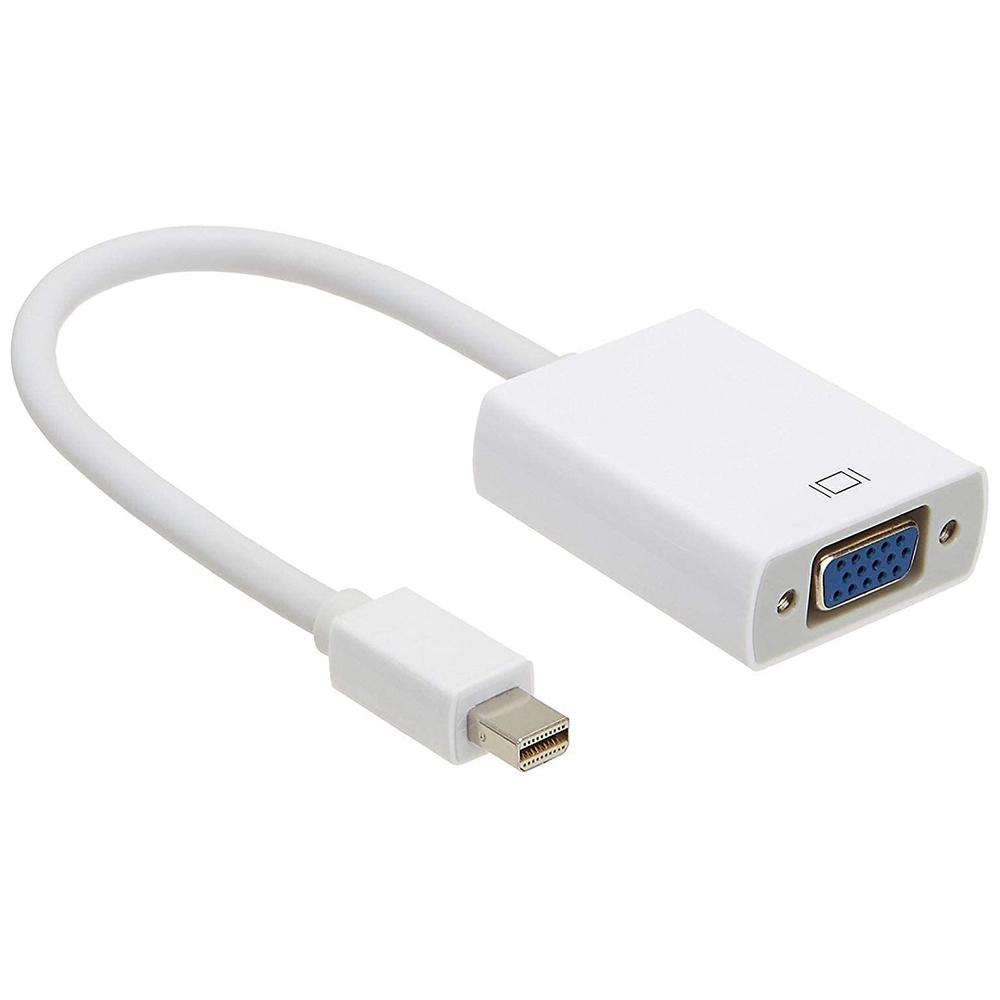

Mini DP to VGA Adapter Cable, Supports 1080P

Product Description

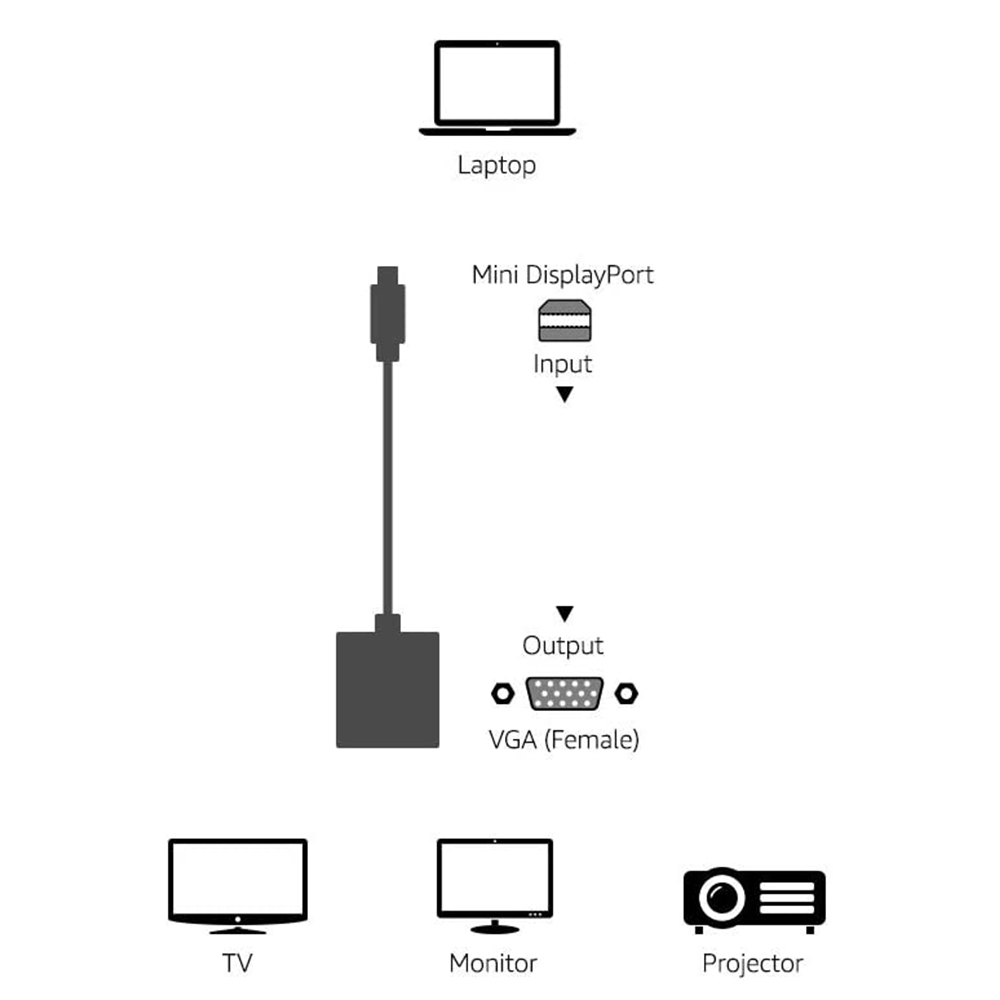

1. Interface: the input interface is Mini DisplayPort 20 Pin male, the output interface is VGA 15 Pin female 2. Signal connection range: up to 1920x1200, 1080p 3. Video amplifier bandwidth: 162MHz 4. Video input signal: 5Volts p-p (TTL) 5. Cable length: 20cm 6. Product shell material: silver aluminum design, strong oxidation resistance and corrosion resistance 7. Mini DisplayPort display port 1.1a, provides 5.4Gbps bandwidth through 2 channels 8. Support 10bit, 162MHZ VGA video bandwidth 9. Support resolutions up to 1080p, 1920 x 1200, reduce the blank condition of the transmission video resolution signal 10. The signal source directly reads the EDID of the display 11. Disperse the spectrum to reduce electromagnetic interference 12. Support automatic detection at the receiving end 13. Receive power and other devices from the MINI DP information source 14. 3.3V IO, 1.2V core 15. Low voltage operation-working mode 400mW; standby mode 15mW

Specifications

SKU

SYA0012191

Category

Computer & Networking › Network Adapters › USB Network Adapter

Weight

0.045 kg

Delivery

Standard delivery
