MPPT 12V/24V Automatic Identification Solar Controller With USB Output, Model: 30A

Product Description

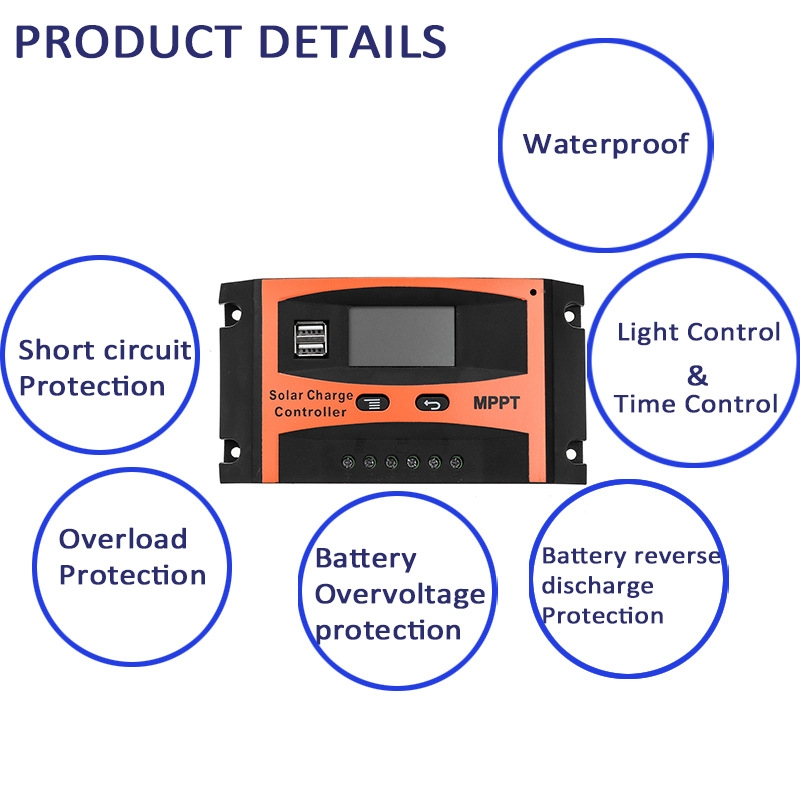

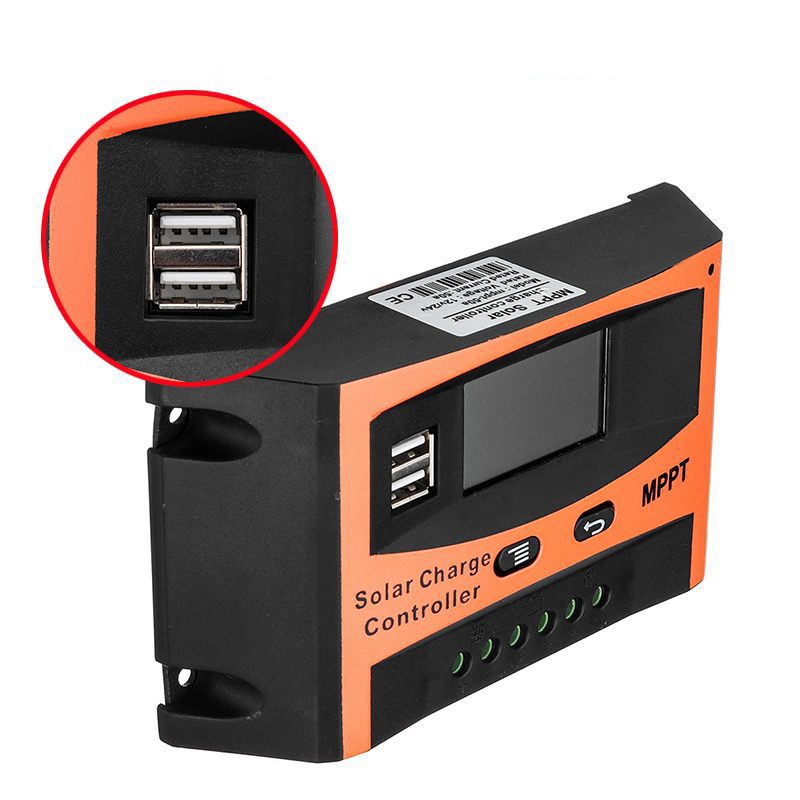

Features: 1. Stable performance: Built-in industrial microcontroller, it can run stably in cold, high temperature and humid environment. 2. The 12V/24V voltage can be automatically identified and intelligentized, providing more convenience for your life. 3. Large LCD display: to ensure simple and intuitive operation. 4. Dual USB output: easily connect to the mobile phone, you can quickly and powerfully charge the mobile phone. 5. Comprehensive protection: provide overcharge, overdischarge, overload protection and short circuit and reverse connection protection. 6. Wide load work: easy to apply to different types of street lights and monitoring equipment. 7. Wide range of applications: used for solar green light, solar billboards, solar insecticidal lights, solar power systems, ship solar power systems, solar power systems, etc. parameter: 1. Rated charging current: 30A 40A 50A 60A 2. Rated load current: 30A 40A 50A 60A 3. Working voltage: 12V / 24V 4. Floating charging voltage: 13.8V / 27.6V (adjustable) 5. Undervoltage protection: 10.7V / 21.4V (adjustable) 6. Charger controller specification charging method: 3 kinds 7. Working temperature: 35-60 degrees Celsius 8. Storage temperature: 40 -70 degrees Celsius

Specifications

SKU

TBD0557783401

Category

Consumer Electronics › Solar Power › Others

Weight

0.367 kg
