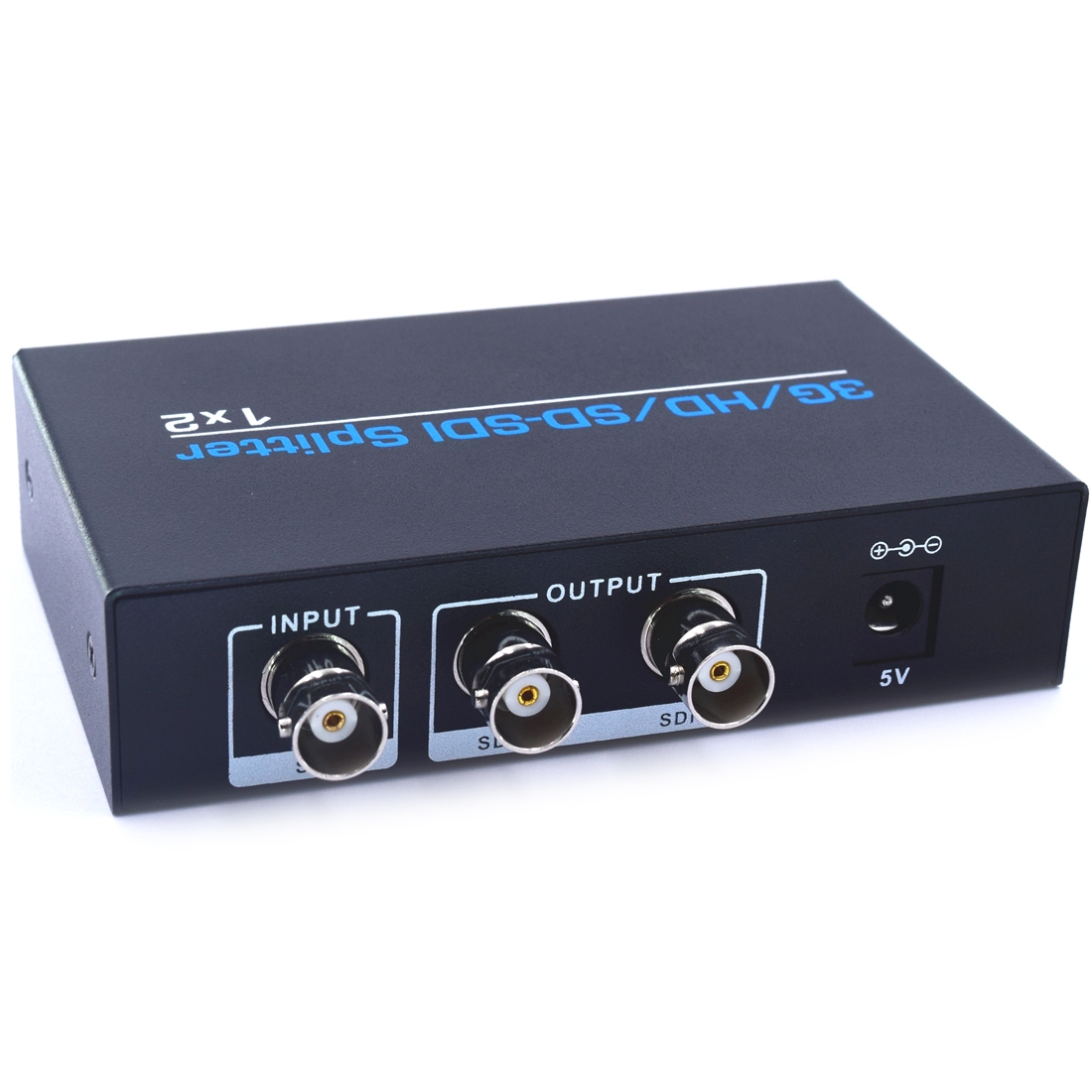

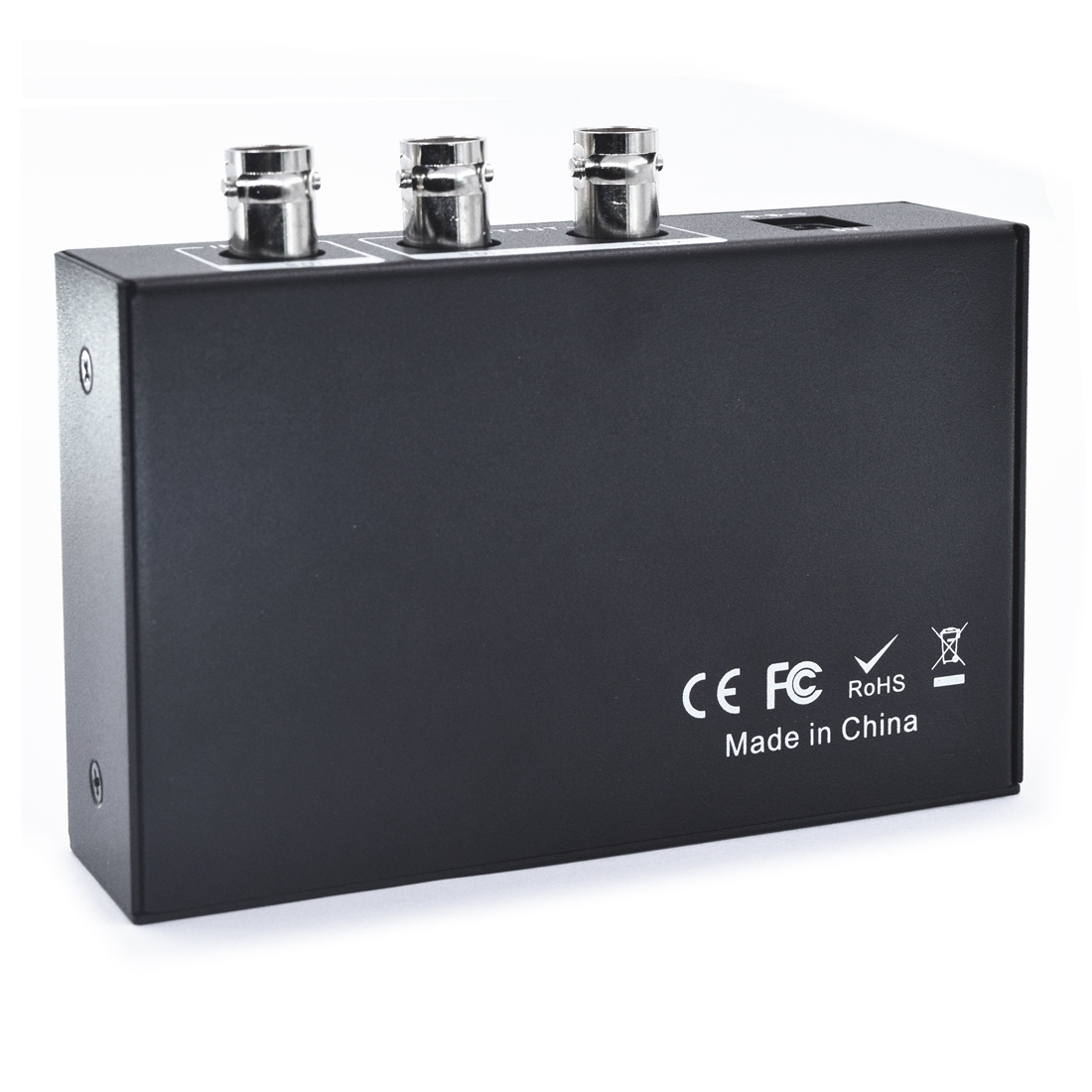

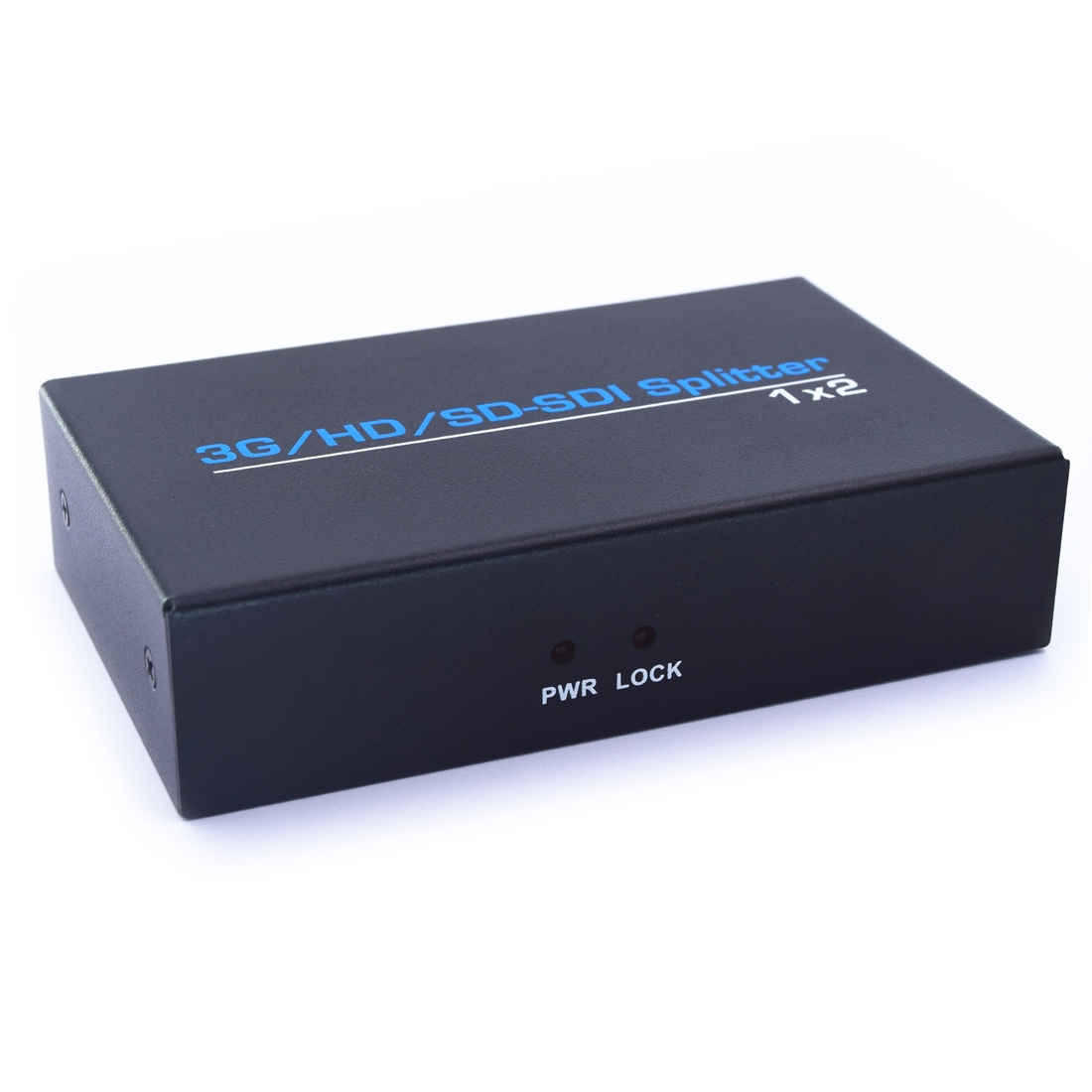

NK-812 2 in 1 3G-SDI / HD-SDI / SD-SDI Splitter

Product Description

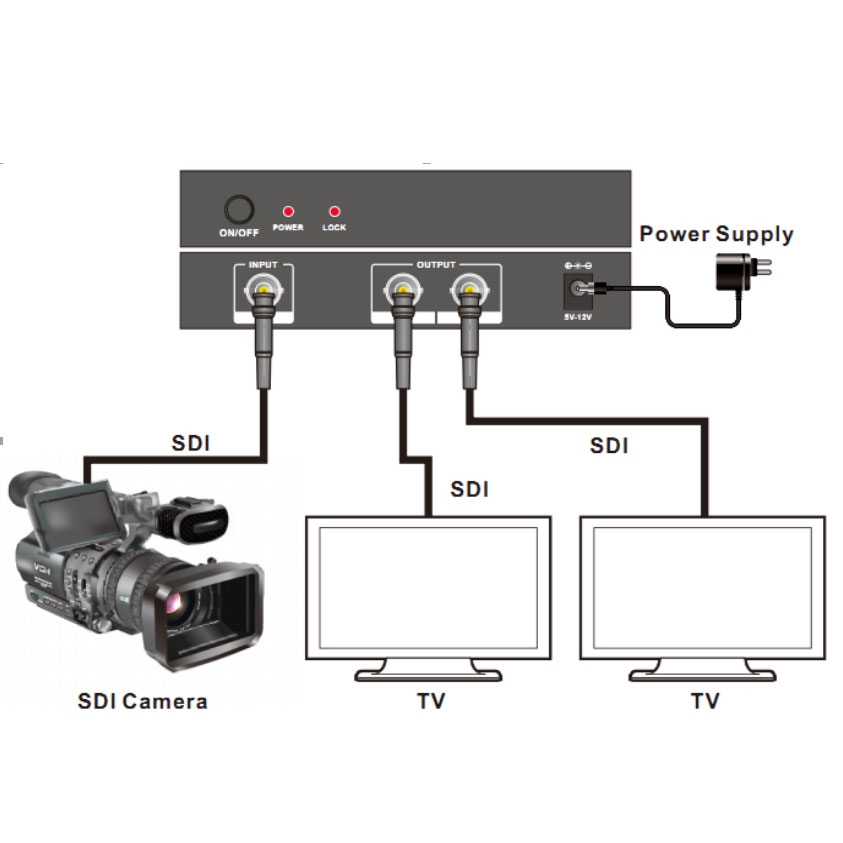

Features Introduction 1 x 2 SDI splitter distributes allows 1 SDI, HD-SDI or 3G-SDI video source to 2 SDI/HD-SDI/3G-SDI displays simultaneously. This product built-in automatic identification and compatible with SD-SDI, HD-SDI, 3G-SDI all format of SDI signal. It is the support 2.97Gbps bandwidth, and supports lossless transmission over long distances. Features 1. 1 SDI input signal split to 2 SDI sink devices. 2. Supports SD-SDI(270Mb/s), HD-SDI(1.485Gb/s), 3G-SDI(2.97Gb/s) video format. 3. Built-in cable equilibrium, clock recovery and drive. 4. Support resolutions up to 1920x1080@60Hz. 5. Support signal input and output distances of up to 300m for SD signals, 200m for HD signals and 100m for 3G signals. 6. Support 5V wide voltage input.

Specifications

SKU

S-PC-3201

Category

Computer & Networking › SDI Series › Video Converter

Weight

0.395 kg

Delivery

Standard delivery
