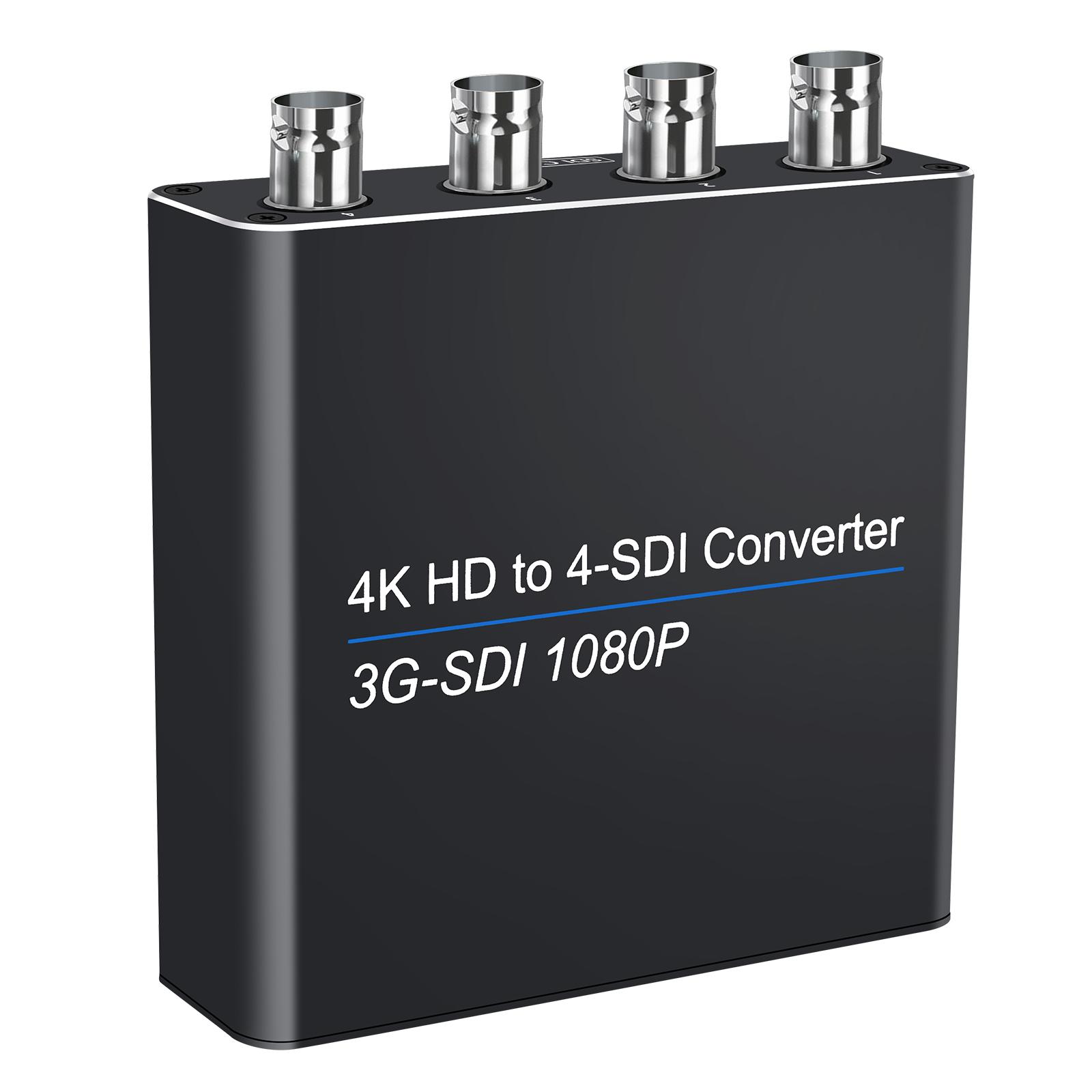

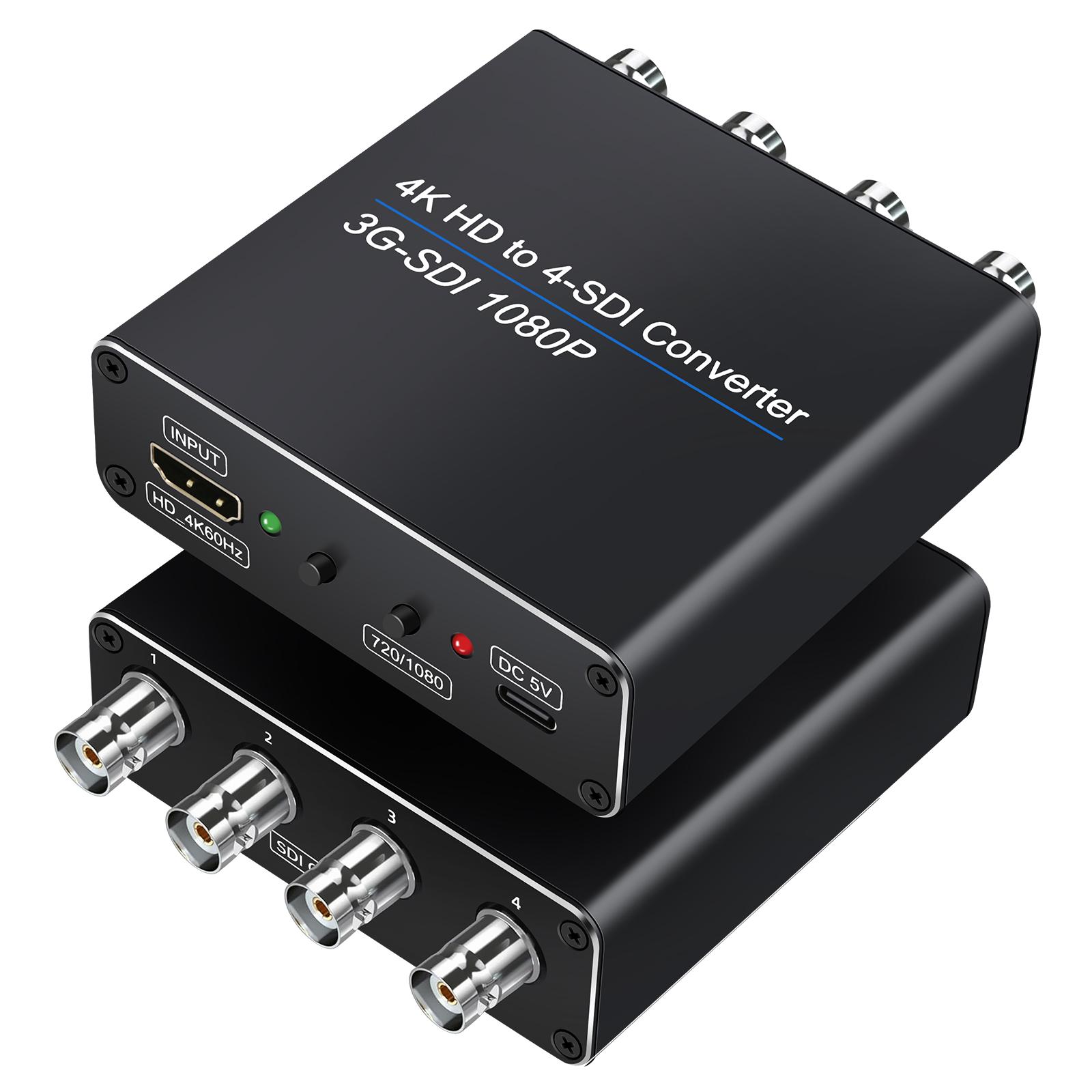

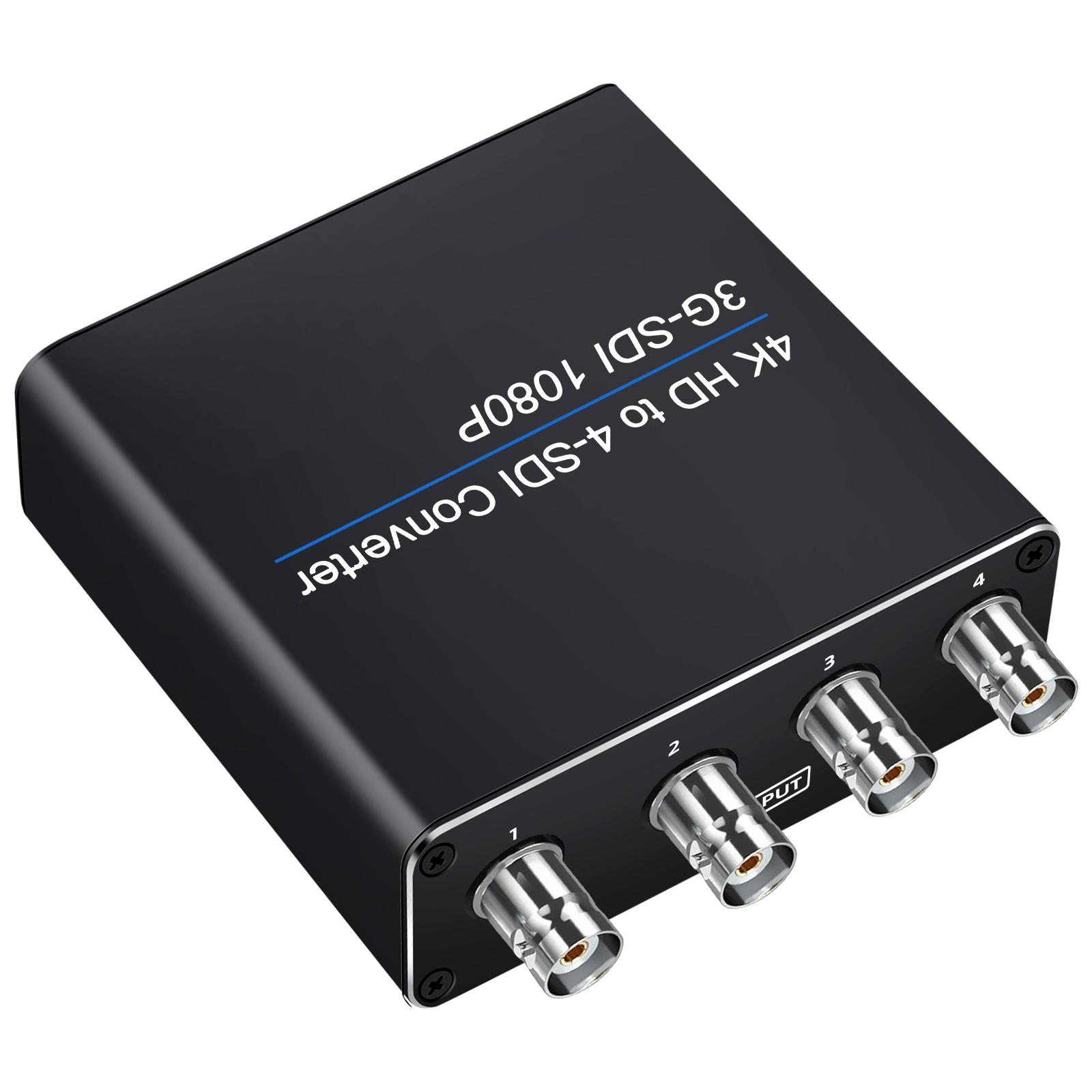

NK-814 4K HDMI Input to 4-SDI Output Converter(Black)

Product Description

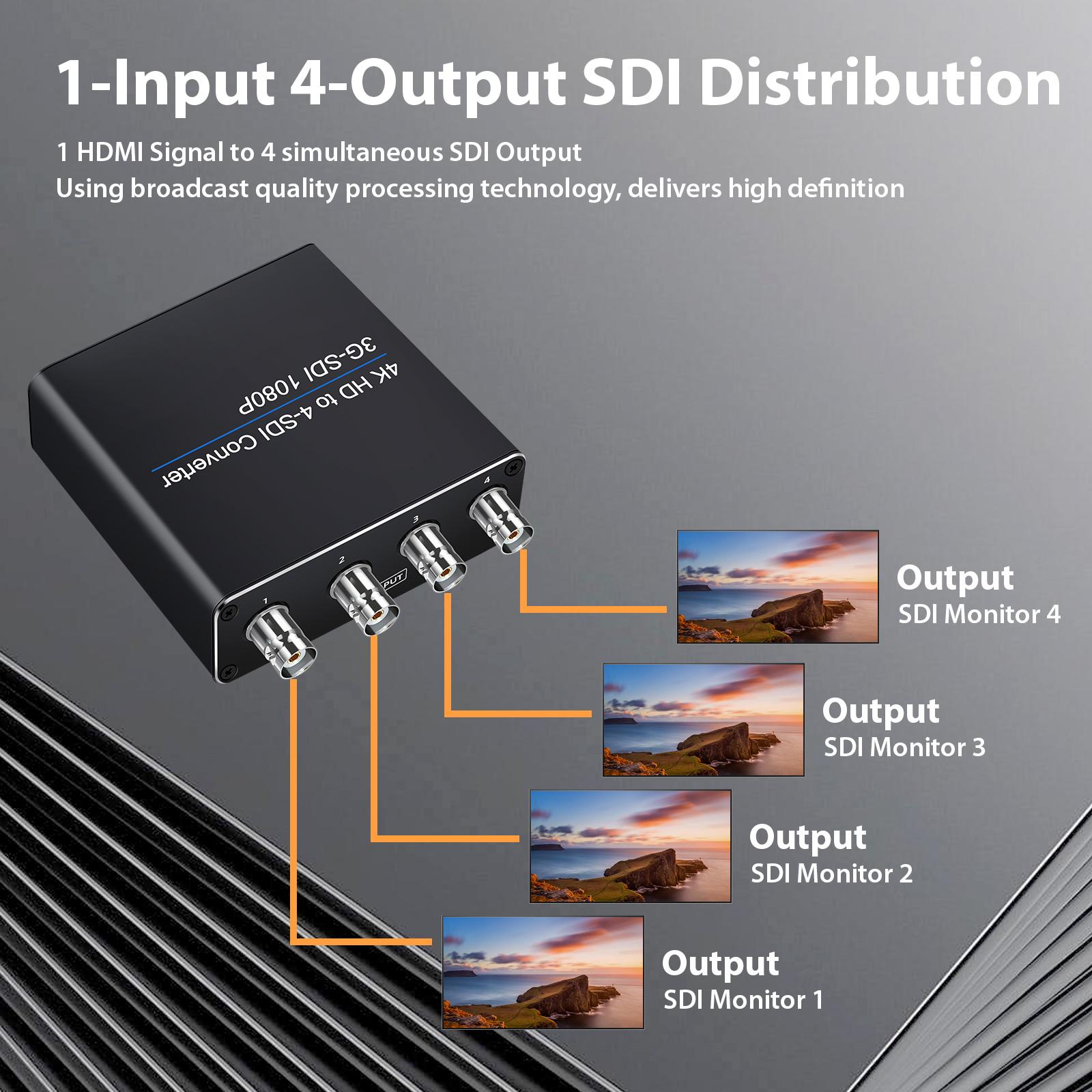

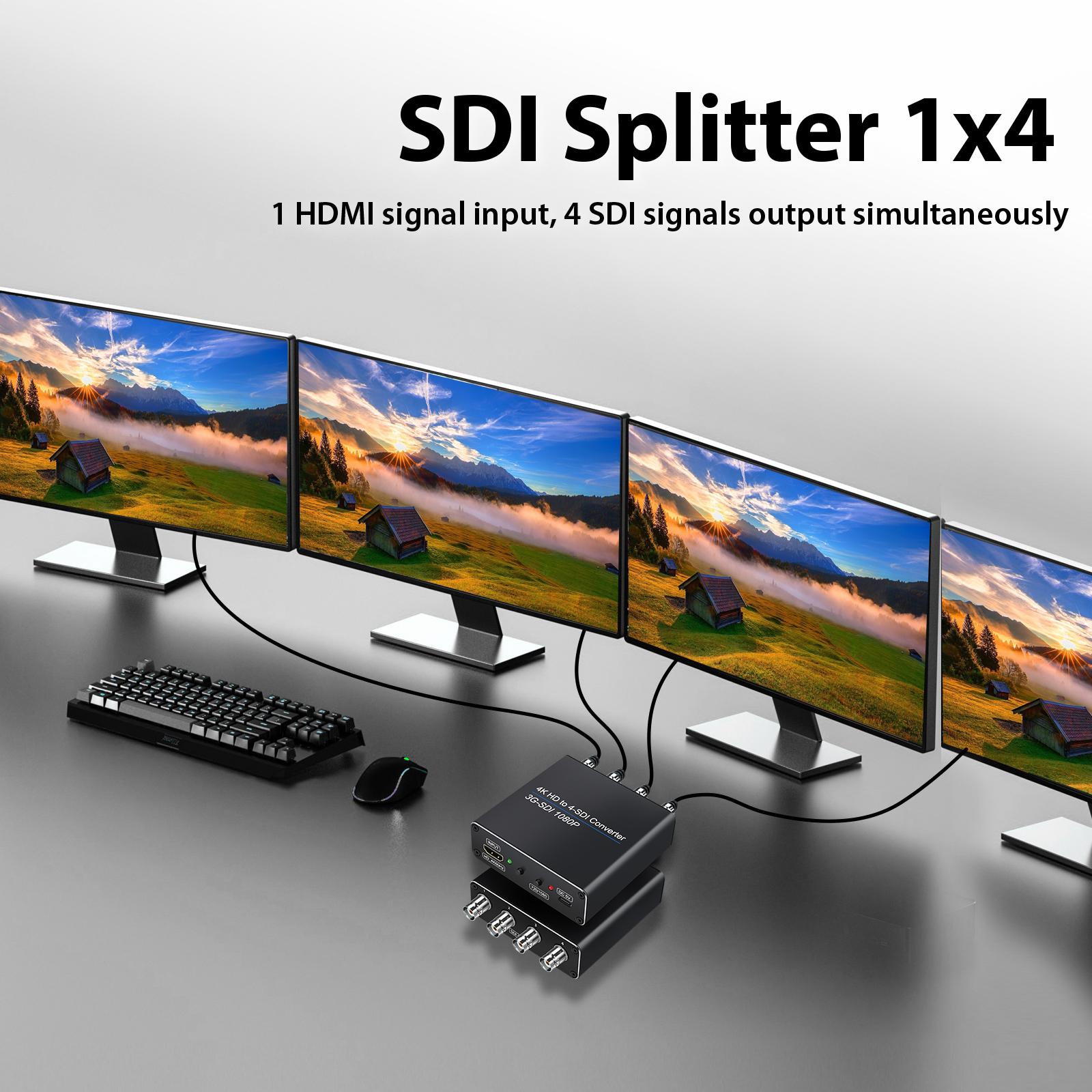

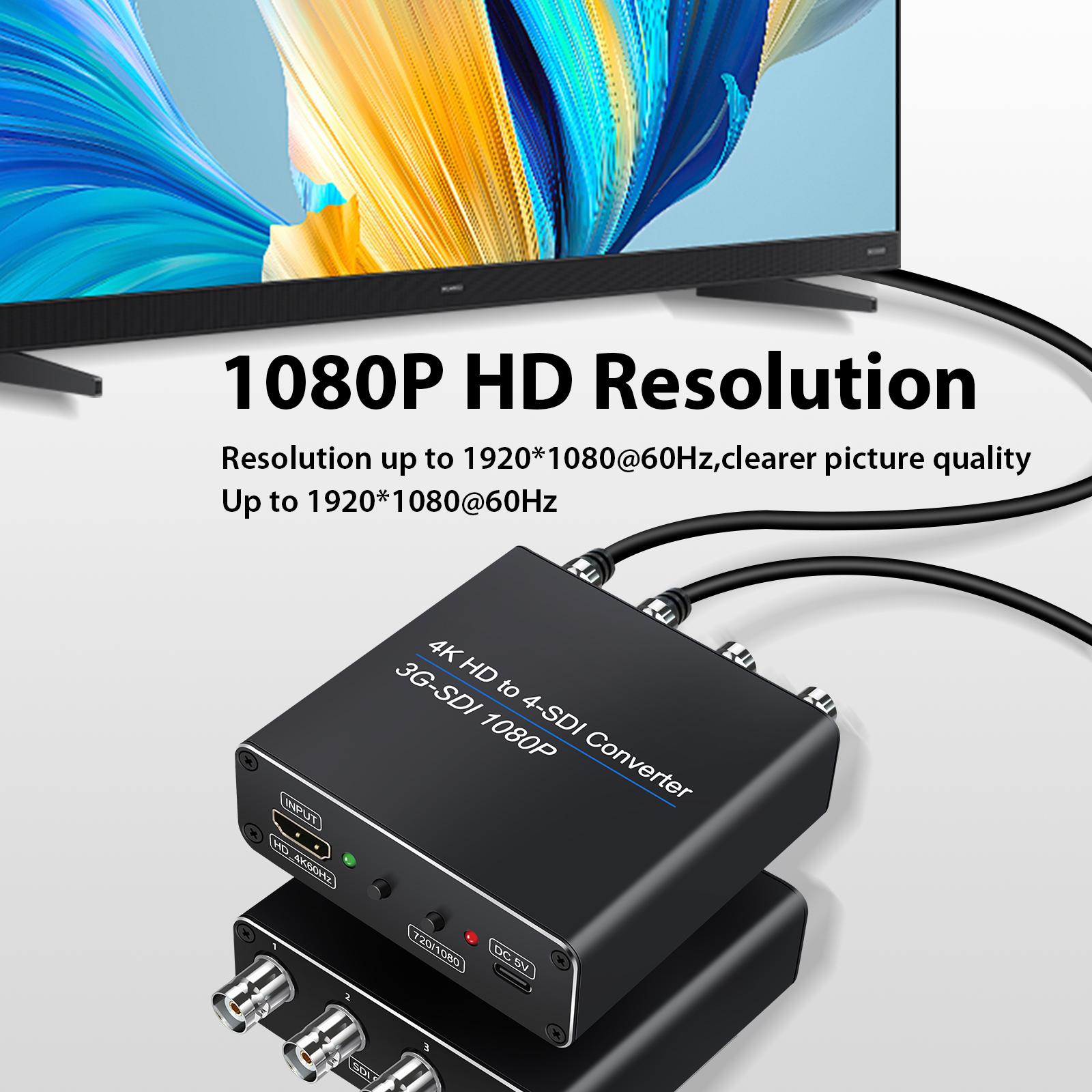

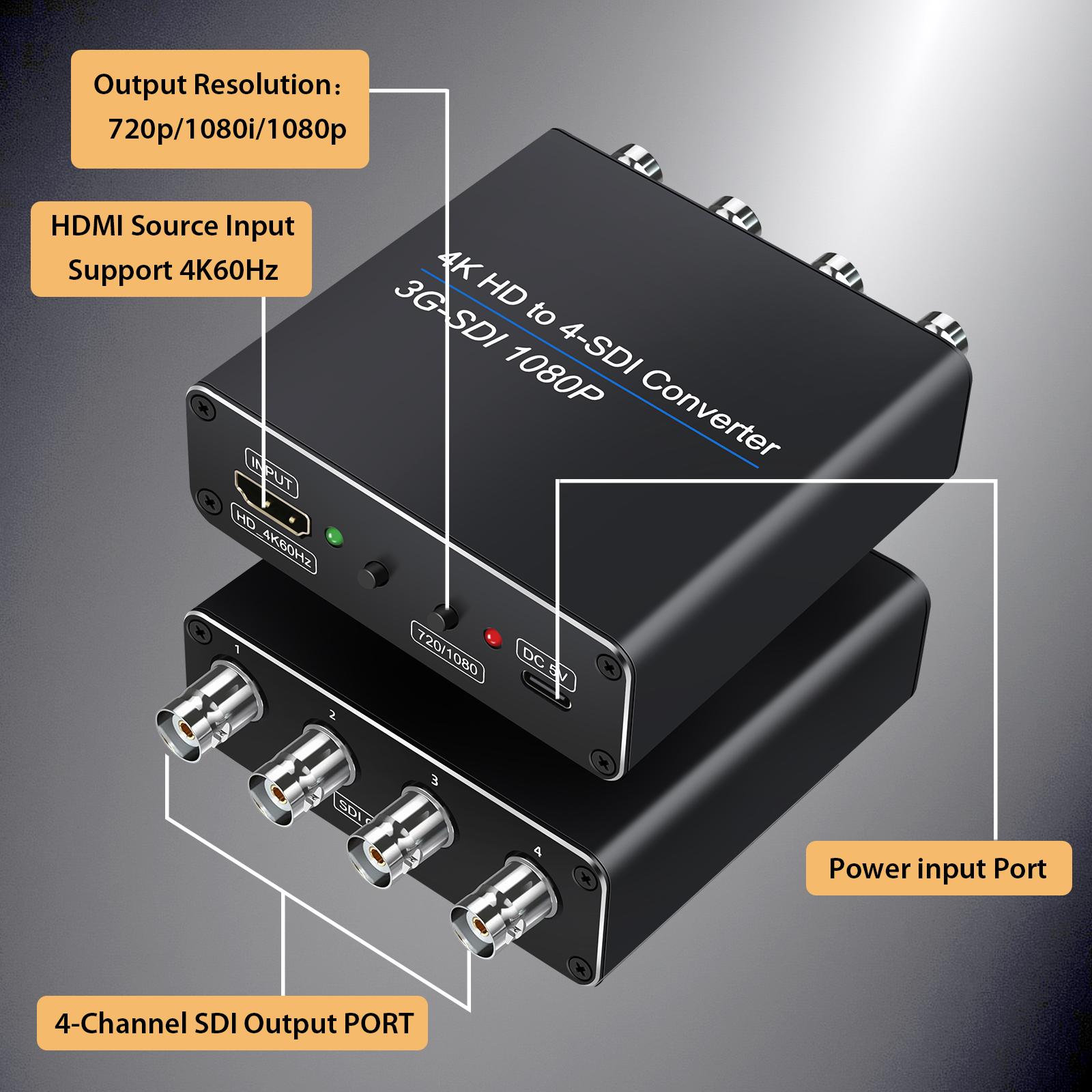

This product allows one HDMI video source to be converted into four SDI outputs for simultaneous display. It features built-in automatic recognition of all HD-SDI and 3G-SDI signal formats, supporting 2.97Gbps bandwidth and lossless transmission over long distances. Features: 1. Supports one HDMI input signal and four SDI outputs. 2. Supports HD-SDI (1.485Gb/s) and 3G-SDI (2.97Gb/s) video formats. 3. Built-in cable equalization, clock recovery, and driver. 4. HDMI supports resolutions up to 4K 60Hz for clear and detailed images. 5. Supports 5V power supply. Specifications: 1. Bandwidth: 3Gbps 2. HDMI Input Port: 1 x HDMI female input port 3. SDI Split Output Ports: 4 x BNC female output ports 4. Power Input: 5V 1A 5. ESD Protection Human Body Model: +/-8kV (air gap discharge) +/-4kV (contact discharge) 6. Operating Temperature: 0 degrees Celsius to 40 degrees Celsius 7. Storage Temperature: -20 degrees Celsius to 60 degrees Celsius 8. Relative Humidity: 20-90%RH (non-condensing) 9. Dimensions: 8.5 x 9.2 x 2.8cm 10. Material: Aluminum casing

Specifications

SKU

EDA009094001A

Category

Computer & Networking › SDI Series › Video Converter

Weight

0.214 kg

Delivery

Standard delivery
