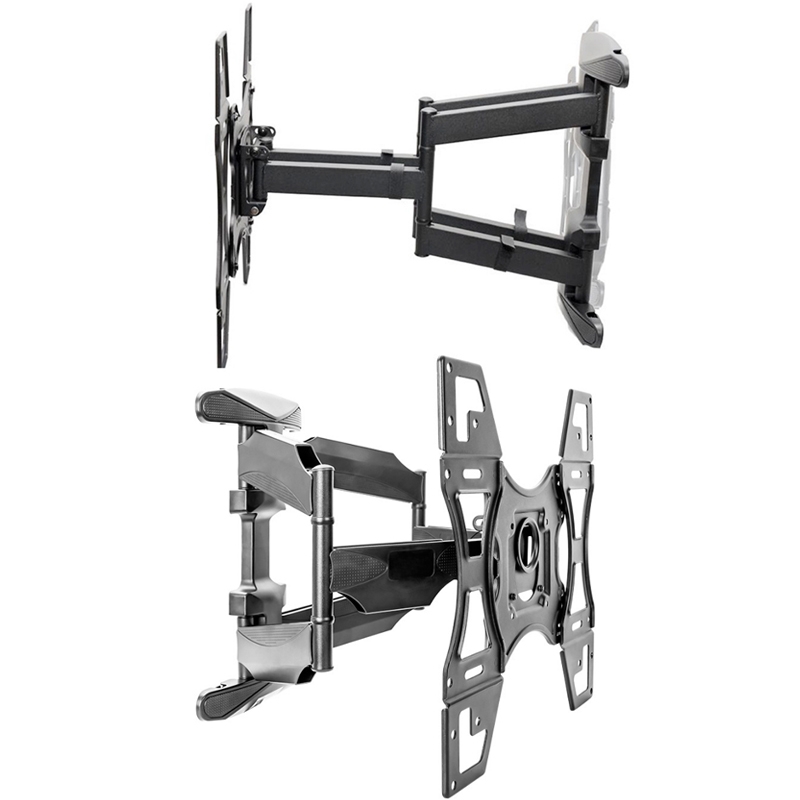

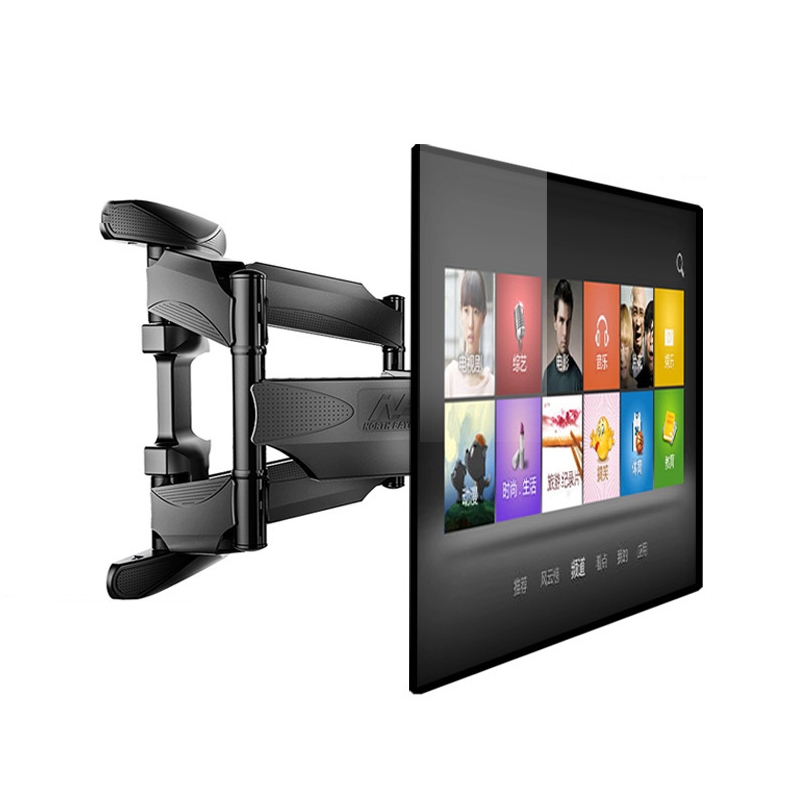

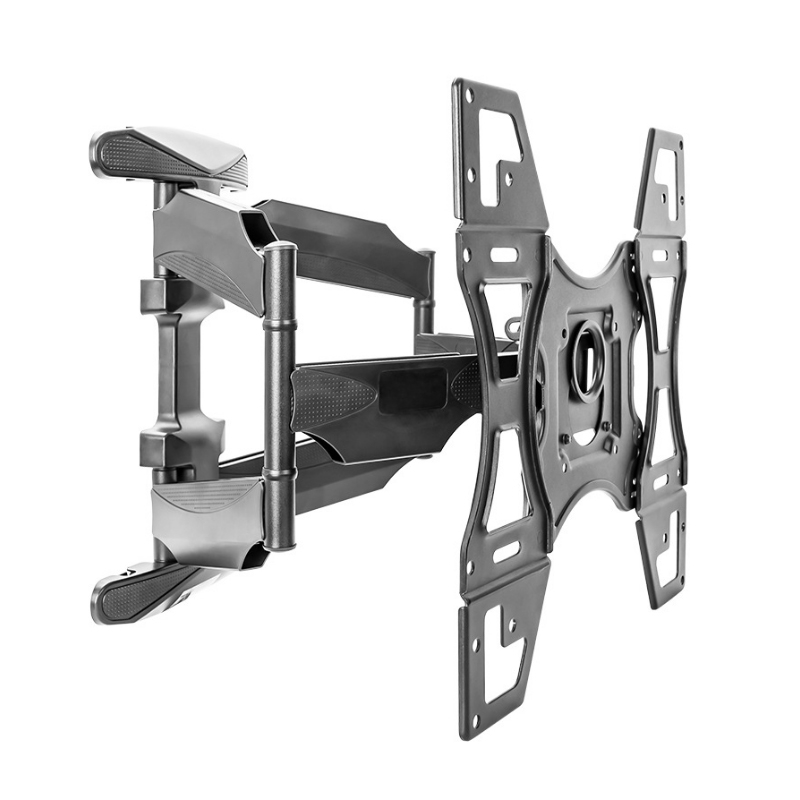

NORTH BAYOU Telescopic Swivel TV Monitor Wall Mount Bracket For 32-70 inch

Product Description

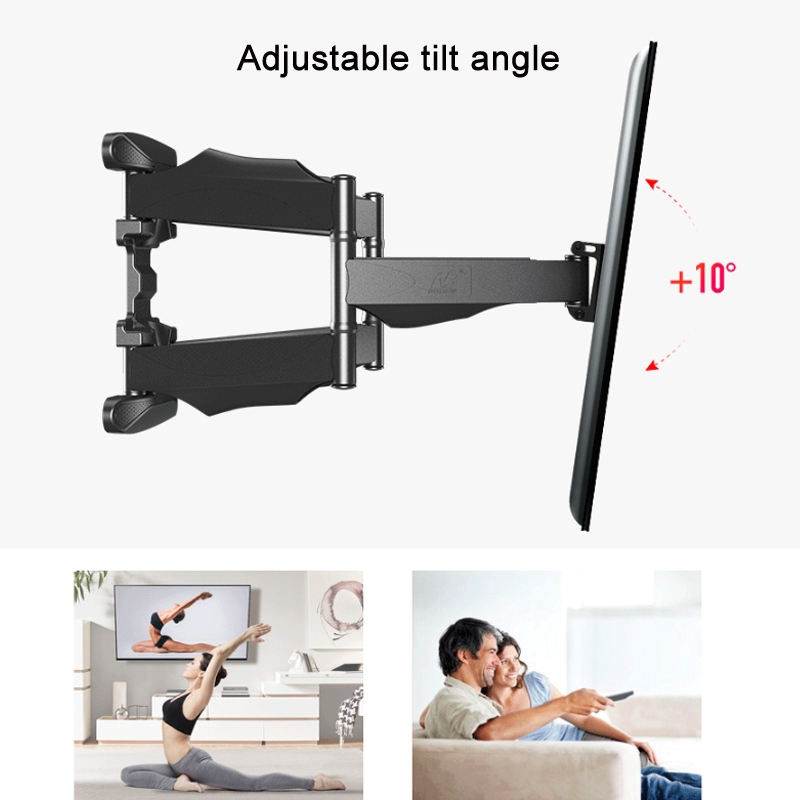

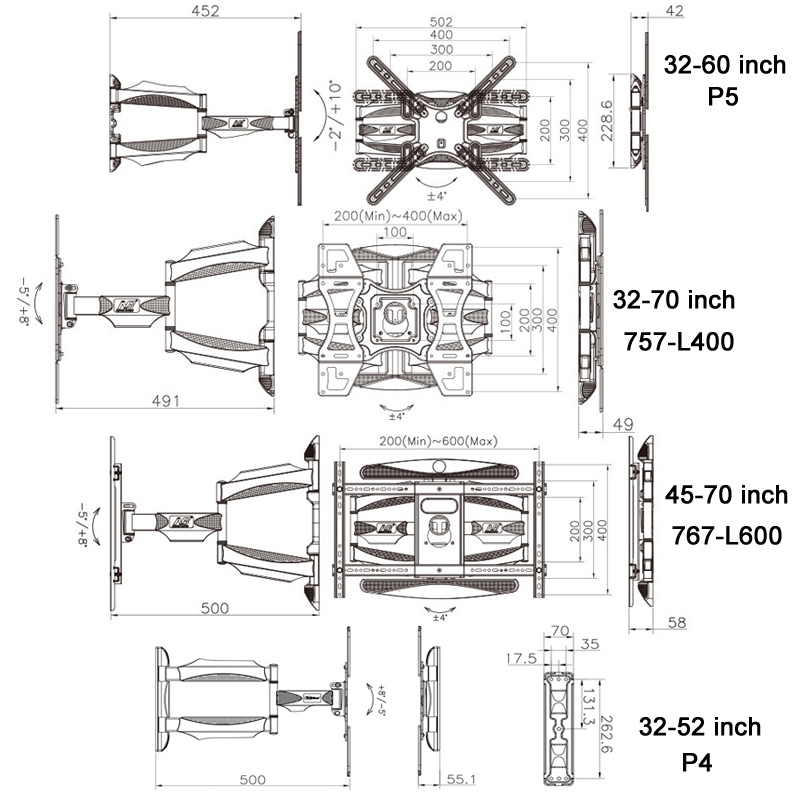

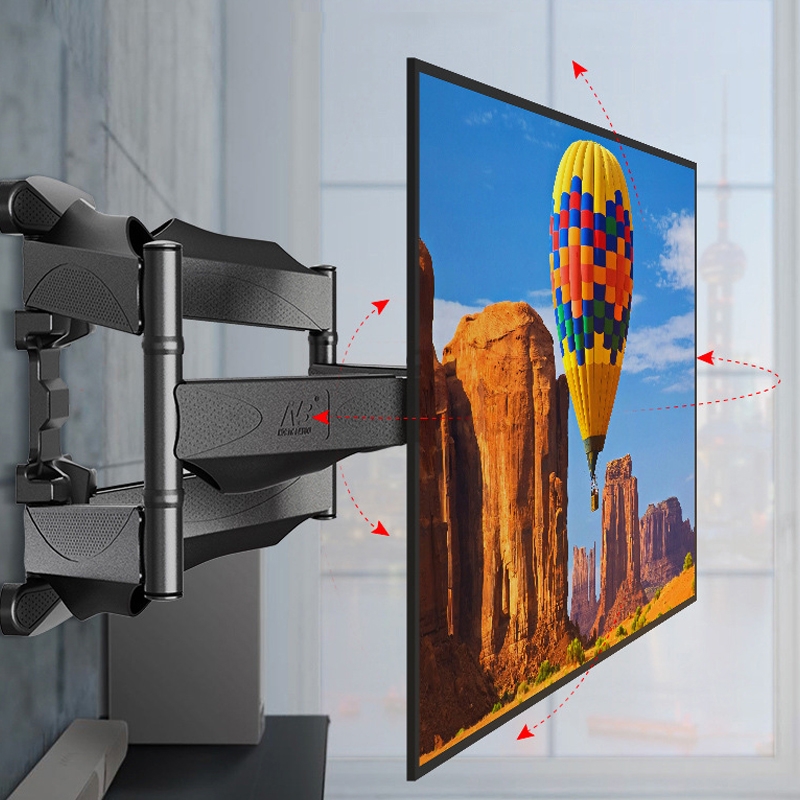

32-60 inches: 1. Material: SPCC steel plate 2. Up and down tilt angle: plus 10 degrees; minus 2 degrees 3. Left and right rotation angle: 50 degrees/80 degrees 4. Weight range: 80lbs (36.4kg) 5. Mounting holes: 100x100mm; 200x100mm; 200x200mm; 300x300mm; 400x200mm; 400x400mm (horizontal x vertical) 32-70 inches: 1. Material: SPCC steel plate 2. Up and down tilt angle: plus 8 degrees; minus 5 degrees 3. Left and right rotation angle: 50 degrees/80 degrees 4. Weight range: 100lbs (45.5kg) 5. Mounting holes: 100x100mm; 200x100mm; 200x200mm; 300x300mm; 400x200mm; 400x300mm; 400x400mm (horizontal x vertical) 45-70 inches: 1. Material: SPCC steel plate 2. Up and down tilt angle: plus 8 degrees; minus 5 degrees 3. Left and right rotation angle: 50 degrees/70 degrees 4. Weight range: 100lbs (45.5kg) 5. Mounting holes: 200x200mm; 300x200mm; 300x300mm; 400x200mm; 400x300mm; 400x400mm; 600x400mm (horizontal x vertical) 32-52 inches: 1. Material: SPCC steel plate 2. Up and down tilt angle: plus 8 degrees; minus 5 degrees 3. Left and right rotation angle: 50 degrees/90 degrees 4. Weight range: 60lbs (27.3kg) 5. Mounting holes: 100x100mm; 200x100mm; 200x200mm; 300x300mm; 400x200mm; 400x300mm; 400x400mm (horizontal x vertical) Describe: 1. Flexible adjustment of front and rear stretching, easy to remove and plug U disk, video cable and TV cleaning 2. Six-arm structure design, stable and safer 3. The tilt angle can be adjusted at will, and it is comfortable to use 4. With a humanized wire cover design, it can effectively block the installation marks on the wall

Specifications

SKU

TBD0602566701

Category

Consumer Electronics › TV Receivers › TV Brackets & Mounts

Weight

5.026 kg

Delivery

Standard delivery
