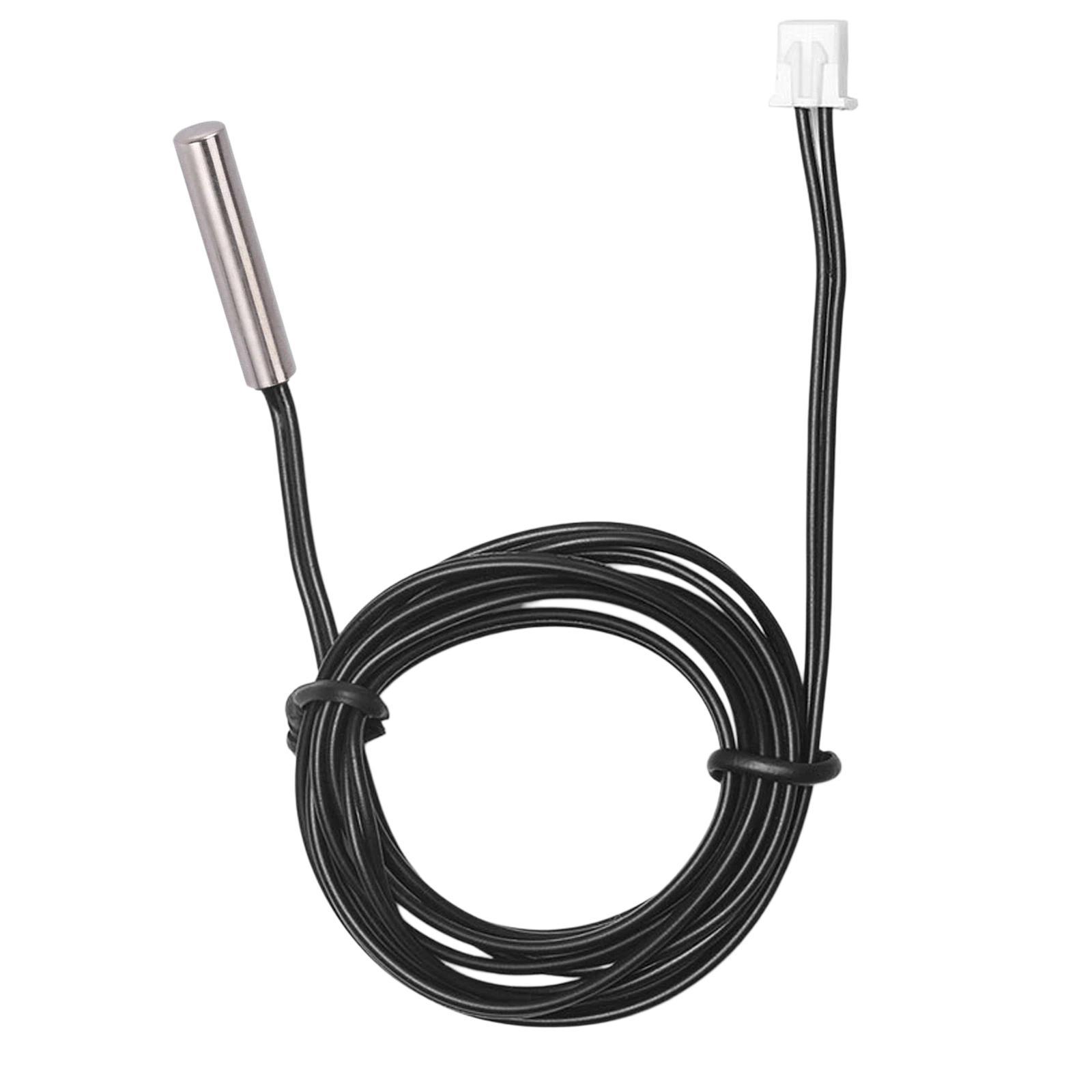

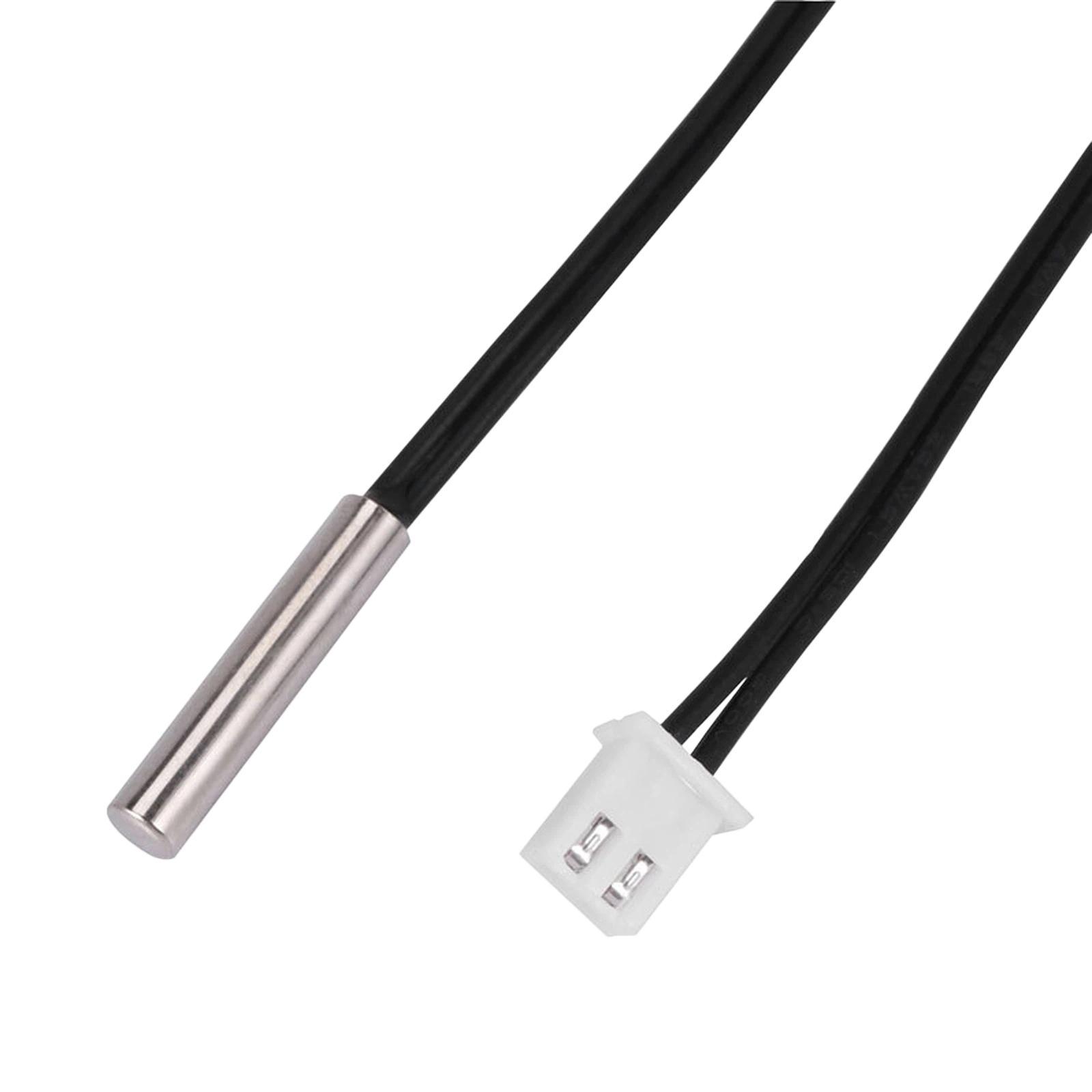

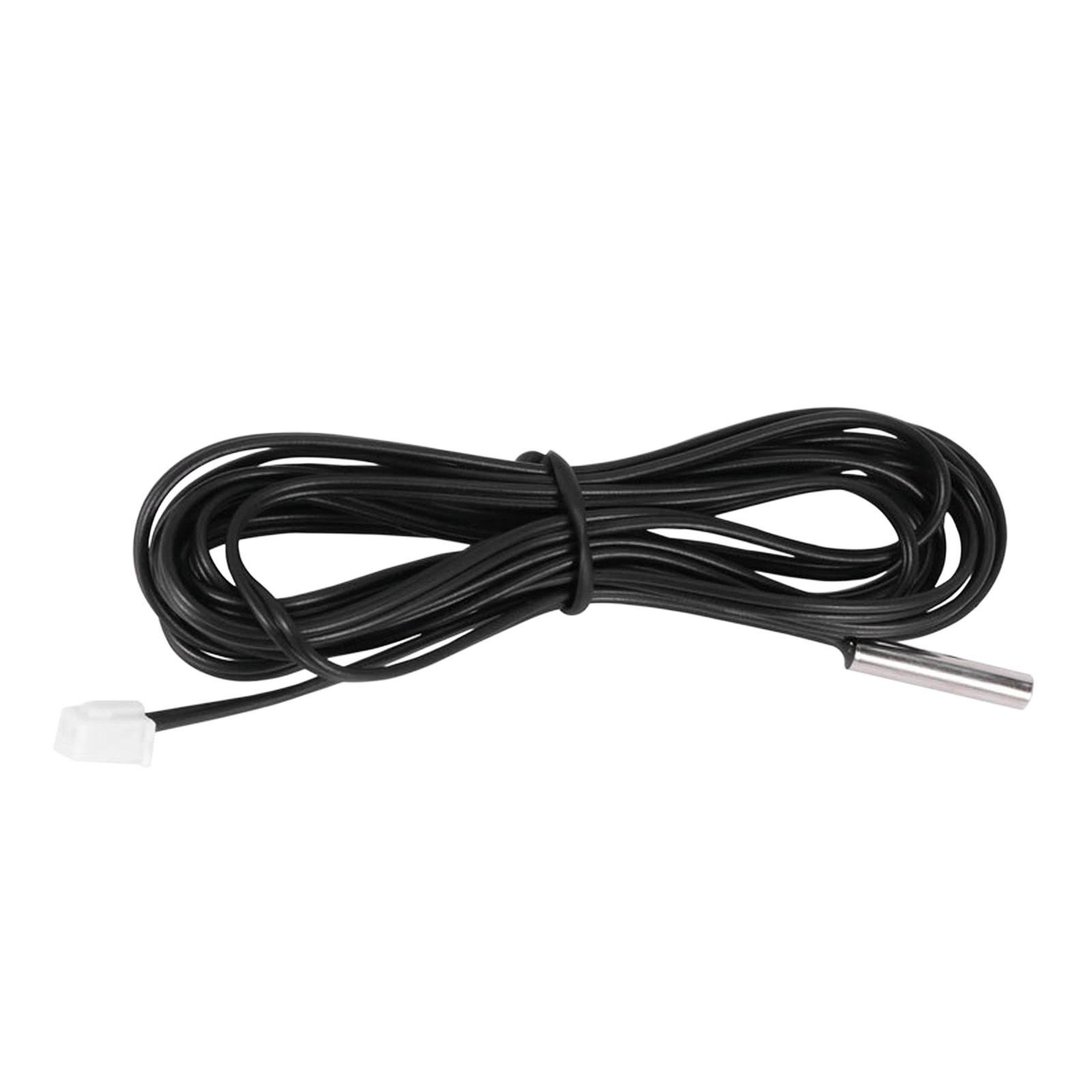

NTC Thermistor Temperature Sensor Probe 10K 3435 Waterproof Sensor, Length: 5m

Product Description

1. Connect the high-precision and reliable NTC thermistor to the PVC wire, achieving high measurement accuracy 2. Package it with insulating, heat-conductive and waterproof materials into the required shape, facilitating installation and long-distance temperature measurement and control 3. The product has stable performance. It adopts a double-layer sealing process, featuring excellent insulation sealing performance and resistance to mechanical collision, bending, and high reliability. It can be encapsulated according to the installation conditions for use, making it convenient for users to install 4. Widely used in household air conditioners, car air conditioners, refrigerators, freezers, water heaters, water dispensers, heaters, dishwashers, sterilization cabinets, washing machines, dryers, as well as medium and low-temperature drying cabinets, constant temperature boxes, etc., for temperature measurement and control 5. Packaging:copper plating and nickel plating 6. B value: 3435 7. Resistance value: 10K (25℃) 8. Accuracy: 1% 9. Temperature range: -40℃ to +300℃ 10. Wire insulation voltage: 300V

Specifications

SKU

TBD0607130006

Category

Consumer Electronics › Arduino & SCM Supplies › Sensor Module

Weight

0.089 kg
