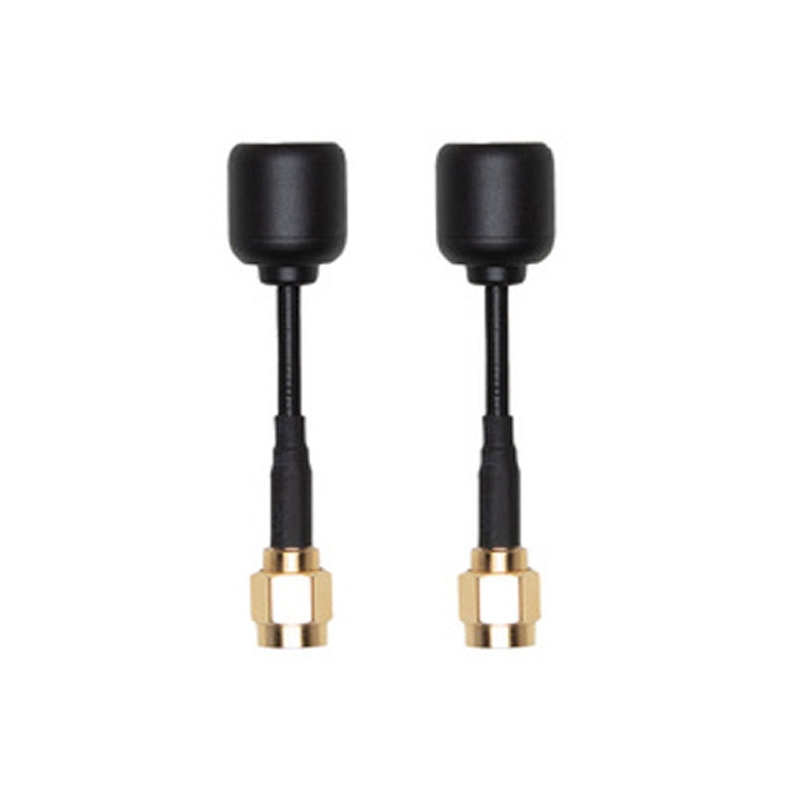

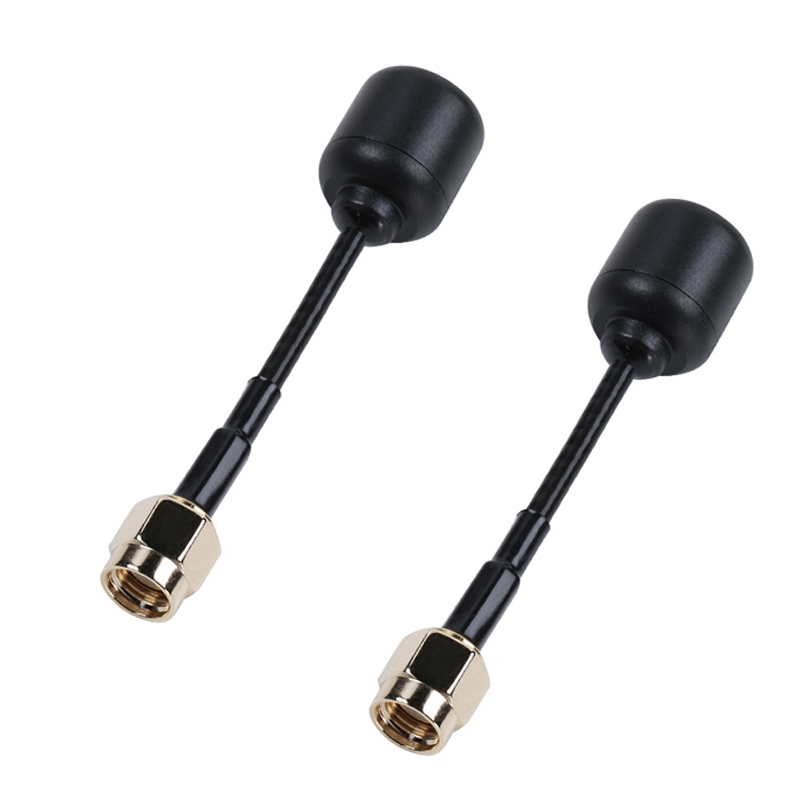

Original 2pcs Air Unit Antenna SMA Head For DJI FPV

Product Description

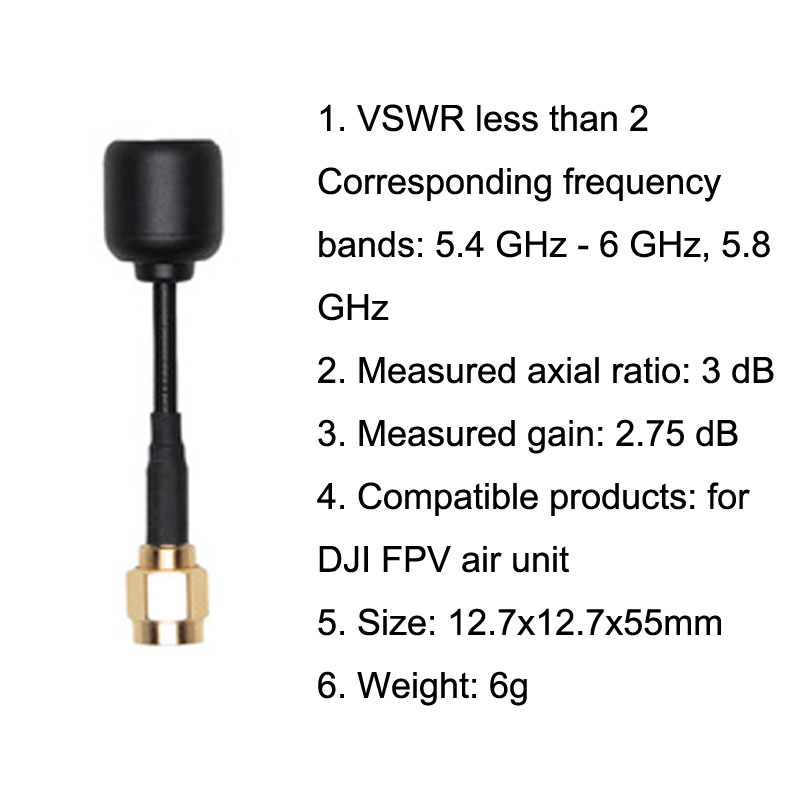

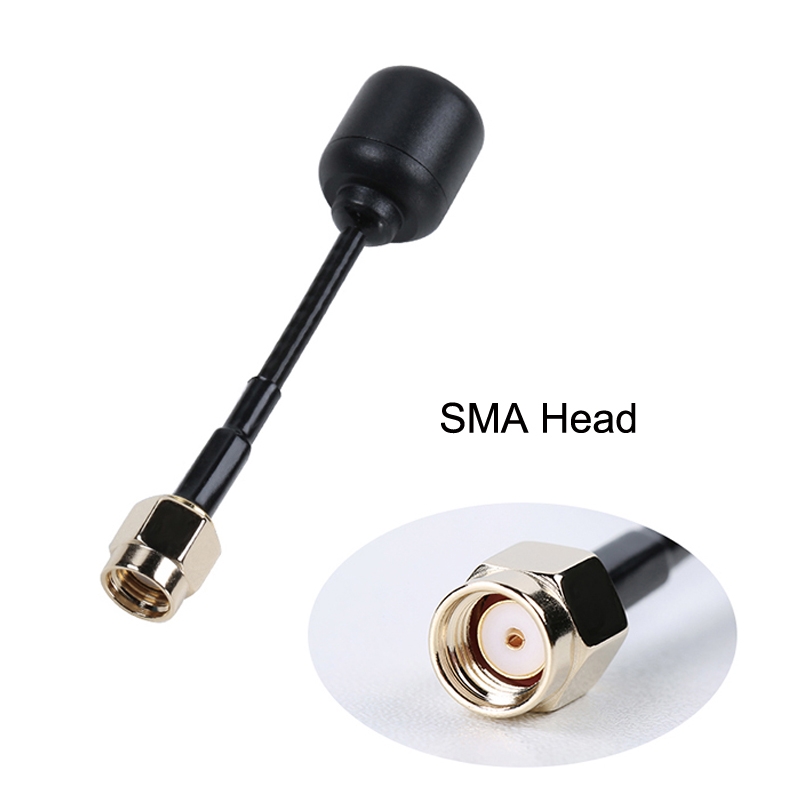

1. LHCP antenna, strong anti-interference ability, SMA connector 2. Long-distance transmission, small size, light weight, and drop resistance 3. VSWR less than 2 Corresponding frequency bands: 5.4 GHz - 6 GHz, 5.8 GHz 4. Measured axial ratio: 3 dB 5. Measured gain: 2.75 dB 6. Compatible products: suitable for DJI FPV air system 7. Size: 12.7x12.7x55mm 8. Weight: 6g Kind tips 1. The SMA head of this product is an internal threaded inner hole. 2. When installing the air terminal antenna, it is necessary to separate the two antennas as much as possible, and the cylindrical parts of the two antenna ends should be separated by at least 40 mm to achieve the communication effect; at the same time, try to keep away from metal and carbon fiber structural objects, and ensure that the antenna is not blocked during flight

Specifications

SKU

TBD03032166

Category

DJI & Insta360 Accessories › DJI FPV Series › Other Accessories

Weight

0.028 kg

Delivery

Standard delivery
