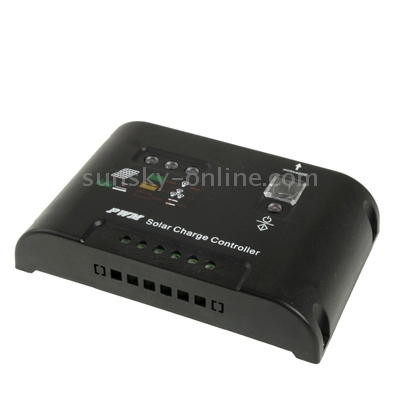

PWM 10A Solar Controller Automatically Identify 12V / 24V

Product Description

1) The total amount of fixed charge current: 10A 2) the total rated load current: 10A 3) overload, short circuit protection 4) 1.25 times the rated current of 60 seconds, 1.5 times the rated current of 5 seconds, overload protection action, ≥ 3 times the rated current short circuit protection 5) No-load loss: ≤ 5mA 6) Charging circuit voltage drop: less than 0.26V 7) The discharge circuit voltage drop: less than 0.15V 8) Over voltage protection: 17V; × 2/24V 9) Operating temperature: Industrial; -35 ℃ to 55 ℃ (suffix I) 10) to enhance the charging voltage: 14.6V; × 2/24V; (duration: 10min) (discharge only if there have been calls) 11) Direct charge voltage: 14.4V; × 2/24V; (duration: 10min) 12) Float: 13.6V; × 2/24V; (duration: up down charge return voltage operation) 13) Charge back voltage: 13.2V; × 2/24V 14) Temperature compensation:-5mv / ℃ / 2V (upgrade, direct charge, floating charge, charge back voltage compensation) 15) Brown-out Voltage: 12.0V; × 2/24V 16) over-discharge voltage: 11.1V-discharge rate of compensation fixed initial over-discharge voltage (load voltage); × 2/24V 17) had put back power: voltage 12.6V; × 2/24V 18) Control mode: charge transfers for the PWM pulse width 19) Dimensions: 140 × 90.5 (mm) 20) Installation hole size: 133.5 × 70 (mm)

Specifications

SKU

S-SC-15013

Category

Consumer Electronics › Solar Power › Others

Weight

0.01 kg

Delivery

Standard delivery
