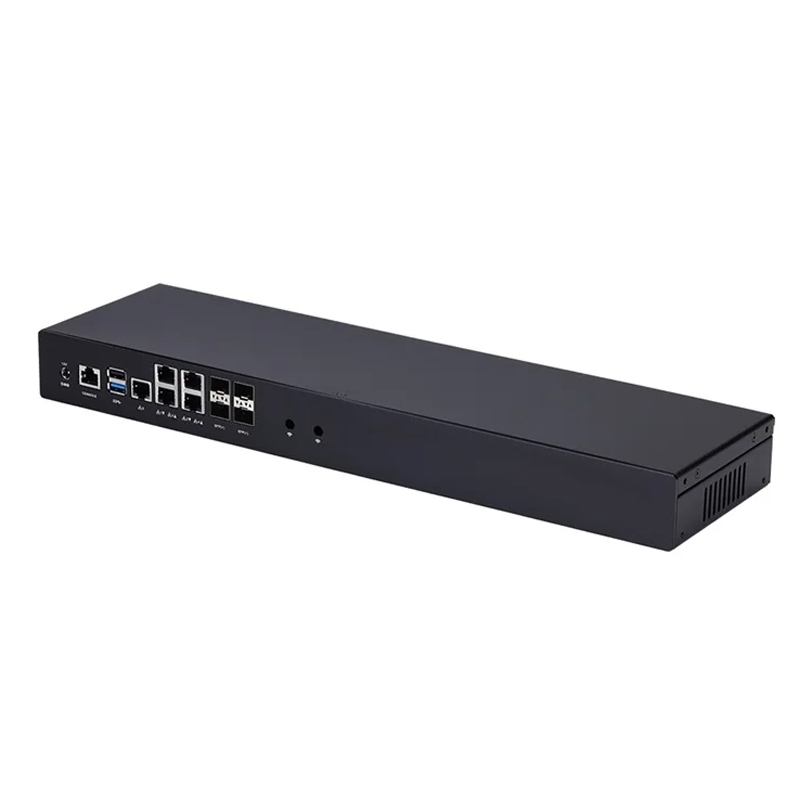

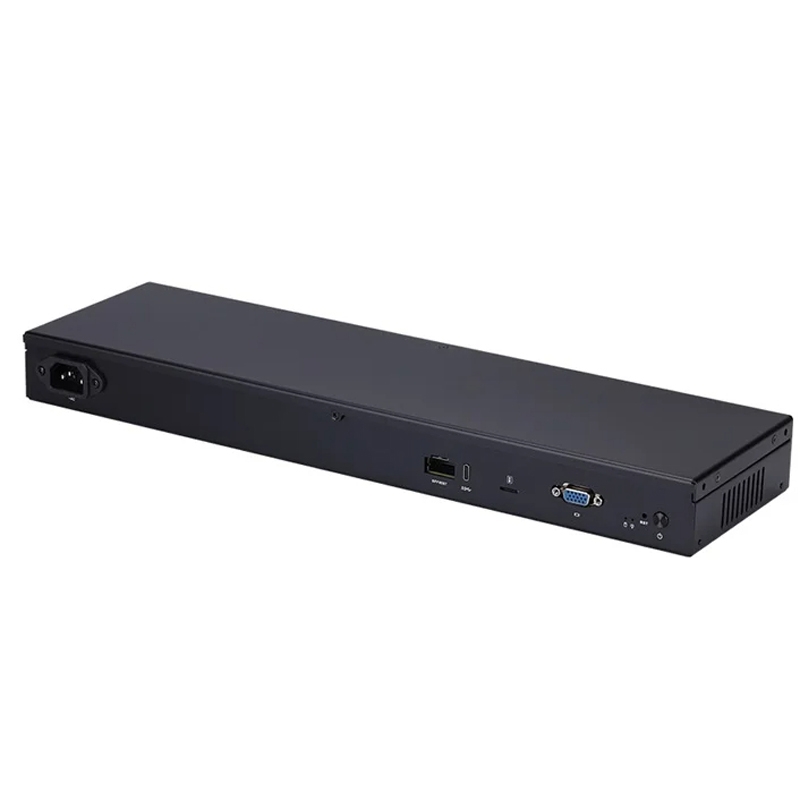

Qotom Q20332G9 1U Rack Mini PC ATOM C3758 8 Cores 4x 10G SFP+/ 5x 2.5G LAN 16G RAM 128G SSD

Product Description

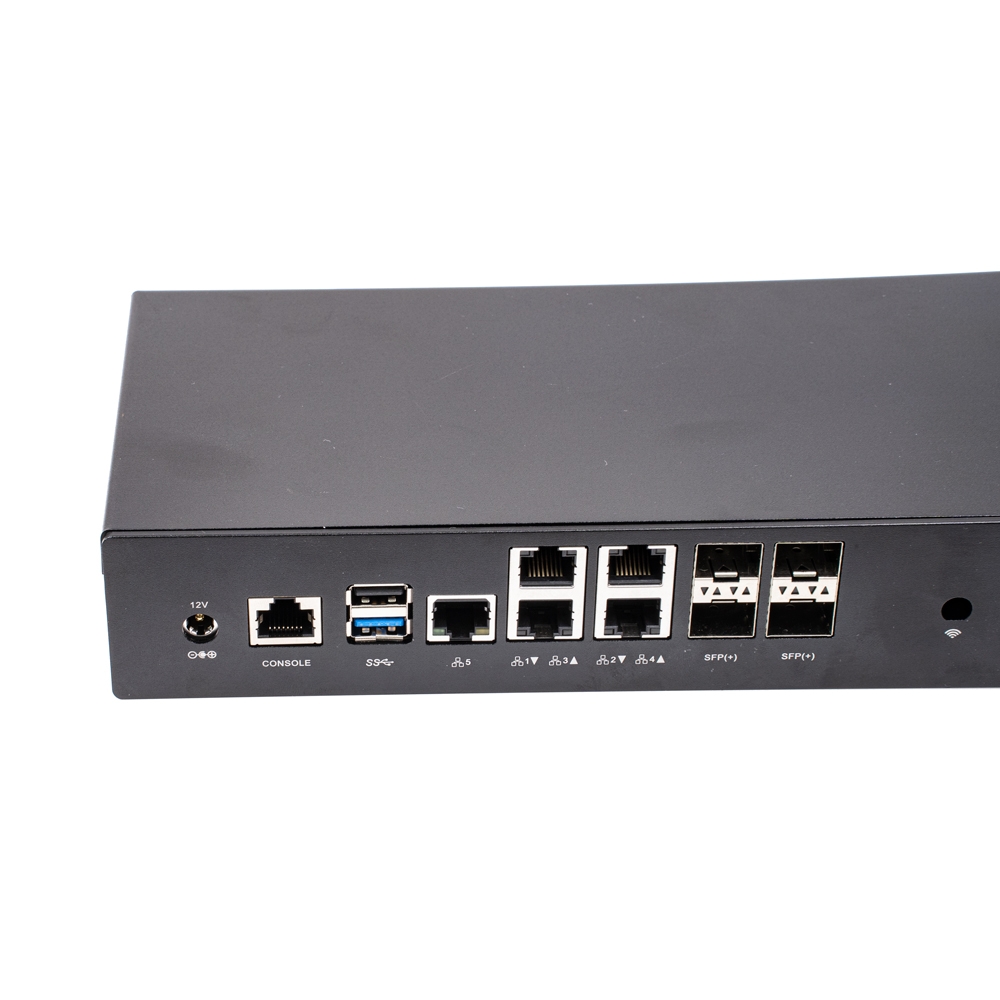

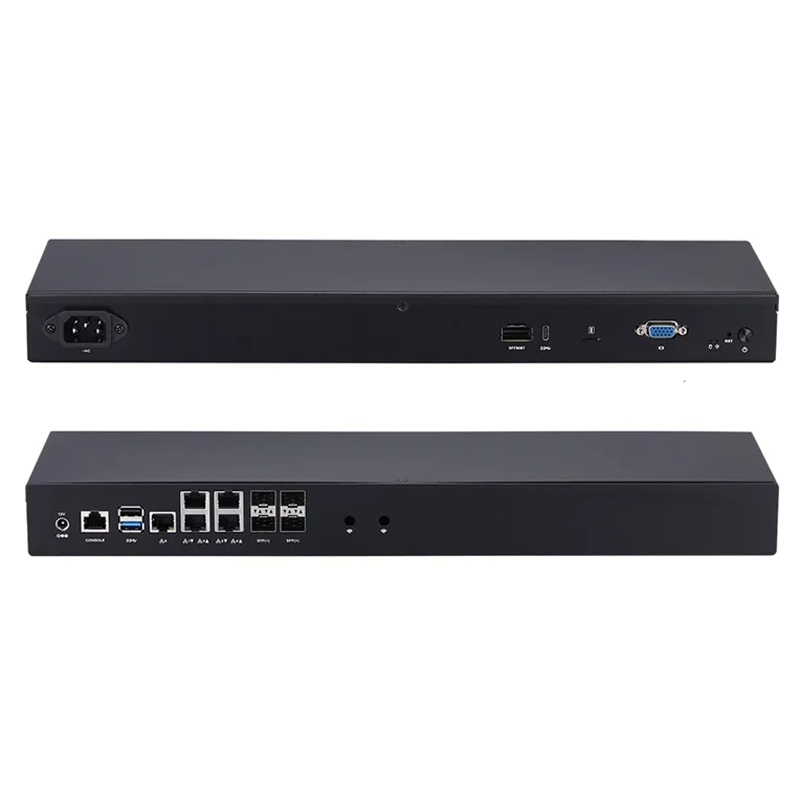

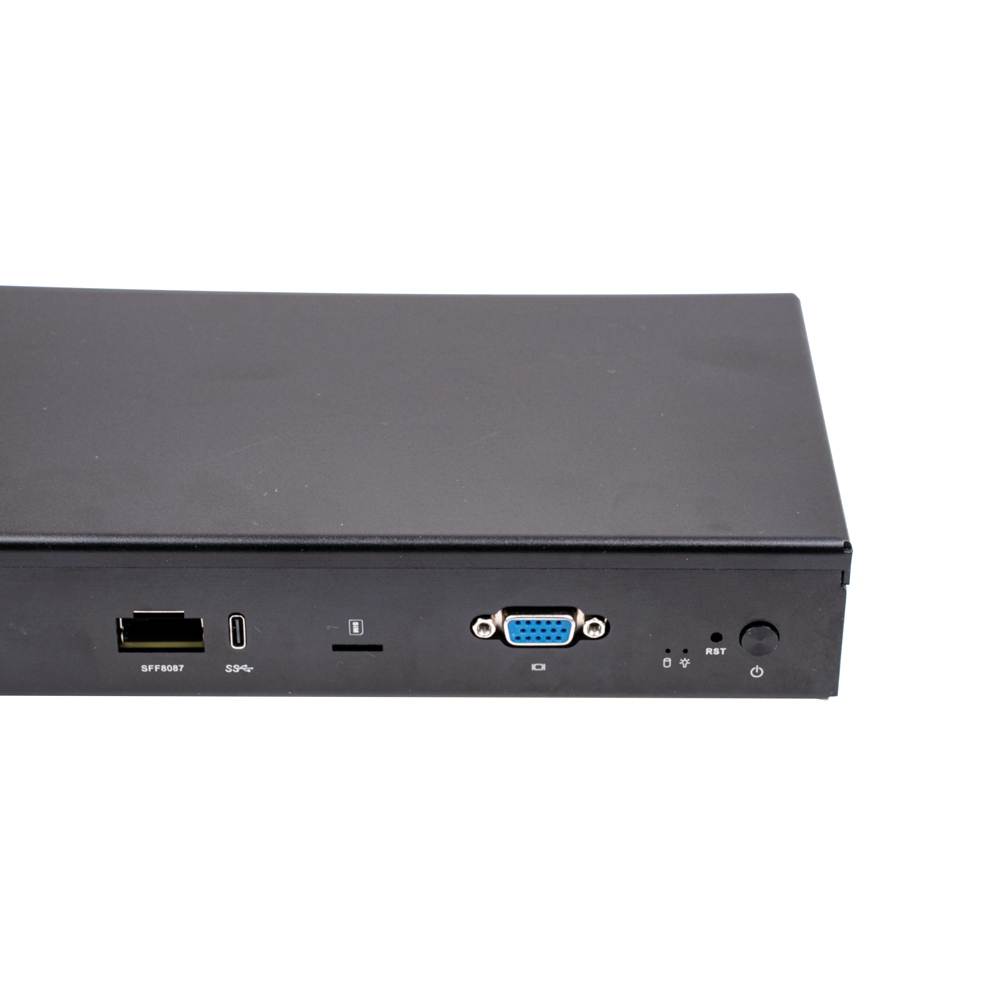

Special note: This model only supports memory type: DDR4-2400 ECC SODIMM Processor specifications: CPU: Intel Denverton processor, Atom C3758 8-core processor, 16M cache, base frequency 2.2GHz CPU TDP: 25W Memory: 2x DDR4 notebook memory slots (maximum support 64G, 2400MHz) Chipset: Processor Integrated Graphics card: ASPEED AST2400 Network card chip: 5x Intel 1225-V/1226-V2.5G network card, 4×SFP+ Audio: Not supported Watchdog: Support Front interface: Power buttons: 1× power button, 1× reset button Indicators: 1x power indicator, 1x hard drive indicator VGA: 1 SIM card slot: 1x Nano SIM card slot Type C: 1 x Type C (USB 3.0) Mini SAS: 1x Mini SAS (SFFB087) Back interface: Power input interface: 1 Serial port: 1x RS-232 (RJ-45) USB: 2x USB 3.0 Network card: 5x RJ-45 2.5G network card interface SFP+: 4× 10G SFP+ Storage: Type: 2 x 2.5-inch laptop hard drive or solid state drive, 2 x M.2 for solid state drive (M key, specification: 2280, PCle3.0×2) Operating system support: Windows 10, Linux Extensions: M.2: 1x M.2 for 4G/5G (B key, specification: 3042 3052) M.2: 2 x M.2 for National Hard Drive (M key, specification: 2280, PCle 3.0 × 2) SIM card slot: 0 Incoming call boot jumper: not supported BIOS clear jumper: Not supported GPIO expansion pin: not supported RS-485: 0 Power input socket: not supported Power adapter: 12V 5A Material: aluminum alloy Dimensions: Approx. 440 x 127 x 44mm Weight: about 1.21kg

Specifications

SKU

TBD0604694801

Category

Computer & Networking › Mini PC › Barebone Mini PCs

Weight

1.304 kg

Delivery

Standard delivery
