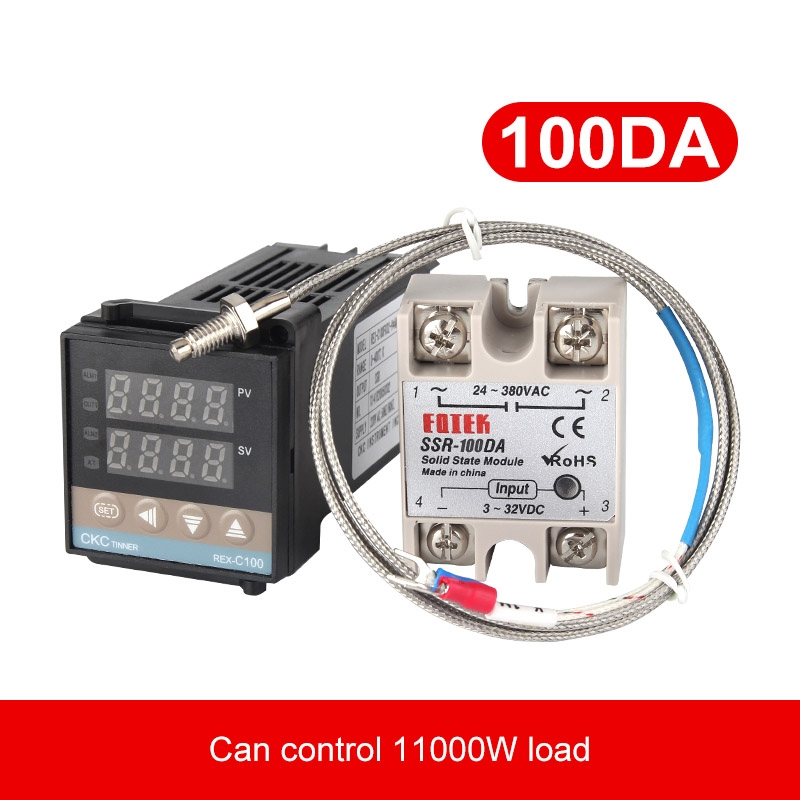

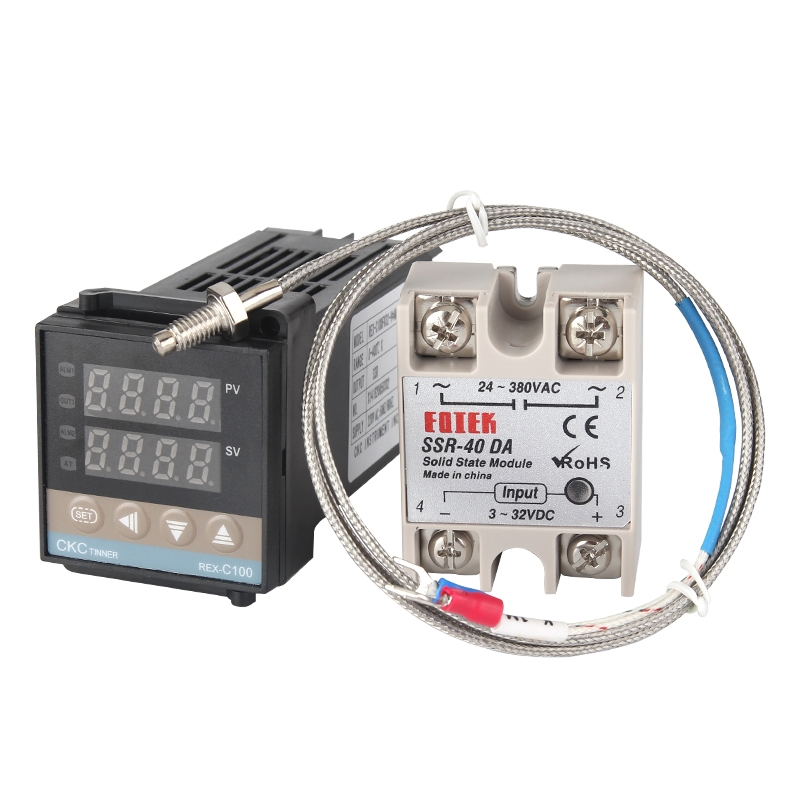

REX-C100 Thermostat + Thermocouple + SSR-100 DA Solid State Module Intelligent Temperature Control Kit

Product Description

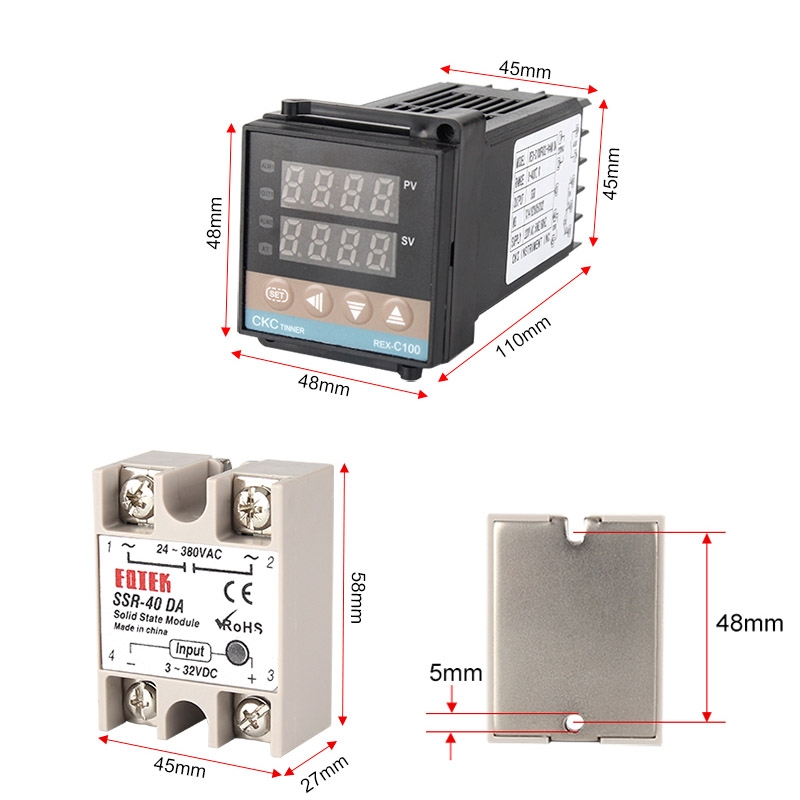

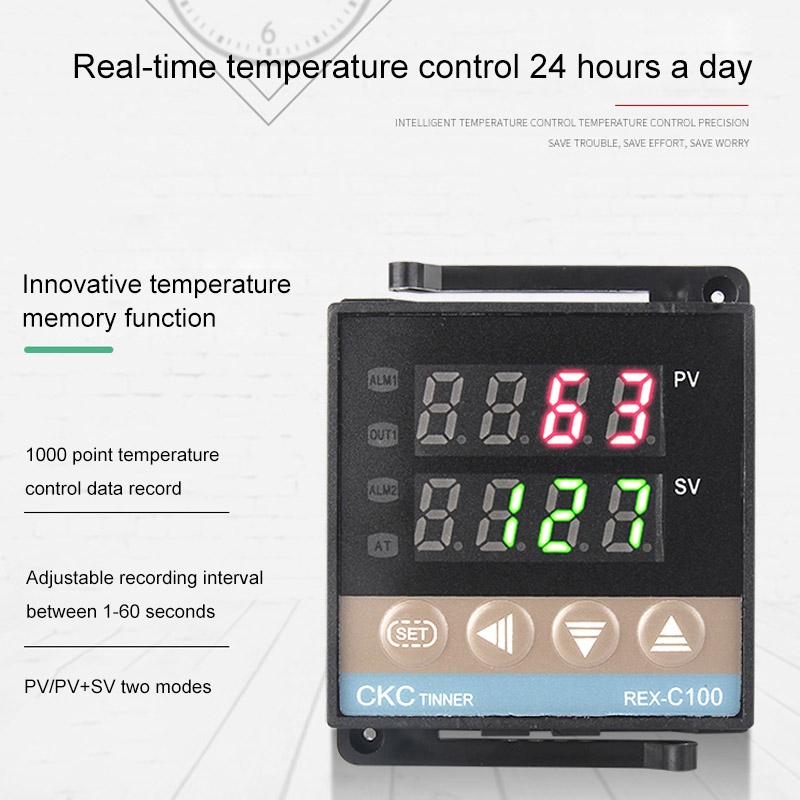

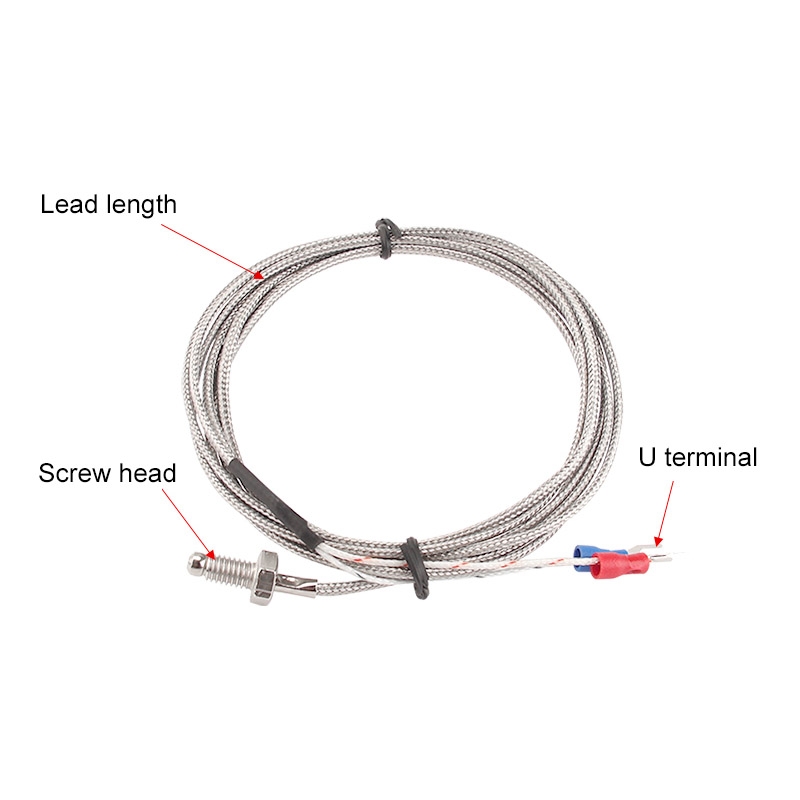

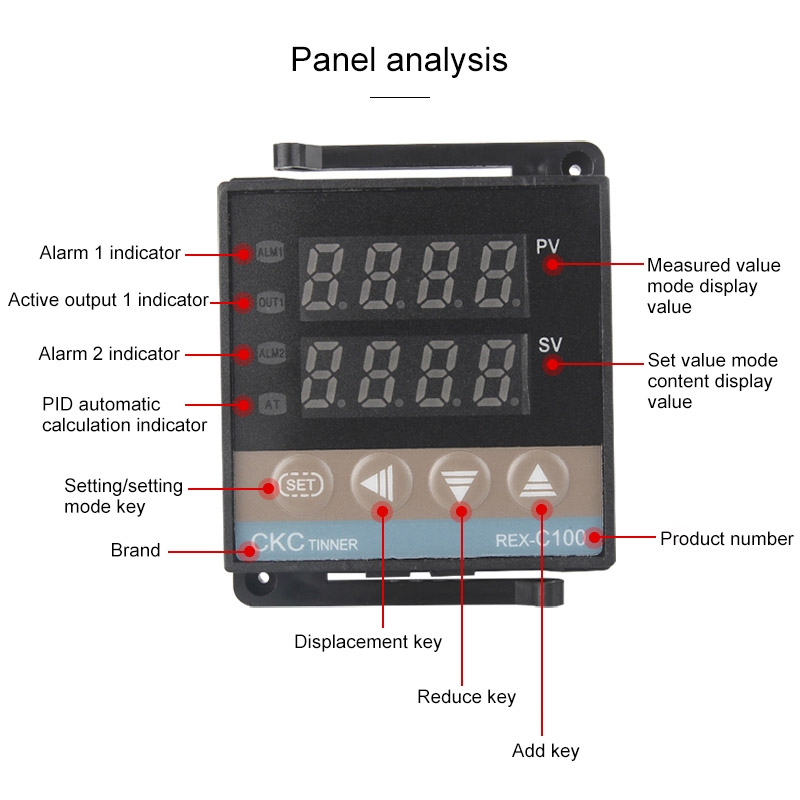

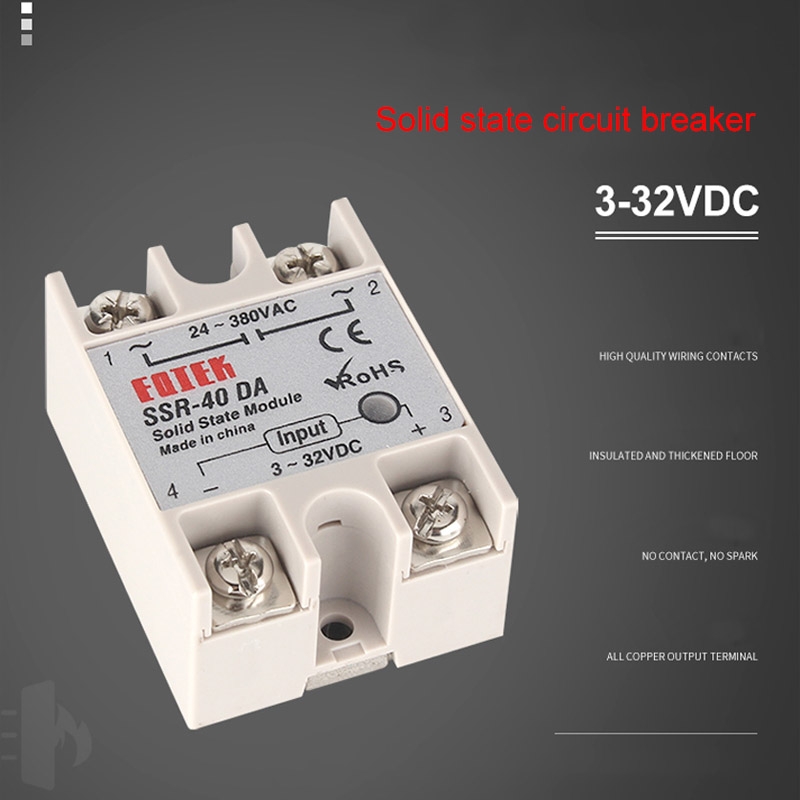

Thermostat parameters: 1. Voltage: 220V 2. Opening size: 45x45mm 3. Control method: PID control 4. Input method: K/EPT100 (optional) 5. Output mode: SSR solid state relay 6. Product size: 48x48x110mm Solid state module parameters: 1. Control method: DC control AC 2. Input voltage: 3-32V DC 3. Ambient temperature: -30 degrees Celsius to +70 degrees Celsius 4. Working frequency: 50-60Hz 5. Control current: 3-35mADC 6. Product size: 45x27x58mm 7. Product weight: 81g Screw type thermocouple parameters: 1. Model: K type 2. Screw specification: M6 inch 3. Lead length: 1 meter 4. Measuring range: 0-400 degrees Celsius 5. Wiring terminal: U-shaped terminal 6. Product weight: 16g

Specifications

SKU

HCB5465

Category

Consumer Electronics › Arduino & SCM Supplies › Components Kits

Weight

0.429 kg

Delivery

Standard delivery
