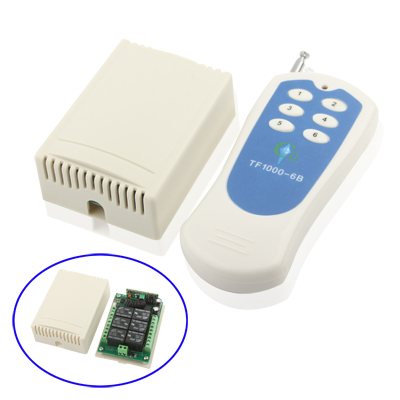

RF Wireless Remote Control Radio Controller / Switch-6C(White)

Product Description

1) It is equipped with 6 relays which can supply the ON/OFF logic control signal.it can be used for motor control in turn direction,ON/OFF,and special procedures.the main application fields are electrical door window,lifting equipment,industrial control,security system and so on. 2) This wireless controller has high reliability with low power assumption and is easy to use.the device code is set up through traditional jumpers and switches.the matching between the remote control unit and this receiver is through the learn stage.when the control signal from remote controller is received and saved by this reciever,they will perform the matching. 3) If the remote controller is lost,the saved message in this receiver needs to be erased.if you want to use a new remote controller,the new learn process is needed. * Specification 1) Working voltage: 12V 2) Static current: ＜6mA 3) Working temperature: -40℃~+80℃ 4) Receive sensitivity: ＞-105dBm 5) Working frequency: 260MHz to 433MHz 6) Battery: 1 x 23A/12V battery(included) 7) Output current: ≤10A 8) Size: 97x77x26mm 9) Circuits connection: A normal Open, B Common point,C Normal Close

Specifications

SKU

S-DIY-0180

Category

Consumer Electronics › DIY Parts & Components › Others

Weight

0.173 kg

Delivery

Standard delivery
