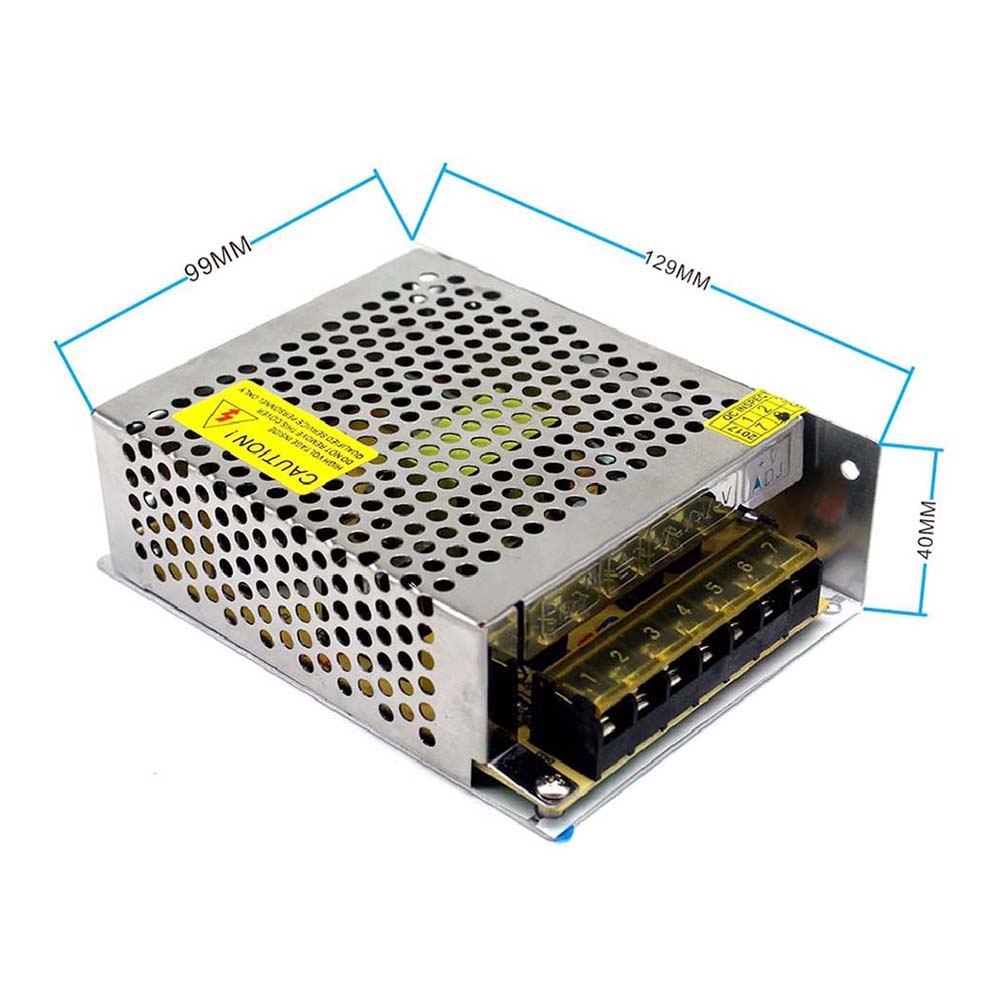

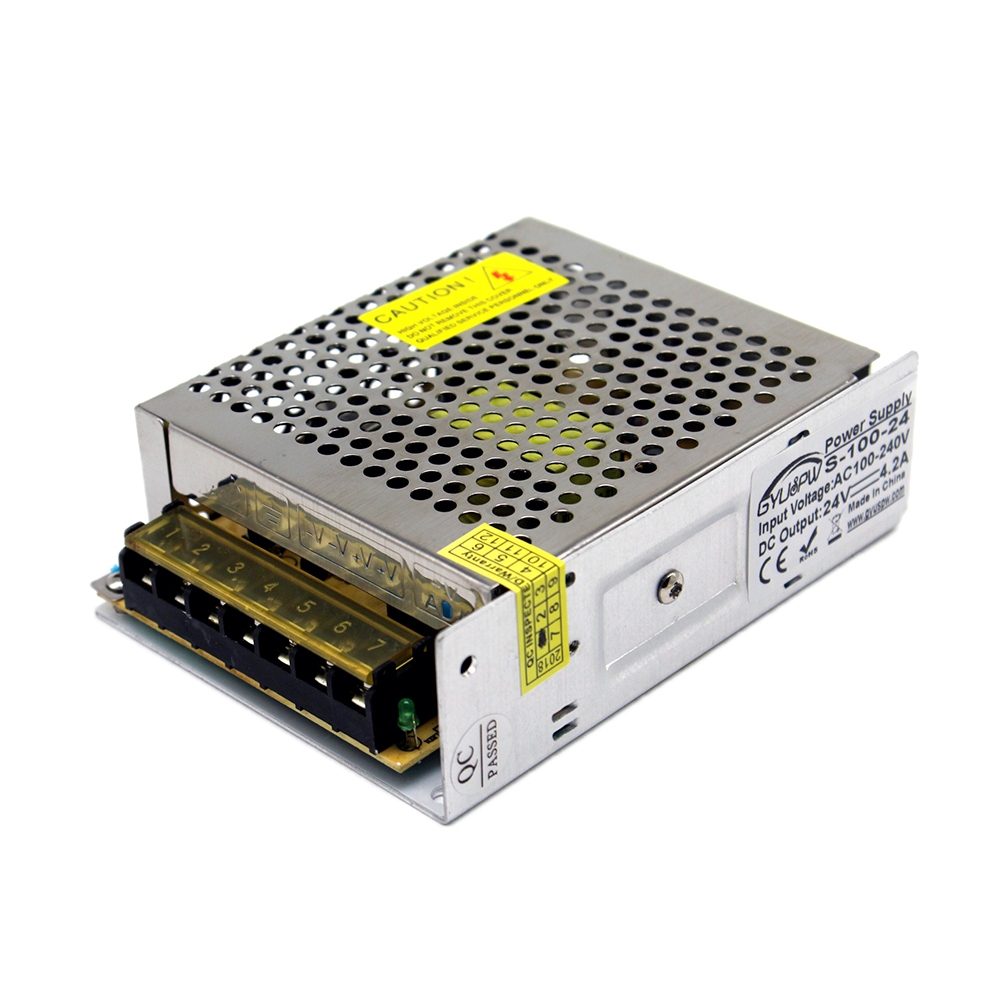

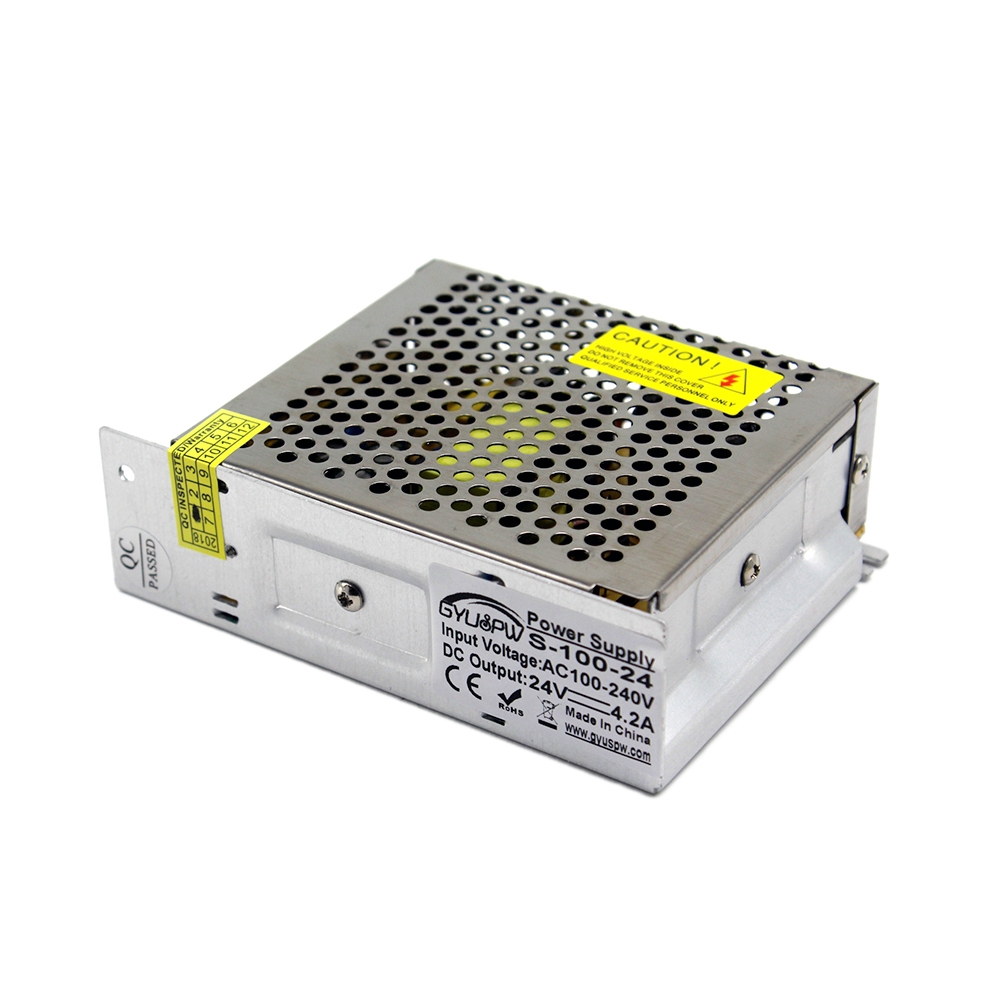

S-100-24 DC24V 4.2A 100W LED Regulated Switching Power Supply, Size: 129 x 99 x 40mm

Product Description

1. All products have passed the full power aging test to provide safety and stability. 2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product. 3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V) 4. Output voltage: DC24V 0-4.2A 5. Difference range: +/- 1% 6. Power: 100W 9. Output adjustable voltage range: +/- 5% 10. Frequency: 50-60Hz 11. Leakage current: less than 1mA / 230V 12. Temperature coefficient: +/- 0.03%/degree Celsius 13. Start, rise, hold time: 200ms, 50ms, 20ms 14. Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis 15. Protection: overload, overvoltage, overcurrent, short circuit 16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC 17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH 18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH

Specifications

SKU

EDA002062805

Category

Home & Garden › LED Accessories › Power Supplies

Weight

0.309 kg

Delivery

Standard delivery
