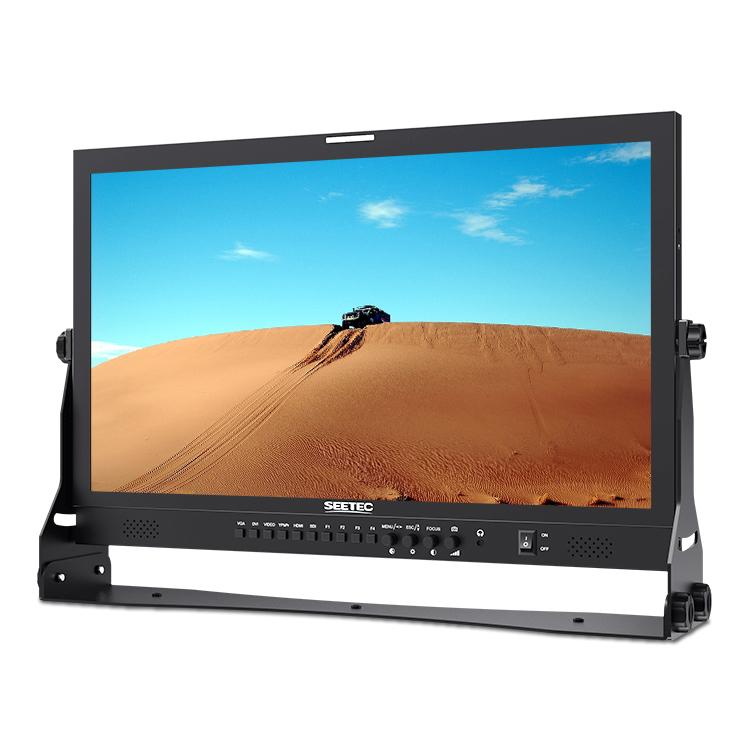

SEETEC P238-9HSD 23.8 inch 3G-SDI 4K HDMI Pro Broadcast LCD Monitor IPS Full HD 1920x1080 Monitor (UK Plug)

Product Description

Features 1. Wide view angle, Full HD 1920x1080, bright, colorful display 2. HDMI, 3G-SDI, Ypbpr, Video, Audio(L/R), DVI inputs and HDMI, 3G-SDI, Ypbpr, Video loop-through outputs 3. Special Features: Peaking Focus Assist (Red highlight over parts of the monochrome image in focus) Check Field (Red, Green, Blue, Mono) Camera Mode Pixel to Pixel Center Marker Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) Image Flip (Horizontal, Vertical, Hor&Ver) Image Freeze Zoom All U/D & L/R Zoom 4. Monitoring via front panel 3.5mm stereo headphone jack and built-in speaker 5. Built-in LED tally indicators (Red, Green, Yellow) 6. Power using included 12-volt supply or use standard 4-pin XLR Specifications Display Screen: 1. Model: P238-9HSD 2. Screen Size: 23.8 inch IPS 3. Color Depth: 16.7M (8-bit) 4. Resolution: 1920 x 1080 pixels 5. Pixel pitch: 0.2745 (H) x 0.2745 (V)mm 6. Aspect Ratio: 16:9 7. Brightness: 1000cd/m2 8. Contrast Ratio: 1000:1 9. Backlight: LED 10. Viewing Angle: 89 degrees /89 degrees (L/R) 89 degrees / 89 degrees (U/D) Input: 1. 1 x BNC: 3G-SDI 2. 1 x HDMI: HDMI 3. 3 x BNC: YPbPr 4. 1 x DVI-I: DVI-I 5. 1 x BNC: Video 6. 2 x RCA: Audio(L/R) Output: 1. 1 x BNC: 3G-SDI 2. 1 x HDMI: HDMI 3. 3 x BNC: YPbPr 4. 1 x BNC: Video Audio: Audio: Stereo Headphone SDI Support Format: 1. 480i/576i 2. 720p (60/59.94/50/30/29/25/24/23.98) 3. 1080i (60/59.94/50) 4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) HDMI Support Format: 1. 480i/576i/480p/576p 2. 1080i (60/59.94/50) 3. 720p (60/59.94/50/30/29/25/24/23.98) 4. 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) 5. 4K UHD 3840 x 2160p (30/29.97/25/24/23.98Hz), 4096 x 2160p (24Hz) General: 1. Input Voltage: DC 9 ~ 24V 2. Power Consumption: Less than or equal to 24W 3. Working Temperature: 0 degree C~50 degree C 4. Storage Temperature: -20 degree C~60 degree C 5. Unit Size: 567Lx372Hx46.7D (mm) (W/O Bracket) 6. Unit Weight: 5.9kg (W/O Bracket) Package List 1. Monitor x 1 2. Mini HDMI Cable x 1 3. V Battery Plate (default to mount on device) x 1 4. 3A Power Adapter x 1 5. Tally Kit x 1 6. U-shape Bracket x 1 7. Operation Manual x 1

Specifications

SKU

DCA3123UK

Category

Camera Accessories › Micro Film › On-camera Monitors

Weight

8.508 kg

Delivery

Standard delivery
