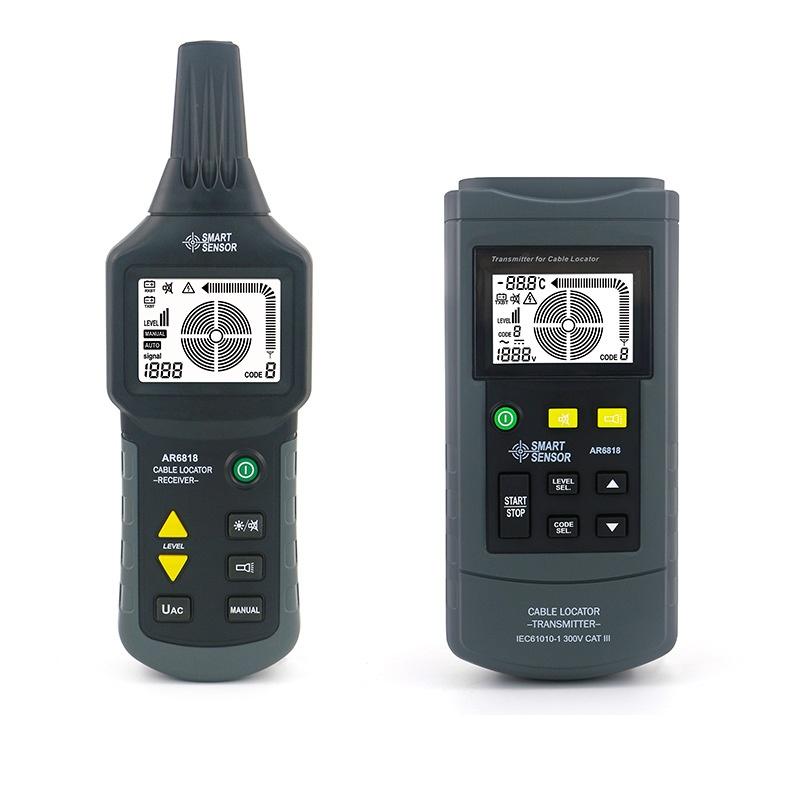

SMART SENSOR Pipeline Hidden Wire Fault Detection Underground Cable Detector

Product Description

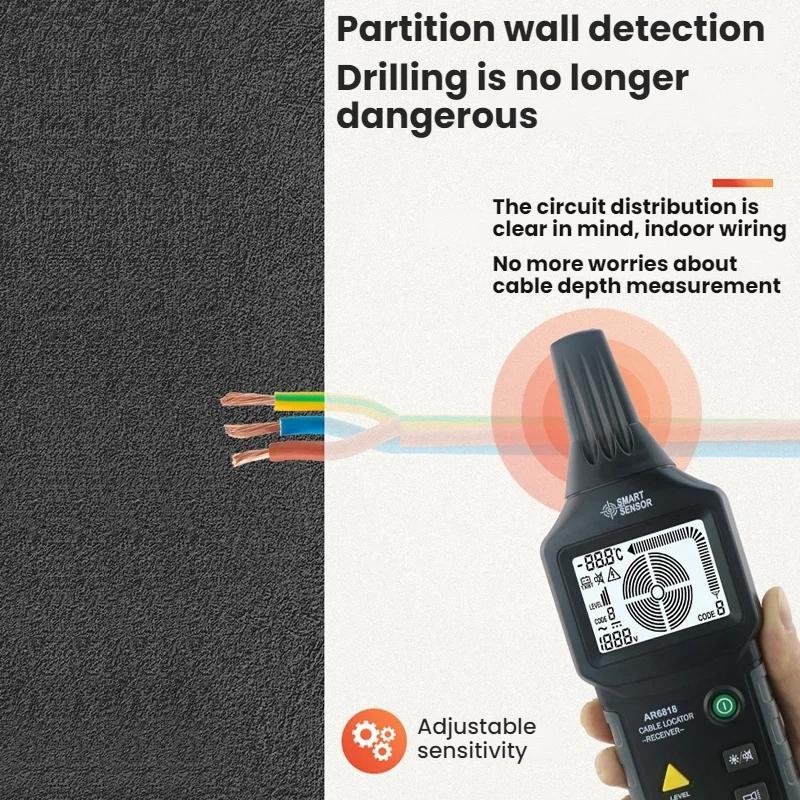

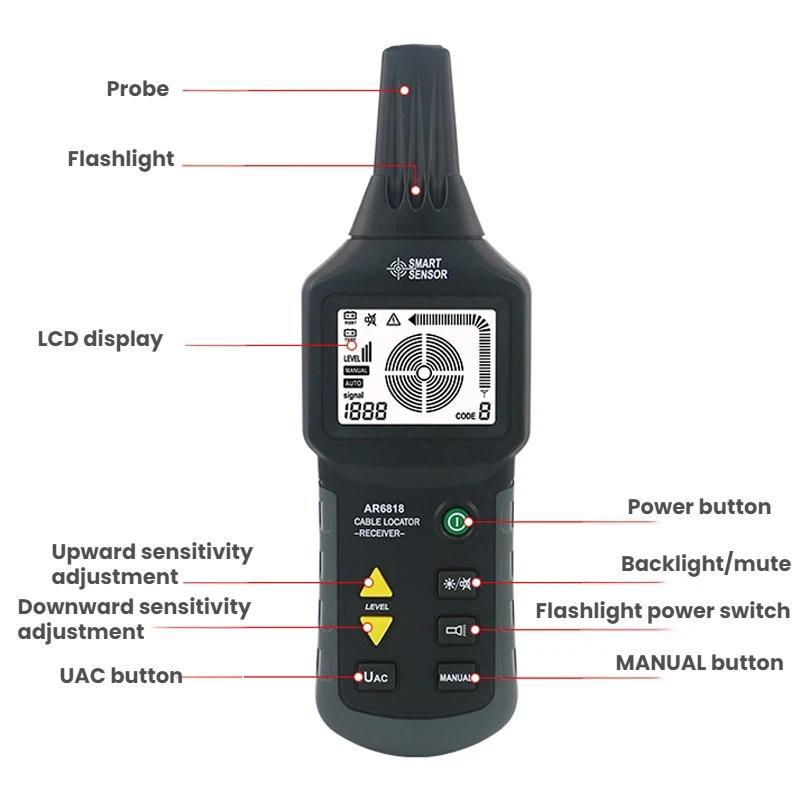

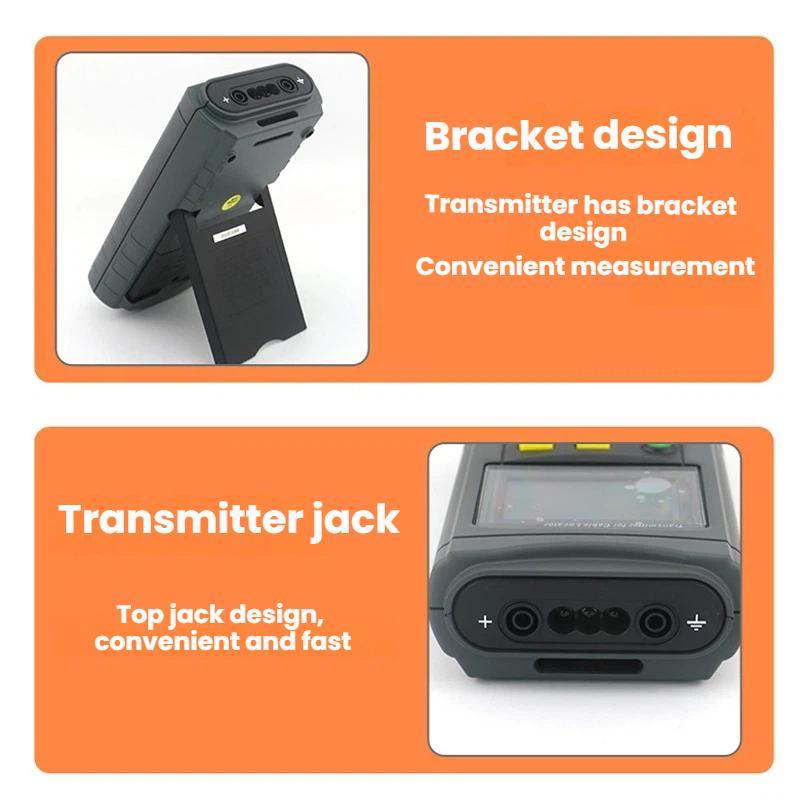

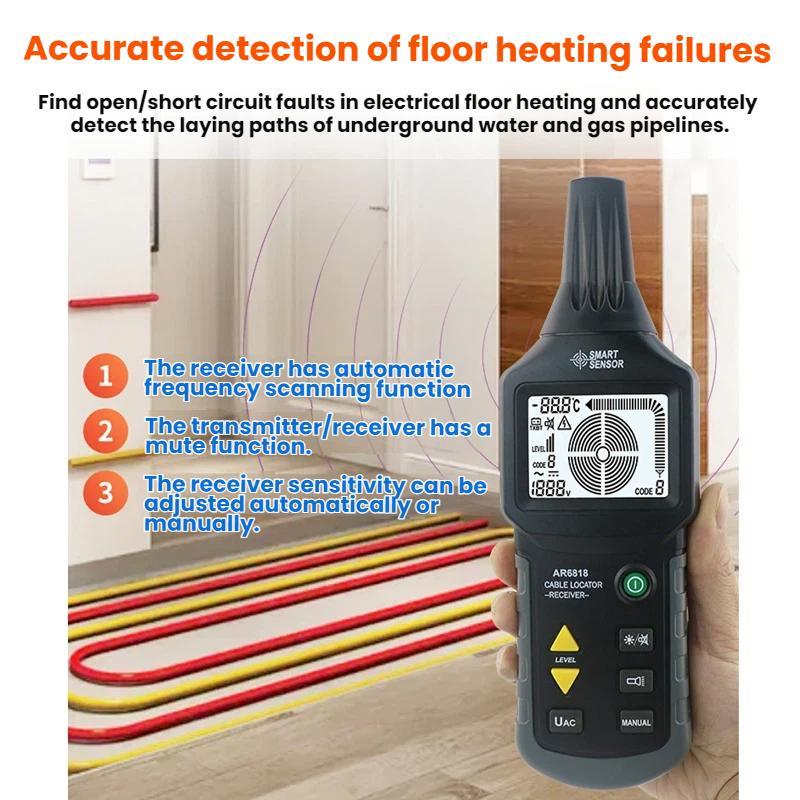

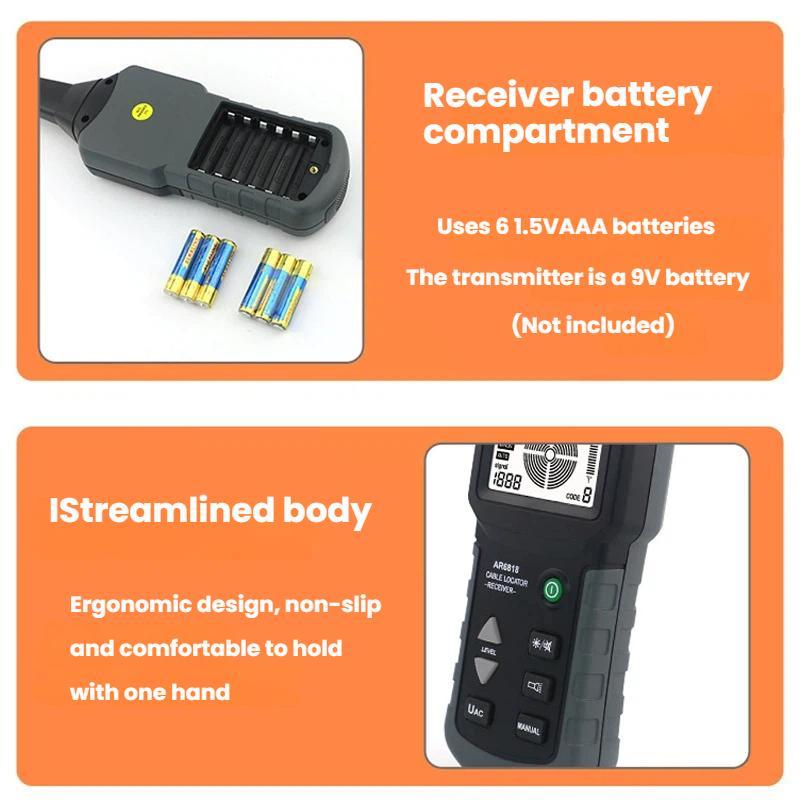

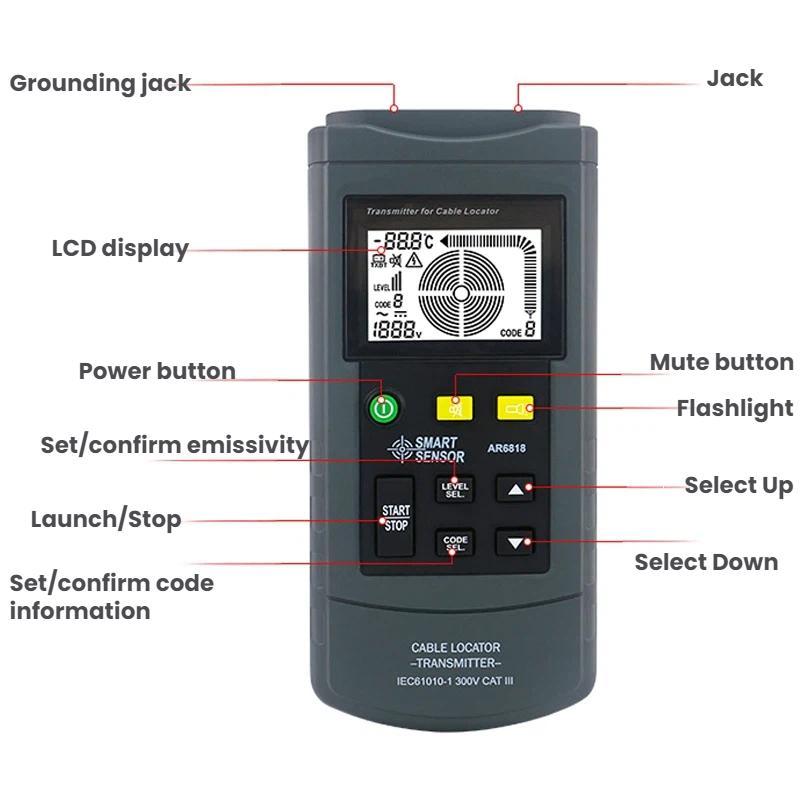

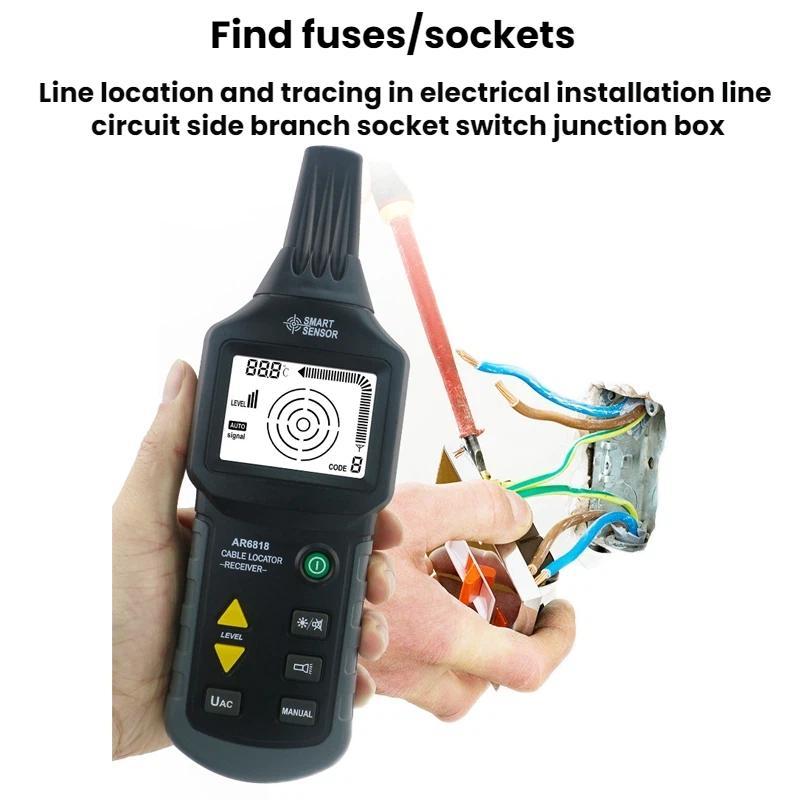

1. Scientifically designed function buttons for easy operation. 2. Streamlined, ergonomically designed body for a comfortable, non-slip grip. 3. The receiver battery compartment accepts six 1.5V AAA batteries; the transmitter accepts 9V batteries (not included). 4. The transmitter has a stand for convenient measurement. 5. Locate fuses/sockets, locate and trace wires in electrical installations, branch outlets, and switch boxes. 6. The receiver LCD has a backlight for easy use in dimly lit environments and supports flashlight illumination. 7. Locate open/short circuits in electric floor heating systems and accurately detect the path of underground water and gas pipelines. 5.1 Transmitter technical parameters: 1. Output signal: 125 kHz 2. External voltage detection range: DC 12-400 V; AC 12-400 V (50-60 Hz): 3. Temperature Measurement Specifications: 2.5°C 4. Display: LCD with function display and bar graph 5. External voltage dielectric strength: 400 V AC/DC 6. Overvoltage category: CAT III 300 V 7. Pollution degree: 2 8. Power supply: 1 x 9V, IEC 6LR61 9. Current (MIN): approximately 31 mA 10. Current (MAX): approximately 115 mA 11. Fuse: F0.5 A 1000 V, 6.3 x 32 mm 12. Altitude (MAX): 2000 m 13. Dimensions: 190 x 89 x 4 mm 14. Weight: approximately 360 g 5.2 Receiver specifications: 1. Tracing depth: depends on the medium and specific application 2. Cable locating mode (monopolar application): approximately 0 to 2 m 3. Cable locating mode (bipolar application): approximately 0 to 0.5 m 4. Cable locating mode (single loop): Up to 2.5 m 5. Grid voltage identification: approximately 0 to 0.4 m 6. Display: LCD with function display and bar graph 7. Power supply: 6 x 1.5 V AAA, IEC LR03 8. Current consumption (minimum): approximately 32 mA 9. Current consumption (maximum): approximately 89 mA 10. Altitude (maximum): 2000 m 11. Dimensions: 24.5 x 78 x 38.5 mm 12. Weight: approximately 280 g

Specifications

SKU

TBD06063736

Category

Computer & Networking › Networking Accessories › Lan Cable and Tools

Weight

1.404 kg

Delivery

Standard delivery
