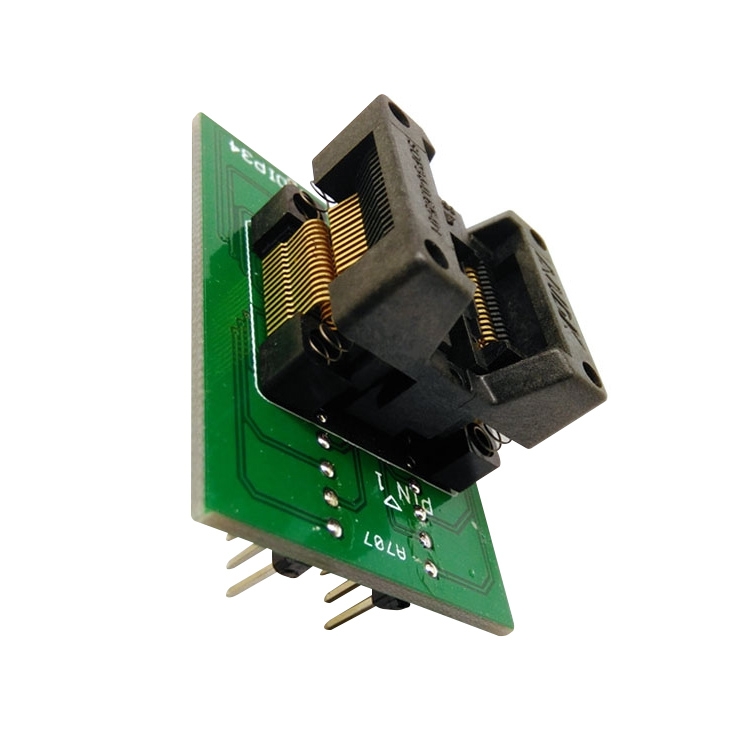

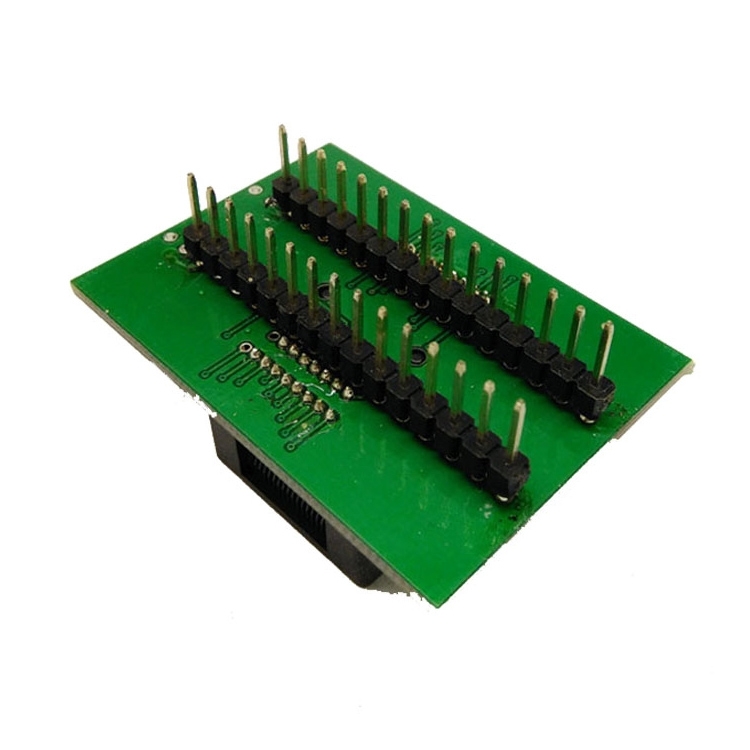

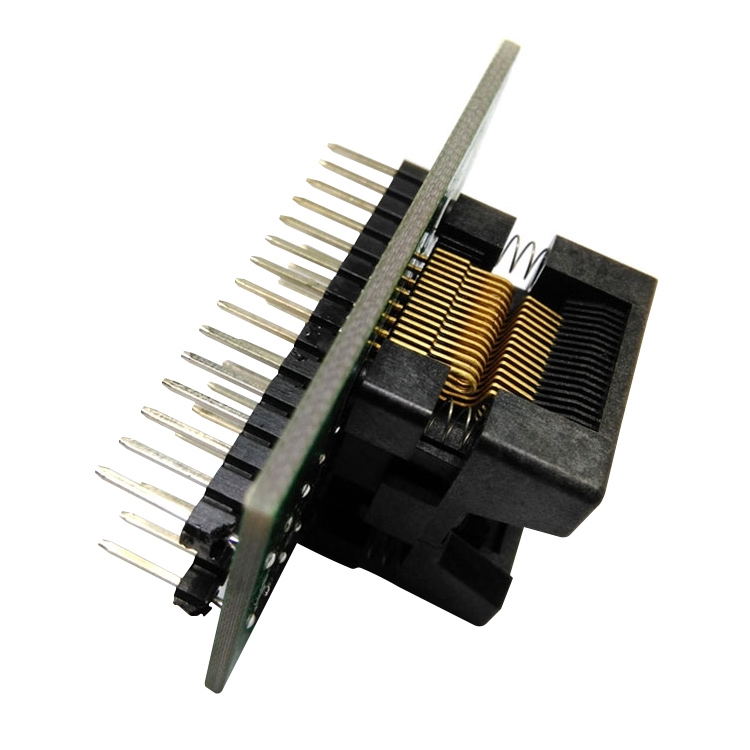

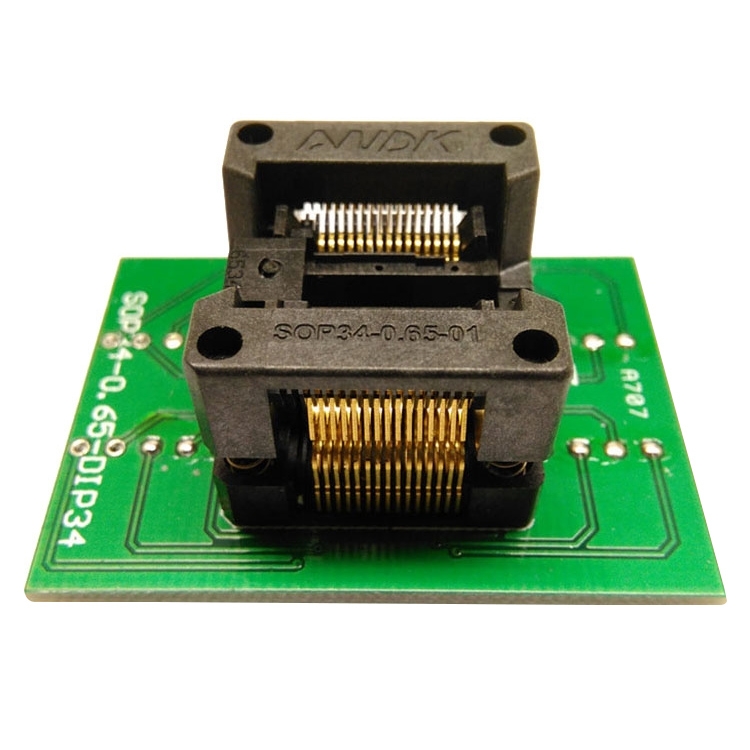

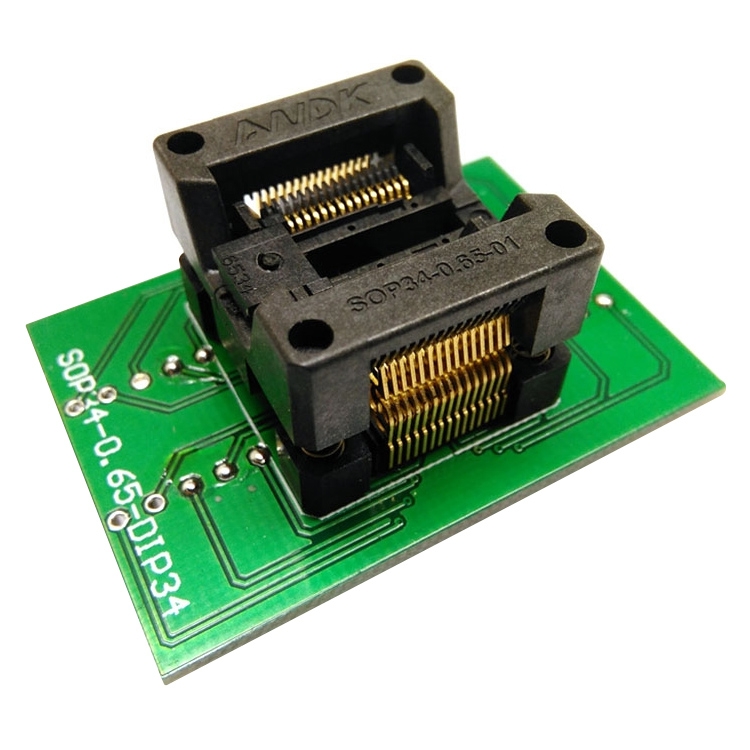

SSOP30 To DIP30 OTS34-0.65-01 Programmer Adapter Socket

Product Description

1. Type: Test Block 2. Working frequency: Low frequency 3. Application: Integrated Circuit IC 4. Contact impedance: Less than 25 milliohms 5. Number of cores: 30 6. Service life: 100,000 times 7. Contact material: Beryllium copper shrapnel 8. Insulator material: PEI, PPS 9. Pin spacing: 0.65mm 10. Working temperature: -65～155 degrees Celsius 11. Adapter chip body width: 10.64x7.8mm Features: 1. Using double contact technology, the contact is more stable 2. The seat shell is made of special engineering plastic, which has high strength and long life. 3. The shrapnel adopts imported beryllium copper material, which has low impedance and good elasticity 4. Thick gold plating layer, thick contact plating, ultra-low contact impedance, high reliability

Specifications

SKU

TBD05546859

Category

Consumer Electronics › Electronics Module › MCU Tools

Weight

0.024 kg

Delivery

Standard delivery
